PARTS LIST
LE1-K5L-0811IP(PL)
K5L
Optical PCB Inspector
Contents
1. Base Section
1-1. Base 1
2. Cover Section
2-1. Top Cover 2
2-2. Door 4
3. Moving-axis Section
3-1. X-axis (A,D TABLE) 6
3-2.
Y-axis (C,B TABLE) 7
4. Controller Section
4-1. Power Control 8
5. Marker Pen Unit Section (Option)
5-1. Marker Pen Unit (Option) 10
6. Laser Head Section (Option)
6-1. Laser Head (Option) 11
7. Operation Box Section (Option)
7-1. Operation Box (Option) 12
8. Vision Head Section
8-1. Vision Head 13
9. PCB Holder Section
9-1. PCB Holder 15
10. Wagon Section (Option)
10-1. Wagon (Option) 17
11. Exterior, etc Section
11-1. Exterior,etc 19
1
1. Base Section

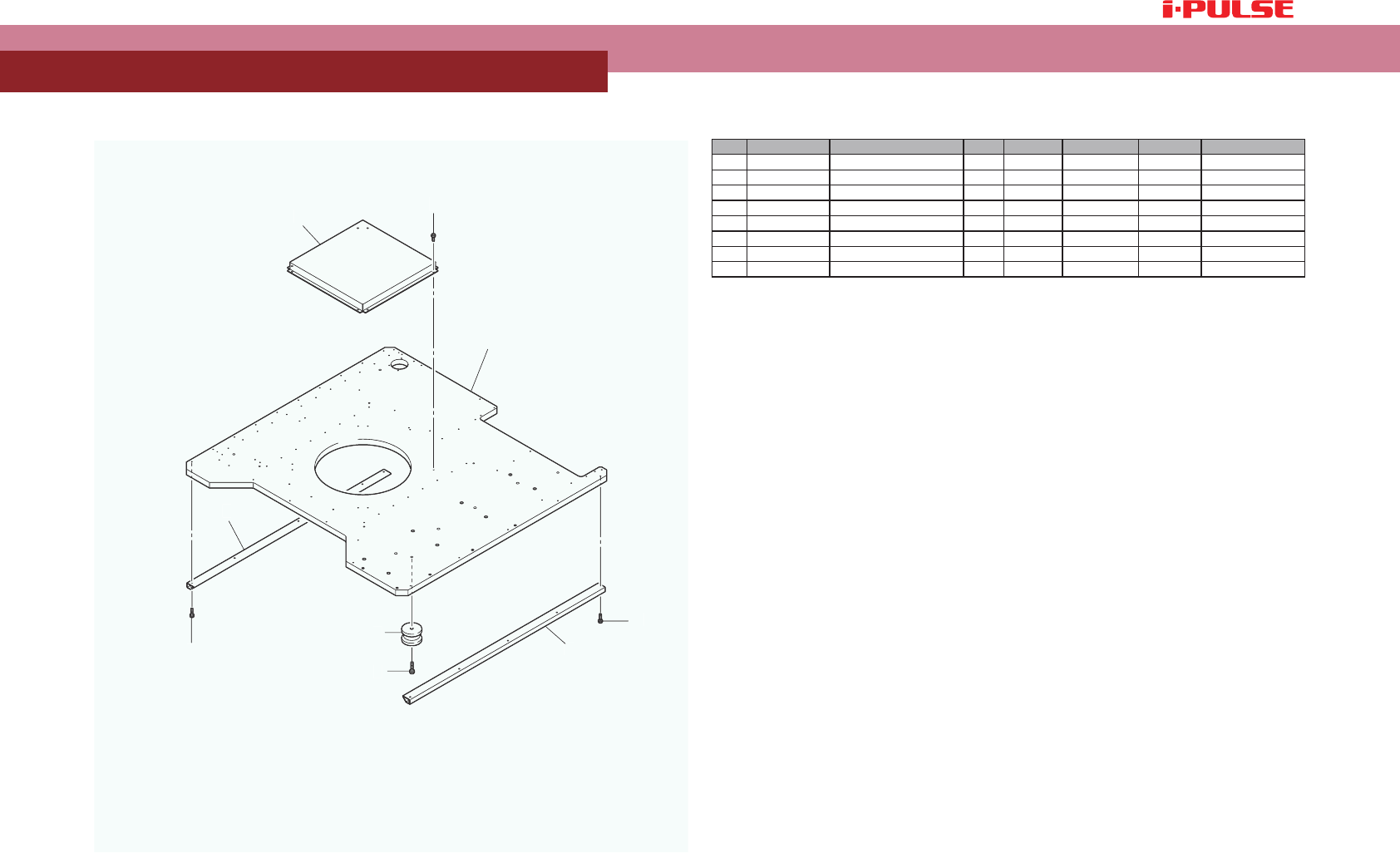

1-1. Base
2
6
1
7
5
8
4
7
3
2
6
1
7
5
8
4
7
3
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M1111-04 PLATE,BASE 1
2 LE1-M1112-01 COVER 1
3 LE1-M1113-02 FOOT 4
4 LE1-M1116-01 PLATE(R) 1
5 LE1-M1117-02 PLATE(L) 1
6 91317-04006 BOLT HEX.SOCKET HEAD 8 M4X6
7 91317-04008 BOLT HEX.SOCKET HEAD 14 M4X8
8 91317-08035 BOLT HEX.SOCKET HEAD 4 M8X35
