PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
Chapter Issue 6 Oct 06 Technical Reference Manual 33.47
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS

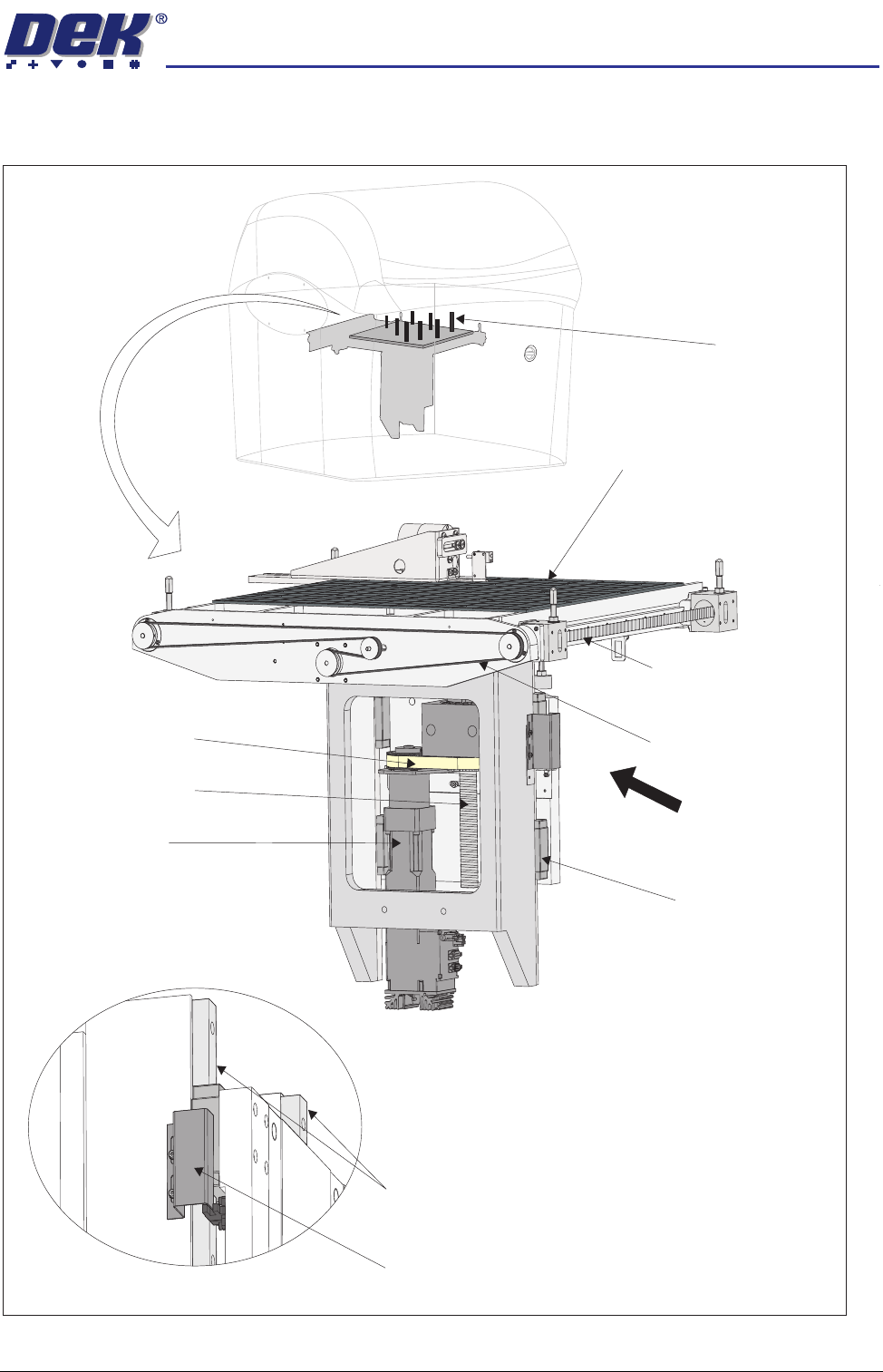

Figure 33-1 Rising Table
A
Tooling (clean)
Manual Tooling Plate (clean)
View on Rear of Rising Table
Transport Rail Drive Belt
Rising Table Drive Belt
Rising Table Ballscrew
Transport Rail Ballscrew
(in 2 positions)
Rising Table Motor
Linear Bearing Block
(in 4 positions)
View on Arrow A
Sensor Vane
Vertical Linear Bearing Guide Rails
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
33.48 Technical Reference Manual Chapter Issue 6 Oct 06

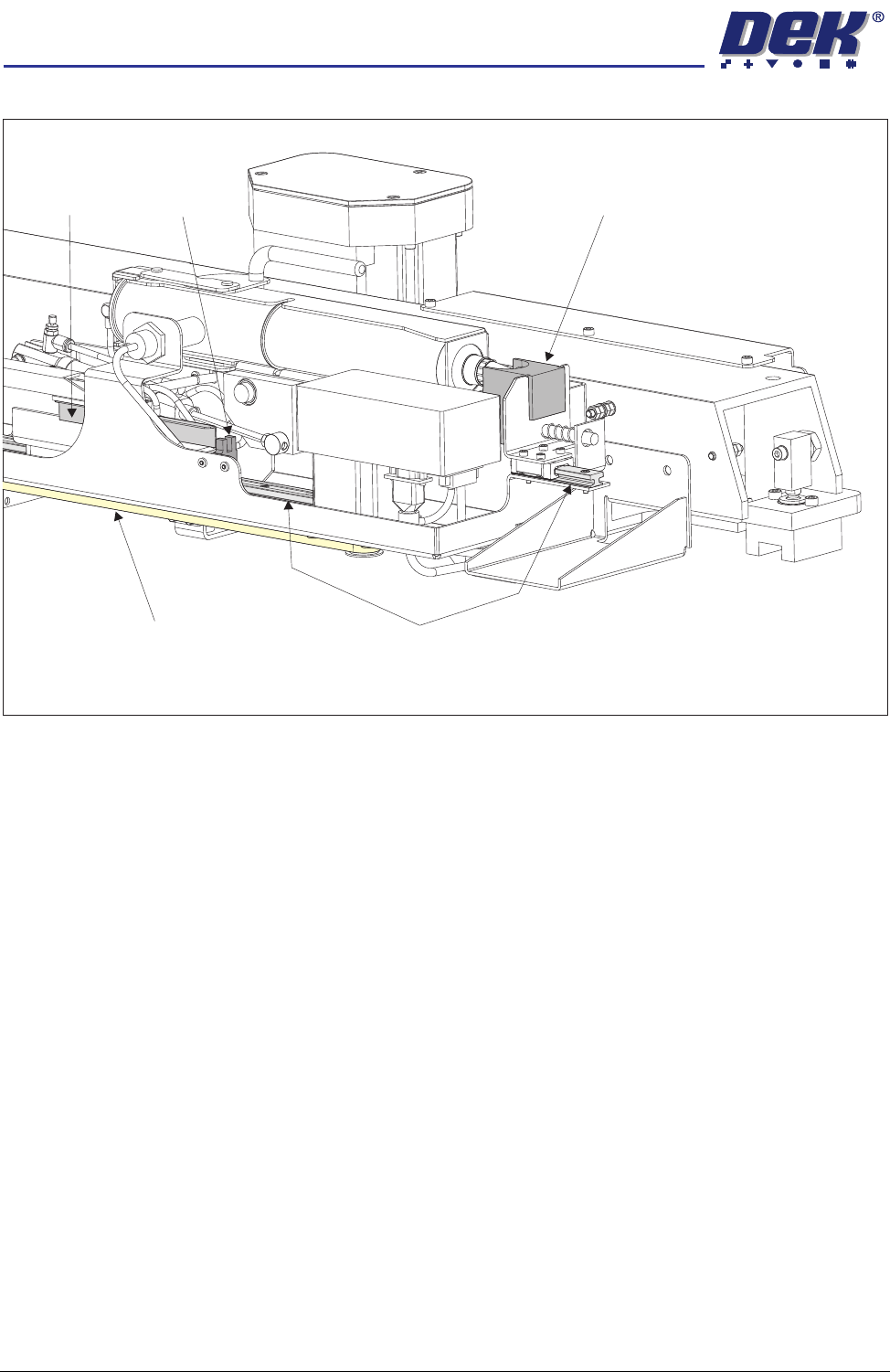

Figure 33-2 Paste Dispenser
View on Rear of Print Carriage
Linear Bearing Guides
Paste Drip Tray
Home Sensor
Home Vane
Paste Dispenser Drive Belt
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
Chapter Issue 6 Oct 06 Technical Reference Manual 33.49

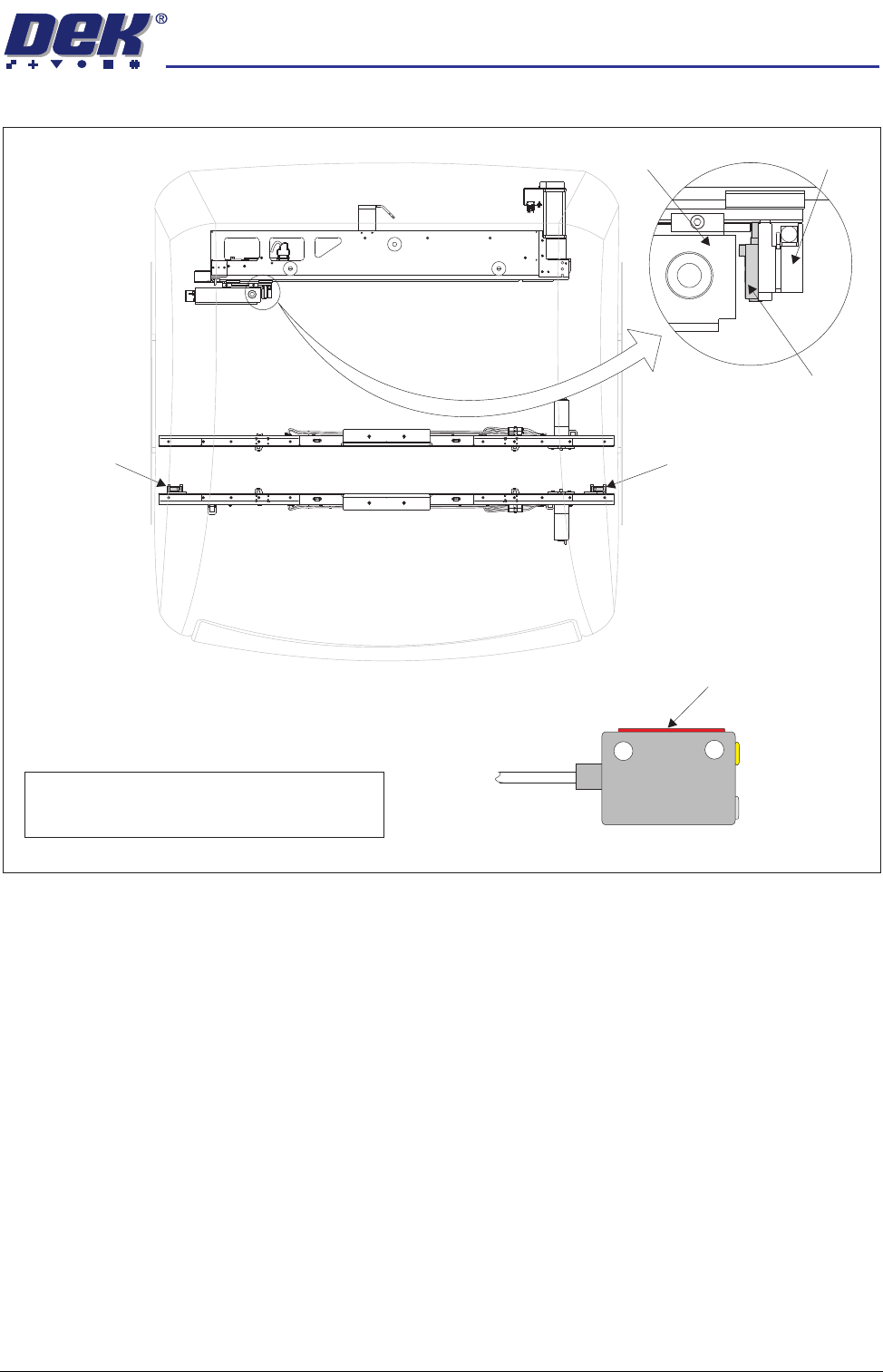

Figure 33-3 Board Opto Locations
Opto Sensor
Area to be cleaned
Board at Right
Diffuse Opto
Board at Left
Diffuse Opto
NOTE
Board at Left and Board at Right Optos look up.
Board at Stop Opto looks down.
Plan View on Machine
Camera Board Stop
Board at Stop
Diffuse Opto
