PREVENTI VE MAINTENA NCE CLEANI NG, LU BRICAT ION AN D MAI NTENANC E DIAG RAMS Chapter Issue 6 Oct 06 Technical Reference Manual 33.61 Figure 33- 15 Underscreen Cleaner View from Lef t Side of Machine Camera Y Linear Bea…
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
33.60 Technical Reference Manual Chapter Issue 6 Oct 06

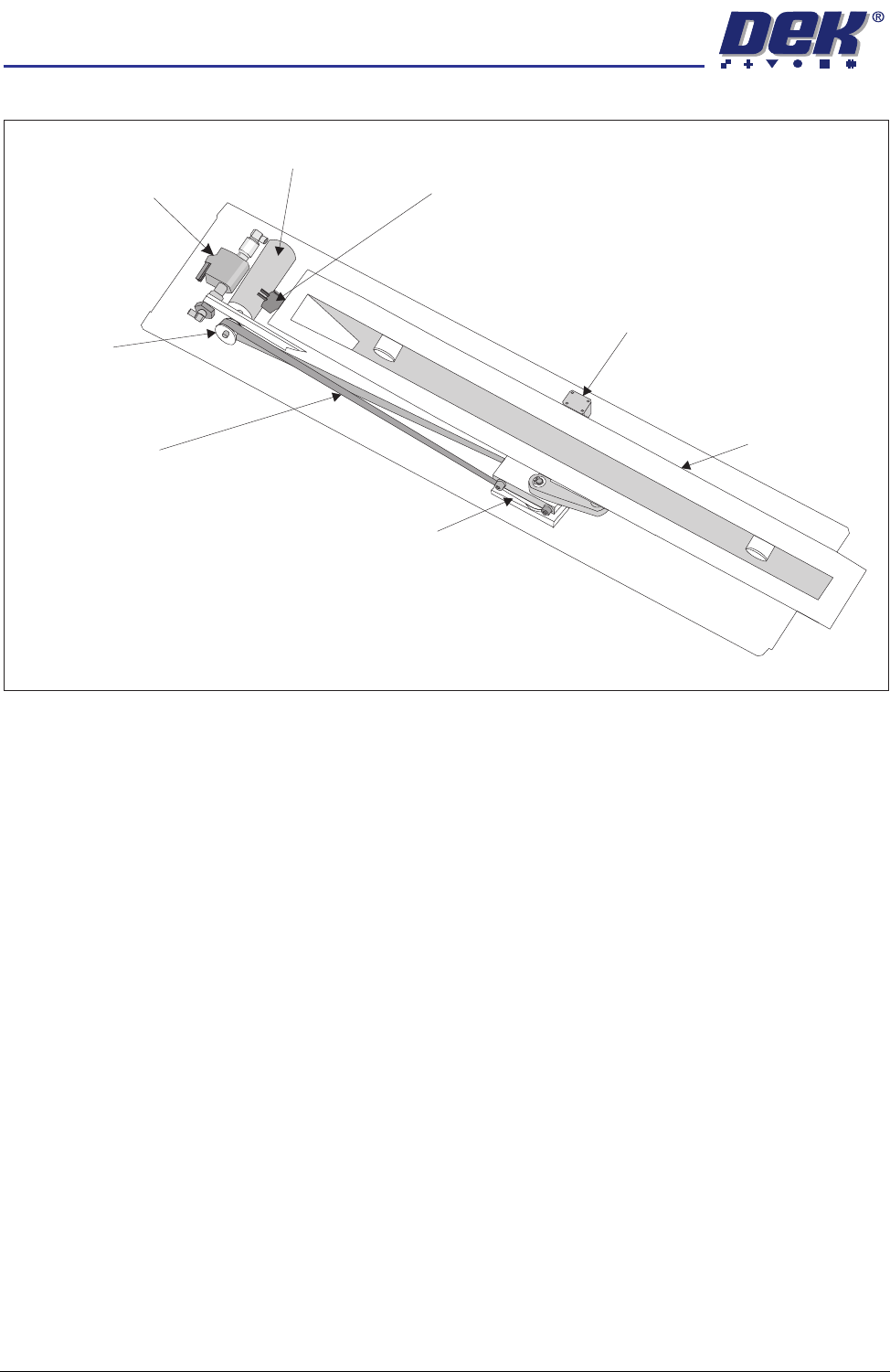

Figure 33-14 Vortex Plus Underscreen Cleaner
Lift Solenoid
Filter Housing
Vortex Plus - Mechanical Detail
(covers removed)
Oscillation Motor
Solvent Pump
Vacuum Pressure Switch
Drive Belt
Drive Pulley
Oscillator Assembly
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
Chapter Issue 6 Oct 06 Technical Reference Manual 33.61
Figure 33-15 Underscreen Cleaner
View from Left Side of Machine
Camera Y Linear
Bearing Guide Rail
(in 2 positions)
USC Linear
Bearing Block
(in 2 positions)
USC Magnet
(in 2 positions)
USC Home Sensor
PREVENTIVE MAINTENANCE
CLEANING, LUBRICATION AND MAINTENANCE DIAGRAMS
33.62 Technical Reference Manual Chapter Issue 6 Oct 06
VF35i Vacuum
Filtration Unit
To replace any of the filters in the Vacuum Filtration Unit, carry out the following:
1. Ensure the machine is switched OFF.
2. Remove the machine front panel.
3. Remove the air duct from the carbon filter unit using a screwdriver or box
spanner to release the securing clip.
4. Release the filter retaining clip to detach the filters from the base unit.
