LED Pairing / Software Version Description Ausgabe 05/2015 Edition
9
5 Brief Description
With SIPLACE Pro LED Pairing it is possible to match LEDs that have different brightness classes
with adjusted series resistors, to achieve homogenous brightness.
As prerequisite for working with SIPLACE Pro LED Pairing, LED matrix files have to be created.
The LED matrix file is a simple text file (*.TXT) that may be created with any text editor. This file
describes the connection between the LED brightness class and the series resistors.
SIPLACE Pro LED Pairing has three views in which the user is guided through the creation of
production data on a job-oriented basis.
1. Import & Assignment
LED matrix files are imported, converted to *.LRX or *.LRX2 files (depending on the
configuration) and then get assigned; each placement list can have a LED matrix file assigned
to it.
2. Programming
Job, recipe and setup templates are generated and optimized, based on previously optimized
reference jobs and the assigned LED matrix file.
3. Production
Available LED brightness classes are selected on the basis of the LED matrix file. Then the
recipes and setups used for production are automatically generated, on the basis of a recipe
template (for recipe changeover) or a real recipe (for new definition after change to another
LED brightness class).

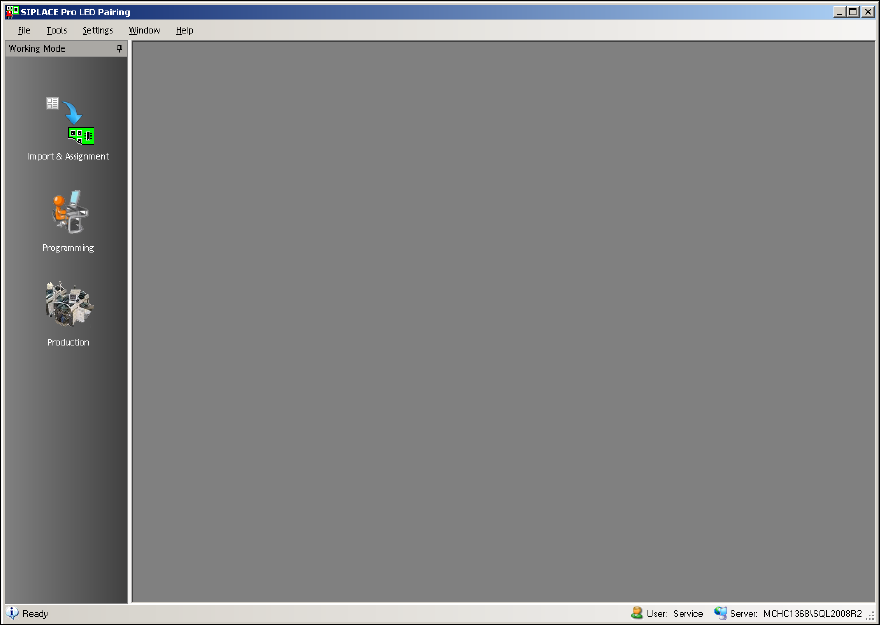

The following window displays the main view of SIPLACE Pro LED Pairing.
Figure 5-1: SIPLACE LED Pairing – Main view
LED Pairing / Software Version Description Ausgabe 05/2015 Edition
10
NOTICE
Further Information
Detailed information about the user interface and work flows can be found in the User
Guide and Online Help for SIPLACE LED Pairing.
The brightness class is displayed in the Setup-Editor in SIPLACE Pro Desk.
In SIPLACE Setup Center, the barcode labels for LEDs have to be extended by the barcode
fragment Brightness Class. Additionally to the component name, SIPLACE Setup Center also
checks the brightness class for LEDs during the setup verification.
Detailed information can be found in the User Guides or Online Helps for SIPLACE Pro and
SIPLACE Setup Center.
LED Pairing / Software Version Description Ausgabe 05/2015 Edition
11
6 New Features in SIPLACE LED Pairing
6.1 Wildcard Character '*' as Reference Designator
The '*' wildcard character can be used as reference designator in the LED matrix file.
6.2 Creating a Partial Setup
Multiple recipes can be selected in the Production view, whereupon SIPLACE LED Pairing
generates one download recipe for each selected recipe. If the selected recipes have the same
recipe template, SIPLACE LED Pairing will create one common setup for the download recipes.
Optionally, a partial setup may be created out of it via a new button. All components that are not
required in the download recipes will then be removed from the setup together with their feeders.
6.3 Transferring Changes to Original Placement Lists
SIPLACE LED Pairing creates copies of the placement lists. If errors are detected in the data
during placement, the user usually corrects them only in the copy.
In order to transfer such changes controlled to the original placement lists, it is now possible to start
the Difference Editor in SIPLACE LED Pairing via a new button in the Production view.
The relevant placement lists are displayed for comparison and the correction can be performed in
the Difference Editor.
