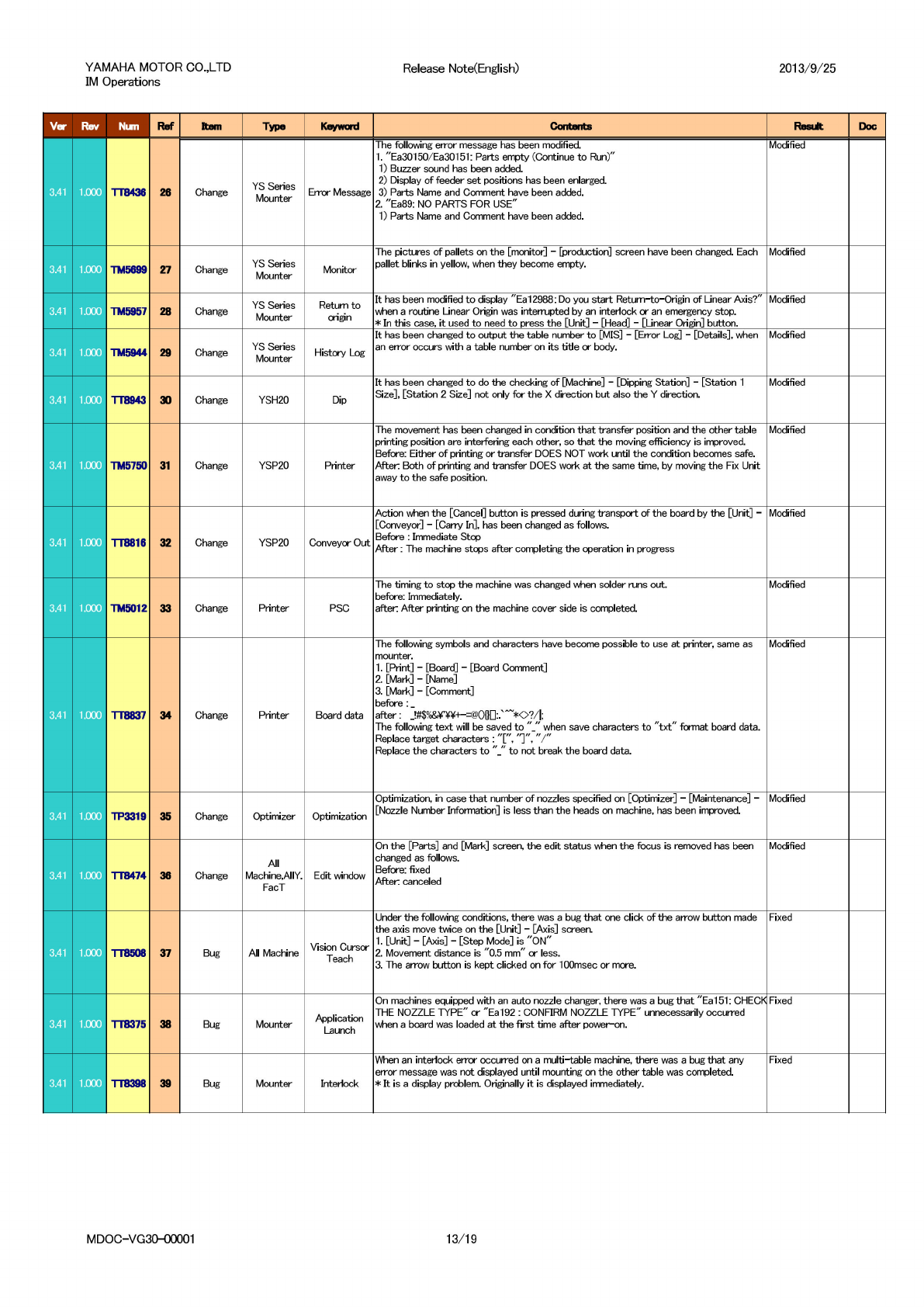

YAMAHA MOTOR CO., LTD IM Operations Release Note(English) 2013/9/25 Ver Rev Num Ref Item Type Keyword Contents Result Doc 3.41 1.000 TTB340 40 Bug Mounter Co planarity When [Parts] - [PartsAcjj] - [Test] was executed und…

100%1 / 19
YAMAHA
MOTOR
CO.,
LTD
IM
Operations
Release
Note(English)
2013/9/25
Ver
Rev
Num
Ref
Item
Type
Keyword
Contents
Result
Doc
3.41
1.000
TTM36
26
Change
YS
Series
Mounter
Error
Message
The
following
error
message
has
been
modified.
1.
"Ea30150/Ea30151:
Parts
empty
(Continue
to
Run)"
1)
Buzzer
sound
has
been
added.
2)
Display
of
feeder
set
positions
has
been
enlarged.
3)
Parts
Name
and
Comment
have
been
added.
2.
"Ea89:
NO
PARTS
FOR
USE"
1)
Parts
Name
and
Comment
have
been
added.
Modified
3.41
1.000
TM5699
27
Change
YS
Series
Mounter
Monitor
The
pictures
of
pallets
on
the
[monitor]
-
[production]
screen
have
been
changed.
Each
pallet
blinks
in
yellow,
when
they
become
empty.
Modified
3.41
1.000
7M5957
28
Change
YS
Series
Mounter
Return
to
origin
It
has
been
modified
to
display
"Ea
12988:
Do
you
start
Retum-to-Origin
of
Linear
Axis?"
when
a
routine
Linear
Origin
was
interrupted
by
an
interlock
or
an
emergency
stop.
*
In
this
case,
it
used
to
need
to
press
the
[Unit]
-
[Head]
-
[Linear
Origin]
button.
Modified
3.41
1.000
7M5944
29
Change
YS
Series
Mounter
History
Log
It
has
been
changed
to
output
the
table
number
to
[MIS]
-
[Error
Log]
-
[Details],
when
an
error
occurs
with
a
table
number
on
its
title
or
body.
Modified
3.41
1.000
TTB943
30
Change
YSH20
Dip
It
has
been
changed
to
do
the
checking
of
[Machine]
-
[Dipping
Station]
-
[Station
1
Size],
[Station
2
Size]
not
only
for
the
X
direction
but
also
the
Y
direction.
Modified
3.41
1.000
TM5750
31
Change
YSP20
Printer
The
movement
has
been
changed
in
condition
that
transfer
position
and
the
other
table
printing
position
are
interfering
each
other,
so
that
the
moving
efficiency
is
improved.
Before:
Either
of
printing
or
transfer
DOES
NOT
work
until
the
condition
becomes
safe.
After
Both
of
printing
and
transfer
DOES
work
at
the
same
time,
by
moving
the
Fix
Unit
away
to
the
safe
pedion.
Modified
3.41
1.000
TT8816
32
Change
YSP20
Conveyor
Out
Action
when
the
[Cancel]
button
is
pressed
during
transport
of
the
board
by
the
[Unit]
-
[Conveyor]
-
[Carry
In],
has
been
changed
as
follows.
Before
:
Immediate
Stop
After
:
The
machine
stops
after
completing
the
operation
in
progress
Modified
3.41
1.000
E5012
33
Change
Printer
PSC
The
timing
to
stop
the
machine
was
changed
when
solder
runs
out.
before:
Immediately.
after
After
printing
on
the
machine
cover
side
is
completed.
Modified
3.41
1.000
TT8837
34
Change
Printer
Board
data
The
following
symbols
and
characters
have
become
possible
to
use
at
printer,
same
as
mounter.
1.
[Print]
-
[Board]
-
[Board
Comment]
2.
[Mark]
-
[Name]
3.
[Mark]
-
[Comment]
before
:
_
after:
_!#$%&¥,¥¥-F-3g)0flD：.'"*<>?/|；
The
following
text
will
be
saved
to
"一"
when
save
characters
to
"txt"
format
board
data.
Replace
target
characters
:",
，丁,
"/"
Replace
the
characters
to
to
not
break
the
board
data.
Modified
3.41
1.000
TP3319
35
Change
Optimizer
Optimization
Optimization,
in
case
that
number
of
nozzles
specified
on
[Optimizer]
-
[Maintenance]
-
[Nozzle
Number
Information]
is
less
than
the
heads
on
machine,
has
been
improved.
Modified
3.41
1.000
TT8474
36
Change
All
Machine,
AIIY.
FacT
Edit
window
On
the
[Parts]
and
[Mark]
screen,
the
edit
status
when
the
focus
is
removed
has
been
changed
as
follows.
Before:
fixed
After
canceled
Modified
3.41
1.000
TT8508
37
Bug
All
Machine
Vision
Cursor
Teach
Under
the
following
conditions,
there
was
a
bug
that
one
click
of
the
arrow
button
made
the
axis
move
twice
on
the
[Unit]
-
[Axis]
screen.
1.
[Unit]
-
[Axis]
-
[Step
Mode]
is
"ON"
2.
Movement
distance
is
"0.5
mm"
or
less.
3.
The
arrow
button
is
kept
clicked
on
for
100msec
or
more.
Fixed
3.41
1.000
TTB375
38
Bug
Mounter
Application
Launch
On
machines
equipped
with
an
auto
nozzle
changer,
there
was
a
bug
that
"Ea151:
CHECK
THE
NOZZLE
TYPE"
or
"Ea192
:
CONFIRM
NOZZLE
TYPE"
unnecessarily
occurred
when
a
board
was
loaded
at
the
first
time
after
power-on.
Fixed
3.41
1.000
TTB398
39
Bug
Mounter
Interlock
When
an
interlock
error
occurred
on
a
multi-table
machine,
there
was
a
bug
that
any
error
message
was
not
displayed
until
mounting
on
the
other
table
was
completed.
*
It
is
a
display
problem.
Originally
it
is
displayed
immediately.
Fixed
MDOC-VG30-00001
13/19
YAMAHA
MOTOR
CO.,
LTD
IM
Operations
Release
Note(English)
2013/9/25
Ver
Rev
Num
Ref
Item
Type
Keyword
Contents
Result
Doc

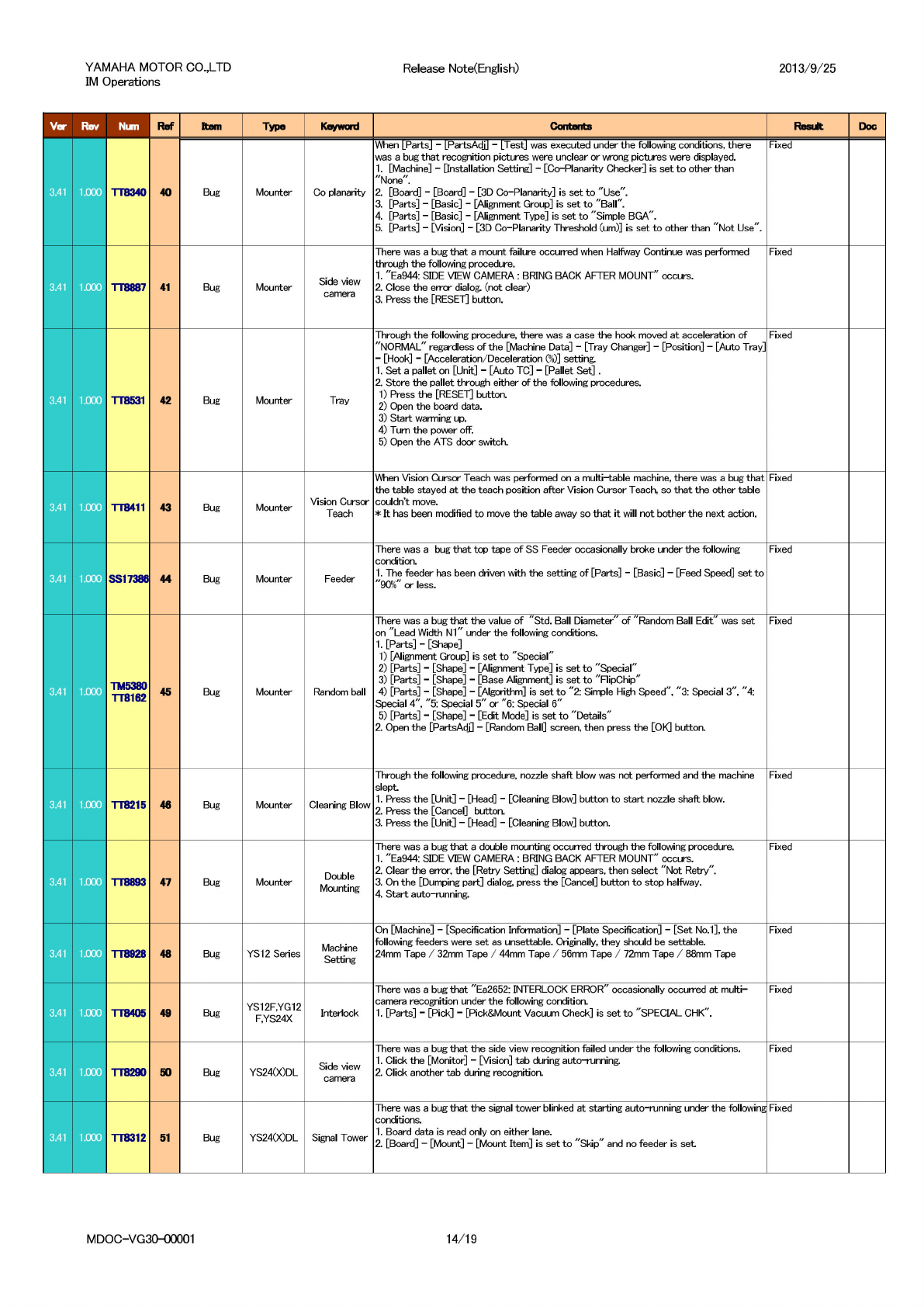

3.41
1.000
TTB340
40
Bug
Mounter
Co
planarity
When
[Parts]
-
[PartsAcjj]
-
[Test]
was
executed
under
the
following
conditions,
there
was
a
bug
that
recognition
pictures
were
unclear
or
wrong
pictures
were
displayed.
1.
[Machine]
-
[Installation
Setting]
-
[Co-Planarity
Checker]
is
set
to
other
than
"None".
2.
[Board]
-
[Board]
-
[3D
Co-Planarity]
is
set
to
"Use".
3.
[Parts]
-
[Basic]
-
[Alignment
Group]
is
set
to
"Ball".
4.
[Parts]
-
[Basic]
-
[Alignment
Type]
is
set
to
"Simple
BGA".
5.
[Parts]
一
[Vision]
-
[3D
Co-Planarity
Threshold
(um)]
is
set
to
other
than
"Not
Use".
Fixed
3.41
1.000
TT8887
41
Bug
Mounter
Side
view
camera
There
was
a
bug
that
a
mount
failure
occurred
when
Halfway
Continue
was
performed
through
the
following
procedure.
1.
"Ea944:
SIDE
VIEW
CAMERA
:
BRING
BACK
AFTER
MOUNT"
occurs.
2.
Close
the
error
dialog,
(not
clear)
3.
Press
the
[RESET]
button.
Fixed
3.41
1.000
TTB531
42
Bug
Mounter
Tray
Through
the
following
procedure,
there
was
a
case
the
hook
moved
at
acceleration
of
"NORMAL"
regardless
of
the
[Machine
Data]
-
[Tray
Changer]
-
[Position]
-
[Auto
Tray]
-
[Hook]
-
[Acceleration/Deceleration
(%)]
setting.
1.
Set
a
pallet
on
[Unit]
-
[Auto
TC]
-
[Pallet
Set]
.
2.
Store
the
pallet
through
either
of
the
following
procedures.
1)
Press
the
[RESET]
button.
2)
Open
the
board
data.
3)
Start
warming
up.
4)
Tum
the
power
off.
5)
Open
the
ATS
door
switch.
Fixed
3.41
1.000
TT8411
43
Bug
Mounter
Vision
Cursor
Teach
When
Vision
Cursor
Teach
was
performed
on
a
multi-table
machine,
there
was
a
bug
that
the
table
stayed
at
the
teach
position
after
Vision
Cursor
Teach,
so
that
the
other
table
couldn't
move.
*
It
has
been
modified
to
move
the
table
away
so
that
it
will
not
bother
the
next
action.
Fixed
3.41
1.000
SSI
7386
44
Bug
Mounter
Feeder
There
was
a
bug
that
top
tape
of
SS
Feeder
occasionally
broke
under
the
following
condition.
1.
The
feeder
has
been
driven
w
祀
h
the
setting
of
[Parts]
-
[Basic]
-
[Feed
Speed]
set
to
"90%"
or
less.
Fixed
3.41
1.000
TT8162
45
Bug
Mounter
Random
ball
There
was
a
bug
that
the
value
of
"Std.
Ball
Diameter"
of
"Random
Ball
Edit"
was
set
on
"Lead
Width
N1"
under
the
following
conditions.
1.
[Parts]
-
[Shape]
1)
[Alignment
Group]
is
set
to
"Special"
2)
[Parts]
-
[Shape]
-
[Alignment
Type]
is
set
to
"Special"
3)
[Parts]
-
[Shape]
-
[Base
Alignment]
is
set
to
"FlipChip"
4)
[Parts]
-
[Shape]
-
[Algorithm]
is
set
to
"2:
Simple
High
Speed",
"3:
Special
3",
"4:
Special
4",
"5:
Special
5"
or
"6:
Special
6"
5)
[Parts]
-
[Shape]
-
[Edit
Mode]
is
set
to
"Details"
2.
Open
the
[PartsAdj]
-
[Random
Ball]
screen,
then
press
the
[OK]
button.
Fixed
3.41
1.000
TT8215
46
Bug
Mounter
Cleaning
Blow
Through
the
following
procedure,
nozzle
shaft
blow
was
not
performed
and
the
machine
slept
1.
Press
the
[Unit]
-
[Head]
-
[Cleaning
Blow]
button
to
start
nozzle
shaft
blow.
2.
Press
the
[Cancel]
button.
3.
Press
the
[Unit]
-
[Head]
-
[Cleaning
Blow]
button.
Fixed
3.41
1.000
TTB893
47
Bug
Mounter
Double
Mounting
There
was
a
bug
that
a
double
mounting
occurred
through
the
following
procedure.
1.
"Ea944:
SIDE
VIEW
CAMERA
:
BRING
BACK
AFTER
MOUNT"
occurs.
2.
Clear
the
error,
the
[Retry
Setting]
dialog
appears,
then
select
"Not
Retry".
3.
On
the
[Dumping
part]
dialog,
press
the
[Cancel]
button
to
stop
halfway.
4.
Start
auto-running.
Fixed
3.41
1.000
TTB928
48
Bug
YS12
Series
Machine
Setting
On
[Machine]
-
[Specification
Information]
-
[Plate
Specification]
-
[Set
No.1],
the
following
feeders
were
set
as
unsettable.
Originally,
they
should
be
settable.
24mm
Tape
/
32mm
Tape
/
44mm
Tape
/
56mm
Tape
/
72mm
Tape
/
88mm
Tape
Fixed
3.41
1.000
TTM05
49
Bug
YS12F,YG12
F,YS24X
Interlock
There
was
a
bug
that
"Ea2652:
INTERLOCK
ERROR"
occasionally
occurred
at
multi¬
camera
recognition
under
the
following
condition.
1.
[Parts]
-
[Pick]
-
[Pick&Mount
Vacuum
Check]
is
set
to
"SPECIAL
CHK".
Fixed
3.41
1.000
TT8290
50
Bug
YS24(X)DL
Side
view
camera
There
was
a
bug
that
the
side
view
recognition
failed
under
the
following
conditions.
1.
Click
the
[Monitor]
-
[Vision]
tab
during
auto-running.
2.
Click
another
tab
during
recognition.
Fixed
3.41
1.000
TTB312
51
Bug
YS24(X)DL
Signal
Tower
There
was
a
bug
that
the
signal
tower
blinked
at
starting
auto-running
under
the
following
conditions.
1.
Board
data
is
read
only
on
e
祀
her
lane.
2.
[Board]
-
[Mount]
-
[Mount
Item]
is
set
to
"Skip"
and
no
feeder
is
set
Fixed

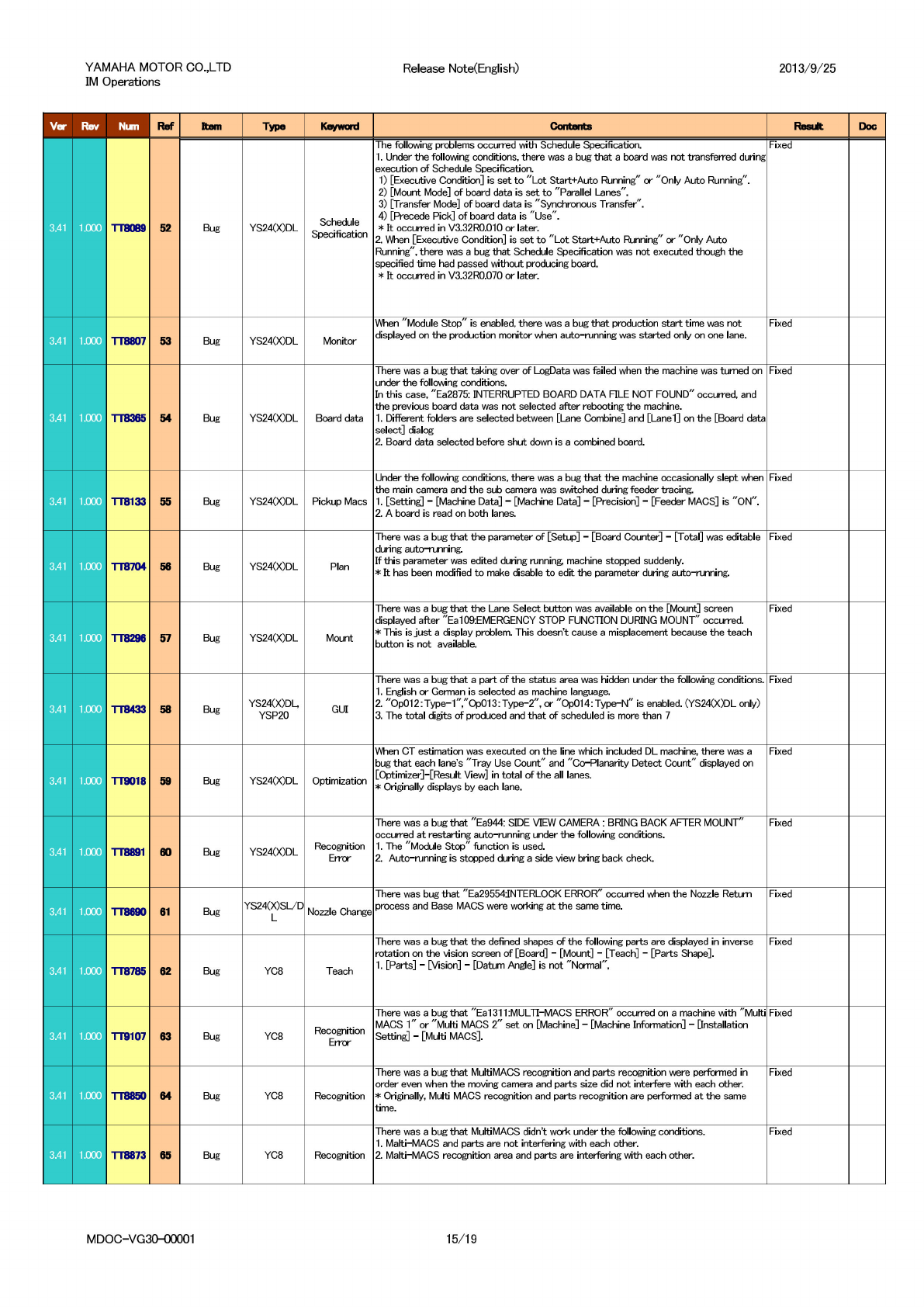

MDOC-VG30-00001
14/19
YAMAHA
MOTOR
CO.,
LTD
IM
Operations
Release
Note(English)
2013/9/25
Ver
Rev
Num
Ref
Item
Type
Keyword
Contents
Result
Doc
3.41
1.000
TT80B9
52
Bug
YS24(X)DL
Schedule
Specification
The
following
problems
occurred
with
Schedule
Specification.
1.
Under
the
following
conditions,
there
was
a
bug
that
a
board
was
not
transferred
during
execution
of
Schedule
Specification.
1)
[Executive
Condition]
is
set
to
"Lot
Start+Auto
Running"
or
"Only
Auto
Running".
2)
[Mount
Mode]
of
board
data
is
set
to
"Parallel
Lanes".
3)
[Transfer
Mode]
of
board
data
is
"Synchronous
Transfer".
4)
[Precede
Pick]
of
board
data
is
"Use".
*
It
occurred
in
V3.32R0.010
or
later.
2.
When
[Executive
Condition]
is
set
to
"Lot
Start+Auto
Running"
or
"Only
Auto
Running",
there
was
a
bug
that
Schedule
Specification
was
not
executed
though
the
specified
time
had
passed
without
producing
board.
*
It
occurred
in
V3.32R0.070
or
later.
Fixed
3.41
1.000
TT8807
53
Bug
YS24(X)DL
Monitor
When
"Module
Stop"
is
enabled,
there
was
a
bug
that
production
start
time
was
not
displayed
on
the
production
monitor
when
auto-running
was
started
only
on
one
lane.
Fixed
3.41
1.000
TT8365
54
Bug
YS24(X)DL
Board
data
There
was
a
bug
that
taking
over
of
LogData
was
failed
when
the
machine
was
turned
on
under
the
following
conditions.
In
this
case,
"Ea2875:
INTERRUPTED
BOARD
DATA
FILE
NOT
FOUND"
occurred,
and
the
previous
board
data
was
not
selected
after
rebooting
the
machine.
1.
Different
folders
are
selected
between
[Lane
Combine]
and
[Lanel]
on
the
[Board
data
select]
dialog
2.
Board
data
selected
before
shut
down
is
a
combined
board.
Fixed
3.41
1.000
TTB133
55
Bug
YS24(X)DL
Pickup
Macs
Under
the
following
conditions,
there
was
a
bug
that
the
machine
occasionally
slept
when
the
main
camera
and
the
sub
camera
was
switched
during
feeder
tracing.
1.
[Setting]
-
[Machine
Data]
-
[Machine
Data]
-
[Precision]
-
[Feeder
MACS]
is
"ON".
2.
A
board
is
read
on
both
lanes.
Fixed
3.41
1.000
TT8704
56
Bug
YS24(X)DL
Plan
There
was
a
bug
that
the
parameter
of
[Setup]
-
[Board
Counter]
-
[Total]
was
editable
during
auto-running.
If
this
parameter
was
edited
during
running,
machine
stopped
suddenly.
*
It
has
been
modified
to
make
disable
to
edit
the
parameter
during
auto-running.
Fixed
3.41
1.000
TTB296
57
Bug
YS24(X)DL
Mount
There
was
a
bug
that
the
Lane
Select
button
was
available
on
the
[Mount]
screen
displayed
after
"Ea109:EMERGENCY
STOP
FUNCTION
DURING
MOUNT"
occurred.
*
This
is
just
a
display
problem.
This
doesn't
cause
a
misplacement
because
the
teach
button
is
not
available.
Fixed
3.41
1.000
TT8433
58
Bug
YS24(X)DI_
YSP20
GUI
There
was
a
bug
that
a
part
of
the
status
area
was
hidden
under
the
following
8nd
祀
ions.
1.
English
or
German
is
selected
as
machine
language.
2.
"Op012:Type-1","Op013:
Type-2",
or
"Op014:Type-N"
is
enabled.
(YS24(X)DL
only)
3.
The
total
digits
of
produced
and
that
of
scheduled
is
more
than
7
Fixed
3.41
1.000
TT9018
59
Bug
YS24(X)DL
Optimization
When
CT
estimation
was
executed
on
the
line
which
included
DL
machine,
there
was
a
bug
that
each
lane's
"Tray
Use
Count"
and
"Co-Planarity
Detect
Count"
displayed
on
[Optimizer]-[Result
View]
in
total
of
the
all
lanes.
*
Originally
displays
by
each
lane.
Fixed
3.41
1.000
TTB891
60
Bug
YS24(X)DL
Recognition
Error
There
was
a
bug
that
"Ea944:
SIDE
VIEW
CAMERA
:
BRING
BACK
AFTER
MOUNT"
occurred
at
restarting
auto-running
under
the
following
conditions.
1.
The
"Module
Stop"
function
is
used.
2.
Auto-running
is
stopped
during
a
side
view
bring
back
check.
Fixed
3.41
1.000
TTB690
61
Bug
YS24(X)SL/D
L
Nozzle
Change
There
was
bug
that
//Ea29554:INTERLOCK
ERROR"
occurred
when
the
Nozzle
Return
process
and
Base
MACS
were
working
at
the
same
time.
Fixed
3.41
1.000
TTB785
62
Bug
YC8
Teach
There
was
a
bug
that
the
defined
shapes
of
the
following
parts
are
displayed
in
inverse
rotation
on
the
vision
screen
of
[Board]
-
[Mount]
-
[Teach]
-
[Parts
Shape].
1.
[Parts]
-
[Vision]
-
[Datum
Angle]
is
not
"Normal",
Fixed
3.41
1.000
TT9107
63
Bug
YC8
Recognition
Error
There
was
a
bug
that
，
zEa1
31
1
:MULTI-MACS
ERROR"
occurred
on
a
machine
with
"Multi
MACS
1
"
or
"Multi
MACS
2"
set
on
[Machine]
-
[Machine
Information]
-
[Installation
Setting]
-
[Multi
MACS].
Fixed
3.41
1.000
TTB850
64
Bug
YC8
Recognition
There
was
a
bug
that
MultiMACS
recognition
and
parts
recognition
were
performed
in
order
even
when
the
moving
camera
and
parts
size
did
not
interfere
w
祀
h
each
other.
*
Originally,
Multi
MACS
re8gn
祀
ion
and
parts
recognition
are
performed
at
the
same
time.
Fixed
3.41
1.000
TT8873
65
Bug
YC8
Recognition
There
was
a
bug
that
MultiMACS
didn't
work
under
the
following
conditions.
1.
Malti-MACS
and
parts
are
not
interfering
with
each
other.
2.
Malti-MACS
re8gn
祀
ion
area
and
parts
are
interfering
with
each
other.
Fixed
