ReleaseNote_V3.41STD_R1.000_for_V30VGOS1.pdf - 第15页

YAMAHA MOTOR CO., LTD IM Operations Release Note(English) 2013/9/25 Ver Rev Num Ref Item Type Keyword Contents Result Doc 3.41 1.000 TT80B9 52 Bug YS24(X)DL Schedule Specification The following problems occurred with Sch…

100%1 / 19
YAMAHA
MOTOR
CO.,
LTD
IM
Operations
Release
Note(English)
2013/9/25
Ver
Rev
Num
Ref
Item
Type
Keyword
Contents
Result
Doc
3.41
1.000
TTB340
40
Bug
Mounter
Co
planarity
When
[Parts]
-
[PartsAcjj]
-
[Test]
was
executed
under
the
following
conditions,
there
was
a
bug
that
recognition
pictures
were
unclear
or
wrong
pictures
were
displayed.
1.
[Machine]
-
[Installation
Setting]
-
[Co-Planarity
Checker]
is
set
to
other
than
"None".
2.
[Board]
-
[Board]
-
[3D
Co-Planarity]
is
set
to
"Use".
3.
[Parts]
-
[Basic]
-
[Alignment
Group]
is
set
to
"Ball".
4.
[Parts]
-
[Basic]
-
[Alignment
Type]
is
set
to
"Simple
BGA".
5.
[Parts]
一
[Vision]
-
[3D
Co-Planarity
Threshold
(um)]
is
set
to
other
than
"Not
Use".
Fixed
3.41
1.000
TT8887
41
Bug
Mounter
Side
view
camera
There
was
a
bug
that
a
mount
failure
occurred
when
Halfway
Continue
was
performed
through
the
following
procedure.
1.
"Ea944:
SIDE
VIEW
CAMERA
:
BRING
BACK
AFTER
MOUNT"
occurs.
2.
Close
the
error
dialog,
(not
clear)
3.
Press
the
[RESET]
button.
Fixed
3.41
1.000
TTB531
42
Bug
Mounter
Tray
Through
the
following
procedure,
there
was
a
case
the
hook
moved
at
acceleration
of
"NORMAL"
regardless
of
the
[Machine
Data]
-
[Tray
Changer]
-
[Position]
-
[Auto
Tray]
-
[Hook]
-
[Acceleration/Deceleration
(%)]
setting.
1.
Set
a
pallet
on
[Unit]
-
[Auto
TC]
-
[Pallet
Set]
.
2.
Store
the
pallet
through
either
of
the
following
procedures.
1)
Press
the
[RESET]
button.
2)
Open
the
board
data.
3)
Start
warming
up.
4)
Tum
the
power
off.
5)
Open
the
ATS
door
switch.
Fixed
3.41
1.000
TT8411
43
Bug
Mounter
Vision
Cursor
Teach
When
Vision
Cursor
Teach
was
performed
on
a
multi-table
machine,
there
was
a
bug
that
the
table
stayed
at
the
teach
position
after
Vision
Cursor
Teach,
so
that
the
other
table
couldn't
move.
*
It
has
been
modified
to
move
the
table
away
so
that
it
will
not
bother
the
next
action.
Fixed
3.41
1.000
SSI
7386
44
Bug
Mounter
Feeder
There
was
a
bug
that
top
tape
of
SS
Feeder
occasionally
broke
under
the
following
condition.
1.
The
feeder
has
been
driven
w
祀
h
the
setting
of
[Parts]
-
[Basic]
-
[Feed
Speed]
set
to
"90%"
or
less.
Fixed
3.41
1.000
TT8162
45
Bug
Mounter
Random
ball
There
was
a
bug
that
the
value
of
"Std.
Ball
Diameter"
of
"Random
Ball
Edit"
was
set
on
"Lead
Width
N1"
under
the
following
conditions.
1.
[Parts]
-
[Shape]
1)
[Alignment
Group]
is
set
to
"Special"
2)
[Parts]
-
[Shape]
-
[Alignment
Type]
is
set
to
"Special"
3)
[Parts]
-
[Shape]
-
[Base
Alignment]
is
set
to
"FlipChip"
4)
[Parts]
-
[Shape]
-
[Algorithm]
is
set
to
"2:
Simple
High
Speed",
"3:
Special
3",
"4:
Special
4",
"5:
Special
5"
or
"6:
Special
6"
5)
[Parts]
-
[Shape]
-
[Edit
Mode]
is
set
to
"Details"
2.
Open
the
[PartsAdj]
-
[Random
Ball]
screen,
then
press
the
[OK]
button.
Fixed
3.41
1.000
TT8215
46
Bug
Mounter
Cleaning
Blow
Through
the
following
procedure,
nozzle
shaft
blow
was
not
performed
and
the
machine
slept
1.
Press
the
[Unit]
-
[Head]
-
[Cleaning
Blow]
button
to
start
nozzle
shaft
blow.
2.
Press
the
[Cancel]
button.
3.
Press
the
[Unit]
-
[Head]
-
[Cleaning
Blow]
button.
Fixed
3.41
1.000
TTB893
47
Bug
Mounter
Double
Mounting
There
was
a
bug
that
a
double
mounting
occurred
through
the
following
procedure.
1.
"Ea944:
SIDE
VIEW
CAMERA
:
BRING
BACK
AFTER
MOUNT"
occurs.
2.
Clear
the
error,
the
[Retry
Setting]
dialog
appears,
then
select
"Not
Retry".
3.
On
the
[Dumping
part]
dialog,
press
the
[Cancel]
button
to
stop
halfway.
4.
Start
auto-running.
Fixed
3.41
1.000
TTB928
48
Bug
YS12
Series
Machine
Setting
On
[Machine]
-
[Specification
Information]
-
[Plate
Specification]
-
[Set
No.1],
the
following
feeders
were
set
as
unsettable.
Originally,
they
should
be
settable.
24mm
Tape
/
32mm
Tape
/
44mm
Tape
/
56mm
Tape
/
72mm
Tape
/
88mm
Tape
Fixed
3.41
1.000
TTM05
49
Bug
YS12F,YG12
F,YS24X
Interlock
There
was
a
bug
that
"Ea2652:
INTERLOCK
ERROR"
occasionally
occurred
at
multi¬
camera
recognition
under
the
following
condition.
1.
[Parts]
-
[Pick]
-
[Pick&Mount
Vacuum
Check]
is
set
to
"SPECIAL
CHK".
Fixed
3.41
1.000
TT8290
50
Bug
YS24(X)DL
Side
view
camera
There
was
a
bug
that
the
side
view
recognition
failed
under
the
following
conditions.
1.
Click
the
[Monitor]
-
[Vision]
tab
during
auto-running.
2.
Click
another
tab
during
recognition.
Fixed
3.41
1.000
TTB312
51
Bug
YS24(X)DL
Signal
Tower
There
was
a
bug
that
the
signal
tower
blinked
at
starting
auto-running
under
the
following
conditions.
1.
Board
data
is
read
only
on
e
祀
her
lane.
2.
[Board]
-
[Mount]
-
[Mount
Item]
is
set
to
"Skip"
and
no
feeder
is
set
Fixed
MDOC-VG30-00001
14/19
YAMAHA
MOTOR
CO.,
LTD
IM
Operations
Release
Note(English)
2013/9/25
Ver
Rev
Num
Ref
Item
Type
Keyword
Contents
Result
Doc
3.41
1.000
TT80B9
52
Bug
YS24(X)DL
Schedule
Specification
The
following
problems
occurred
with
Schedule
Specification.
1.
Under
the
following
conditions,
there
was
a
bug
that
a
board
was
not
transferred
during
execution
of
Schedule
Specification.
1)
[Executive
Condition]
is
set
to
"Lot
Start+Auto
Running"
or
"Only
Auto
Running".
2)
[Mount
Mode]
of
board
data
is
set
to
"Parallel
Lanes".
3)
[Transfer
Mode]
of
board
data
is
"Synchronous
Transfer".
4)
[Precede
Pick]
of
board
data
is
"Use".
*
It
occurred
in
V3.32R0.010
or
later.
2.
When
[Executive
Condition]
is
set
to
"Lot
Start+Auto
Running"
or
"Only
Auto
Running",
there
was
a
bug
that
Schedule
Specification
was
not
executed
though
the
specified
time
had
passed
without
producing
board.
*
It
occurred
in
V3.32R0.070
or
later.
Fixed
3.41
1.000
TT8807
53
Bug
YS24(X)DL
Monitor
When
"Module
Stop"
is
enabled,
there
was
a
bug
that
production
start
time
was
not
displayed
on
the
production
monitor
when
auto-running
was
started
only
on
one
lane.
Fixed
3.41
1.000
TT8365
54
Bug
YS24(X)DL
Board
data
There
was
a
bug
that
taking
over
of
LogData
was
failed
when
the
machine
was
turned
on
under
the
following
conditions.
In
this
case,
"Ea2875:
INTERRUPTED
BOARD
DATA
FILE
NOT
FOUND"
occurred,
and
the
previous
board
data
was
not
selected
after
rebooting
the
machine.
1.
Different
folders
are
selected
between
[Lane
Combine]
and
[Lanel]
on
the
[Board
data
select]
dialog
2.
Board
data
selected
before
shut
down
is
a
combined
board.
Fixed
3.41
1.000
TTB133
55
Bug
YS24(X)DL
Pickup
Macs
Under
the
following
conditions,
there
was
a
bug
that
the
machine
occasionally
slept
when
the
main
camera
and
the
sub
camera
was
switched
during
feeder
tracing.
1.
[Setting]
-
[Machine
Data]
-
[Machine
Data]
-
[Precision]
-
[Feeder
MACS]
is
"ON".
2.
A
board
is
read
on
both
lanes.
Fixed
3.41
1.000
TT8704
56
Bug
YS24(X)DL
Plan
There
was
a
bug
that
the
parameter
of
[Setup]
-
[Board
Counter]
-
[Total]
was
editable
during
auto-running.
If
this
parameter
was
edited
during
running,
machine
stopped
suddenly.
*
It
has
been
modified
to
make
disable
to
edit
the
parameter
during
auto-running.
Fixed
3.41
1.000
TTB296
57
Bug
YS24(X)DL
Mount
There
was
a
bug
that
the
Lane
Select
button
was
available
on
the
[Mount]
screen
displayed
after
"Ea109:EMERGENCY
STOP
FUNCTION
DURING
MOUNT"
occurred.
*
This
is
just
a
display
problem.
This
doesn't
cause
a
misplacement
because
the
teach
button
is
not
available.
Fixed
3.41
1.000
TT8433
58
Bug
YS24(X)DI_
YSP20
GUI
There
was
a
bug
that
a
part
of
the
status
area
was
hidden
under
the
following
8nd
祀
ions.
1.
English
or
German
is
selected
as
machine
language.
2.
"Op012:Type-1","Op013:
Type-2",
or
"Op014:Type-N"
is
enabled.
(YS24(X)DL
only)
3.
The
total
digits
of
produced
and
that
of
scheduled
is
more
than
7
Fixed
3.41
1.000
TT9018
59
Bug
YS24(X)DL
Optimization
When
CT
estimation
was
executed
on
the
line
which
included
DL
machine,
there
was
a
bug
that
each
lane's
"Tray
Use
Count"
and
"Co-Planarity
Detect
Count"
displayed
on
[Optimizer]-[Result
View]
in
total
of
the
all
lanes.
*
Originally
displays
by
each
lane.
Fixed
3.41
1.000
TTB891
60
Bug
YS24(X)DL
Recognition
Error
There
was
a
bug
that
"Ea944:
SIDE
VIEW
CAMERA
:
BRING
BACK
AFTER
MOUNT"
occurred
at
restarting
auto-running
under
the
following
conditions.
1.
The
"Module
Stop"
function
is
used.
2.
Auto-running
is
stopped
during
a
side
view
bring
back
check.
Fixed
3.41
1.000
TTB690
61
Bug
YS24(X)SL/D
L
Nozzle
Change
There
was
bug
that
//Ea29554:INTERLOCK
ERROR"
occurred
when
the
Nozzle
Return
process
and
Base
MACS
were
working
at
the
same
time.
Fixed
3.41
1.000
TTB785
62
Bug
YC8
Teach
There
was
a
bug
that
the
defined
shapes
of
the
following
parts
are
displayed
in
inverse
rotation
on
the
vision
screen
of
[Board]
-
[Mount]
-
[Teach]
-
[Parts
Shape].
1.
[Parts]
-
[Vision]
-
[Datum
Angle]
is
not
"Normal",
Fixed
3.41
1.000
TT9107
63
Bug
YC8
Recognition
Error
There
was
a
bug
that
，
zEa1
31
1
:MULTI-MACS
ERROR"
occurred
on
a
machine
with
"Multi
MACS
1
"
or
"Multi
MACS
2"
set
on
[Machine]
-
[Machine
Information]
-
[Installation
Setting]
-
[Multi
MACS].
Fixed
3.41
1.000
TTB850
64
Bug
YC8
Recognition
There
was
a
bug
that
MultiMACS
recognition
and
parts
recognition
were
performed
in
order
even
when
the
moving
camera
and
parts
size
did
not
interfere
w
祀
h
each
other.
*
Originally,
Multi
MACS
re8gn
祀
ion
and
parts
recognition
are
performed
at
the
same
time.
Fixed
3.41
1.000
TT8873
65
Bug
YC8
Recognition
There
was
a
bug
that
MultiMACS
didn't
work
under
the
following
conditions.
1.
Malti-MACS
and
parts
are
not
interfering
with
each
other.
2.
Malti-MACS
re8gn
祀
ion
area
and
parts
are
interfering
with
each
other.
Fixed
MDOC-VG30-00001
15/19
YAMAHA
MOTOR
CO.,
LTD
IM
Operations
Release
Note(English)
2013/9/25
Ver
Rev
Num
Ref
Item
Type
Keyword
Contents
Result
Doc
3.41
1.000
TTM09

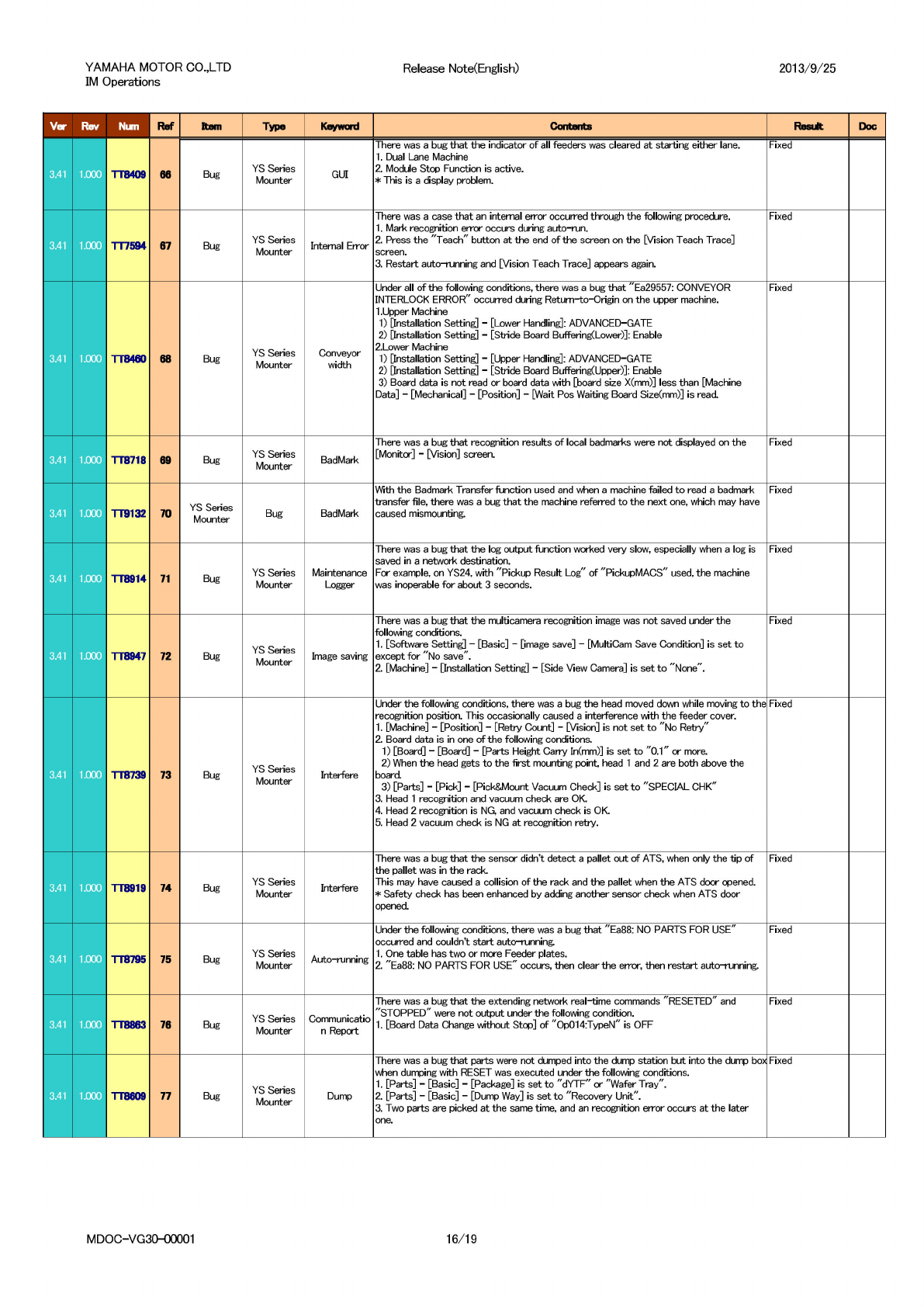

66
Bug
YS
Series
Mounter
GUI
There
was
a
bug
that
the
indicator
of
all
feeders
was
cleared
at
starting
either
lane.
1.
Dual
Lane
Machine
2.
Module
Stop
Function
is
active.
*
This
is
a
display
problem.
Fixed
3.41
1.000
TT7594
67
Bug
YS
Series
Mounter
Internal
Error
There
was
a
case
that
an
internal
error
occurred
through
the
following
procedure.
1.
Mark
recognition
error
occurs
during
auto-run.
2.
Press
the
"Teach"
button
at
the
end
of
the
screen
on
the
[Vision
Teach
Trace]
screen.
3.
Restart
auto-running
and
[Vision
Teach
Trace]
appears
again.
Fixed
3.41
1.000
TT8460
68
Bug
YS
Series
Mounter
Conveyor
width
Under
all
of
the
following
conditions,
there
was
a
bug
that
"Ea29557:
CONVEYOR
INTERLOCK
ERROR"
occurred
during
Retum-to-Origin
on
the
upper
machine.
1
.Upper
Machine
1)
[installation
Setting]
-
[Lower
Handling]:
ADVANCED-GATE
2)
[Installation
Setting]
-
[Stride
Board
Buffering(Lower)]:
Enable
2.Lower
Machine
1)
[Installation
Setting]
-
[Upper
Handling]:
ADVANCED-GATE
2)
[Installation
Setting]
-
[Stride
Board
Buffering(Upper)]:
Enable
3)
Board
data
is
not
read
or
board
data
with
[board
size
X(mm)]
less
than
[Machine
Data]
-
[Mechanical]
-
[Position]
-
[Wait
Pos
Waiting
Board
Size(mm)]
is
read.
Fixed
3.41
1.000
TTB718
69
Bug
YS
Series
Mounter
BadMark
There
was
a
bug
that
recognition
results
of
local
badmarks
were
not
displayed
on
the
[Monitor]
-
[Vision]
screen.
Fixed
3.41
1.000
TT9132
70
YS
Series
Mounter
Bug
BadMark
With
the
Badmark
Transfer
function
used
and
when
a
machine
failed
to
read
a
badmark
transfer
file,
there
was
a
bug
that
the
machine
referred
to
the
next
one,
which
may
have
caused
mismounting.
Fixed
3.41
1.000
TT8914
71
Bug
YS
Series
Mounter
Maintenance
Logger
There
was
a
bug
that
the
log
output
function
worked
very
slow,
especially
when
a
log
is
saved
in
a
network
destination.
For
example,
on
YS24,
with
"Pickup
Result
Log"
of
"PickupMACS"
used,
the
machine
was
inoperable
for
about
3
seconds.
Fixed
3.41
1.000
TTB947
72
Bug
YS
Series
Mounter
saving
There
was
a
bug
that
the
multicamera
recognition
was
not
saved
under
the
following
conditions.
1.
[Software
Setting]
-
[Basic]
一
[image
save]
-
[MultiCam
Save
Condition]
is
set
to
except
for
"No
save".
2.
[Machine]
-
[Installation
Setting]
-
[Side
View
Camera]
is
set
to
"None".
Fixed
3.41
1.000
TT8739
73
Bug
YS
Series
Mounter
Interfere
Under
the
following
conditions,
there
was
a
bug
the
head
moved
down
while
moving
to
the
recognition
position.
This
occasionally
caused
a
interference
with
the
feeder
cover.
1.
[Machine]
-
[Position]
-
[Retry
Count]
-
[Vision]
is
not
set
to
"No
Retry"
2.
Board
data
is
in
one
of
the
following
conditions.
1
)
[Board]
-
[Board]
-
[Parts
Height
Carry
In(mm)]
is
set
to
"0.1
"
or
more.
2)
When
the
head
gets
to
the
first
mounting
point,
head
1
and
2
are
both
above
the
board.
3)
[Parts]
-
[Pick]
-
[Pick&Mourrt
Vacuum
Check]
is
set
to
"SPECIAL
CHK"
3.
Head
1
recognition
and
vacuum
check
are
OK.
4.
Head
2
recognition
is
NG,
and
vacuum
check
is
OK.
5.
Head
2
vacuum
check
is
NG
at
recognition
retry.
Fixed
3.41
1.000
TT8919
74
Bug
YS
Series
Mounter
Interfere
There
was
a
bug
that
the
sensor
didn't
detect
a
pallet
out
of
ATS,
when
only
the
tip
of
the
pallet
was
in
the
rack.
This
may
have
caused
a
collision
of
the
rack
and
the
pallet
when
the
ATS
door
opened.
*
Safety
check
has
been
enhanced
by
adding
another
sensor
check
when
ATS
door
opened.
Fixed
3.41
1.000
TT8795
75
Bug
YS
Series
Mounter
Auto-running
Under
the
following
conditions,
there
was
a
bug
that
"Ea88:
NO
PARTS
FOR
USE"
occurred
and
couldn't
start
auto-running.
1.
One
table
has
two
or
more
Feeder
plates.
2.
"Ea88:
NO
PARTS
FOR
USE"
occurs,
then
clear
the
error,
then
restart
auto-running.
Fixed
3.41
1.000
TTB863
76
Bug
YS
Series
Mounter
Communicatio
n
Report
There
was
a
bug
that
the
extending
network
real-time
commands
"RESETED"
and
"STOPPED"
were
not
output
under
the
following
condition.
1.
[Board
Data
Change
without
Stop]
of
//Op014:TypeN//
is
OFF
Fixed
3.41
1.000
TTB609
77
Bug
YS
Series
Mounter
Dump
There
was
a
bug
that
parts
were
not
dumped
into
the
dump
station
but
into
the
dump
box
when
dumping
w
祀
h
RESET
was
executed
under
the
following
8nd
祀
ions.
1.
[Parts]
-
[Basic]
-
[Package]
is
set
to
"dYTF"
or
"Wafer
Tray".
2.
[Parts]
-
[Basic]
-
[Dump
Way]
is
set
to
"Recovery
Unit".
3.
Two
parts
are
picked
at
the
same
time,
and
an
recognition
error
occurs
at
the
later
one.
Fixed
MDOC-VG30-00001
16/19
