YAMAHA MOTOR CO., LTD IM Operations Release Note(English) 2013/9/25 Ver Rev Num Ref Item Type Keyword Contents Result Doc 3.41 1.000 TTM09 66 Bug YS Series Mounter GUI There was a bug that the indicator of all feeders wa…

100%1 / 19
YAMAHA
MOTOR
CO.,
LTD
IM
Operations
Release
Note(English)
2013/9/25
Ver
Rev
Num
Ref
Item
Type
Keyword
Contents
Result
Doc
3.41
1.000
TT80B9
52
Bug
YS24(X)DL
Schedule
Specification
The
following
problems
occurred
with
Schedule
Specification.
1.
Under
the
following
conditions,
there
was
a
bug
that
a
board
was
not
transferred
during
execution
of
Schedule
Specification.
1)
[Executive
Condition]
is
set
to
"Lot
Start+Auto
Running"
or
"Only
Auto
Running".
2)
[Mount
Mode]
of
board
data
is
set
to
"Parallel
Lanes".
3)
[Transfer
Mode]
of
board
data
is
"Synchronous
Transfer".
4)
[Precede
Pick]
of
board
data
is
"Use".
*
It
occurred
in
V3.32R0.010
or
later.
2.
When
[Executive
Condition]
is
set
to
"Lot
Start+Auto
Running"
or
"Only
Auto
Running",
there
was
a
bug
that
Schedule
Specification
was
not
executed
though
the
specified
time
had
passed
without
producing
board.
*
It
occurred
in
V3.32R0.070
or
later.
Fixed
3.41
1.000
TT8807
53
Bug
YS24(X)DL
Monitor
When
"Module
Stop"
is
enabled,
there
was
a
bug
that
production
start
time
was
not
displayed
on
the
production
monitor
when
auto-running
was
started
only
on
one
lane.
Fixed
3.41
1.000
TT8365
54
Bug
YS24(X)DL
Board
data
There
was
a
bug
that
taking
over
of
LogData
was
failed
when
the
machine
was
turned
on
under
the
following
conditions.
In
this
case,
"Ea2875:
INTERRUPTED
BOARD
DATA
FILE
NOT
FOUND"
occurred,
and
the
previous
board
data
was
not
selected
after
rebooting
the
machine.
1.
Different
folders
are
selected
between
[Lane
Combine]
and
[Lanel]
on
the
[Board
data
select]
dialog
2.
Board
data
selected
before
shut
down
is
a
combined
board.
Fixed
3.41
1.000
TTB133
55
Bug
YS24(X)DL
Pickup
Macs
Under
the
following
conditions,
there
was
a
bug
that
the
machine
occasionally
slept
when
the
main
camera
and
the
sub
camera
was
switched
during
feeder
tracing.
1.
[Setting]
-
[Machine
Data]
-
[Machine
Data]
-
[Precision]
-
[Feeder
MACS]
is
"ON".
2.
A
board
is
read
on
both
lanes.
Fixed
3.41
1.000
TT8704
56
Bug
YS24(X)DL
Plan
There
was
a
bug
that
the
parameter
of
[Setup]
-
[Board
Counter]
-
[Total]
was
editable
during
auto-running.
If
this
parameter
was
edited
during
running,
machine
stopped
suddenly.
*
It
has
been
modified
to
make
disable
to
edit
the
parameter
during
auto-running.
Fixed
3.41
1.000
TTB296
57
Bug
YS24(X)DL
Mount
There
was
a
bug
that
the
Lane
Select
button
was
available
on
the
[Mount]
screen
displayed
after
"Ea109:EMERGENCY
STOP
FUNCTION
DURING
MOUNT"
occurred.
*
This
is
just
a
display
problem.
This
doesn't
cause
a
misplacement
because
the
teach
button
is
not
available.
Fixed
3.41
1.000
TT8433
58
Bug
YS24(X)DI_
YSP20
GUI
There
was
a
bug
that
a
part
of
the
status
area
was
hidden
under
the
following
8nd
祀
ions.
1.
English
or
German
is
selected
as
machine
language.
2.
"Op012:Type-1","Op013:
Type-2",
or
"Op014:Type-N"
is
enabled.
(YS24(X)DL
only)
3.
The
total
digits
of
produced
and
that
of
scheduled
is
more
than
7
Fixed
3.41
1.000
TT9018
59
Bug
YS24(X)DL
Optimization
When
CT
estimation
was
executed
on
the
line
which
included
DL
machine,
there
was
a
bug
that
each
lane's
"Tray
Use
Count"
and
"Co-Planarity
Detect
Count"
displayed
on
[Optimizer]-[Result
View]
in
total
of
the
all
lanes.
*
Originally
displays
by
each
lane.
Fixed
3.41
1.000
TTB891
60
Bug
YS24(X)DL
Recognition
Error
There
was
a
bug
that
"Ea944:
SIDE
VIEW
CAMERA
:
BRING
BACK
AFTER
MOUNT"
occurred
at
restarting
auto-running
under
the
following
conditions.
1.
The
"Module
Stop"
function
is
used.
2.
Auto-running
is
stopped
during
a
side
view
bring
back
check.
Fixed
3.41
1.000
TTB690
61
Bug
YS24(X)SL/D
L
Nozzle
Change
There
was
bug
that
//Ea29554:INTERLOCK
ERROR"
occurred
when
the
Nozzle
Return
process
and
Base
MACS
were
working
at
the
same
time.
Fixed
3.41
1.000
TTB785
62
Bug
YC8
Teach
There
was
a
bug
that
the
defined
shapes
of
the
following
parts
are
displayed
in
inverse
rotation
on
the
vision
screen
of
[Board]
-
[Mount]
-
[Teach]
-
[Parts
Shape].
1.
[Parts]
-
[Vision]
-
[Datum
Angle]
is
not
"Normal",
Fixed
3.41
1.000
TT9107
63
Bug
YC8
Recognition
Error
There
was
a
bug
that
，
zEa1
31
1
:MULTI-MACS
ERROR"
occurred
on
a
machine
with
"Multi
MACS
1
"
or
"Multi
MACS
2"
set
on
[Machine]
-
[Machine
Information]
-
[Installation
Setting]
-
[Multi
MACS].
Fixed
3.41
1.000
TTB850
64
Bug
YC8
Recognition
There
was
a
bug
that
MultiMACS
recognition
and
parts
recognition
were
performed
in
order
even
when
the
moving
camera
and
parts
size
did
not
interfere
w
祀
h
each
other.
*
Originally,
Multi
MACS
re8gn
祀
ion
and
parts
recognition
are
performed
at
the
same
time.
Fixed
3.41
1.000
TT8873
65
Bug
YC8
Recognition
There
was
a
bug
that
MultiMACS
didn't
work
under
the
following
conditions.
1.
Malti-MACS
and
parts
are
not
interfering
with
each
other.
2.
Malti-MACS
re8gn
祀
ion
area
and
parts
are
interfering
with
each
other.
Fixed
MDOC-VG30-00001
15/19
YAMAHA
MOTOR
CO.,
LTD
IM
Operations
Release
Note(English)
2013/9/25
Ver
Rev
Num
Ref
Item
Type
Keyword
Contents
Result
Doc
3.41
1.000
TTM09
66
Bug
YS
Series
Mounter
GUI
There
was
a
bug
that
the
indicator
of
all
feeders
was
cleared
at
starting
either
lane.
1.
Dual
Lane
Machine
2.
Module
Stop
Function
is
active.
*
This
is
a
display
problem.
Fixed
3.41
1.000
TT7594
67
Bug
YS
Series
Mounter
Internal
Error
There
was
a
case
that
an
internal
error
occurred
through
the
following
procedure.
1.
Mark
recognition
error
occurs
during
auto-run.
2.
Press
the
"Teach"
button
at
the
end
of
the
screen
on
the
[Vision
Teach
Trace]
screen.
3.
Restart
auto-running
and
[Vision
Teach
Trace]
appears
again.
Fixed
3.41
1.000
TT8460
68
Bug
YS
Series
Mounter
Conveyor
width
Under
all
of
the
following
conditions,
there
was
a
bug
that
"Ea29557:
CONVEYOR
INTERLOCK
ERROR"
occurred
during
Retum-to-Origin
on
the
upper
machine.
1
.Upper
Machine
1)
[installation
Setting]
-
[Lower
Handling]:
ADVANCED-GATE
2)
[Installation
Setting]
-
[Stride
Board
Buffering(Lower)]:
Enable
2.Lower
Machine
1)
[Installation
Setting]
-
[Upper
Handling]:
ADVANCED-GATE
2)
[Installation
Setting]
-
[Stride
Board
Buffering(Upper)]:
Enable
3)
Board
data
is
not
read
or
board
data
with
[board
size
X(mm)]
less
than
[Machine
Data]
-
[Mechanical]
-
[Position]
-
[Wait
Pos
Waiting
Board
Size(mm)]
is
read.
Fixed
3.41
1.000
TTB718
69
Bug
YS
Series
Mounter
BadMark
There
was
a
bug
that
recognition
results
of
local
badmarks
were
not
displayed
on
the
[Monitor]
-
[Vision]
screen.
Fixed
3.41
1.000
TT9132
70
YS
Series
Mounter
Bug
BadMark
With
the
Badmark
Transfer
function
used
and
when
a
machine
failed
to
read
a
badmark
transfer
file,
there
was
a
bug
that
the
machine
referred
to
the
next
one,
which
may
have
caused
mismounting.
Fixed
3.41
1.000
TT8914
71
Bug
YS
Series
Mounter
Maintenance
Logger
There
was
a
bug
that
the
log
output
function
worked
very
slow,
especially
when
a
log
is
saved
in
a
network
destination.
For
example,
on
YS24,
with
"Pickup
Result
Log"
of
"PickupMACS"
used,
the
machine
was
inoperable
for
about
3
seconds.
Fixed
3.41
1.000
TTB947
72
Bug
YS
Series
Mounter
saving
There
was
a
bug
that
the
multicamera
recognition
was
not
saved
under
the
following
conditions.
1.
[Software
Setting]
-
[Basic]
一
[image
save]
-
[MultiCam
Save
Condition]
is
set
to
except
for
"No
save".
2.
[Machine]
-
[Installation
Setting]
-
[Side
View
Camera]
is
set
to
"None".
Fixed
3.41
1.000
TT8739
73
Bug
YS
Series
Mounter
Interfere
Under
the
following
conditions,
there
was
a
bug
the
head
moved
down
while
moving
to
the
recognition
position.
This
occasionally
caused
a
interference
with
the
feeder
cover.
1.
[Machine]
-
[Position]
-
[Retry
Count]
-
[Vision]
is
not
set
to
"No
Retry"
2.
Board
data
is
in
one
of
the
following
conditions.
1
)
[Board]
-
[Board]
-
[Parts
Height
Carry
In(mm)]
is
set
to
"0.1
"
or
more.
2)
When
the
head
gets
to
the
first
mounting
point,
head
1
and
2
are
both
above
the
board.
3)
[Parts]
-
[Pick]
-
[Pick&Mourrt
Vacuum
Check]
is
set
to
"SPECIAL
CHK"
3.
Head
1
recognition
and
vacuum
check
are
OK.
4.
Head
2
recognition
is
NG,
and
vacuum
check
is
OK.
5.
Head
2
vacuum
check
is
NG
at
recognition
retry.
Fixed
3.41
1.000
TT8919
74
Bug
YS
Series
Mounter
Interfere
There
was
a
bug
that
the
sensor
didn't
detect
a
pallet
out
of
ATS,
when
only
the
tip
of
the
pallet
was
in
the
rack.
This
may
have
caused
a
collision
of
the
rack
and
the
pallet
when
the
ATS
door
opened.
*
Safety
check
has
been
enhanced
by
adding
another
sensor
check
when
ATS
door
opened.
Fixed
3.41
1.000
TT8795
75
Bug
YS
Series
Mounter
Auto-running
Under
the
following
conditions,
there
was
a
bug
that
"Ea88:
NO
PARTS
FOR
USE"
occurred
and
couldn't
start
auto-running.
1.
One
table
has
two
or
more
Feeder
plates.
2.
"Ea88:
NO
PARTS
FOR
USE"
occurs,
then
clear
the
error,
then
restart
auto-running.
Fixed
3.41
1.000
TTB863
76
Bug
YS
Series
Mounter
Communicatio
n
Report
There
was
a
bug
that
the
extending
network
real-time
commands
"RESETED"
and
"STOPPED"
were
not
output
under
the
following
condition.
1.
[Board
Data
Change
without
Stop]
of
//Op014:TypeN//
is
OFF
Fixed
3.41
1.000
TTB609
77
Bug
YS
Series
Mounter
Dump
There
was
a
bug
that
parts
were
not
dumped
into
the
dump
station
but
into
the
dump
box
when
dumping
w
祀
h
RESET
was
executed
under
the
following
8nd
祀
ions.
1.
[Parts]
-
[Basic]
-
[Package]
is
set
to
"dYTF"
or
"Wafer
Tray".
2.
[Parts]
-
[Basic]
-
[Dump
Way]
is
set
to
"Recovery
Unit".
3.
Two
parts
are
picked
at
the
same
time,
and
an
recognition
error
occurs
at
the
later
one.
Fixed
MDOC-VG30-00001
16/19

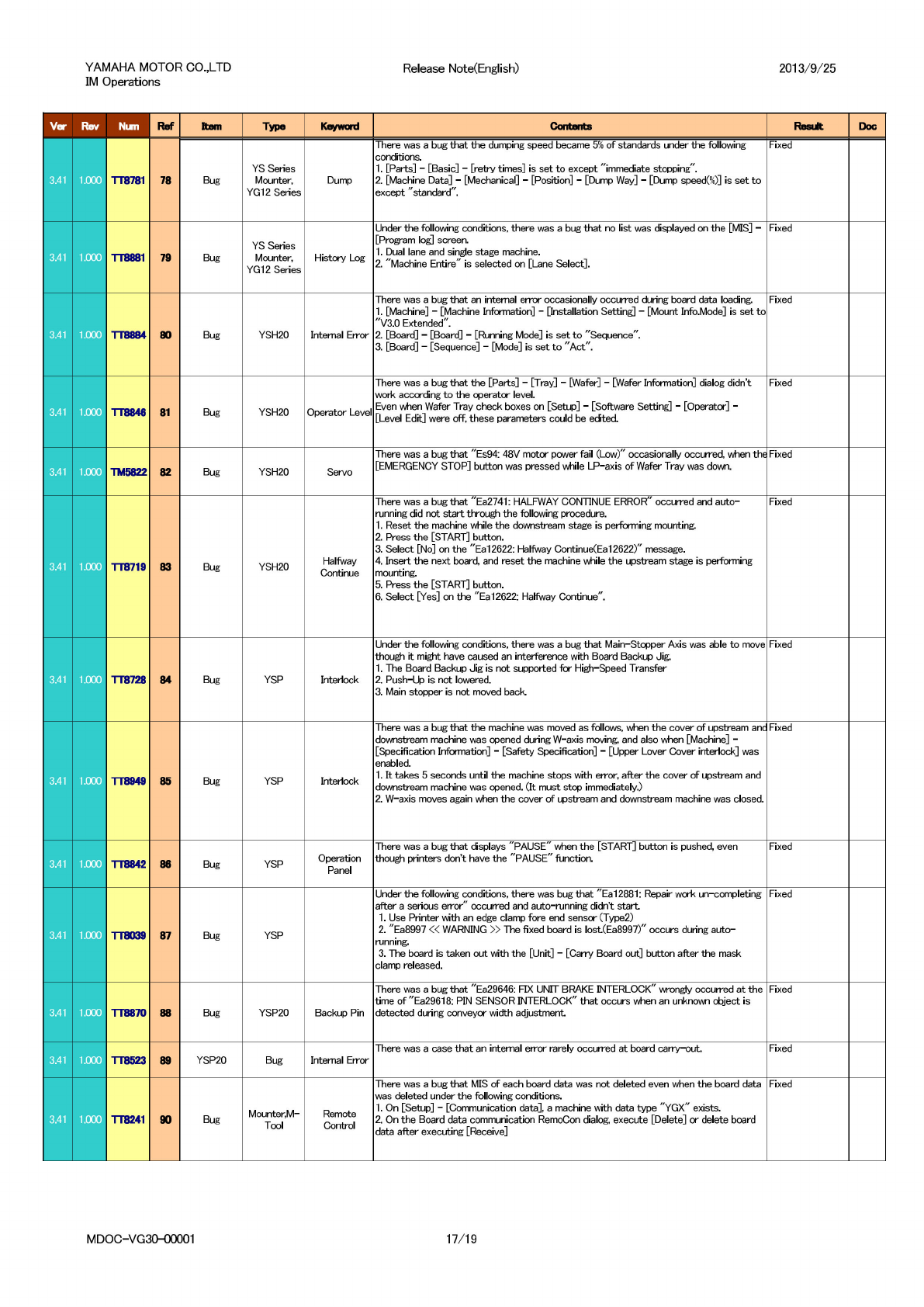

YAMAHA
MOTOR
CO.,
LTD
IM
Operations
Release
Note(English)
2013/9/25
Ver
Rev
Num
Ref
Item
Type
Keyword
Contents
Result
Doc
3.41
1.000
TTB781
78
Bug
YS
Series
Mounter,
YG12
Series
Dump
There
was
a
bug
that
the
dumping
speed
became
5%
of
standards
under
the
following
conditions.
1.
[Parts]
-
[Basic]
-
[retry
times]
is
set
to
except
"immediate
stopping".
2.
[Machine
Data]
-
[Mechanical]
-
[Position]
-
[Dump
Way]
-
[Dump
speed(%)]
is
set
to
except
"standard".
Fixed
3.41
1.000
TT8881
79
Bug
YS
Series
Mounter,
YG12
Series
History
Log
Under
the
following
conditions,
there
was
a
bug
that
no
list
was
displayed
on
the
[MIS]
-
[Program
log]
screen.
1.
Dual
lane
and
single
stage
machine.
2.
"Machine
Entire"
is
selected
on
[Lane
Select].
Fixed
3.41
1.000
TT8884
80
Bug
YSH20
Internal
Error
There
was
a
bug
that
an
internal
error
occasionally
occurred
during
board
data
loading.
1.
[Machine]
-
[Machine
Information]
-
[Installation
Setting]
-
[Mount
Irrfb.Mode]
is
set
to
"V3.0
Extended".
2.
[Board]
-
[Board]
-
[Running
Mode]
is
set
to
"Sequence".
3.
[Board]
-
[Sequence]
-
[Mode]
is
set
to
"Act".
Fixed
3.41
1.000
TTB846
81
Bug
YSH20
Operator
Level
There
was
a
bug
that
the
[Parts]
-
[Tray]
-
[Wafer]
-
[Wafer
Information]
dialog
didn't
work
according
to
the
operator
level.
Even
when
Wafer
Tray
check
boxes
on
[Setup]
-
[Software
Setting]
-
[Operator]
-
[Level
Edit]
were
off,
these
parameters
could
be
edited.
Fixed
3.41
1.000
7M5822
82
Bug
YSH20
Servo
There
was
a
bug
that
"Es94:
48V
motor
power
fail
(Low)"
occasionally
occurred,
when
the
[EMERGENCY
STOP]
button
was
pressed
while
LP-axis
of
Wafer
Tray
was
down.
Fixed
3.41
1.000
TT8719
83
Bug
YSH20
Halfway
Continue
There
was
a
bug
that
，
/Ea2741:
HALFWAY
CONTINUE
ERROR"
occurred
and
auto¬
running
did
not
start
through
the
following
procedure.
1.
Reset
the
machine
while
the
downstream
stage
is
performing
mounting.
2.
Press
the
[START]
button.
3.
Select
[No]
on
the
"Ea12622:
Halfway
Continue(Ea
12622)"
message.
4.
Insert
the
next
board,
and
reset
the
machine
while
the
upstream
stage
is
performing
mounting.
5.
Press
the
[START]
button.
6.
Select
[Yes]
on
the
"Ea
12622:
Halfway
Continue".
Fixed
3.41
1.000
TTB728
84
Bug
YSP
Interlock
Under
the
following
conditions,
there
was
a
bug
that
Main-Stopper
Axis
was
able
to
move
though
it
might
have
caused
an
interference
with
Board
Backup
Jig.
1.
The
Board
Backup
Jig
is
not
supported
for
High-Speed
Transfer
2.
Push-Up
is
not
lowered.
3.
Main
stopper
is
not
moved
back.
Fixed
3.41
1.000
TTB949
85
Bug
YSP
Interlock
There
was
a
bug
that
the
machine
was
moved
as
follows,
when
the
cover
of
upstream
and
downstream
machine
was
opened
during
W-axis
moving,
and
also
when
[Machine]
-
[Specification
Information]
-
[Safety
Specification]
-
[Upper
Lover
Cover
interlock]
was
enabled.
1.
It
takes
5
seconds
until
the
machine
stops
with
error,
after
the
cover
of
upstream
and
downstream
machine
was
opened.
(It
must
stop
immediately.)
2.
W-axis
moves
again
when
the
cover
of
upstream
and
downstream
machine
was
closed.
Fixed
3.41
1.000
TT8842
86
Bug
YSP
Operation
Panel
There
was
a
bug
that
displays
"PAUSE"
when
the
[START]
button
is
pushed,
even
though
printers
don't
have
the
"PAUSE"
function.
Fixed
3.41
1.000
TT8039
87
Bug
YSP
Under
the
following
conditions,
there
was
bug
that
"Ea
12881:
Repair
work
un-completing
after
a
serious
error"
occurred
and
auto-running
didn't
start
1.
Use
Printer
with
an
edge
clamp
fore
end
sensor
(Type2)
2.
"Ea8997
«
WARNING
>>
The
fixed
board
is
lost(Ea8997)"
occurs
during
auto-
running.
3.
The
board
is
taken
out
with
the
[Unit]
一
[Carry
Board
out]
button
after
the
mask
clamp
released.
Fixed
3.41
1.000
TT8870
88
Bug
YSP20
Backup
Pin
There
was
a
bug
that
"Ea29646:
FIX
UNIT
BRAKE
INTERLOCK"
wrongly
occurred
at
the
time
of
，
/Ea29618:
PIN
SENSOR
INTERLOCK"
that
occurs
when
an
unknown
otyect
is
detected
during
conveyor
width
adjustment
Fixed
3.41
1.000
TTB523
89
YSP20
Bug
Internal
Error
There
was
a
case
that
an
internal
error
rarely
occurred
at
board
carry-out.
Fixed
3.41
1.000
TT8241
90
Bug
Mounter,
M-
Tool
Remote
Control
There
was
a
bug
that
MIS
of
each
board
data
was
not
deleted
even
when
the
board
data
was
deleted
under
the
following
conditions.
1.
On
[Setup]
-
[Communication
data],
a
machine
w
祀
h
data
type
"YGX"
exists.
2.
On
the
Board
data
communication
RemoCon
dialog,
execute
[Delete]
or
delete
board
data
after
executing
[Receive]
Fixed
MDOC-VG30-00001
17/19
