SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50069
25/27

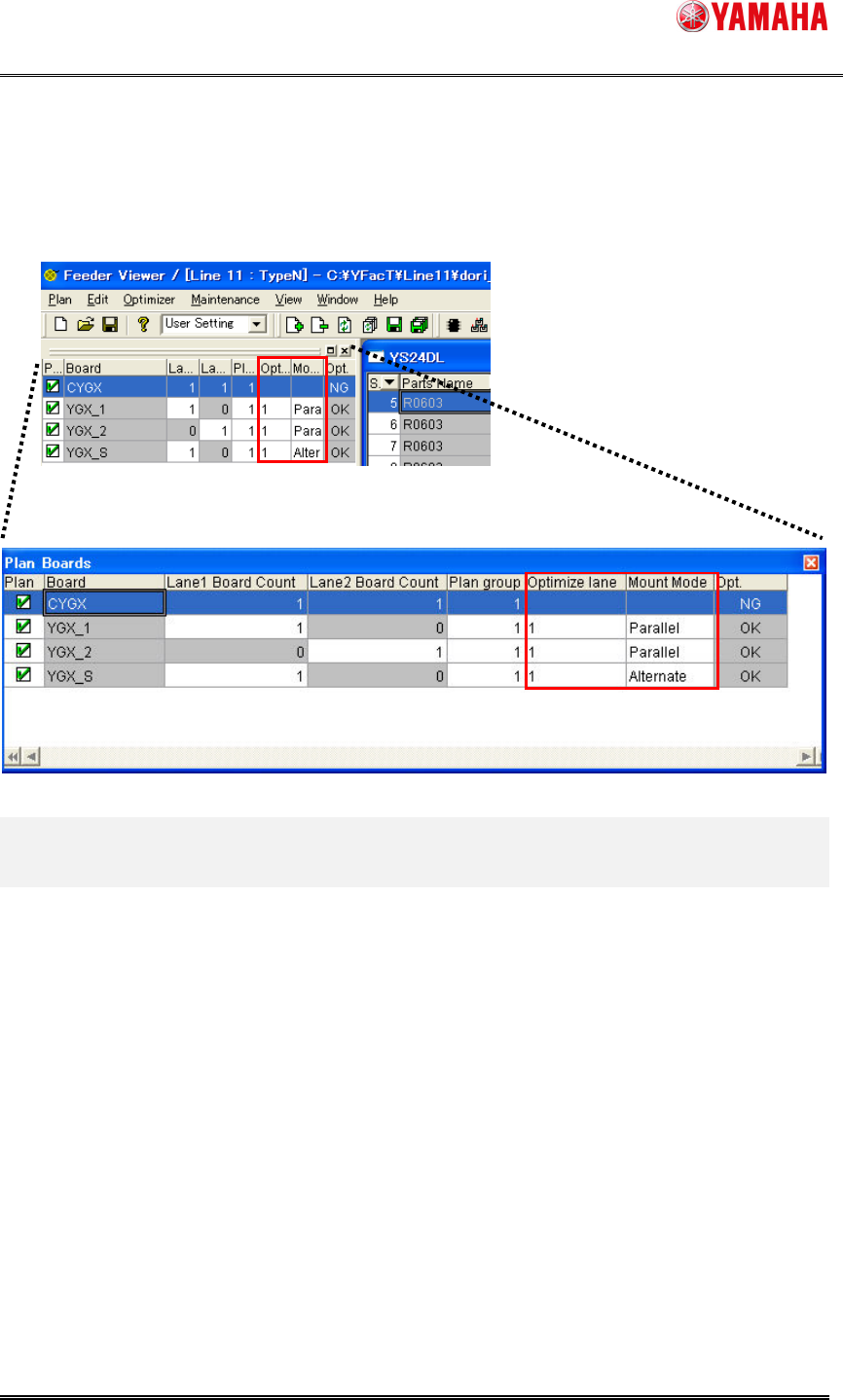

<Feeder Viewer>
Select [Feeder Viewer] - [Product Board List] - [Optimized Lane] and [Mount Mode].
Setting method is similar to the case of optimization.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50069
26/27
3. Limitations
[Board Explorer]
Board data conversion of the combined board data is not supported. Convert after dividing
to single board data.
YGX(Combined) is not added to [Set Default Data Type]. In case of Dual Lane Machine,
select [YGX] setting.
YGX(Combined) is not added to [Board Explorer] - [View] – [Data Type]. In case of Dual
Lane Machine, select [YGX] setting.
Combining program of Multi Lane Utility is disable on the line that does not has dual lane
machine.
[Board Editor]
YGX(Combined) of line data are need to has same combined program. For example, it is
not allowed that one machine has single combined program and other machine has multi
combined program.
If line data of YGX has other lane number, it is changed to lane number of last machine. (For
example, if No. 1 machine has lane 1 and No.2 machine has lane 2, it is changed to lane 2
for line data.
Reading YGX(Combined) board data, the following functions are limited. Use after dividing
to single board data.
[File] – [Print]
[File] – [Preview]
[File] – [Output mount data as]
[Edit] – [Undo][Redo]
[Tool] – [Block Offset] and all
[Tool] – [Dot Dispense] and all
[Tool] – [Printer Information Support] – [Inspection Object Assign Mounter Data] and all
[Tool] – [Mount Pos. Conversion of Mask Hole Datum Pos] and all
[Parts] The function to delete mount information automatically when deleting parts
information.
[Graphic View] – [Mount New][Delete Selected Item]
On the line with dual lane machine, the following functions are limited.
[File] – [Individual Data] and all. (It is enable only for printer)
[Optimizer] – [Export Parts List]
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50069
27/27
[Feeder Viewer]
Reading YGX(Combined) board data, the following functions are limited. Use after dividing
to single board data.
[Optimizer] – [Setup Optimizer EXCEL Sheet]
[Ascii Data Conversion]
ASCII data conversion can create board data only for lane 1. It is necessary to optimize if it
is used for lane 2.
[Visual Editor]
Visual Editor does not support the combined board data. But original lane setting of single
board data can be keep when importing or exporting.
