Dimensions OMT standard flange - European version Ø123.8 [4.874] Ø122.2 [4.811] Ø125.000 [4.9213] Ø124.937 [4.9188] Ø73 [2.87] Ø71 [2.80] 18 [0.71] 23.6 [0.929] 22.4 [0.882] 13.0 [0.512] 12.0 [0.472] 13.0 [0.512] 12.0 [0…

100%1 / 67

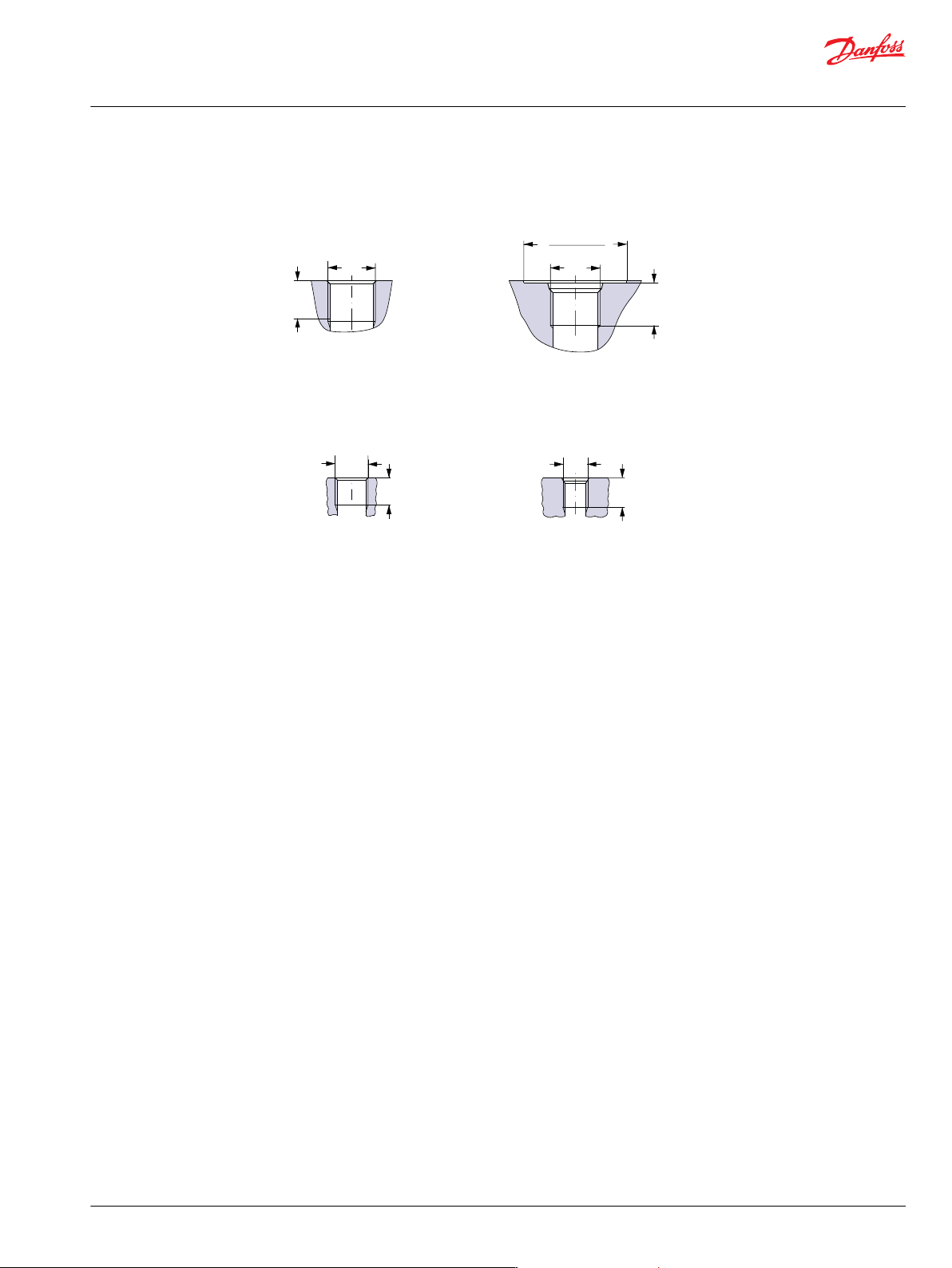

Port thread versions
A
B
C D
G
H
E F
151-1977.11
min. 13 [0.51]
min. 12 [0.47]
min. 18 [0.67]
min. 19 [0.75]
Ø41.5 [1.634]
Ø41.0 [1.614]
A G main ports
E ISO 228/1 - G3/4
O-ring boss port
B UN main ports
F 1 1/16 - 12 UN
C G drain port
G G: ISO 228/1 - G1/4
O-ring boss port
D UNF drain port
H 9/16 - 18 UNF
Technical Information
OMT and OMV Orbital Motors
OMT
©
Danfoss | September 2021 BC152886483862en-000801 | 21
Dimensions

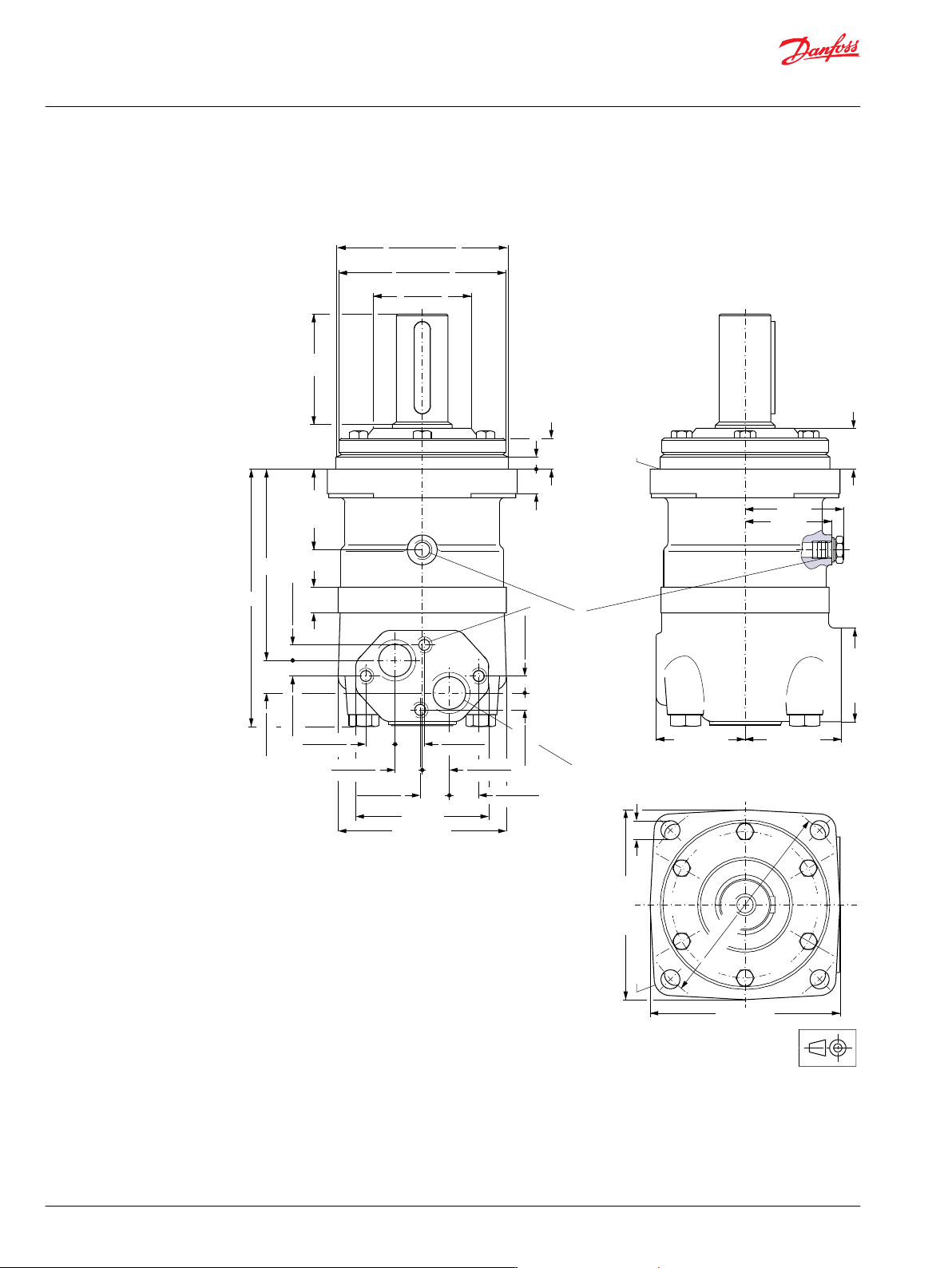

OMT standard flange - European version
Ø123.8 [4.874]
Ø122.2 [4.811]
Ø125.000 [4.9213]
Ø124.937 [4.9188]
Ø73 [2.87]
Ø71 [2.80]
18 [0.71]
23.6 [0.929]
22.4 [0.882]
13.0 [0.512]
12.0 [0.472]
13.0 [0.512]
12.0 [0.472]
13.0 [0.512]
12.0 [0.472]
13.0 [0.512]
12.0 [0.472]
R1.6 [0.063]
R12 [0.47]
Ø14 [0.55]
Ø160.4 [6.315]
Ø159.6 [6.283]
31 [1.22]
60 [2.36]
32 [1.26]
9 [0.35]
22.4 [0.882]
max. 69 [2.72]
22.1 [0.870]
21.1 [0.831]
22.1 [0.870]
21.1 [0.831]
22.1 [0.870]
21.1 [0.831]
22.1 [0.870]
21.1 [0.831]
max. 67 [2.64]
72 [2.83]
64 [2.52]
max. 71 [2.80]
20.3 [0.799]
19.7 [0.776]
20.3 [0.799]
19.7 [0.776]
max. 143 [5.63]
max. 143 [5.63]
151-889.11
100 [3.94]
max. 128 [5.04]
C
E
D
L
L
1
L
2
L
3
C: Drain connection, G 1⁄4; 12 mm [0.47 in] deep
D: M10; 10 mm [0.39 in] deep
E: G 3⁄4; 17 mm [0.67 in] deep
Technical Information
OMT and OMV Orbital Motors
OMT
22 |
©
Danfoss | September 2021 BC152886483862en-000801
Type OMT 160 OMT 200 OMT 250 OMT 315 OMT 400 OMT 500
L
Max.
mm 192 197 203 213 223 237
[in] [7.56] [7.76] [7.99] [8.39] [8.78] [9.33]
L
1
*
mm 16.5 21.5 27.8 37.0 47.5 61.5
[in] [0.650] [0.846] [1.094] [1.457] [1.870] [2.421]
L
2
mm 140 145 151 161 171 185
[in] [5.51] [5.71] [5.94] [6.34] [6.73] [7.28]
Weight kg 20.0 20.5 21.0 22.0 23.0 24.0
[lb] [44.1] [45.2] [46.3] [48.5] [50.7] [52.9]
*
The gearwheel set is 3.5 mm [0.138 in] wider across the rollers than the L1 dimensions
Output shaft All shafts except P.t.o. shaft P.t.o. shaft
L
3
mm 82 102
[in] [3.23] [4.02]
Technical Information
OMT and OMV Orbital Motors
OMT
©
Danfoss | September 2021 BC152886483862en-000801 | 23
