YAMAHA MOTOR CO.,LTD IM Company
SMT Engineering Group
MDOC-SOFT50103
4/9
3-3. ③
③③
③Trayback
On resetting the operation, picked tray parts go back to the tray where they are picked up.
It is necessary to be equipped with Tray Part Supply Unit.
All parts picked by the machine head were dumped to Dust Box on resetting the operation
before, which might have damaged the parts. In this function, it became possible to return picked
parts to the picking position.
3-4. ④
④④
④Machinehead→
→→
→Recovery pallet (Only YS24X)
Parts being carried by the machine head are transferred to Recovery Pallet on resetting the
operation. It is necessary to be equipped with Tray Part Supply Unit and Recovery Pallet.
Recovery Pallet is supported as standard only for YS24X.
All parts picked by the machine head were dumped to Dust box on resetting the operation
before, which might have damaged the parts when you take them out. It became possible to
return picked parts to Recovery Pallet on resetting the operation.
YAMAHA MOTOR CO.,LTD IM Company
SMT Engineering Group
MDOC-SOFT50103
5/9
4. How to set up
▼Case 1, 2, 4
・Set “Recovery Unit” for [Dump Way] on board data.
Set [Recovery Unit] on [Parts] - [Basic] - [Dump Way]※
(※ Set ”Recovery Pallet” when you use Dump Station or Recovery Pallet.)

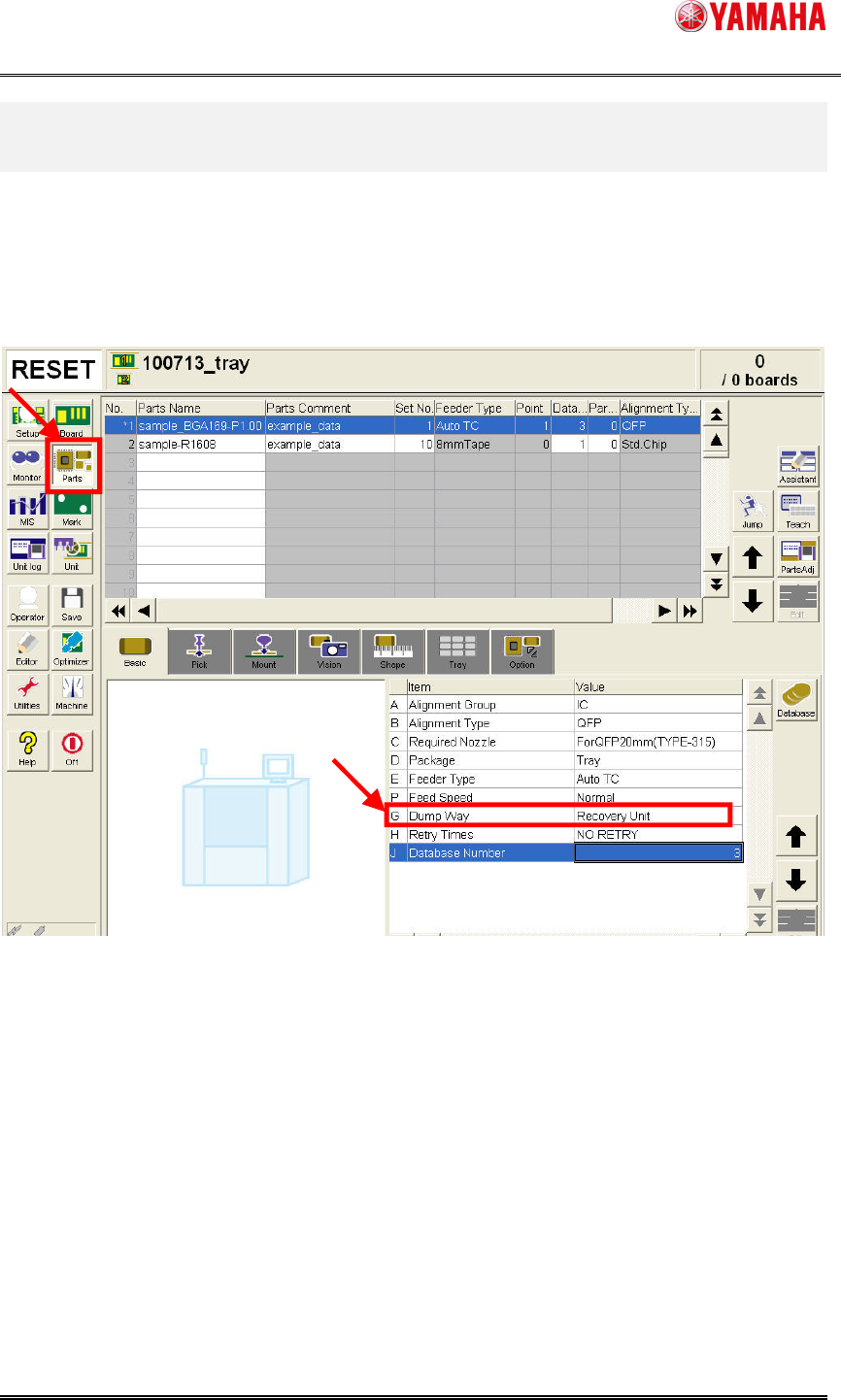

fig：4-1. Setting of Dump Way（Recovery Pallet）
[Parts] – [Basic] – [Dump Way]
YAMAHA MOTOR CO.,LTD IM Company
SMT Engineering Group
MDOC-SOFT50103
6/9
▼Case 3
・Set “Sp.Dump Back” for Dump Way on board data.
Set [Sp.Dump Back] on [Parts] - [Basic] - [Dump Way]

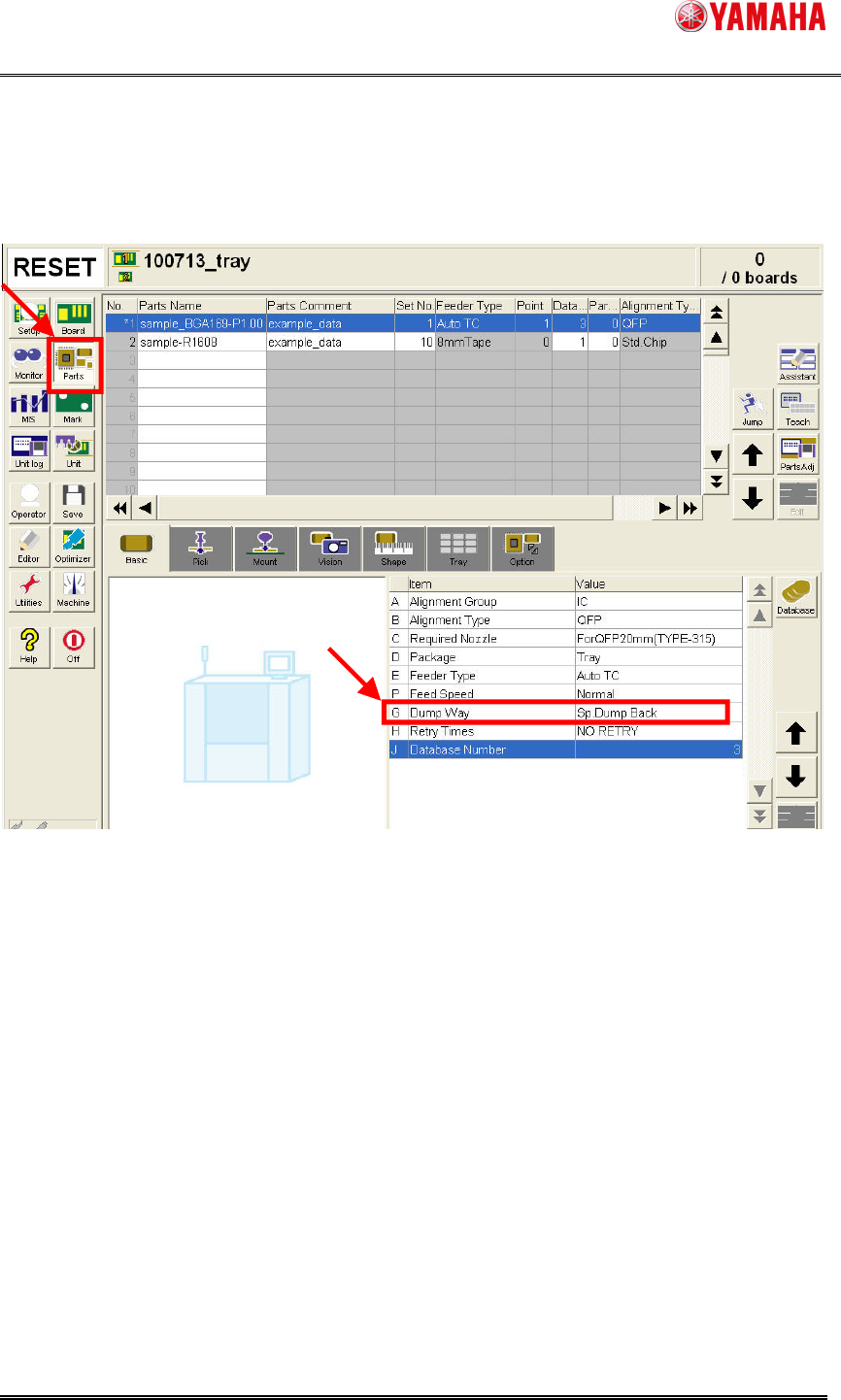

fig：4-2. Setting of Dump Way（Sp.Dump Back）
[Parts] – [Basic] – [Dump Way]
