F2-82M (B type) P 5 No. Code No. Parts Name Q'ty Parts No. LG4-M1A60-511 BACK PLATE ASSY 1 AS-E08-8550-C LG4-M1A60-520 BACK PLATE ASSY 1 AS-E08-8550-D ※1 LG4-M1A68-500 TENSION LEVER ASSY 1 AS-E08-8584 1 KW1-M116U-00…
F2-82M (B type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M2A40-510 T.G. PLATE ASSY 1 AS-E08-8519-05C
1 LG4-M3A42-000 SHUTTER PLATE 1 FTA-A08-8120-63
2 LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
3
LG4-M1A44-001
SHUTTER PUSH SPRING 1 FTA-A08-8122-B
4
LG4-M1A4L-000
T.G. GUIDE SCREW 1 FTA-A08-8124
5
LG4-M1A47-000
T.G. GUIDE PIN 1 FTA-A08-8125
6
LG4-M1A48-500
T.G. PUSH SPRING
1 FTA-E08-8527-30
7
LG4-M3A49-000 ADJUST PLATE 1 FTA-A08-8126-63
8
LG4-M2A41-510 TAPE GUIDE PLATE 1 FTA-E08-8519-05C
9 LG4-M2A43-500 SHUTTER GUARD PLATE 1 FTA-E08-8523-05
10 LG4-M1A46-500
LOCK LEVER 1 FTA-E08-8527
11 LG4-M1A4K-500
T.G.A. GUIDE PIN 1 FTA-E08-8529
12
K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
13
LG4-M3AD3-000 SPRING LOCK WASHER 2 2MU-P
14
15
16
17
18
19
20
21
22
23
24
25
F2-82M (B type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-511 BACK PLATE ASSY 1 AS-E08-8550-C
LG4-M1A60-520 BACK PLATE ASSY 1 AS-E08-8550-D
※1 LG4-M1A68-500 TENSION LEVER ASSY 1 AS-E08-8584
1 KW1-M116U-000
ROLLER
3 CTF-M08- 342
2 LG4-M1A6B-000
ROLLER AXIS U
1 FTA-A08-8174
3 LG4-M1A6D-000
LEAF U
1 FTA-A08-8174-1
4
LG4-M4A6J-000
SPRING HOOK PIN 2 FTA-A12-8156
LG4-M1A61-511 BACK PLATE 1 FTA-E08-8550-C
LG4-M1A61-520 BACK PLATE 1 FTA-E08-8550-D
6
LG4-M1AA3-510
MICRO SWITCH ASSY
1 FTA-E08-8551-5B
LG4-M1A6A-500
ROLLER AXIS T
1
FTA-E08-8573
LG4-M1A6A-000
ROLLER AXIS T
1 FTA-A08-8173
LG4-M1A6N-513
MIDDLE GUIDE PLATE C
1 FTA-E08-8576-E
LG4-M1A6N-520
MIDDLE GUIDE PLATE C
1 FTA-E08-8576-F
※1 9
LG4-M1A67-511 COVER 1 FTA-E08-8580-C
10 LG4-M1A69-500
ROLLER AXIS U
1 FTA-E08-8582
11
LG4 M1A6C 500
T
ENSION
L
EVER
M
ETAL
1
FTA E08 8583
※1 8
※1
※1 5
※1 7
11 LG4-M1A6C-500 TENSION LEVER METAL 1 FTA-E08-8583
12 LG4-M1A6K-500 TENSION LEVER 1 FTA-E08-8584
13
LG4-M1A6L-500 TENSION LEVER SPRING 1 FTA-E08-8584-100
※1 14
K87-M111N-000
SCREW,PAN HEAD+
6 2 3MC-3-P
15 LG4-M1ADC-000
SCREW,PAN HEAD+
1 3MC-7-P
※1
16 K87-M111S-000
SCREW,FLAT HEAD+
2 1
3MK-6-P
17 K87-M55BN-000
SCREW,FLAT HEAD+
2
3MK-8-P
※2
18 K87-M11B4-100
SCREW,FLAT HEAD+
2 1 3MK-12-P
※2
19 LG4-M1ADD-000
SCREW,FLAT HEAD+
2 3 3MK-14-P
※1
20 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
21
※1…F2-82M-001319B～
※2…F2-82M-001369B～

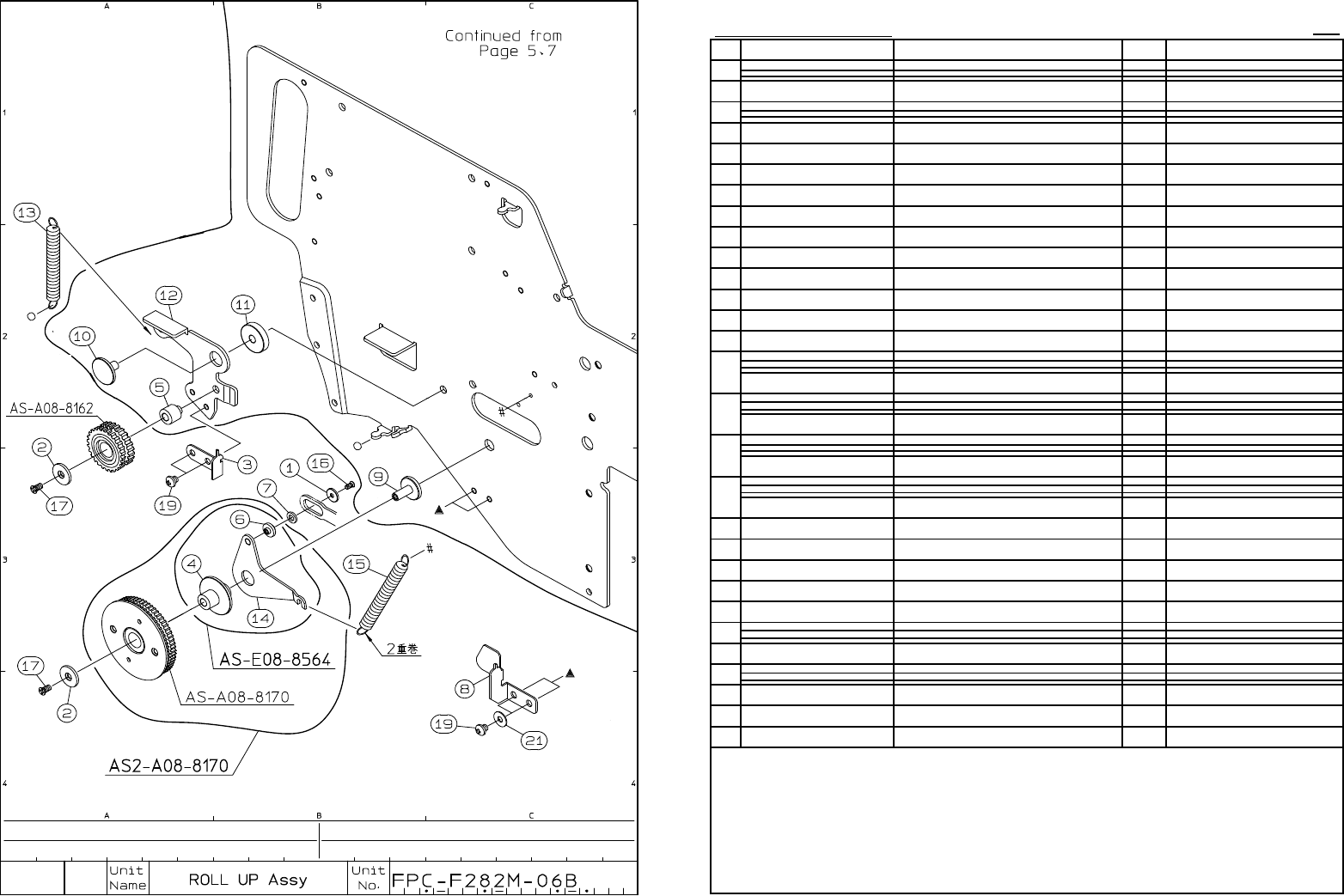

F2-82M (B type)
P 6
No. Code No. Parts Name Q'ty Parts No.
※1 LG4-M1A87-000
TENSION LEVER ASSY
1 AS -A08-8160-B
LG4-M1A8E-000
IDLER ROLLER ASSY
1 AS-A08-8162
※1 LG4-M1A86-000
I.ROLLER ALL ASSY
1 AS1-A08-8162
LG4-M1A8D-000
DRIVE ROLLER ASSY
1 AS-A08-8170
LG4-M1A81-500 D.ROLLER ALL ASSY
1 AS2-A08-8170
LG4-M1A82-500
INDEKING LEVER ASSY
1 AS-E08-8564
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
2 CTF-M08- 76-B
3 KW1-M11A3-001
LOWER GUIDE PLATE,L
1 FTA-A08-1179-C
4 LG4-M1A8C-000
LEVER METAL
1 FTA-A08-8158-B
5 LG4-M1A66-010
ROLLER AXIS
1 FTA-A08-8163-B
6 LG4-M1A84-010
ARM STUD
1 FTA-A08-8166-B
7 LG4-M1A85-000
ROLLER
1 FTA-A08-8167
8 LG4-M1A6P-011
LOWER GUIDE PLATE,R
1 FTA-A08-8178-C
LG4-M1A62-500
METAL SHAFT
1 FTA-E08-8555
LG4-M1A62-000
METAL SHAFT
1 FTA-A08-8155
LG4 M1A63 500
LEVER AXIS PIN
1
FTA E08 8559
※1
9
LG4-M1A63-500
LEVER AXIS PIN
1 FTA-E08-8559
LG4-M1A63-020
LEVER AXIS PIN
1 FTA-A08-8159-C
LG4-M1A64-500
WASHER
1 FTA-E08-8559-1
LG4-M1A64-000 WASHER
1 FTA-A08-8159-1
LG4-M1A65-010
TENSION LEVER
1 FTA-A08-8160-B
LG4-M1A65-020
TENSION LEVER
1 FTA-A08-8160-C
13 LG4-M4A8B-000
TENSION LEV. RE SP.
1 FTA-A12-8160-700
14
LG4-M1A83-500
INDEKING LEVER
1 FTA-E08-8564
15 LG4-M2A8A-500
INDEKING LEV. RE SP.
1 FTA-E08-8564-18B
16 K87-M11BF-000
SCREW,FLAT HEAD
1 P2MK-4-IB
17 K87-M11BB-000
SCREW,FLAT HEAD
2 P2.6MK-5-IB
※1
18 K87-M111W-000 SCREW,PAN HEAD+ 1 3MC-5-P
19 K87-M111N-000 SCREW,PAN HEAD+ 4 3MC-3-P
※1
20 K87-M111S-000
SCREW,FLAT HEAD+
1
3MK-6-P
21 K87-M11BE-000 THRUST WASHER 2 3V-0.5-8-P
22
23
※1…F2-82M-001319B～
※1
12
※1
10
※1
11
