F2-82M (B type) P 3 No. Code No. Parts Name Q'ty Parts No. LG4-M1A30-501 HOLD LEVER ASSY 1 AS2-E08-8590-B 1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325 2 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B 3 LG4-M1A1A-001 COVER…
F2-82M (B type)
P 2
No. Code No. Parts Name Q'ty Parts No.
KW1-M1320-000 SPROCKET ASSY 1 AS2-A08-1107-P2
LG4-M2A2A-500 RACKING LEVER ASSY 1 AS-E08-8508-2PB
LG4-M1A29-500
RACKING POLE ASSY
1 AS-E08-8511-B
LG4-M1A2M-500
RATCHET AXIS ASSY
1 AS-E08-8512
LG4-M2A79-500 LEVER ASSY
1
AS-E08-8531-2P
1
K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M112M-100 FLANGE A 1 CTF-A08- 712-1
3 K87-M111G-100 PUSH PIN
1
CTF-M08- 325
4 K87-M1121-000 METAL 1 FTA-A08-1103
5 K87-M1122-000 RIVET 3 FTA-A08-1103-1
6
KW1-M1123-000 SPROCKET 1 FTA-A08-1104-B
7 K87-M1324-000 RATCHET 1 FTA-A08-1107-P2
KW1-M11BS-050
WASHER 1 2
FTA-A08-1103-005B
KJK-M119W-000 WASHER 2 FTA-A08-1464-005
9
LG4-M1A2D-000 SHUTTER DRIVE PIN 1 FTA-A08-8109
10
LG4-M1A1S-010
SUB ARM GUIDE PIN 1 FTA-A08-8139-B
11
LG4 M1A2H 500
ROLLER PIN
2
FTA E08 8506
※2
8
11 LG4-M1A2H-500 ROLLER PIN 2 FTA-E08-8506
12 LG4-M2A2E-500 RACKING LEVER 1 FTA-E08-8508-2PB
13 LG4-M1A2C-501 RACKING POLE AXIS 1 FTA-E08-8510-C
14 LG4-M1A2G-500
RACKING POLE
1 FTA-E08-8511-B
15 LG4-M1A2F-500
SCREW COIL SPRING
1 FTA-E08-8511-1B
16 LG4-M1A2J-500 SPRING HOOK PIN 1 FTA-E08-8511-2
17 LG4-M1A2K-500 SPRING HOOK PIN 1 FTA-E08-8511-3
18
LG4-M1A2N-500
RATCHET AXIS
1 FTA-E08-8512
19
LG4-M1A7B-500 LEVER AXIS
1
FTA-E08-8530
20
LG4-M1A7C-500 THRUST WASHER
1
FTA-E08-8531-1
21 LG4-M2A7A-500 LEVER
1
FTA-E08-8531-2P
22
LG4-M1A7D-500 ROLLER AXIS
1
FTA-E08-8532
23
LG4-M1A7E-500
ROLLER 1 FTA-E08-8533
24 LG4-M1A1R-500
SUB ARM 1 FTA-E08-8538
LG4-M1A1U-510 GEAR COVER
1 FTA-E08-8588-D
LG4-M1A1U-511 GEAR COVER
1 FTA-E08-8588-E
26
LG4-M1AB5-500 BEARING
2
F-WA673SSA
27 K87-M111P-000
SCREW,FLAT HEAD
1 P2MK-3
28
K87-M21BM-000
SPRING LOCK WASHER 1 3MU-P
29
K87-M21BN-000
SCREW NUT
1
3MH-P
30 K87-M111R-000
SCREW,SET 1 3MY-5-F
31
K87-M111S-000
SCREW,FLAT HEAD+
3
3MK-6-P
※1…F2 82M
001319
B～
※1
25
※1
…
F2
-
82M
-
001319
B
～
※2…F2-82M-001319B～
F2-82M (B type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A30-501
HOLD LEVER ASSY
1 AS2-E08-8590-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2 LG4-M1A1K-000 LEVER AXIS PIN 1
FTA-A08-8130-B
3 LG4-M1A1A-001
COVER PLATE
1
FTA-A08-8149-C
4 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
5 LG4-M1A3A-001
HINGE PIN 1
1
FTA-A08-8191-1C
6 LG4-M1A35-001
CLANK ARM
1 FTA-A08-8192-B
7 LG4-M1A3B-000
HINGE PIN 2
1
FTA-A08-8192-1
8 LG4-M1A36-000
ARM
1
FTA-A08-8193
9 LG4-M1A3L-000
CLANK ARM AXIS PIN
1
FTA-A08-8195
10 LG4-M1A37-010 ADJUST CLAMP PIN 1
FTA-A08-8196
11
LG4-M1A3K-001
CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
12 LG4-M1A38-000
LINK PIN T
1
FTA-A08-8198
13
LG4-M1A17-500 STOPPER PIN 1 FTA-E08-8513
14
LG4-M1AA2-510
SP.CONNECTOR ASSY
1 FTA-E08-8551-1B
15 LG4-M1AAB-510 SENSOR HARNESS ASSY 1 FTA-E08-8551-3B
16
LG4 M
1A1B 500
SENSOR PLATE
1
FTA E08 8567
16
LG4-M1A1B-500 SENSOR PLATE
1
FTA-E08-8567
17 LG4-M1A1C-500 COVER 1 FTA-E08-8581-B
18
LG4-M1A32-500 HOLD LEVER S 1
FTA-E08-8590-1
19 LG4-M1A31-500 HOLD LEVER M 1
FTA-E08-8590-B
20 LG4-M1A34-500
CLAMP LEVER
1
FTA-E08-8591
21 LG4-M1A33-500
LINK PLATE
1
FTA-E08-8594
22 LG4-M1A39-500
LINK PIN U
1
FTA-E08-8599
23 LG4-M1AHD-530 BOARD ITHB REV.C 1
24 LG4-M1ADC-000
SCREW,PAN HEAD+ 2 3MC-7-P
25 K87-M111S-000
SCREW,FLAT HEAD+
2
3MK-6-P
26 K87-M111R-000 SCREW,SET 4
3MY-5-F
27 K87-M111U-000
SCREW FLANGE NUT
2
3MH-FS
28 K87-M21BN-000
SCREW NUT
2
3MH-P
29 K87-M21BM-000
SPRING LOCK WASHER
1
3MU-P
30
LG4-M1ADG-100 SCREW,PAN HEAD+
2
P2MC-4-P
31 K87-M111N-000 SCREW,PAN HEAD+ 4
3MC-3-P
F2-82M (B type)
P 4
No. Code No. Parts Name Q'ty Parts No.

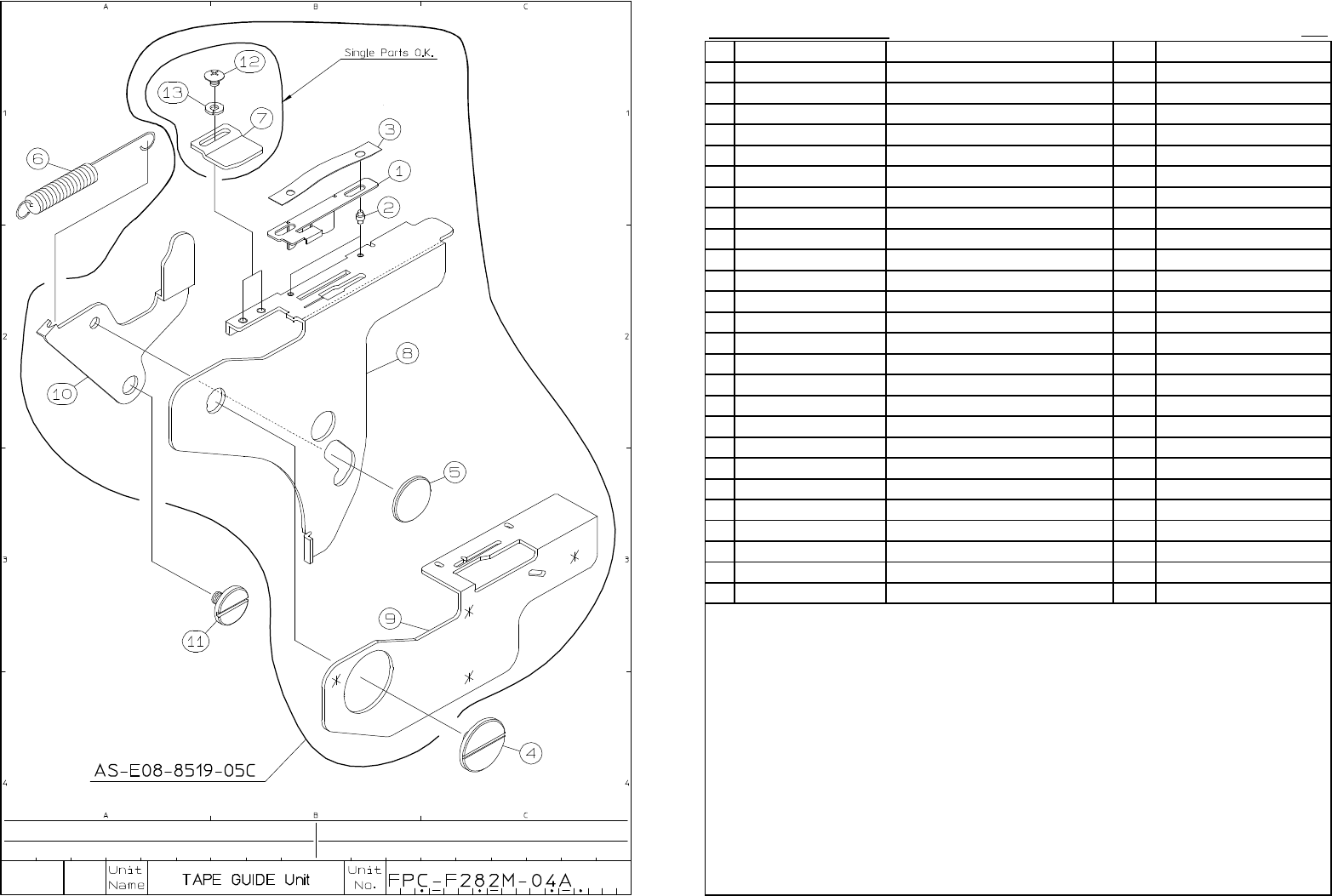

LG4-M2A40-510 T.G. PLATE ASSY 1 AS-E08-8519-05C
1 LG4-M3A42-000 SHUTTER PLATE 1 FTA-A08-8120-63
2 LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
3
LG4-M1A44-001
SHUTTER PUSH SPRING 1 FTA-A08-8122-B
4
LG4-M1A4L-000
T.G. GUIDE SCREW 1 FTA-A08-8124
5
LG4-M1A47-000
T.G. GUIDE PIN 1 FTA-A08-8125
6
LG4-M1A48-500
T.G. PUSH SPRING
1 FTA-E08-8527-30
7
LG4-M3A49-000 ADJUST PLATE 1 FTA-A08-8126-63
8
LG4-M2A41-510 TAPE GUIDE PLATE 1 FTA-E08-8519-05C
9 LG4-M2A43-500 SHUTTER GUARD PLATE 1 FTA-E08-8523-05
10 LG4-M1A46-500
LOCK LEVER 1 FTA-E08-8527
11 LG4-M1A4K-500
T.G.A. GUIDE PIN 1 FTA-E08-8529
12
K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
13
LG4-M3AD3-000 SPRING LOCK WASHER 2 2MU-P
