SMT Software Engineering Group IM Opera tions YAMAHA M OTOR CO., LTD. MDOC-SOFT5011 1 The Pro cedure o f Sys tem S oftware I nstall Y AMAHA EN GLISH . 10/16 6) Select the default language Select d efault la nguage for OS…
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50111 The Procedure of System Software Install YAMAHA ENGLISH. 9/16

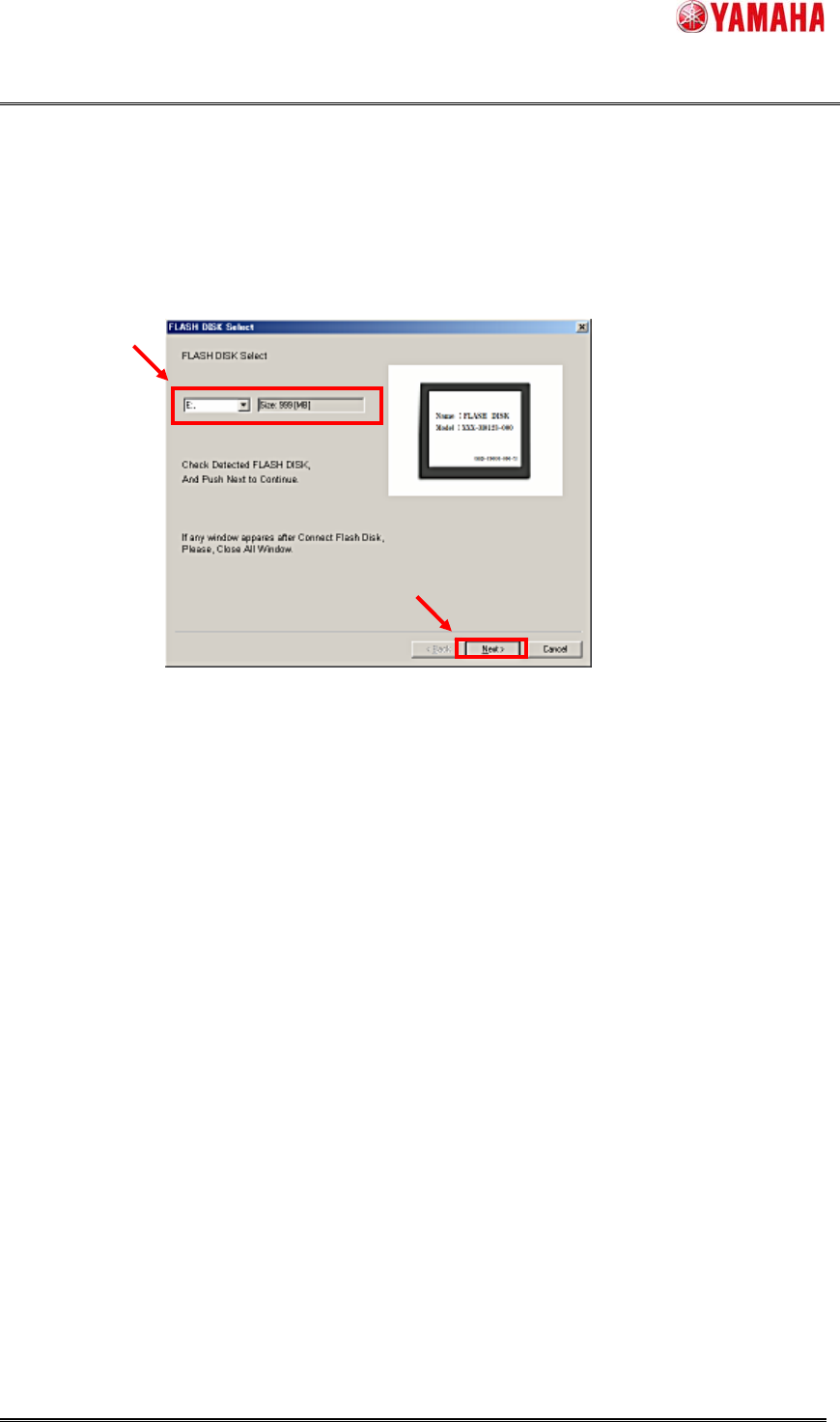

5) Connect FLASH DISK to PC
When the PC detects new FLASH DISK, the FLASH DISK screen is displayed.
Click the [Next] button to continue.
Figure 3.7 FLASH DISK connected (Detected)
Note:
When FLASH DISK is connected, a window (ex. the windows explore) can be appeared.
Close these windows.
If FLASH DISK is not detected, remove once, and connect it again.
All contents in FLASH DISK will be replaced to the new disk image.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50111 The Procedure of System Software Install YAMAHA ENGLISH. 10/16

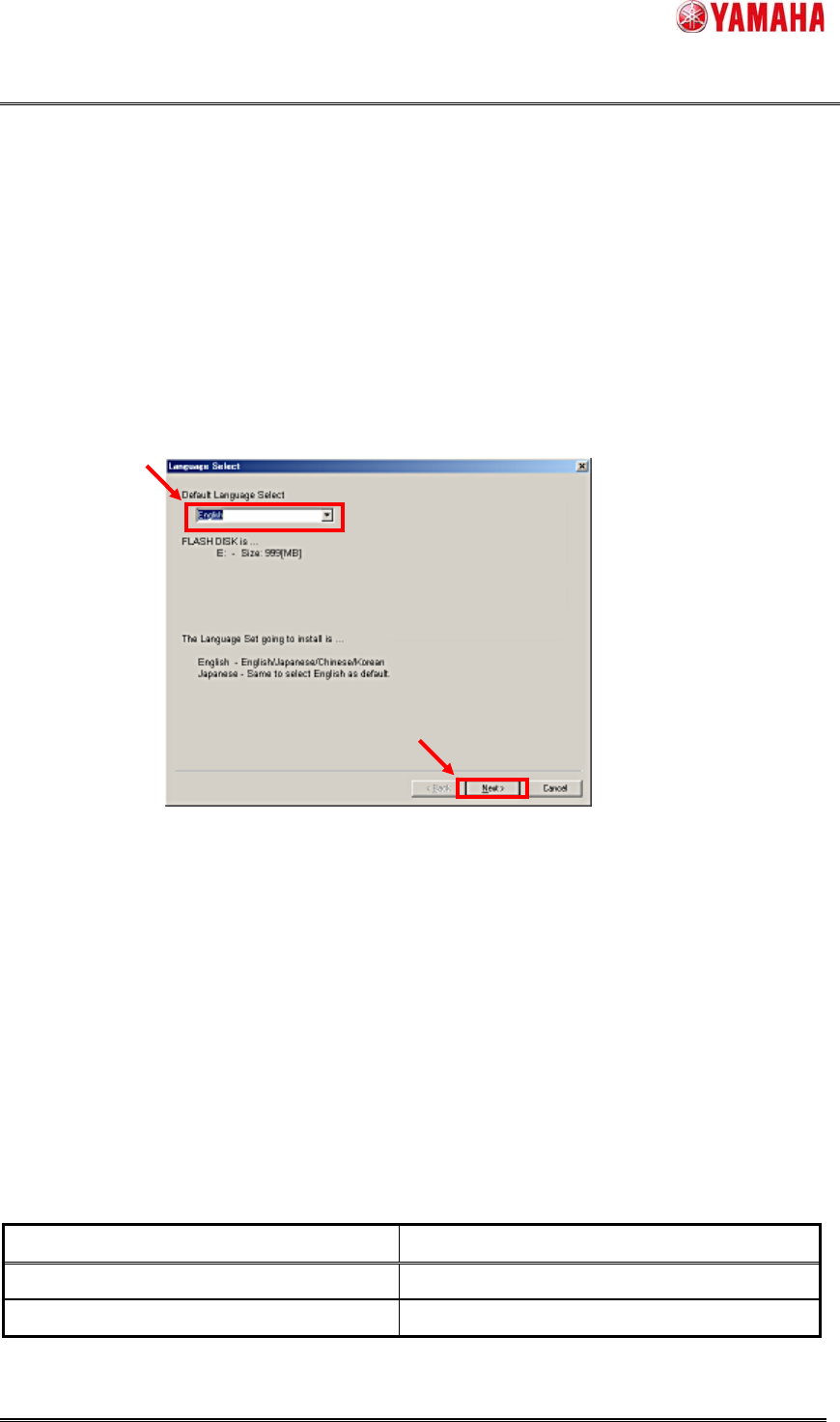

6) Select the default language
Select default language for OS, and click the [Next] button to continue.
When you use the machine in Japan, Select “Japanese”.
Or you use the machine in the other country, Select “English”.
*YSM series language is fixed by the selected disk( Disk1:English, Disk2:Japanese ).
Figure 3.8 Language Select
Note:
In some case (XG Series and YG Series with limited language), the language set being installed is
different depend on the selected item.
Refer to List 3.6 – 3.10 Including language set.
Including language set
Language set being installed is shown in the following lists. (List 3.6-3.9)
XG Series
List 3.6 XG Series
Default Language Language set
English English / Chinese
Japanese English / Japanese
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50111 The Procedure of System Software Install YAMAHA ENGLISH. 11/16
YG Series
Depend on the disk size different language set will be installed.
The latest YG machine has 1024[MB] FLASH DISK and Multi Language.
List 3.7 YG Series - Multi Language
Default Language Language set
English English / Japanese / Chinese / Korean
Japanese English / Japanese / Chinese / Korean
List 3.8 YG Series - Limited Language
Default Language Language set
English English / Chinese
Japanese English / Japanese
YS Series
List 3.9 YS Series
Default Language Language set
English English / Japanese / Chinese / Korean
Japanese English / Japanese / Chinese / Korean
