SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50111 The Procedure of System Software Install YAMAHA ENGLISH. 8/16
4) Select the System Board (For XG Series only)
(Skip this section when you install the system software to YG or YS series.)
The words: “SYSTEM” is printed in front of the system board equipped with the machine.
Search other words nearby the “SYSTEM”, select the correct item, and click the [Next] button.

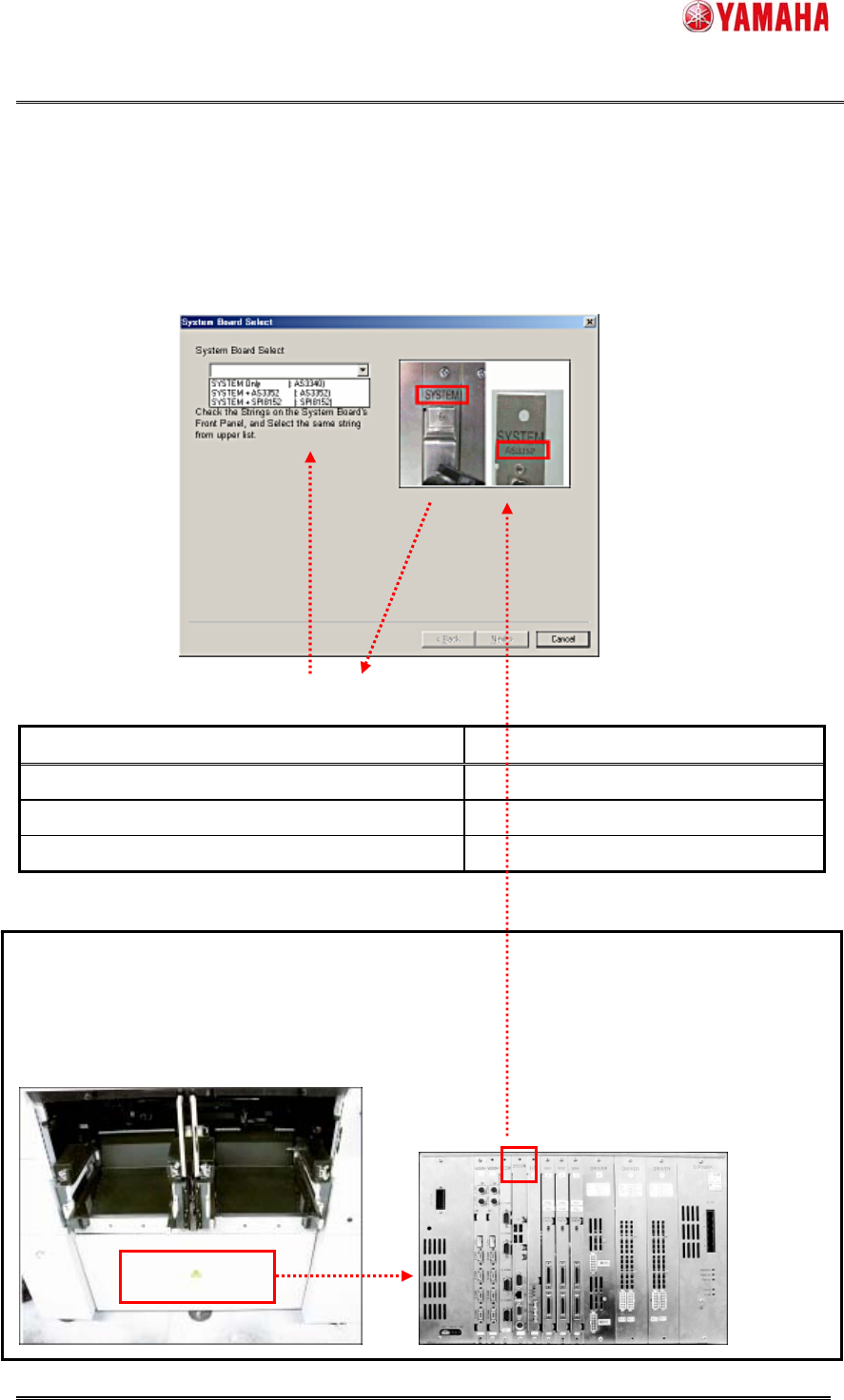

Figure 3.4 System Board Select
List 3.5 System Board Select
Words on the System Board. Select Item at the software.
SYSTEM SYSTEM Only (: AS3340)
SYSTEM and AS3352 SYSTEM + AS3352 (: AS3352)
SYSTEM and SPI8152 SYSTEM + SPI8152 (: SPI8152)
In order to check the words on the System Board,
Open the front panel of the machine.
The system board is inserted in the controller.
Figure 3.5 Front Panel of the machine.
The words: “SYSTEM” is in front of
System Board.
Refer to the bottom figure.
Figure 3.6 Controller and
System Board
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50111 The Procedure of System Software Install YAMAHA ENGLISH. 9/16
5) Connect FLASH DISK to PC
When the PC detects new FLASH DISK, the FLASH DISK screen is displayed.
Click the [Next] button to continue.
Figure 3.7 FLASH DISK connected (Detected)
Note:
When FLASH DISK is connected, a window (ex. the windows explore) can be appeared.
Close these windows.
If FLASH DISK is not detected, remove once, and connect it again.
All contents in FLASH DISK will be replaced to the new disk image.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD.
MDOC-SOFT50111 The Procedure of System Software Install YAMAHA ENGLISH. 10/16
6) Select the default language
Select default language for OS, and click the [Next] button to continue.
When you use the machine in Japan, Select “Japanese”.
Or you use the machine in the other country, Select “English”.
*YSM series language is fixed by the selected disk( Disk1:English, Disk2:Japanese ).
Figure 3.8 Language Select
Note:
In some case (XG Series and YG Series with limited language), the language set being installed is
different depend on the selected item.
Refer to List 3.6 – 3.10 Including language set.
Including language set
Language set being installed is shown in the following lists. (List 3.6-3.9)
XG Series
List 3.6 XG Series
Default Language Language set
English English / Chinese
Japanese English / Japanese
