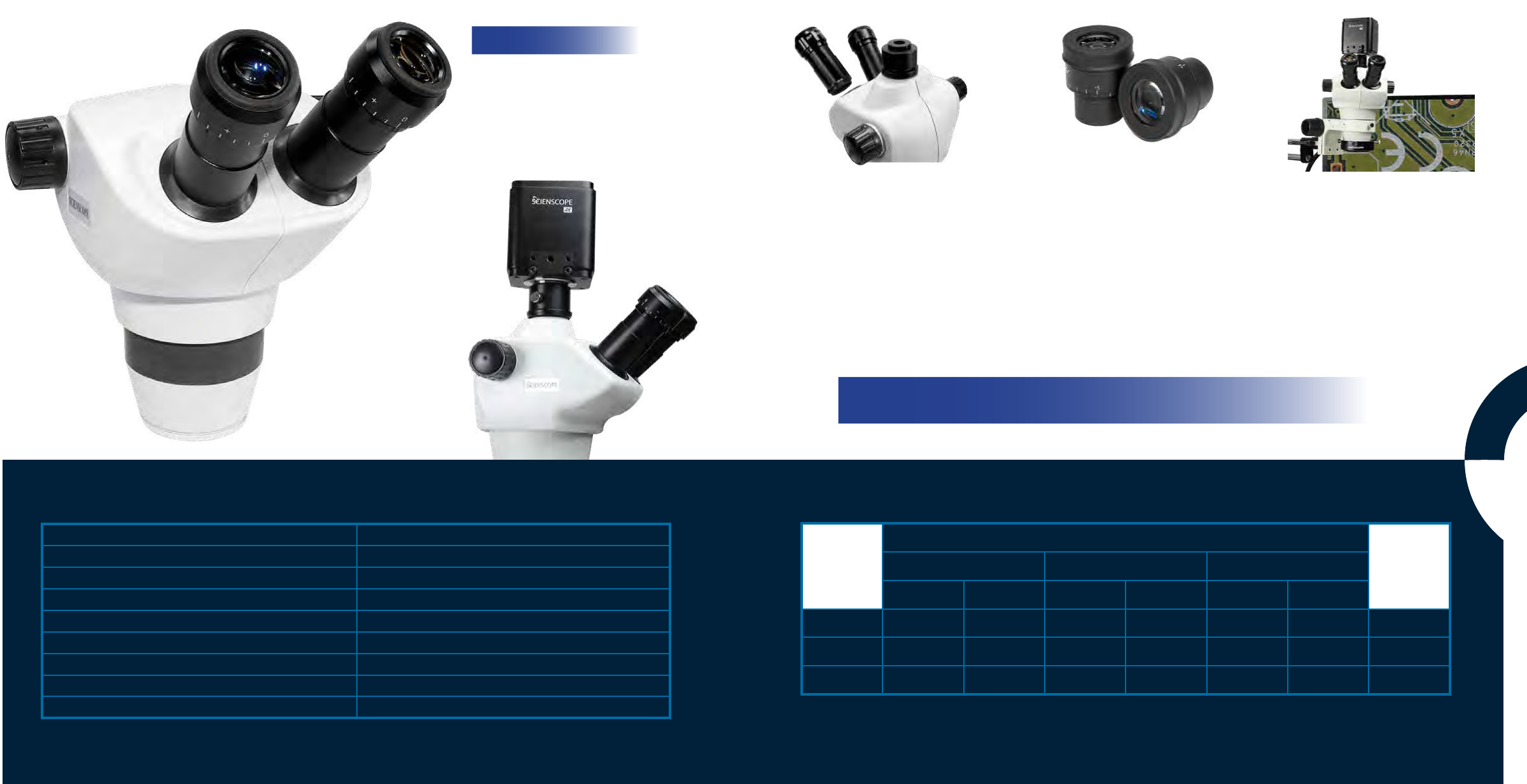

NZ SERIES
HIGHER PERFORMANCE
Scienscope designed NZ Series Stereo Zoom Microscopes to meed the requirements of users
who demand superior features and higher performance optics from a stereo zoom
microscope.
Featuring a zoom magnification of 5X and a long working distance of 115mm, the NZ Series is
well suited for all industrial applications. The airtight design allows for any environment where
temperature and humidity are high. The NZ series trinocular is a true-trinocular using the high-
est quality beam splitter for an exceptionally flat image.
• Quality construction and optics
• Long working distance
• Maintenance-free
• True trinocular
Data Sheet / NZ Body Specs
FEATURES
Precision polished optics provide a clear
and defined image for accurate inspection
or manual assembly, micro-soldering, or
dissection.
Microscope Body Zoom Range 08X- 5X
Magnication 8X- 50X (w/ 10X eyepieces)
Zoom Ratio 1:6.3
Field of View 27.5mm- 4.4mm (w/10X eyepieces)
Work Distance 115mm
Dioptric Adjustment ±5
Interpupillary Adjustment 50-76mm
Eyepieces Inclination 45°
Microscope Ring Mount Diameter 76mm
The third viewport provides video
output and allows for training and
documenting your work to be a snap.
Now with 4K or 1080p options!
Anti-mold and air-tight sealed
body design eliminate the need
for regular maintenance and add
additional reliability in most
working environments.
PRECISION OPTICS
MAINTENANCE - FREE
HD CAMERA OPTIONS
NZ Binocular Optical Specs
SUPERIOR OPTICS AND MECHANICAL CONSTRUCTION
NZ BINOCULAR
NZ TRINOCULAR
Objective
Lens
EyepiecesEyepieces
Working
Distance
10x10x 15x15x 20x20x
MAGMAG
FOVFOV (mm)
MAGMAG
FOVFOV (mm)
MAGMAG
FOVFOV (mm)
0.5X 4x- 25x 55- 8.8 6x- 37.5x 40- 6.4 8x- 50x 31.2- 5.0 211mm
Default 8x- 50x 27.5- 4.4 12x- 75x 20- 3.2 16x- 100x 15.6- 2.5 115mm
2x 16x- 100x 13.8- 2.2 24x- 150x 10- 1.6 32x- 200x 7.8- 1.3 43.5mm
Optical Magnication Formula
* Included in standard package
Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of objective lens)
NZ-PK1 Systems on post stands with choice of lighting
Package Contents
Packages with Lighting Options
NZ-PK2 Systems on track stands with choice of lighting
NZ-PK3 Systems on articulating arms with choice of lighting
NZ-PK5S Systems on single arm boom stands with choice of lighting
Package Contents
Packages with Lighting Options
NZ-PK5D Systems on dual arm boom stands with choice of lighting
• NZ Stereo Zoom Binocular, 10x eyepieces
• Eye guards
• Single arm boom stand with 76mm e-arm
• 0.5x auxiliary lens
•
Choice of lighting
NZ-PK5S-AN (Fiber optic annular ring light guide)
NZ-PK5S-R3E (New super-bright low-profile LED ring light)
NZ-PK5S-R3 (New high intensity LED ring light with polarizer)
NZ-PK5S-E1 (Quadrant compact LED ring light)
Package Contents
Packages with Lighting Options
• NZ Stereo Zoom Binocular
• 10x eyepieces
• Dual arm boom stand with 76mm e-arm
• 0.5x auxiliary lens
•
Choice of lighting
NZ-PK5D-AN (Fiber optic annular ring light guide)
NZ-PK5D-R3E (New super-bright low-profile LED ring light)
NZ-PK5D-R3 (New high intensity LED ring light with polarizer)
NZ-PK5D-E1 (Quadrant compact LED ring light)
12 13
• NZ Stereo Zoom Binocular
• 10x eyepieces
• ErgoPost Stand with 76mm focus rack
•
Choice of lighting
NZ SERIES BINOCULAR SYSTEMS
NZ-PK1-AN (Fiber optic annular ring light guide)
NZ-PK1-R3E (New super-bright low-profile LED ring light)
NZ-PK1-R3 (New high intensity LED ring light with polarizer)
NZ-PK1-E1 (Quadrant compact LED ring light)
Package Contents
Packages with Lighting Options
• NZ Stereo Zoom Binocular
• 10x eyepieces
• ErgoTrack Stand with 76mm focus rack
•
Choice of lighting
NZ-PK2-AN (Fiber optic annular ring light guide)
NZ-PK2-R3E (New super-bright low-profile LED ring light)
NZ-PK2-R3 (New high intensity LED ring light with polarizer)
NZ-PK2-E1 (Quadrant compact LED ring light)
Package Contents
Packages with Lighting Options
• NZ Stereo Zoom Binocular
• 10x eyepieces
• Articulating arm with 76mm focus rack
• 0.5x auxiliary lens
•
Choice of lighting
NZ-PK3-AN (Fiber optic annular ring light guide)
NZ-PK3-R3E (New super-bright low-profile LED ring light)
NZ-PK3-R3 (New high intensity LED ring light with polarizer)
NZ-PK3-E1 (Quadrant compact LED ring light)
Packages with HEAVY DUTY articulating arm with 15”
vertical post Options
SZ-PK3FX-AN (Fiber optic annular ring light guide)
SZ-PK3FX-R3E (New super-bright low-profile LED ring light)
SZ-PK3FX-R3 (New high intensity LED ring light with polarizer)
SZ-PK3FX-E1 (Quadrant compact LED ring light)
NZ-PK5 Systems on heavy duty articulating arms with choice of lighting
Package Contents
• NZ Stereo Zoom Binocular
• 10x eyepieces
• HEAVY DUTY articulating arm with 15” vertical
post and 76mm focus moun
• 0.5x auxiliary lens
•
Choice of lighting
14 15
E-SERIES(CMO)
SUPERIOR PERFORMANCE
The E-Series offers higher magnification than standard models, enabling high-resolution observation of small
features. Improved aberration correction provides bright and sharp images through the entire field. The parallel
optics allows ergonomic accessories and observation attachments to be used in a wide range of applications.
In addition to essential, optional accessories, the same high level of accessories used with superior models is
also available for this model. These include trinocular tubes, and slim-type LED diascopic illumination stands.
These allow various microscope configurations to suit numerous routine inspections and a range of research
and development applications.
• Ergonomic and customizable
• Infinity corrected optics
• Maintenance-free
• True trinocular
Data Sheet / E-Series (CMO) Body Specs
FEATURES
A parallel infinity-corrected optical
system allows for ergonomic cus-
tomization and stacking of several
components without distorting the
image.
Microscope Body Zoom Range 08X- 8X
Magnication 8X- 80X (w/ 10X eyepieces)
Zoom Ratio 1:10
Field of View 28.8mm- 2.9mm (w/10X eyepieces)
Work Distance 78mm
Dioptric Adjustment ±5
Interpupillary Adjustment 51- 75mm
Eyepieces Inclination 20°
Microscope Ring Mount Diameter 76mm
Eyepieces tilt and rotate to adjust for
operator height. Eyepieces rotate 180
degrees with three inches of travel.
The inclination is adjustable from 0 to
45
Eyepiece inclination of 20° allows
you to observe without leaning for-
ward, which reduces fatigue during
long hours of operation.
STACKABLE ACCESSORIES
LESS OPERATOR FATIGUE
OPTIMUM USER COMFORT
E-Series (CMO) Binocular Optical Specs
EXCEPTIONAL CLARITY AND COMFORT
E-SERIES (CMO) WITH
SEMI-ERGO 20 DEGREE
E-SERIES
(CMO) 0° - 45°
TRINOCULAR
Objective
Lens
EyepiecesEyepieces
Working
Distance
10x10x 20x20x
Body ZoomBody Zoom MAGMAG
FOVFOV (mm)
MAGMAG
FOVFOV (mm)
0.5X
1:6 4x-25x 57.5-9.2 8x-50x 35-5.6
187mm
1:10 4x-40x 57.5-5.8 8x-80x 35.-3.5
1X
1:6 8x-50x 28.8-4.6 16x-100x 17.5-2.8
78mm
1:10 8x-80x 28.8-2.9 16x-160x 17.5-1.8
2X
1:6 16x-100x 14.4-2.9 32x-200x 8.8-1.4
35mm
1:10 16x-160x 14.4-1.8 32x-320x 8.8-0.9
Optical Magnication Formula
* Included in standard package
Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of objective lens)
