14 15 E- SERIES (CMO) SUPERIOR PERFORMANCE The E - Series offers higher magnification than standar d models, enabling high-resolution observ ation of small features. Impr ov ed aberration correction pr ovides bright and …

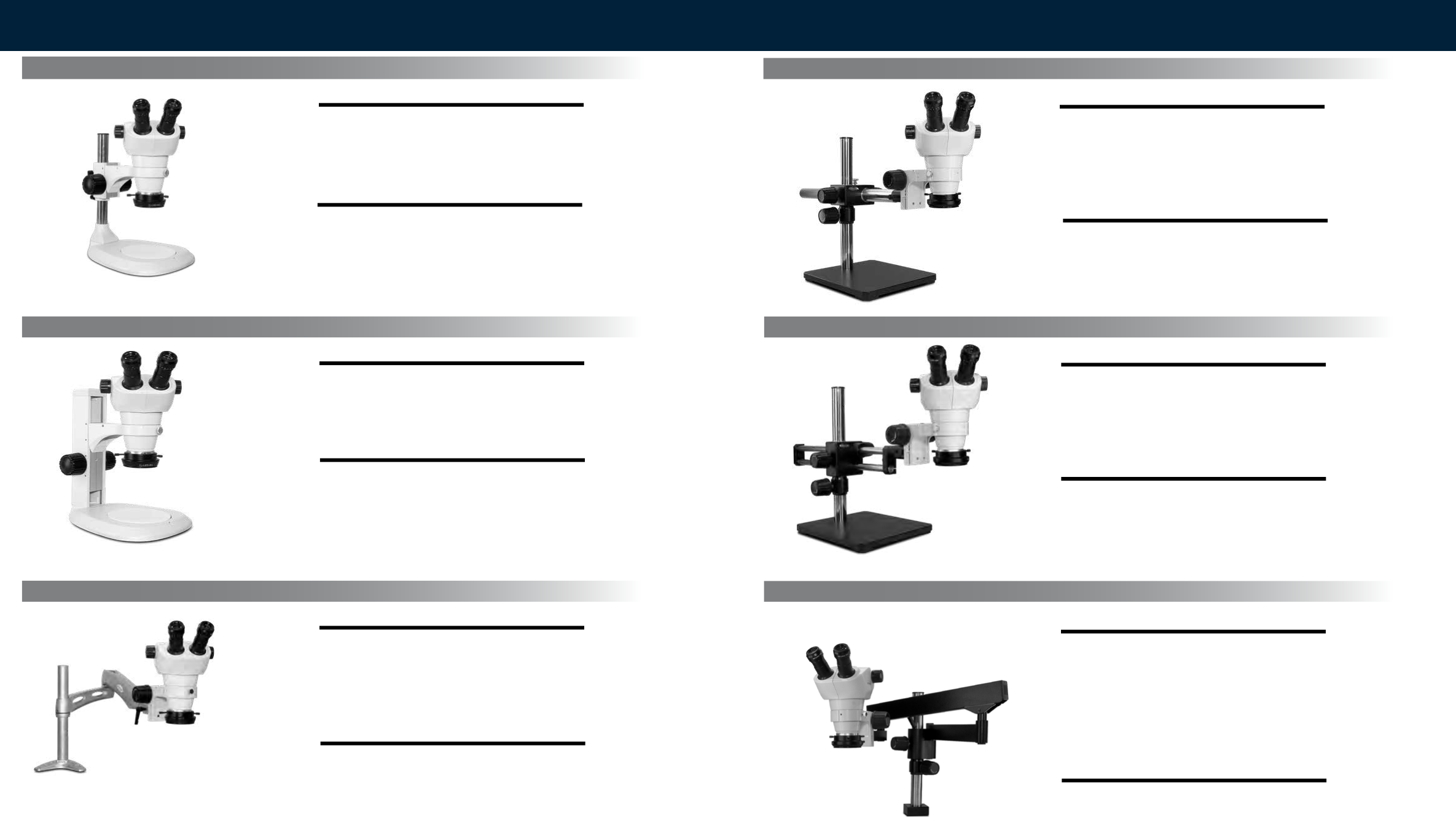

NZ-PK1 Systems on post stands with choice of lighting
Package Contents
Packages with Lighting Options
NZ-PK2 Systems on track stands with choice of lighting
NZ-PK3 Systems on articulating arms with choice of lighting
NZ-PK5S Systems on single arm boom stands with choice of lighting
Package Contents
Packages with Lighting Options
NZ-PK5D Systems on dual arm boom stands with choice of lighting
• NZ Stereo Zoom Binocular, 10x eyepieces
• Eye guards
• Single arm boom stand with 76mm e-arm
• 0.5x auxiliary lens
•
Choice of lighting
NZ-PK5S-AN (Fiber optic annular ring light guide)
NZ-PK5S-R3E (New super-bright low-profile LED ring light)
NZ-PK5S-R3 (New high intensity LED ring light with polarizer)
NZ-PK5S-E1 (Quadrant compact LED ring light)
Package Contents
Packages with Lighting Options
• NZ Stereo Zoom Binocular
• 10x eyepieces
• Dual arm boom stand with 76mm e-arm
• 0.5x auxiliary lens
•
Choice of lighting
NZ-PK5D-AN (Fiber optic annular ring light guide)
NZ-PK5D-R3E (New super-bright low-profile LED ring light)
NZ-PK5D-R3 (New high intensity LED ring light with polarizer)
NZ-PK5D-E1 (Quadrant compact LED ring light)
12 13
• NZ Stereo Zoom Binocular
• 10x eyepieces
• ErgoPost Stand with 76mm focus rack
•
Choice of lighting
NZ SERIES BINOCULAR SYSTEMS
NZ-PK1-AN (Fiber optic annular ring light guide)
NZ-PK1-R3E (New super-bright low-profile LED ring light)
NZ-PK1-R3 (New high intensity LED ring light with polarizer)
NZ-PK1-E1 (Quadrant compact LED ring light)
Package Contents
Packages with Lighting Options
• NZ Stereo Zoom Binocular
• 10x eyepieces
• ErgoTrack Stand with 76mm focus rack
•
Choice of lighting
NZ-PK2-AN (Fiber optic annular ring light guide)
NZ-PK2-R3E (New super-bright low-profile LED ring light)
NZ-PK2-R3 (New high intensity LED ring light with polarizer)
NZ-PK2-E1 (Quadrant compact LED ring light)
Package Contents
Packages with Lighting Options
• NZ Stereo Zoom Binocular
• 10x eyepieces
• Articulating arm with 76mm focus rack
• 0.5x auxiliary lens
•
Choice of lighting
NZ-PK3-AN (Fiber optic annular ring light guide)
NZ-PK3-R3E (New super-bright low-profile LED ring light)
NZ-PK3-R3 (New high intensity LED ring light with polarizer)
NZ-PK3-E1 (Quadrant compact LED ring light)
Packages with HEAVY DUTY articulating arm with 15”
vertical post Options
SZ-PK3FX-AN (Fiber optic annular ring light guide)
SZ-PK3FX-R3E (New super-bright low-profile LED ring light)
SZ-PK3FX-R3 (New high intensity LED ring light with polarizer)
SZ-PK3FX-E1 (Quadrant compact LED ring light)
NZ-PK5 Systems on heavy duty articulating arms with choice of lighting
Package Contents
• NZ Stereo Zoom Binocular
• 10x eyepieces
• HEAVY DUTY articulating arm with 15” vertical
post and 76mm focus moun
• 0.5x auxiliary lens
•
Choice of lighting
14 15

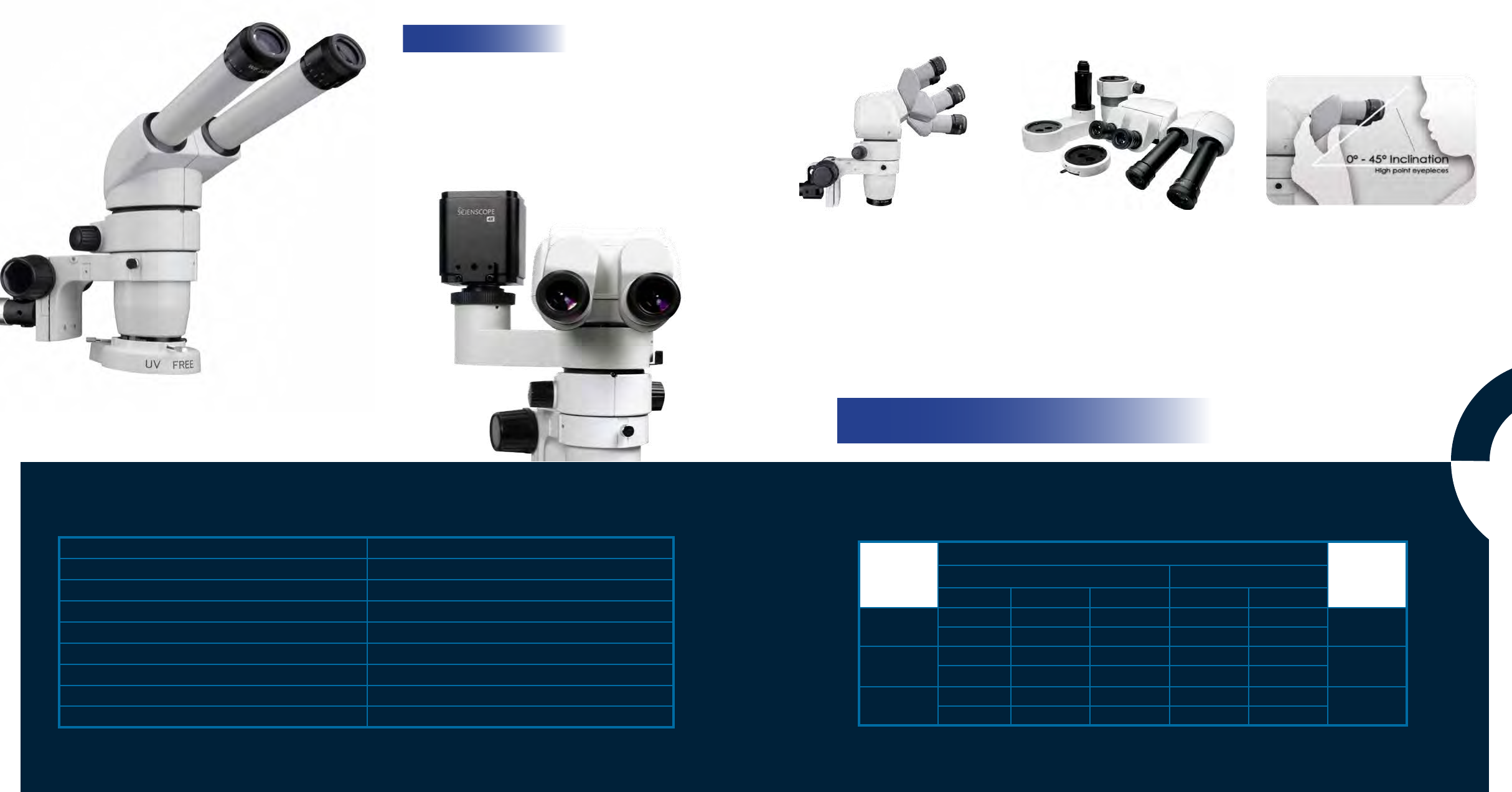

E-SERIES(CMO)
SUPERIOR PERFORMANCE
The E-Series offers higher magnification than standard models, enabling high-resolution observation of small
features. Improved aberration correction provides bright and sharp images through the entire field. The parallel
optics allows ergonomic accessories and observation attachments to be used in a wide range of applications.
In addition to essential, optional accessories, the same high level of accessories used with superior models is
also available for this model. These include trinocular tubes, and slim-type LED diascopic illumination stands.
These allow various microscope configurations to suit numerous routine inspections and a range of research
and development applications.
• Ergonomic and customizable
• Infinity corrected optics
• Maintenance-free
• True trinocular
Data Sheet / E-Series (CMO) Body Specs
FEATURES
A parallel infinity-corrected optical
system allows for ergonomic cus-
tomization and stacking of several
components without distorting the
image.
Microscope Body Zoom Range 08X- 8X
Magnication 8X- 80X (w/ 10X eyepieces)
Zoom Ratio 1:10
Field of View 28.8mm- 2.9mm (w/10X eyepieces)
Work Distance 78mm
Dioptric Adjustment ±5
Interpupillary Adjustment 51- 75mm
Eyepieces Inclination 20°
Microscope Ring Mount Diameter 76mm
Eyepieces tilt and rotate to adjust for
operator height. Eyepieces rotate 180
degrees with three inches of travel.
The inclination is adjustable from 0 to
45
Eyepiece inclination of 20° allows
you to observe without leaning for-
ward, which reduces fatigue during
long hours of operation.
STACKABLE ACCESSORIES
LESS OPERATOR FATIGUE
OPTIMUM USER COMFORT
E-Series (CMO) Binocular Optical Specs
EXCEPTIONAL CLARITY AND COMFORT
E-SERIES (CMO) WITH
SEMI-ERGO 20 DEGREE
E-SERIES
(CMO) 0° - 45°
TRINOCULAR
Objective
Lens
EyepiecesEyepieces
Working
Distance
10x10x 20x20x
Body ZoomBody Zoom MAGMAG
FOVFOV (mm)
MAGMAG
FOVFOV (mm)
0.5X
1:6 4x-25x 57.5-9.2 8x-50x 35-5.6
187mm
1:10 4x-40x 57.5-5.8 8x-80x 35.-3.5
1X
1:6 8x-50x 28.8-4.6 16x-100x 17.5-2.8
78mm
1:10 8x-80x 28.8-2.9 16x-160x 17.5-1.8
2X
1:6 16x-100x 14.4-2.9 32x-200x 8.8-1.4
35mm
1:10 16x-160x 14.4-1.8 32x-320x 8.8-0.9
Optical Magnication Formula
* Included in standard package
Total Magnication = (Mag. of Eyepieces) X (Mag. of the objective zoom range on body) X ( Mag/ of objective lens)
16 17

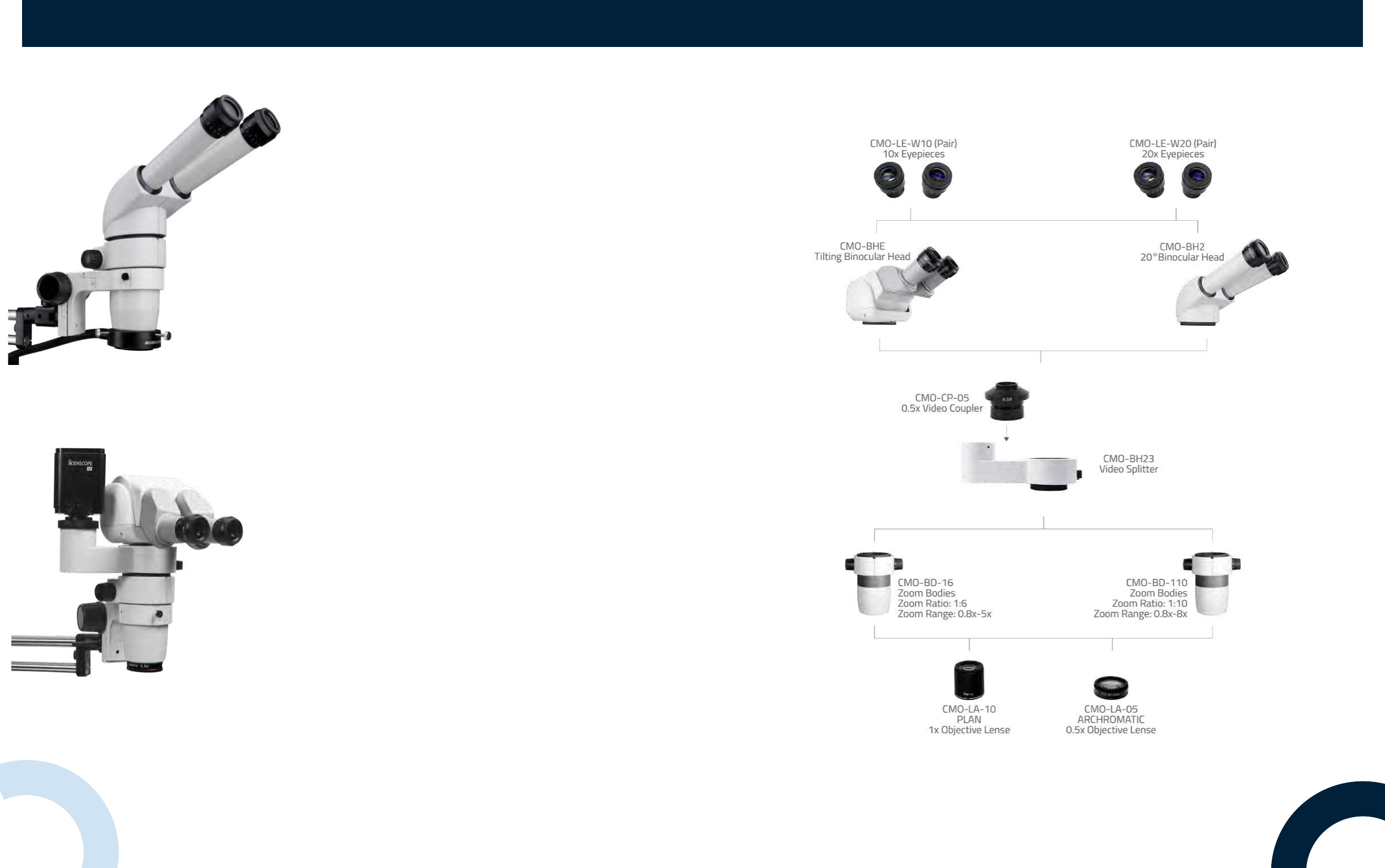

E-SERIES MICROSCOPE CONFIGURATION CHART
E-SERIES MICROSCOPE CONFIGURATION CHART
Minimum required components that comprise a binocular
microscope system:
• Eyepieces
• Binocular Head
• Zoom Body
• Objective Lens
E-Series Microscopes configured as a binocular system with 0°-45° Tilting
Head.
E-Series
Binocular Conguaration
Minimum required components that comprise a trinocular
microscope system:
• Eyepieces
• Binocular Head
• Video Splitter
• Video Coupler
• Zoom Body
• Objective Lens
• Digital Camera
E-Series Microscopes configured as a trinocular system with optional video
splitter video coupler and CMOS Camera.
E-Series
Trinocular Conguaration
