Tg0967-PM-SO
2.1 Component Shortage Data Output Function
0309-001 9
2.1.6 Component Shortage Determination on Data Output Data
(1) Determination of Component Shortage
Reference: "Error (A)" in Table 2
The objective is the status data [0x31/0x33/0x35] that was transmit-
ted as an error.
0x31 COMP. MISSING (SENSOR)/0x33: COMP. MISSING
(RECOG.)/0x35: SHORTAGE OF COMP.
(2) The component was picked up but can not be placed.
Reference: "Error (B)" in Table 2
The objective is the status data [0x32/0x33/0x34/0x38] that was
transmitted as an error.
0x32: COMP. VERTICAL (SENSOR)/0x33: COMP. MISSING
(RECOG.)/0x34: COMP. RECOG. ERROR/0x38: COMP. THICK-
NESS (SENSOR)
(3) Contents of Alarm Data
Reference: "Alarm" in Table 2
The alarm data is always transmitted before the error message based
on this alarm data is issued later. Therefore, the contents of the
alarm data may be almost the same as the error message.
When the alarm data is not necessary, discard it on the external
host computer side.
• Alternate (Feeder) Data : This is transmitted as alarm data.
• Recovery/Component Shortage Alarm Data : Not Transmitted
The contents described in the above (1) and (3) may have noth-
ing to do with any component shortage when the tape feeders,
the components to be supplied, or the main machine is not work-
ing normally.
Note
Tg0967-PM-SO
2.1 Component Shortage Data Output Function
0309-001 10
Detailed Information
Data Description
Type (Machine Status)
Error Pickup Error (*5) 0x31: COMP. MISSING Component Shortage
(A) (SENSOR) Pickup Error
0x33: COMP. MISSING (Thickness : less than 0.15 mm)
(RECOG.)
0x35: SHORTAGE OF If the tape end detection function is not
COMP. used, this error will not be indicated.
When the tape end is detected three
times and no component is detected by
the sensor, the tape end detection func-
tion indicates this as an error.
Error Pickup Error (*6) 0x32:COMP. VERTICAL Pickup Error Wrong Pickup Posture (Vertical Pickup)
(B) (SENSOR) or Wrong Tape End Detection due to
Excessive Thickness
0x33: COMP. MISSING Component Falling (Thickness: 0.15 mm or more)
(RECOG.) during
Feeding
0x34: COMP. RECOG. Component Posture
ERROR Error
Wrong Component
Loading
Data Error
0x37
0x38: COMP. Wrong Component The component thickness is too thin.
THICKNESS
(SENSOR)
0x39
Error Alternate Mode 0x31 to 0x39 (*7) Same as the above- The objective feeder alternate data for
(Unit) described Pickup Error linking is also transmitted collectively at
the same time.
Alarm Alternate Mode 0x31 to 0x39 (*7) Same as the above-
(Feeder) described Pickup Error
Recovery Mode 0x31 to 0x39 Recovery Generation
Component Tape End Detection The tape end was detected.
Shortage Alarm
Table 2
Cause Remarks
(*5) Determined as an error according to the reached counts specified
in the component library data "Error Process Data 1".
(*6) Determined as an error according to the reached counts specified
in the component library data "Error Process Data 2".
(*7) The objective feeder alternate data for linking is also transmitted
collectively while an error at the last alternate feeder slot is being
sent out.
Refer to the example of the data output.
Tg0967-PM-SO

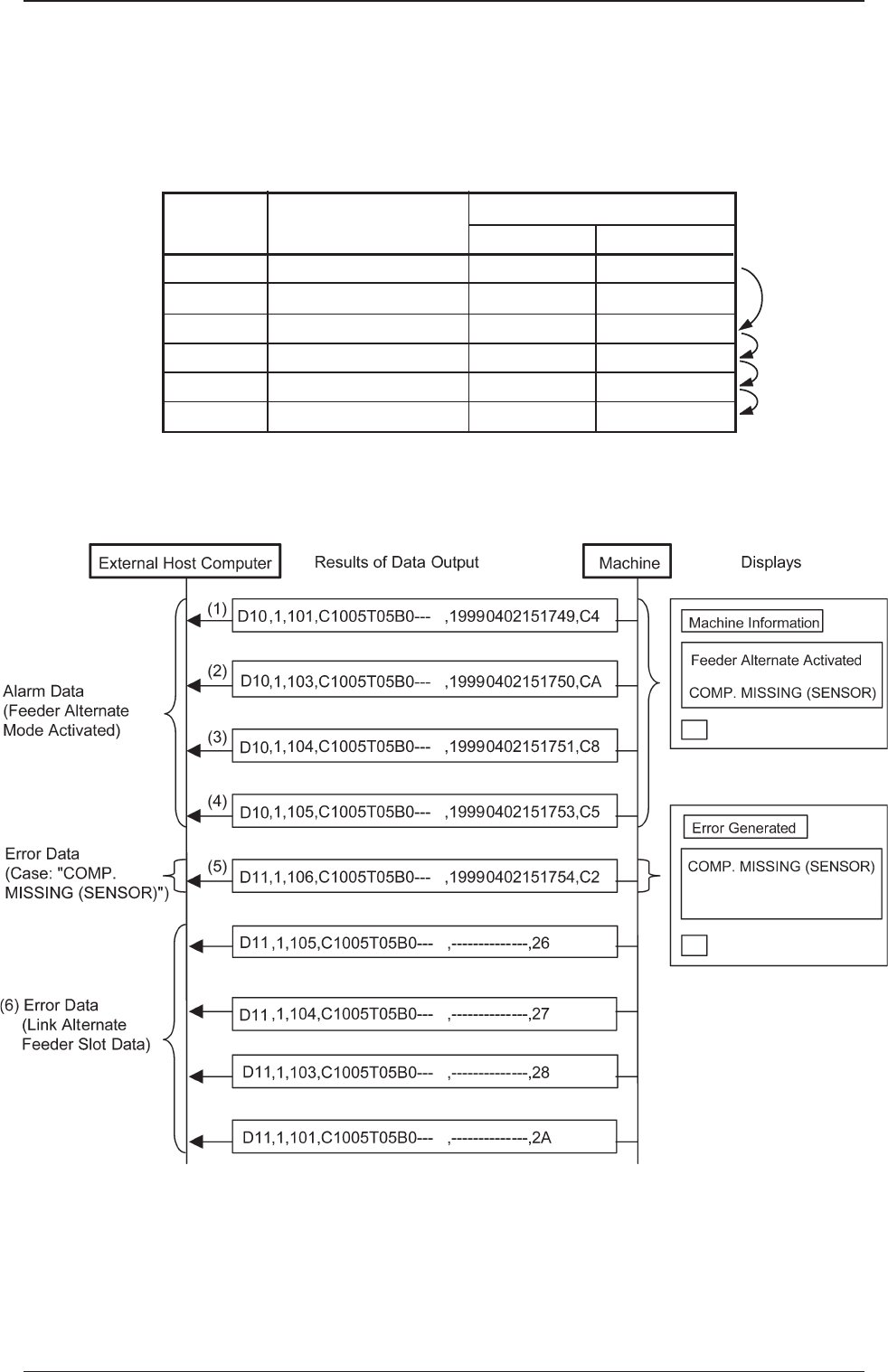

3. Example of Data Output (Component Shortage Output Function) (Machine to External Host Computer)
0309-001 11
3. Example of Data Output
(Component Shortage Output Function)
(Machine to External Host Computer)
Pattern Program Data (Component Data) Table 3
Feeder
Component ID
Feeder Alternate
Slot Nos. Mode Feeder No.
101 C1005T05B0 ENABLE 103
102 ALC4343-BOMAT DISABLE 000
103 C1005T05B0 ENABLE 104
104 C1005T05B0 ENABLE 105
105 C1005T05B0 ENABLE 106
106 C1005T05B0 DISABLE 000
In the case of the above-described pattern program data, the results of
the data output (from the machine to the external host computer) will be
as follows.
(1)
(2)
(3)
(4)
(5)
Fig. 5
