RF08AS_RF12AS_RF16AS_RF24AS_RF32AS_RF44AS_RF56AS-Rev02.pdf - 第13页
- - REF.NO NOTE PARTNO DESCRIPTION Qty 1 #01 401-75352 PULL_UNIT _12K 1 2 #02 401-75364 PULL_UNIT _16K 1 3 #03 401-75369 PULL_UNIT _24K 1 4 #01 401-75353 TENSIONER_AR M_ASSY_12K (1) 5 #02 401-75365 TEN…
- -

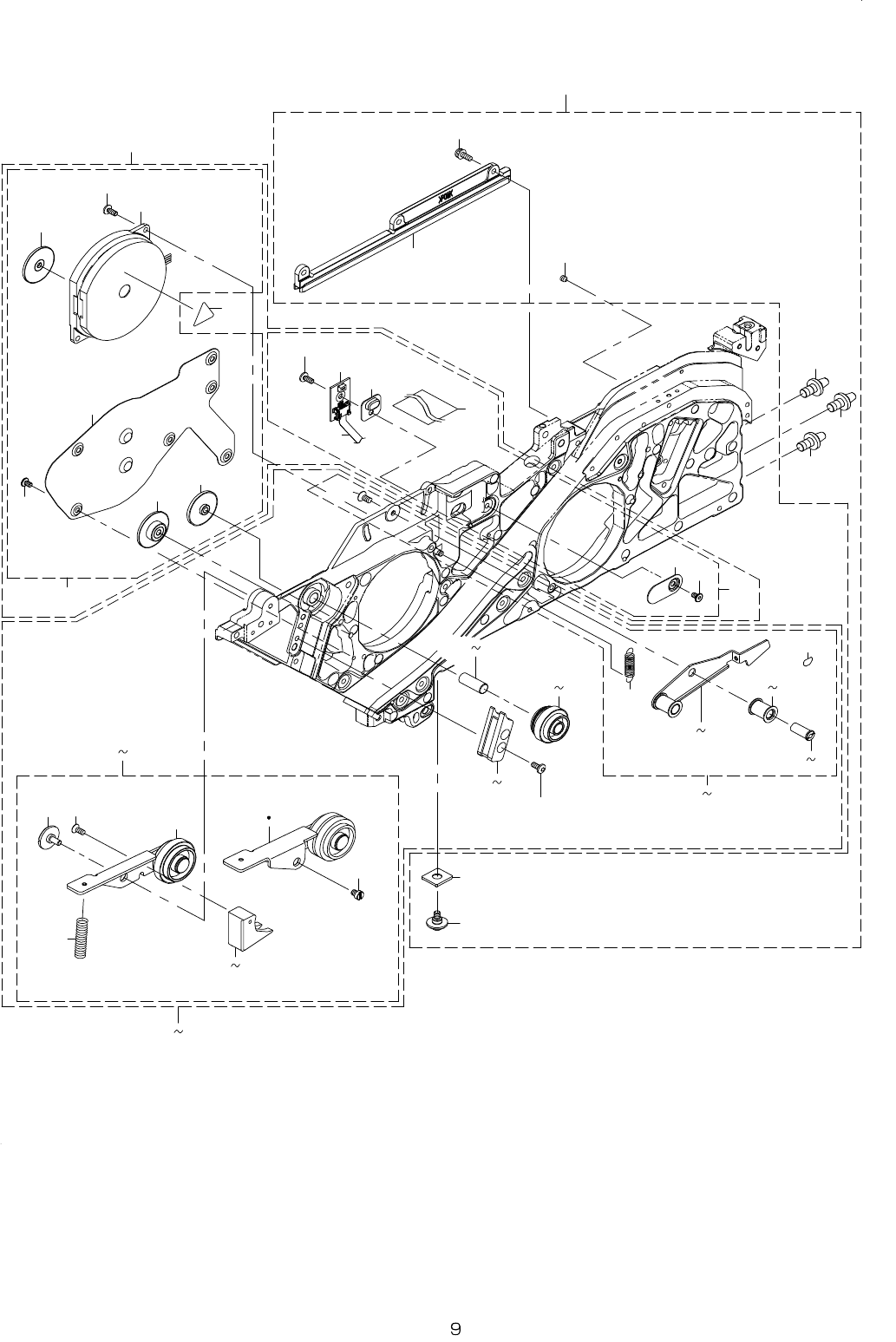

5. RF12AS,RF12AS(SP),RF16AS,RF16AS(SP),RF24AS,RF24AS(SP)(2)
7 9
1 0 1 2
1 3
1 4
1 5
1 6 1 8
4 6
2 5
2 6
2 7
2 2 2 4
1 9 2 1
4 4
5 0
4 9
4 6
4 8
4 7
4 3
5 8
5 9
5 3
3 5 3 7
3 8 4 0
4 1
5 5
5 7
5 4
5 2
6 7
6 6
6 6
6 1
6 2
6 3
6 4
6 5
5 6
4 5
1 3
6 0
3 2 3 4
4 2
2 9 3 0
3 1
2 8
5 1
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1
#01
401-75352 PULL_UNIT_12K 1
2
#02
401-75364 PULL_UNIT_16K 1
3
#03
401-75369 PULL_UNIT_24K 1
4
#01
401-75353 TENSIONER_ARM_ASSY_12K (1)
5
#02
401-75365 TENSIONER_ARM_ASSY_16K (1)
6
#03
401-75370 TENSIONER_ARM_ASSY_24K (1)
7
#01
401-72646 T_ROLLER_MAIN_SH_12K (2)
8
#02
401-72647 T_ROLLER_MAIN_SH_16K (2)
9
#03
401-72648 T_ROLLER_MAIN_SH_24K (2)
10
#01
401-72649 T_ROLLER_12K (1)
11
#02
401-72650 T_ROLLER_16K (1)
12
#03
401-72651 T_ROLLER_24K (1)
13 400-52050 SCREWM3X6MEC (2)
14 401-72655 TENSIONER_SP_12K (1)
15 401-89573 TENSIONER_REFLECTOR_R (1)
16
#01
401-75354 TENSIONER_ARM_SUB_ASSY_12K (1)
17
#02
401-75366 TENSIONER_ARM_SUB_ASSY_16K (1)
18
#03
401-75371 TENSIONER_ARM_SUB_ASSY_24K (1)
19
#01
401-75355 PULL_IDLER_ARM_ASSY_12K (1)
20
#02
401-75367 PULL_IDLER_ARM_ASSY_16K (1)
21
#03
401-75372 PULL_IDLER_ARM_ASSY_24K (1)
22
#01
401-72642 PULL_UPPER_SCRAPER_12K (1)
23
#02
401-72643 PULL_UPPER_SCRAPER_16K (1)
24
#03
401-72644 PULL_UPPER_SCRAPER_24K (1)
25 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (1)
26 E1524-706-C00 STEPSCREW (1)
27 401-72645 PULL_IDLER_ARM_SP_12K (1)
28
#01
401-75356 PULL_IDLER_ARM_SUB_ASSY_12K (1)
29
#02
401-75368 PULL_IDLER_ARM_SUB_ASSY_16K (1)
30
#03
401-75373 PULL_IDLER_ARM_SUB_ASSY_24K (1)
31
#04
401-81066 IDLER_ARM_SH (1)
32
#01
401-72627 GEAR_SH_12K (1)
33
#02
401-72628 GEAR_SH_16K (1)
34
#03
401-72629 GEAR_SH_24K (1)
35
#01
401-72630 PULL_GEAR_12K (1)
36
#02
401-72631 PULL_GEAR_16K (1)
37
#03
401-72632 PULL_GEAR_24K (1)
38
#01
401-72633 PULL_LOWER_SCRAPER_12K (1)
39
#02
401-72634 PULL_LOWER_SCRAPER_16K (1)
40
#03
401-72635 PULL_LOWER_SCRAPER_24K (1)
41 401-67278 BINDING_HEAD_SCREW_M26X6 (2)
42 401-75345 PULL_BAE_UNIT_12K 1
43 401-69539 TENSIONER_PHOTO_SENSOR_ASSY (1)
44 401-67278 BINDING_HEAD_SCREW_M26X6 (1)
45 401-66941 TENSIONSENSFPC (1)
46 401-67247 PULL_SENSOR_COVER_A (1)
47 401-83681 ANTIREFLECTION_PAPER (1)
48 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (1)
49 401-67282 SENSOR_CAP (1)
50 401-62445 ETFREFLECTIVESENSPCBASM (1)
51 CM-3003000-01 SEAL (1)
52 401-75346 PULL_GEAR_BAE_UNIT_12K (1)
53 401-67207 PULL_GEAR_A (1)
54 401-67208 PULL_GEAR_B (1)
55 401-67278 BINDING_HEAD_SCREW_M26X6 (2)
56 401-67261 PULL_GEAR_COVER_12K (1)
57 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (6)
58 401-66950 MOTOR_ASSY_12K (1)
59 401-67202 FEED_GEAR_E_08K (1)
60 401-69520 RAIL_UNIT_08K 1
61 SM-8030302-TP SCREWM3X3 (3)
62 401-67213 SLIDE_RAIL (1)
63 SL-4860891-SC SCREWM2.6X8 (3)
64 401-67290 LOCATE_PIN_A (1)
65 401-67291 LOCATE_PIN_BASE (1)
66 401-67211 X_AXIS_BASE_PIN_1 (2)
67 401-67212 X_AXIS_BASE_PIN_2 (1)
- -

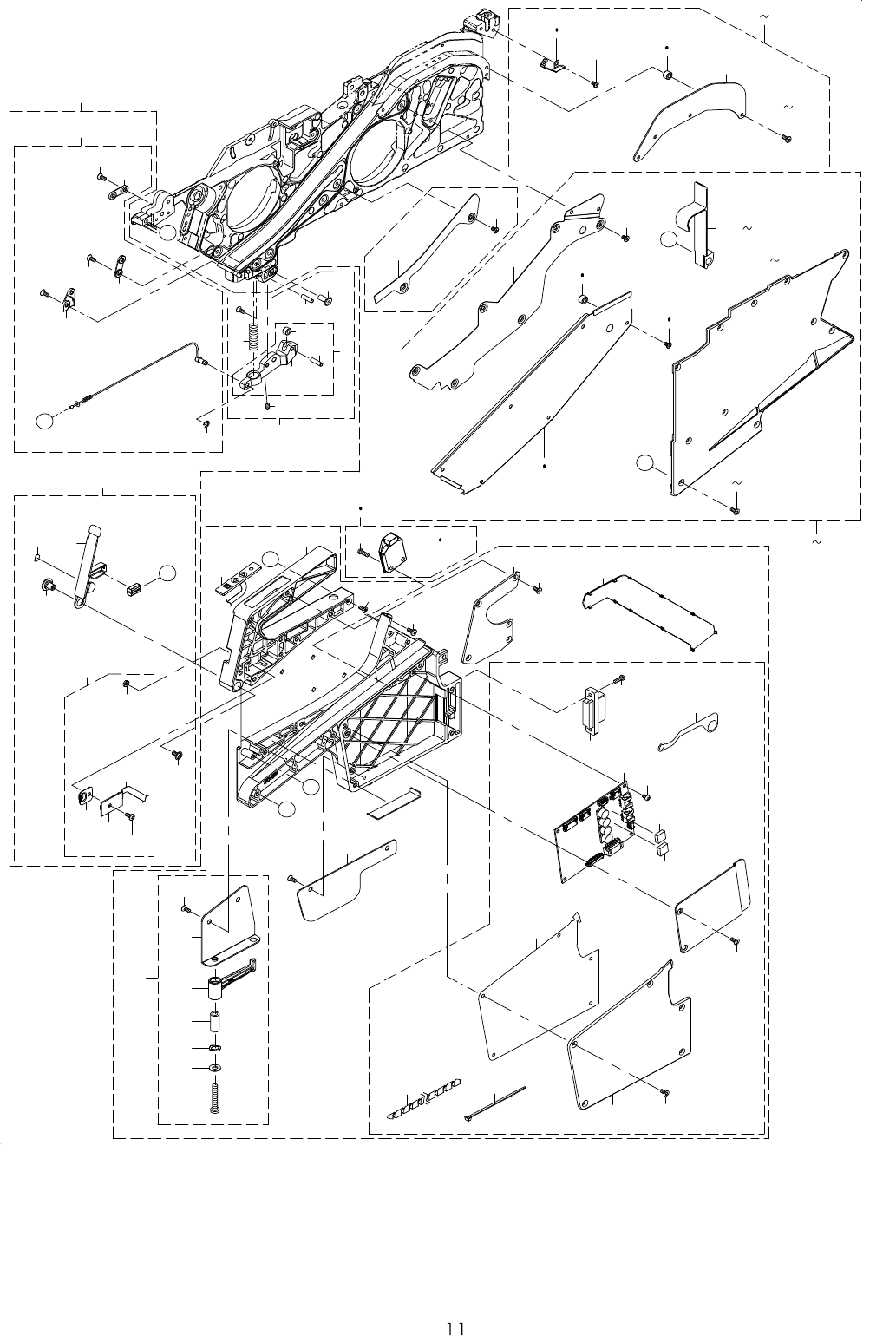

6. RF12AS,RF12AS(SP),RF16AS,RF16AS(SP),RF24AS,RF24AS(SP)(3)
3
4
5
6
7
1 1
9
1 0
8
1 8
2 2
2 1
2 0
1 9
2 3
1 4
1 2
2 9
2 6
2 6
2 5
2 5
2 6
2 7
2
4 0
A
A
4 1
4 2
7 5 7 7
4 4
4 5
8 6 8 8
4 6
4 7
3 9
7 2 7 4
4 0
4 3
5 6
5 3
5 4
5 7
4 8
6 5
6 6
6 7
6 2
6 3
6 4
6 1
8 1
7 8
6 9 7 1
3 0 3 1
3 2 3 3
3 4
B
B
C
C
5 8
6 0
5 9
6 8
3 8
9 6 9 7
8 2 8 3
7 9 8 0
2 4
1
D
D
8 4 8 5
9 2
9 3 9 5
8 9 9 1
1 0 0
9 8 9 9
3 6
3 7
3 5
4 9
2 8
1 6
1 3
1 5
1 7
5 5
5 5
5 2
5 1
5 7
5 0
