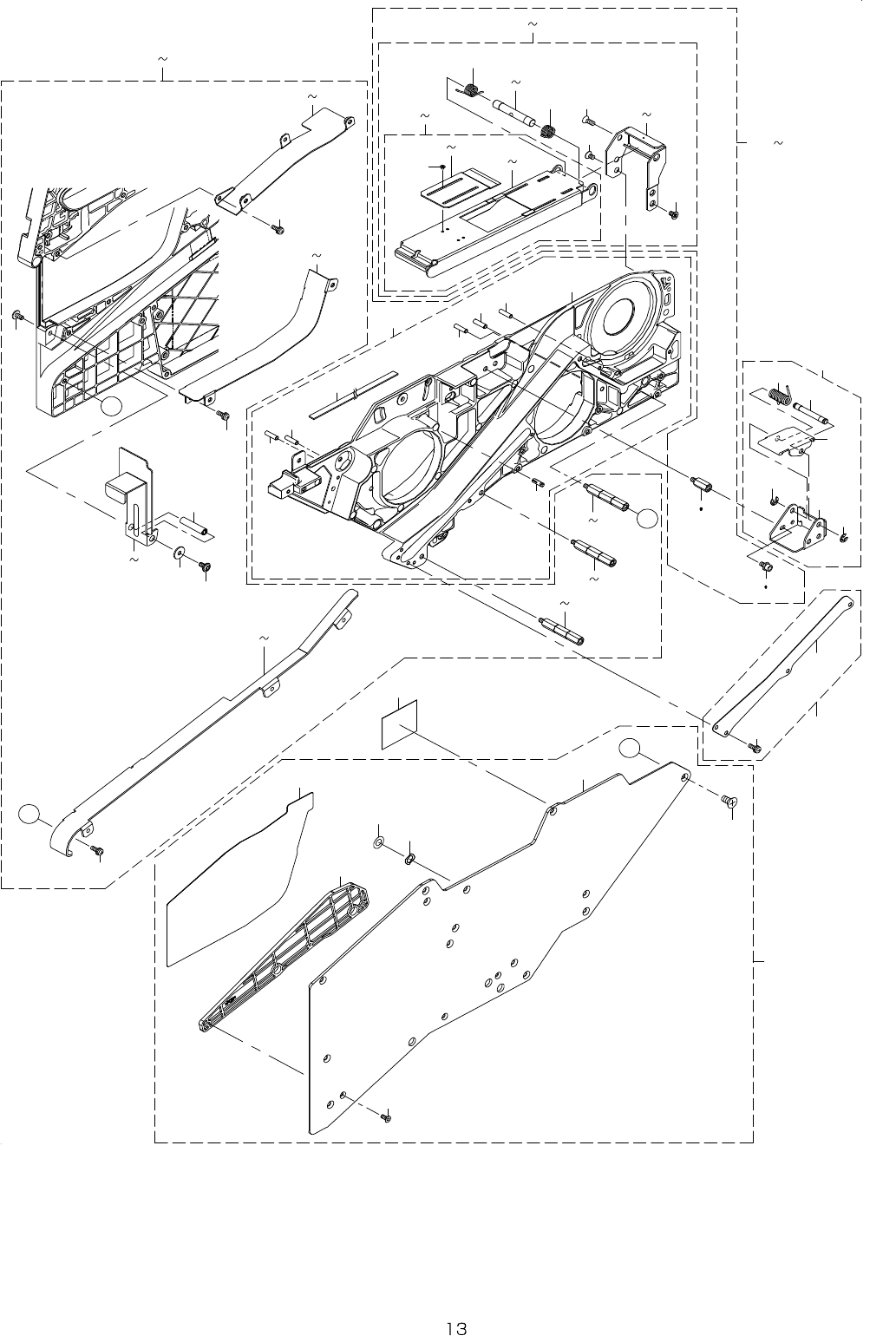

7. RF32AS,RF32AS(SP),RF44AS,RF44AS(SP),RF56AS,RF56AS(SP)(1)
7 2
2
3
4
3
5
7
8
9
1 0
1 1
1 1
6
2 1 2 3
3 1 3 3
3 4
3 5
2 8 3 0
3 6
3 7
3 7
1 5 1 7
3 8 3 9
4 0 4 1
1 2 1 4
4 3
4 4
4 8 5 0
5 1 5 3
5 4 5 6
5 7
5 7
5 7
5 8 6 0
5 8 6 0
6 6
6 5
6 6
6 4
6 1 6 3
A
A
B
B
5 8 6 0
6 8
6 9
7 0
7 1
3
3
3
2 4 2 6
2 7
1 8 2 0
4 5 4 7
4 2
1
6 7
7 5
7 4
7 3
- -

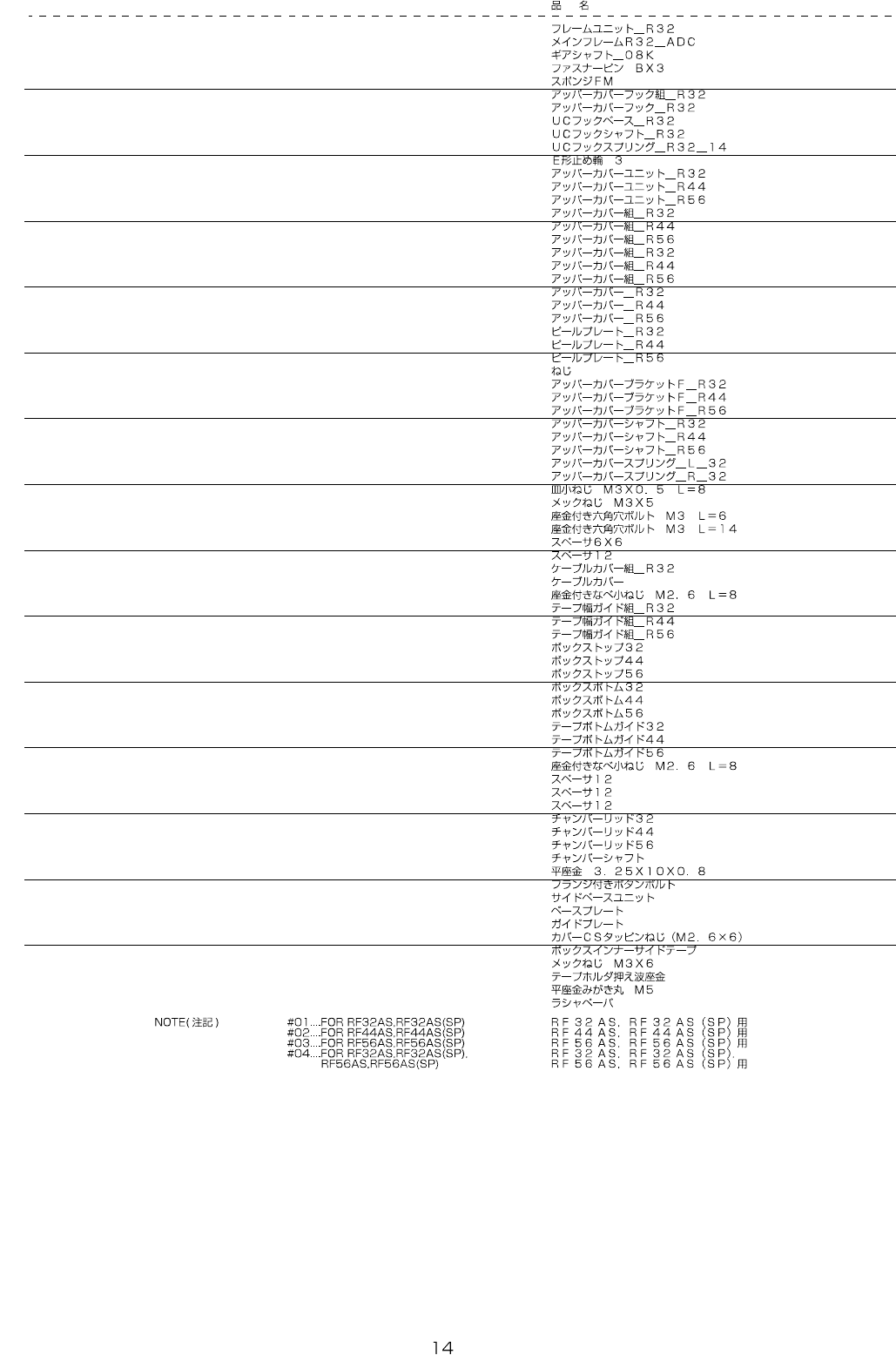

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-91022 FRAME_UNIT_R32 1
2 401-89196 MAIN_FRAME_R32_ADC (1)
3 401-67216 GEAR_SH_08K (5)
4 E6347-705-000 FASTENERPINBX3 (1)
5 401-71153 SPONGE_FM (2)
6 401-91029 UC_HOOK_ASSY_R32 1
7 401-89165 UPPER_COVER_HOOK_R32 (1)
8 401-89166 UC_HOOK_BASE_R32 (1)
9 401-89167 UC_HOOK_SH_R32 (1)
10 401-89164 UC_HOOK_SP_R32_14 (1)
11 RE-0300000-K0 E-RING3 (2)
12
#01
401-91042 UPPER_COVER_UNIT_R32 1
13
#02
401-91058 UPPER_COVER_UNIT_R44 1
14
#03
401-91072 UPPER_COVER_UNIT_R56 1
15
#01
401-91043 UPPER_COVER_ASM_R32 (1)
16
#02
401-91059 UPPER_COVER_ASM_R44 (1)
17
#03
401-91073 UPPER_COVER_ASM_R56 (1)
18
#01
401-91044 UPPER_COVER_ASSY_R32 (1)
19
#02
401-91060 UPPER_COVER_ASSY_R44 (1)
20
#03
401-91074 UPPER_COVER_ASSY_R56 (1)
21
#02
401-89175 UPPER_COVER_R32 (1)
22
#03
401-89183 UPPER_COVER_R44 (1)
23
#01
401-89184 UPPER_COVER_R56 (1)
24
#02
401-89161 PEEL_PLATE_R32 (1)
25
#03
401-89185 PEEL_PLATE_R44 (1)
26 401-89186 PEEL_PLATE_R56 (1)
27 401-72670 SCREW (4)
28
#01
401-89162 UPPER_COVER_BRKT_F_R32 (1)
29
#02
401-89187 UPPER_COVER_BRKT_F_R44 (1)
30
#03
401-89188 UPPER_COVER_BRKT_F_R56 (1)
31
#01
401-89163 UPPER_COVER_SH_R32 (1)
32
#02
401-89189 UPPER_COVER_SH_R44 (1)
33
#03
401-89190 UPPER_COVER_SH_R56 (1)
34 400-91622 UPPER_COVER_SP_L_32 (1)
35 400-91623 UPPER_COVER_SP_R_32 (1)
36 SM-1030801-SC SCREWM3L=8 (1)
37 400-55256 SCREWM3X5MEC (4)
38
#04
SL-6030692-TN SCREWM3L=6 (2)
39
#02
SL-6031492-TN SCREWM3L=14 (2)
40
#02
401-89195 SPEACER_6X6 (2)
41
#03
401-89108 SPACER_12 (2)
42 401-91034 CABLE_COVER_ASSY_R32 1
43 401-89106 CABLE_COVER (1)
44 SL-4860891-SC SCREWM2.6L=8 (4)
45
#01
401-91056 TAPE_WIDTH_GUIDE_ASSY_R32 1
46
#02
401-91070 TAPE_WIDTH_GUIDE_ASSY_R44 1
47
#03
401-91084 TAPE_WIDTH_GUIDE_ASSY_R56 1
48
#01
401-89141 BOX_TOP_32 (1)
49
#02
401-89142 BOX_TOP_44 (1)
50
#03
401-89143 BOX_TOP_56 (1)
51
#01
401-89144 BOX_BOTTOM_32 (1)
52
#02
401-89145 BOX_BOTTOM_44 (1)
53
#03
401-89146 BOX_BOTTOM_56 (1)
54
#01
401-89103 TAPE_BOTOM_GUIDE_32 (1)
55
#02
401-89104 TAPE_BOTOM_GUIDE_44 (1)
56
#03
401-89105 TAPE_BOTOM_GUIDE_56 (1)
57 SL-4860891-SC SCREWM2.6L=8 (7)
58
#01
401-89108 SPACER_12 (3)
59
#02
401-89108 SPACER_12 (6)
60
#03
401-89108 SPACER_12 (9)
61
#01
401-89154 CHAMBER_LID_32 (1)
62
#02
401-89155 CHAMBER_LID_44 (1)
63
#03
401-89156 CHAMBER_LID_56 (1)
64 401-89157 CHAMBER_SH (2)
65 WP-0330816-SF WASHER3.25X10X0.8 (1)
66 401-71822 SFBS-M3_L6 (2)
67 401-91023 SIDE_BASE_UNIT 1
68 401-89101 BASE_PLATE (1)
69 401-89102 GUIDE_PLATE (1)
70 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (3)
71 401-89107 BOX_INNER_SIDE_TAPE (1)
72 400-52050 SCREWM3X6MEC (14)
73 E1306-706-C00 TAPEHOLDERWASHER (1)
74 WP-0531001-SC WASHERM5 (1)
75 E3856-721-000 ACLOTHESPAPER 1
- -

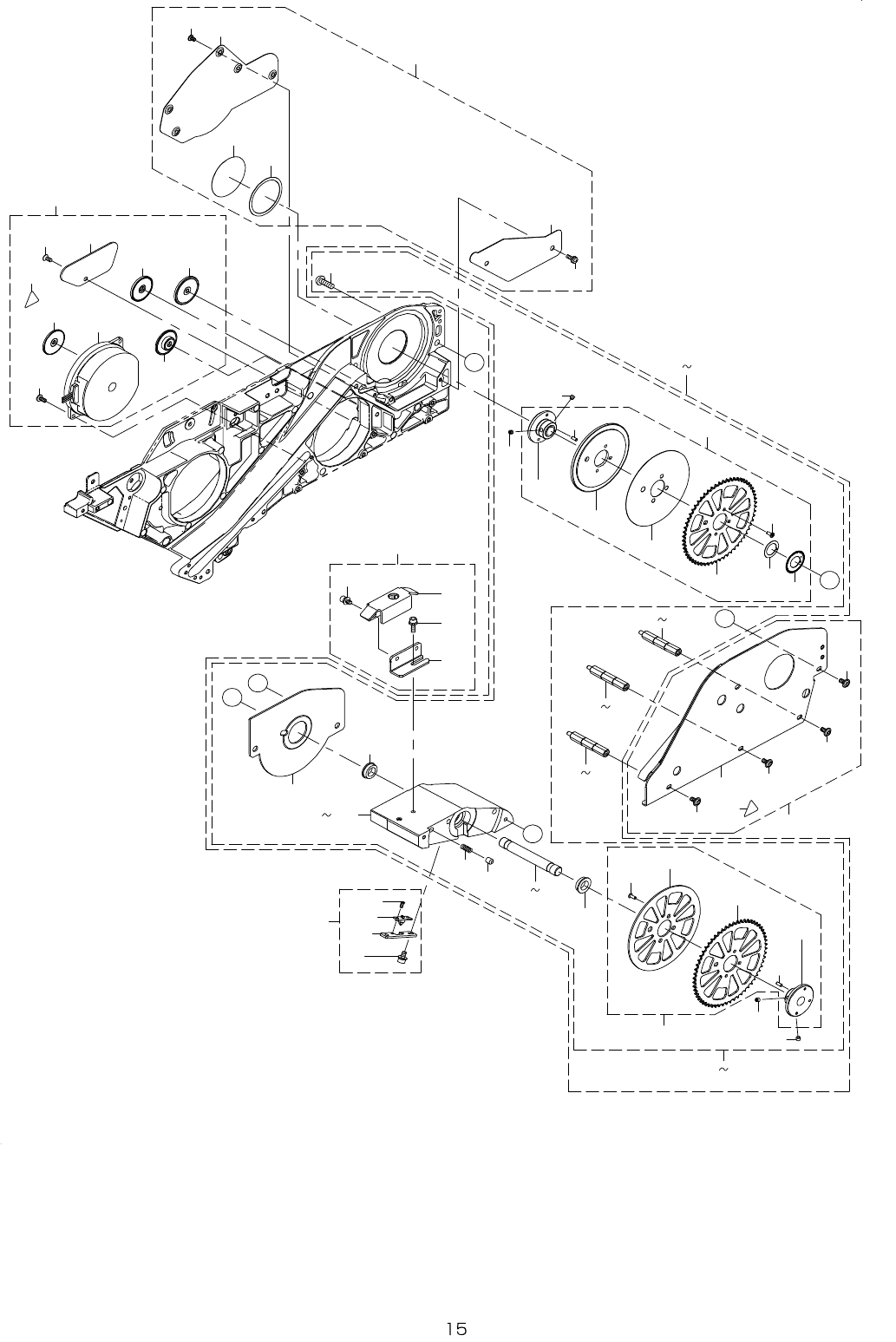

8. RF32AS,RF32AS(SP),RF44AS,RF44AS(SP),RF56AS,RF56AS(SP)(2)
3
7
5
4
1 0
9
8
6
2
1
1 4
1 5
1 2
1 3
1 1
1 8
1 8
2 2
2 3
2 4
2 5
2 6
2 1
2 0
2 9
3 0
3 1
2 8
2 7
3 8 4 0
4 1 4 3
4 4
4 7
4 8
4 9
5 0
5 1
5 2
5 3
4 6
4 5
5 6
5 7
5 8
5 9
5 5
6 0
6 0
6 0
6 0
6 1
6 1
6 2
6 3
6 4
6 5 6 7
5 4
B
B
6 5 6 7
6 5 6 7
1 8
1 8
1 7
1 6
3 5 3 7
A
A
C
3 2 3 4
C
1 9
