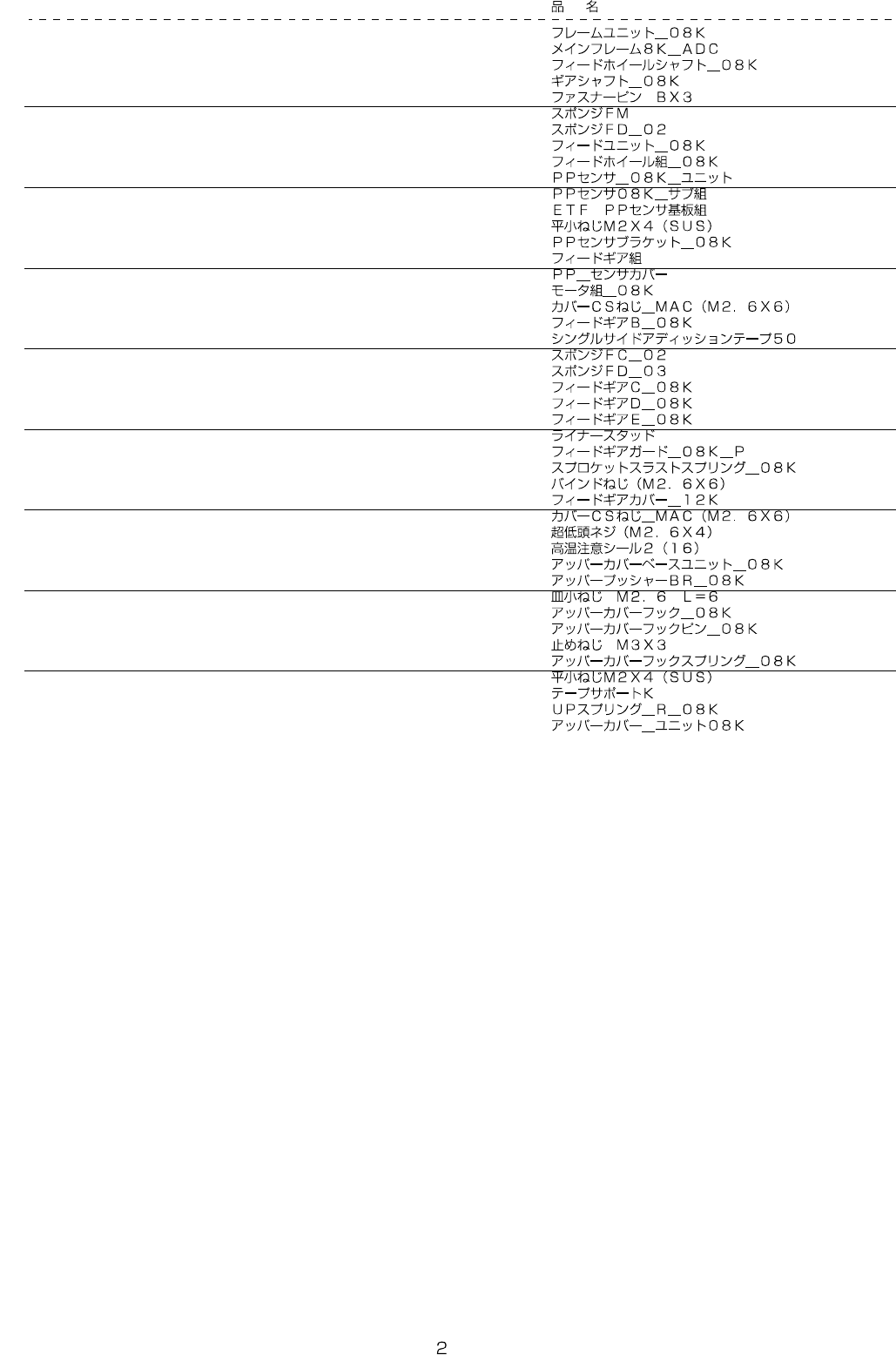

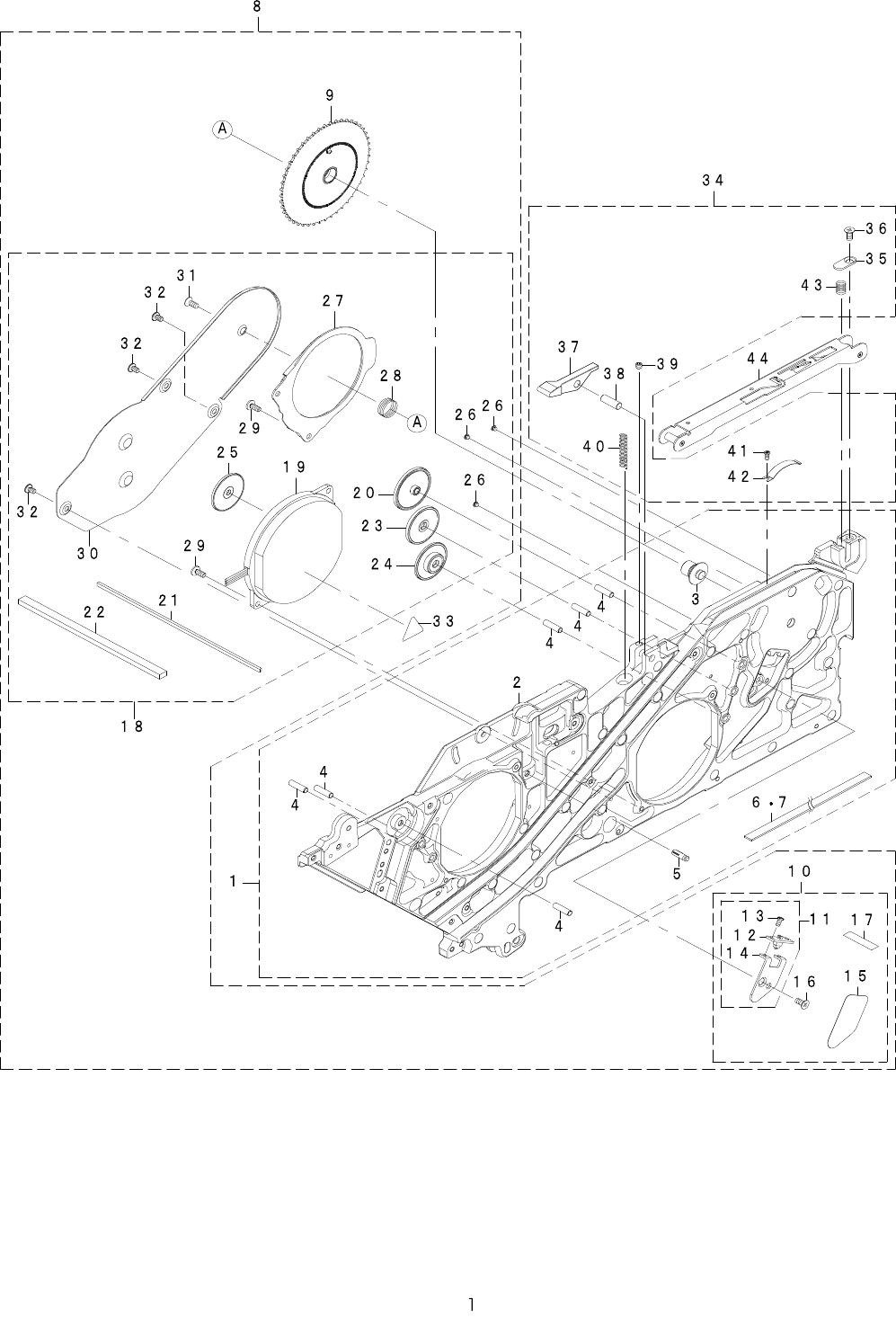

1. RF08AS,RF08AS(SP)(1)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-69516 FRAME_UNIT_08K 1
2 401-71152 MAIN_FRAME_8K_ADC (1)
3 401-67228 FEED_WHEEL_SH_08K (1)
4 401-67216 GEAR_SH_08K (6)
5 E6347-705-000 FASTENERPINBX3 (1)
6 401-71153 SPONGE_FM (2)
7 401-77383 SPONGE_FD_02 (1)
8 401-69517 FEED_UNIT_08K 1
9 401-69533 FEED_WHEEL_ASSY_08K (1)
10 401-69534 PP_SENSOR_08K_UNIT (1)
11 401-69536 PP_SENSOR_08K_SUB_ASSY (1)
12 401-62444 ETFPPSENSPCBASM (1)
13 400-85419 SCREWM2X4 (2)
14 401-67231 PP_SENSOR_BR_08K (1)
15 401-69535 FEED_GEAR_ASSY (1)
16 401-67230 PP_SENSOR_COVER (1)
17 401-66937 MOTOR_ASSY_08K (1)
18 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
19 401-67205 FEED_GEAR_B_08K (1)
20 400-95428 SINGLESIDEADHESIONTAPE50 (1)
21 401-77382 SPONGE_FC_02 (1)
22 401-77384 SPONGE_FD_03 (1)
23 401-67204 FEED_GEAR_C_08K (1)
24 401-67203 FEED_GEAR_D_08K (1)
25 401-67202 FEED_GEAR_E_08K (1)
26 401-03295 LINER_STUD (3)
27 401-71255 FEED_GEAR_GUARD_08K_P (1)
28 401-67264 SPROKET_THRUST_SP_08K (1)
29 401-67278 BINDING_HEAD_SCREW_M26X6 (4)
30 401-67260 FEED_GEAR_COVER_12K (1)
31 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
32 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (3)
33 CM-3003000-01 SEAL (1)
34 401-69518 UPPER_COVER_BASE_UNIT_08K 1
35 401-67225 UPPER_PUSHER_BR_08K (1)
36 SM-1860601-SC SCREWM2.6L=6 (1)
37 401-67223 UPPER_COVER_HOOK_08K (1)
38 401-67226 UPPER_COVER_HOOK_PIN_08K (1)
39 SM-8030302-TP SCREWM3X3 (1)
40 401-67263 UC_HOOK_SP_08K (1)
41 400-85419 SCREWM2X4 (1)
42 401-78024 SUPPORT_PLATE_K (1)
43 401-67224 UCSP_R_08K (1)
44 401-69525 UPPER_COVER_UNIT_08K 1
- -

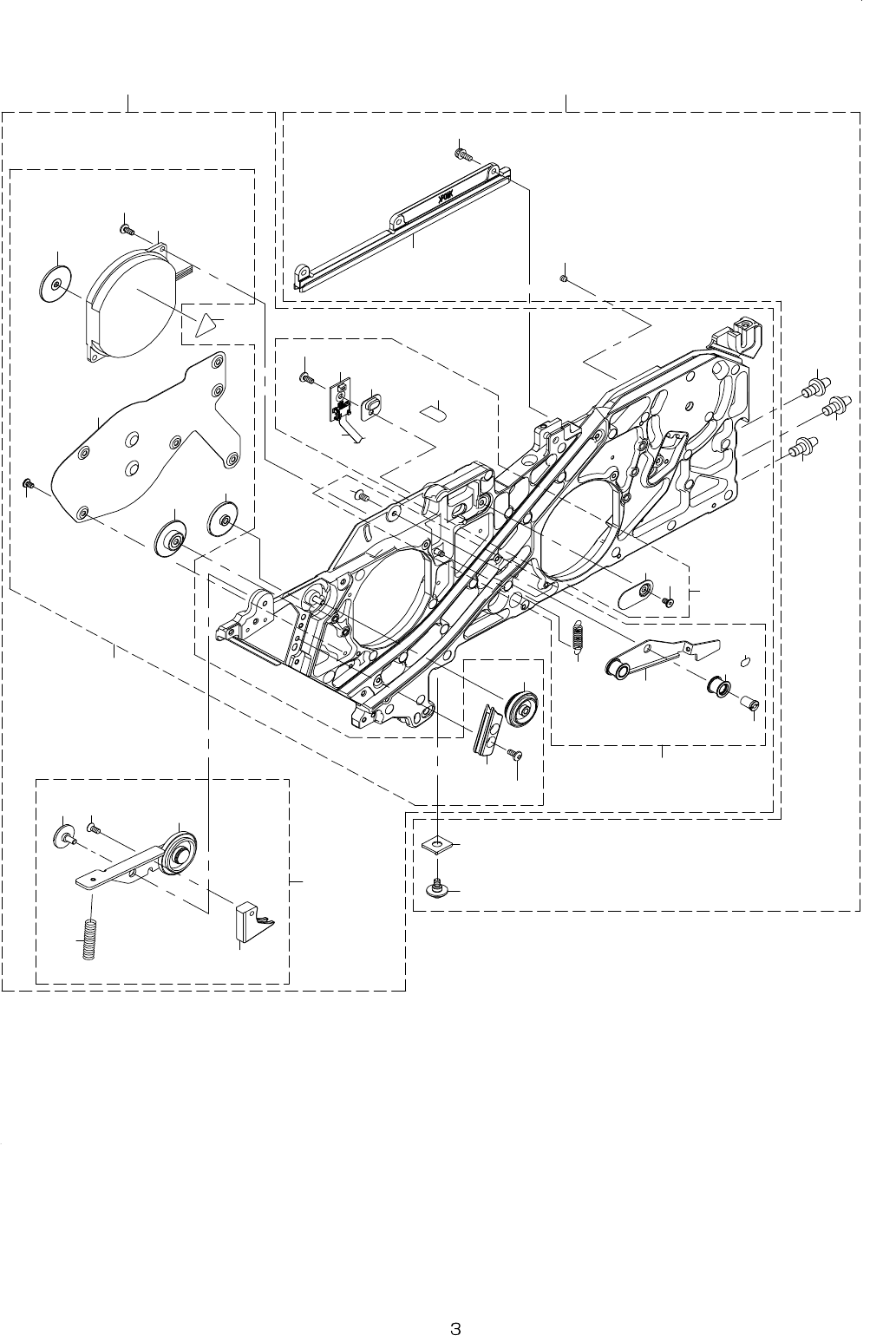

2. RF08AS,RF08AS(SP)(2)
3
4
5
6
7
8
2
1 1
1 2
1 3
1 0
1 4
9
1 7
1 6
2 2
1 9
2 1
2 0
1 5
3 2
2 4
2 5
2 7
2 8
2 9
2 9
3 1
2 6
2 3
3 5
4 1
4 1
3 6
3 7
3 8
3 9
4 0
3 0
1 8
1 3 4
3 3
