1.3 "Unit Adj." Submenu
When the [Tray] button is pressed in "Unit Adj." submenu, the following window
appears.
[1]
[2] [3]
[4] [5]
"Tray Unit Adjustment" F7C10
[1] Sel Tray
The installed multi-layer tray feeders are displayed, making it possible for
the operator to select one of the feeders.
[2] Set Data
Speed deceleration rates can be specied for each section of the multilayer
tray feeder.
Elevator #2 Dclr
: This is used to set the speed reduction rate of Elevator
#2.
Elevator #1 Dclr
: This is used to set the speed reduction rate of Elevator
#1.
Traverse Dclr
: This is used to set the speed reduction rate of the
Traverse.
Cmp Hgt Sensor
: This is used to set the level in which the height of the
Cmp Hgt Sensor.
[3] "Information" Group Box
Displayed is the data of the multi-layer tray feeder that was used for the
previous adjustment.
The following items are displayed.
Elev No.
Draw Step No.
Cmp Hgt
Mag Type
Time
Note
The data being edited will not be displayed as information.
Graphic
Development
7OM-1603
Chapter 3 : 1. Maintenance Menu
3-11
1003-002
[4] Operational Object Selection Buttons
Select the object for the operation.
When pressed, this button moves the specied step to the traverse draw out
position.
[5] Operation Selection Buttons
[Pallet Chng Pos] Button
: When pressed, this button moves the
elevator to the component supply position.
[Mag Chng Pos] Button
: When pressed, this button moves the
elevator to the magazine change position.
[Pallet Draw Position] Button
: When pressed, this button moves the
elevator to the traverse draw out position.
[Zero] Button
: When pressed, this button zeros the
elevator.
[Rack Shtr Opn/Cls] Button
: When pressed, this button opens or closes
the rack shutter.
[Chuck Opn/Cls] Button
: When pressed, this button opens or closes
the chuck.
[Servo ON] Button
: When pressed, this button turns on the
power to the servomotor.
[Servo OFF] Button
: When pressed, this button turns off the
power to the servomotor.
[Up (Step)] Button
: When pressed, this button moves the
elevator upward by 1 pitch of the pallet.
[Down (Step)] Button
: When pressed, this button moves the
elevator downward by 1 pitch of the
pallet.
[Pallet Draw] Button
: When pressed, this button activates the
traverse to draw out the pallet.
[Pallet Storage] Button
: When pressed, this button stores the pallet
drawn out on the traverse.
7OM-1603
3-12
Chapter 3 : 1. Maintenance Menu
1.4 "DVC Check" Submenu
1.4.1 "INP/OUT" Window
This window enables the operator to check the I/O status in each section.

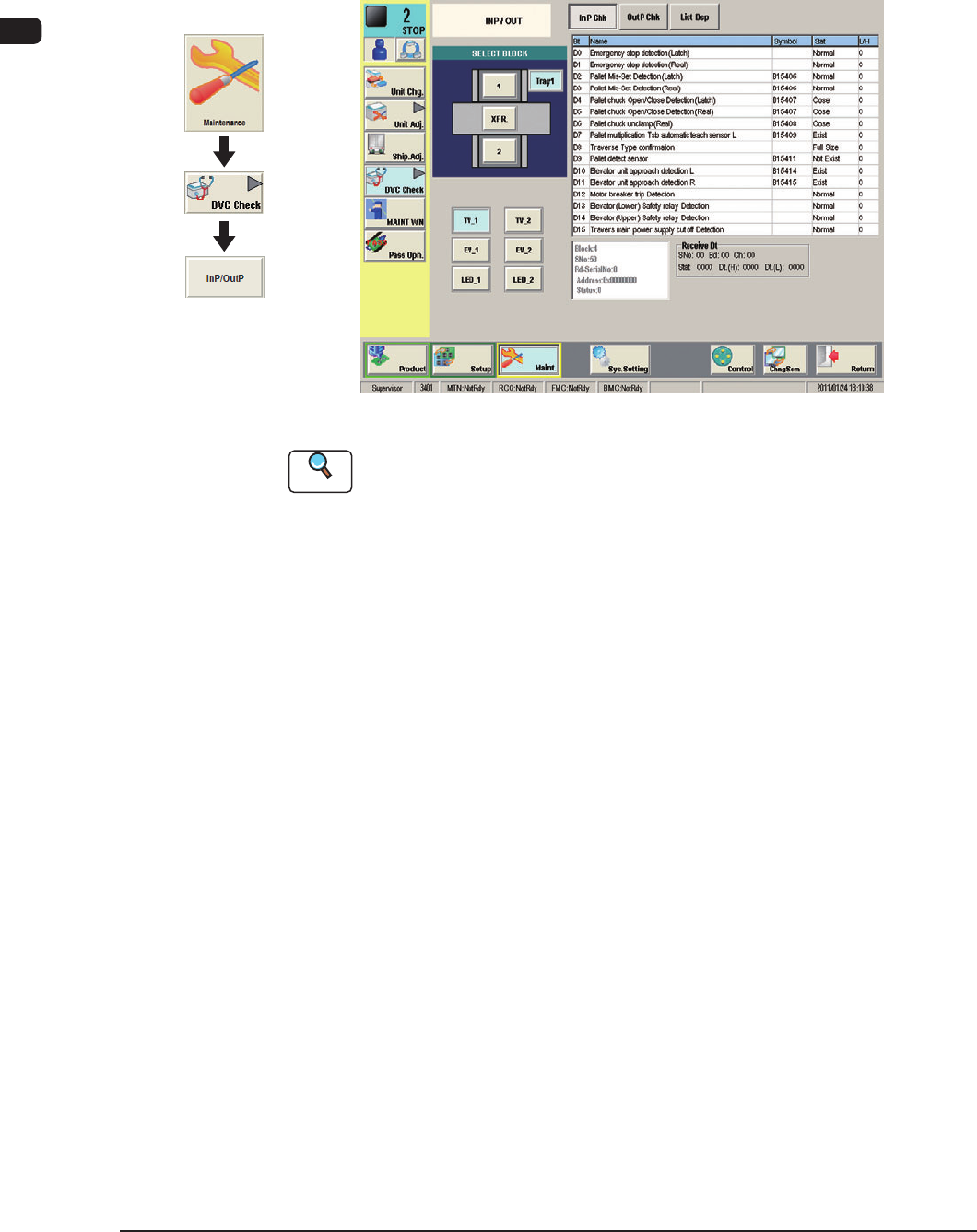

"INP/OUT" window F7C11
Reference
Refer to "6.1 "INP/OUT" Window" in Chapter 1, Volume 3 for the details.
