7OM-1603
Chapter 3 : 2. Menus for System Setting
3-21
RackPutbackLv [mm]
This offset data is used to align the traverse chute in height with the step of
the tray when a pallet is put back from the traverse chute to Magazine #1.
The entered offset value is reected on the travel of the elevator shaft when
the elevator is moved for the alignment of the pallet returning step (pallet put
back to Magazine #1).
In the following cases, the drawing/returning level teaching should be
performed.
•
The multi-layer tray is mounted on the main machine.
•
The main machine is stopped for a long time with the multi-layer tray
mounted on it.
The drawing/returning level teaching is performed by means of zeroing
operation using the [Tray Attach Order] button or [Tray Transfer Tch] button
in the "Unit Chg." window (Operation Sequence: Maintenance -> select
"Unit Chg." in the maintenance menu).
Note
To set the elevator position in a higher level, a plus value must be entered
in the text box.
1102-003
7OM-1603
3-22
Chapter 3 : 2. Menus for System Setting
2.2 "Auto Operation" Window

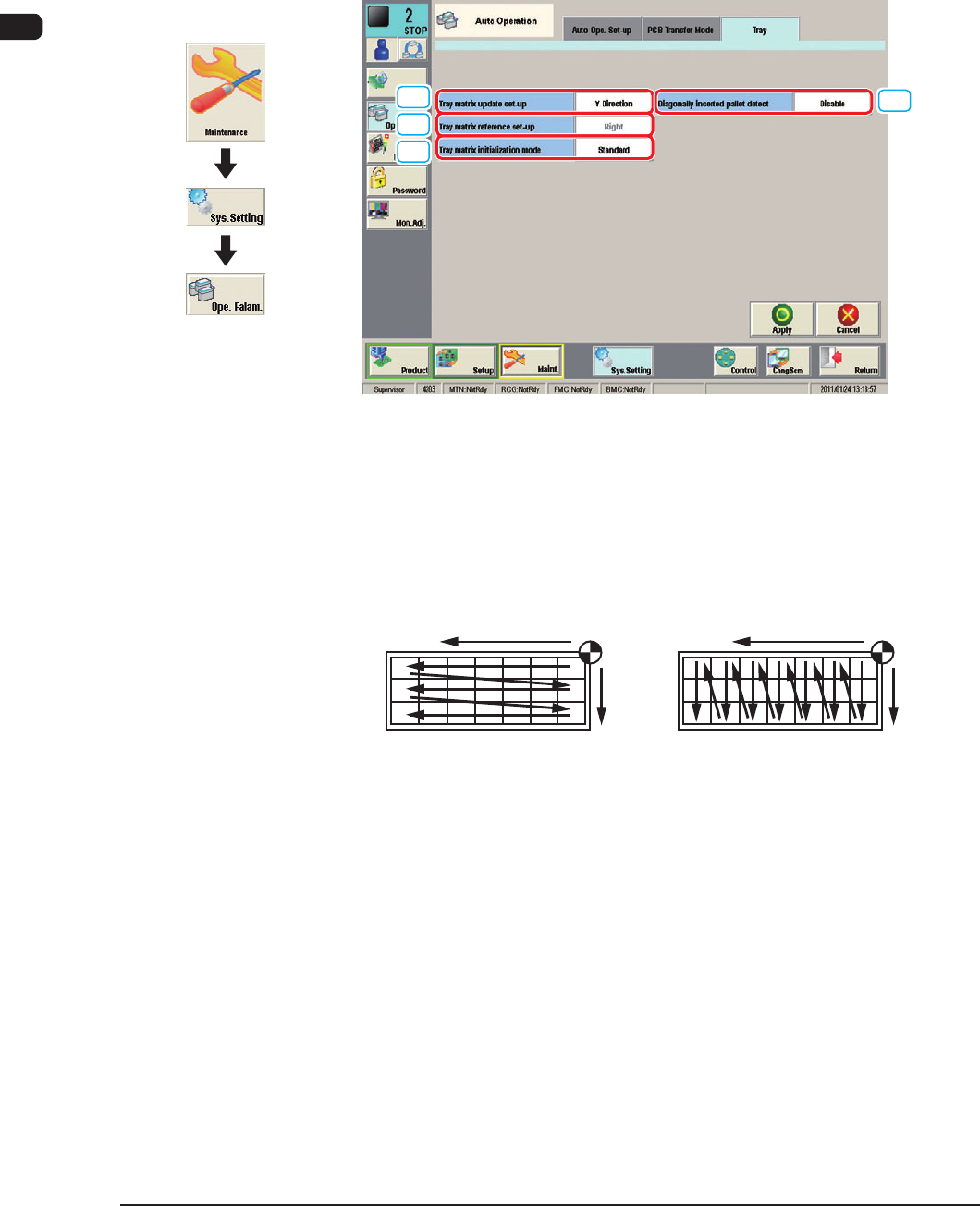

2.2.1 "Tray Matrix Update" Tab Sheet
When the [Tray Matrix Update] tab is pressed in the "Auto Operation" tab sheet,
the following tab sheet appears.
[1]
[4]
[2]
[3]
"Tray Matrix Update" Tab Sheet F7C20
[1] Tray matrix update set-up
Select "X Direction" or "Y Direction" (direction in which components should
be taken out) in the text box.
In normal cases, "Y Direction" should be selected.
Selection of "X Direction" Selection of "Y Direction"
X
Y
X
Y
F7C21
1102-004
Graphic
Development
7OM-1603
Chapter 3 : 2. Menus for System Setting
3-23
For example
: The tray is in the condition as shown in FC17.
(Tray in Middle of Process)
×
:No Component
(Taken Out)
○
:Component Existing
3
1
2
99
･
･
･
2 199 ･ ･ ･ ･ ･ ･
X
Y
F7C22
•
The rst component pick-up position is assumed to be "X: 3, Y: 2".
●
: Component Picked Normally
○
: Component Left Behind
Shadowed : Miss-picked
Selection of "Y Direction"
3
1
2
99
･
･
･
2 199 ･ ･ ･ ･ ･ ･
X
Y
F7C23
3
1
2
99
･
･
･
2 199 ･ ･ ･ ･ ･ ･
X
Y
Selection of "X Direction"
F7C24
