Fig. D5-4 エア配管 Air Piping See Fig. D5-2 Key No.131 See Fig. D5-2 Key No.131 318 See Fig. D5-3 Key No.221 See Fig. D5-3 Key No.201 See Fig. D5-2 Key No.101 319 316 316 315 319 317 31 1 31 1 313 312 314 320 312 312 342 341…

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

201 09141A0B ASSY_VALVE 1 1 1 1 3091401105-001

202 09141A0C ASSY_VALVE 1 1 1 1

3091401105-002

203 211FC547 BRACKET 1 1 1 1

3091401105-003

204 225F0656 PIPE FITTINGS 2 2 2 2

3091401105-004

205 225F0611 PIPE FITTINGS 1 1 1 1

3091401105-005

206 225F0705 PIPE FITTINGS 3 3 3 3

3091401105-006

207 225F0706 PIPE FITTINGS 1 1 1 1

3091401105-007

208 225F0560 PIPE FITTINGS 1 1 1 1

3091401105-008

209 221AA016 ROHS:BOLT_HEX-SCT 4 4 4 4

M4L8 3091401105-009

210 221HA004 WASHER 4 4 4 4

SW4 3091401105-010

211 221HA104 WASHER 4 4 4 4

FW4 3091401105-011

221 09141A09 ASSY_VALVE 1 1 1 1

3091401106-001

222 09141A0A ASSY_VALVE 1 1 1 1

3091401106-002

223 211FE012 BRACKET 1 1 1 1

3091401106-003

224 225F0656 PIPE FITTINGS 2 2 2 2

3091401106-004

225 225F0611 PIPE FITTINGS 1 1 1 1

3091401106-005

226 225F0705 PIPE FITTINGS 3 3 3 3

3091401106-006

227 225F0706 PIPE FITTINGS 1 1 1 1

3091401106-007

228 225F0560 PIPE FITTINGS 1 1 1 1

3091401106-008

229 221AA016 ROHS:BOLT_HEX-SCT 4 4 4 4

M4L8 3091401106-009

230 221HA004 WASHER 4 4 4 4

SW4 3091401106-010

231 221HA104 WASHER 4 4 4 4

FW4 3091401106-011

Fig. D5

1104-004

Fig. D5-3

SIGMA-G5SA

SIGMA-G5SB

SIGMA-G5SC

SIGMA-G5SD

UNIT-3

Fig. D5

AIR SUPPLY

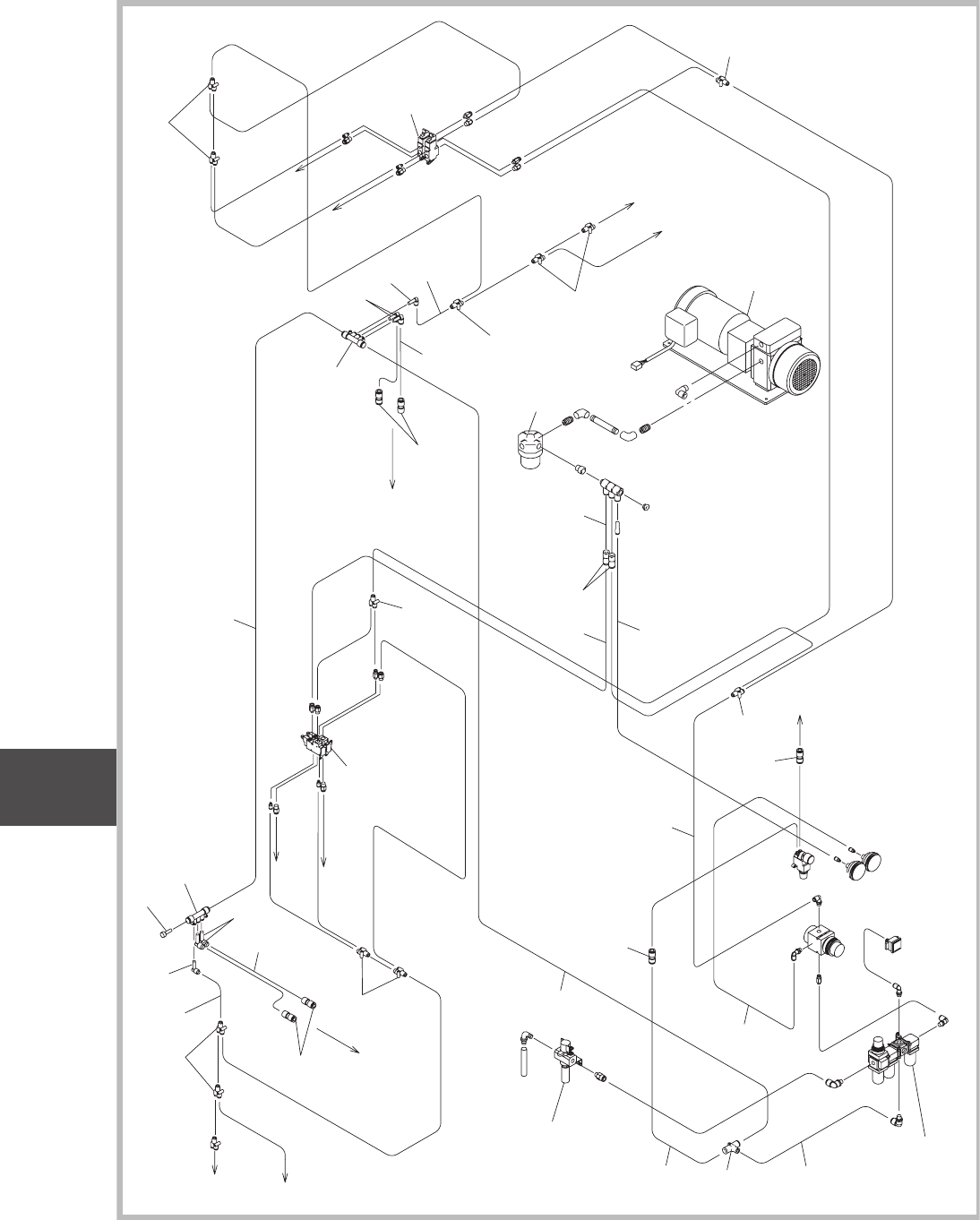

Fig. D5-4

エア配管

Air Piping

See Fig. D5-2

Key No.131

See Fig. D5-2

Key No.131

318

See Fig. D5-3

Key No.221

See Fig. D5-3

Key No.201

See Fig. D5-2

Key No.101

319

316

315

319

317

311

313

312

314

320

312

342

341

344

343

311

313

311

313

319

312

333

332

331

311

319

Multi-Layer Tray Feeder 1

Multi-Layer Tray Feeder 2

Feeder Base 2

Positioning Unit 2

Feeder Base 1

Positioning Unit 1

HEAD 2

HEAD 1

319

Nozzle Stocker 2

Positioning Unit 2

Nozzle Stocker 1

Positioning Unit 1

PCB STOPPER

PCB Z CLUMP

See Fig. D5-2

Key No.112

Y0638

Y0639

Y0938

Y0939

M66

S141

1104-004

Fig. D5

エア供給部

AIR SUPPLY SECTION

UNIT-3

Fig. D5

AIR SUPPLY

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

311 0914B203 TUBE D6 1 1 1 1 1091401200-011

312 0914B204 TUBE D8 1 1 1 1

1091401200-012

313 0914B205 TUBE D10 1 1 1 1

1091401200-013

314 0914B206 TUBE D10 BU 1 1 1 1

1091401200-014

315 225F0451 PIPE FITTINGS 1 1 1 1

1091401200-015

316 225F0703 PIPE FITTINGS 4 4 4 4

1091401200-016

317 225F0541 PIPE FITTINGS 1 1 1 1

1091401200-017

318 225B0550 AIR LINE EQPT 2 2 2 2

1091401200-018

319 225F0504 PIPE FITTINGS 13 13 13 13

1091401200-019

320 225F0639 PIPE FITTINGS 1 1 1 1

1091401200-020

331 225F0578 PIPE FITTINGS 1 1 1 1

3091401201-001

332 225B0547 AIR LINE EQPT 2 2 2 2

3091401201-002

333 225B0549 AIR LINE EQPT 1 1 1 1

3091401201-003

341 225F0578 PIPE FITTINGS 1 1 1 1

3091401202-001

342 225B0547 AIR LINE EQPT 2 2 2 2

3091401202-002

343 225B0549 AIR LINE EQPT 1 1 1 1

3091401202-003

344 225F0712 PIPE FITTINGS 1 1 1 1

3091401202-004

Fig. D5

1007-003

Fig. D5-4

SIGMA-G5SA

SIGMA-G5SB

SIGMA-G5SC

SIGMA-G5SD

UNIT-3

Fig. D5

AIR SUPPLY
