P-310-004(1_2).pdf - 第24页

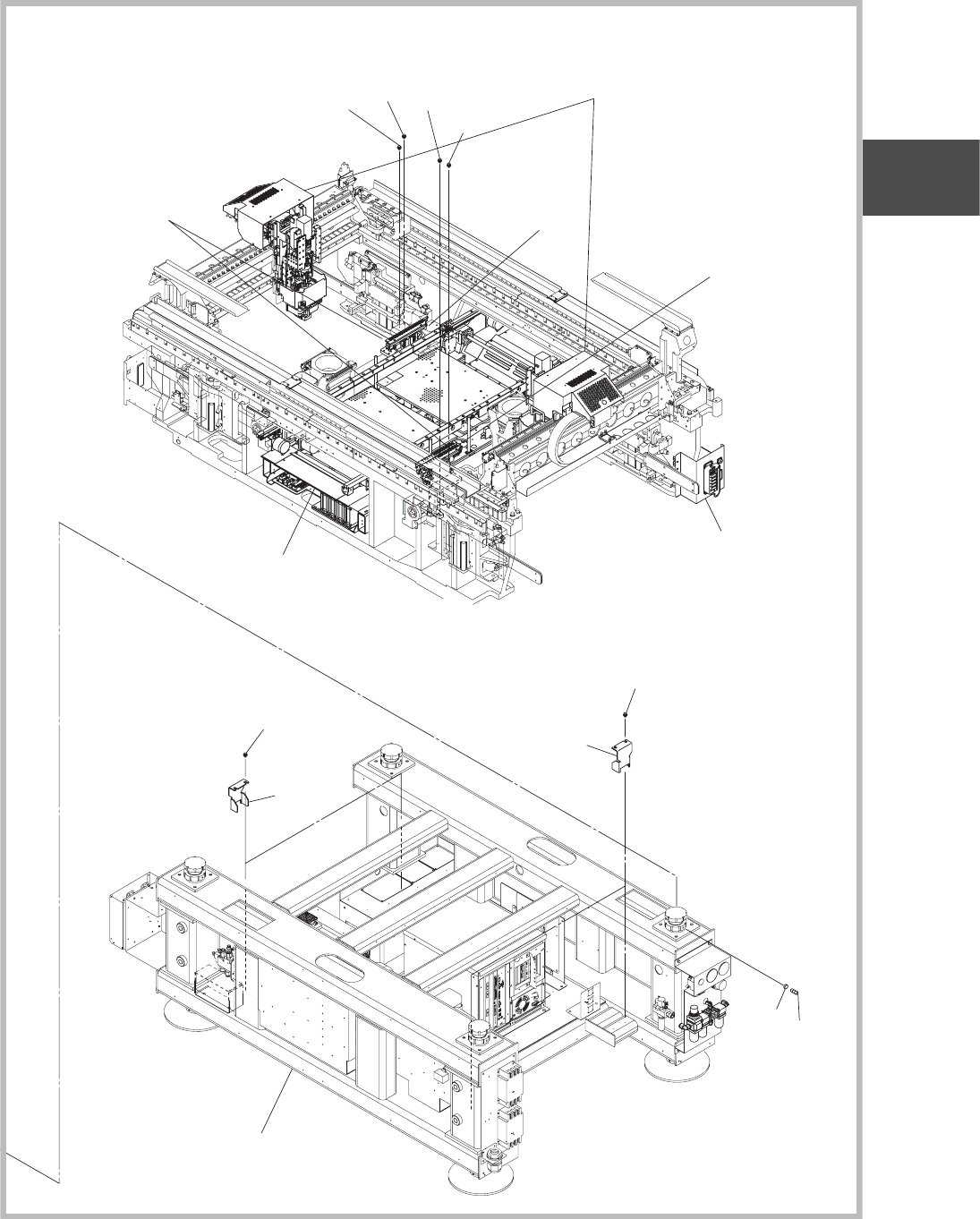

Fig. A1 型式   MODEL 1007-003 SIGMA-G5 Fig. A1 MODEL Fig. A1-2 SIGMA-G5SB UNIT -12 UNIT -10 UNIT -1 1-2 UNIT -1 1-1

1104-004

Fig. A1

Fig. A1-2

SIGMA-G5

Fig. A1

MODEL

180

181

180

181

175

176

177

175

176

177

UNIT-7

UNIT-3

UNIT-4

UNIT-6-2

UNIT-6-3

UNIT-6-1

UNIT-8

1A2

1A3

1A4

1A2

1A3

1A4

194

195

196

196

Fig. A1

型式 



MODEL

1007-003

SIGMA-G5

Fig. A1

MODEL

Fig. A1-2 SIGMA-G5SB

UNIT-12

UNIT-10

UNIT-11-2

UNIT-11-1

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

140 0914F115 MGCATCH_BRACKET 2 109140512U-010

141 0914F11G MG_CATCH_UKE_R 2 109140512U-011

142 221AA030 ROHS_HEX-SCT 28 M5L12 109140512U-012

143 221HA005 WASHER 32 SW5 109140512U-013

144 221HA105 WASHER 28 FW5 109140512U-014

145 0914F11V NAME_PLATE_G5 1 109140512U-015

147 221AA029 ROHS_HEX-SCT 4 M5L10 109140512U-017

148 221HA303 ROHS_WASHER 4 SW5 109140512U-018

156 221AA044 ROHS_HEX-SCT 6 M6L20 109140512U-026

157 221HA006 WASHER 6 SW6 109140512U-027

158 221HA106 WASHER 4 FW6 109140512U-028

159 221HA304 ROHS_WASHER 2 BW6 109140512U-029

160 221AA057 ROHS_HEX-SCT 10 M8L25 109140512U-030

161 221HA007 WASHER 10 SW8 109140512U-031

162 221HA107 WASHER 10 FW8 109140512U-032

175 221AA045 ROHS_HEX-SCT 4 M6L25 1091400B00-005

176 221HA006 WASHER 4 SW8 1091400B00-006

177 221HA106 WASHER 4 FW8 1091400B00-007

180 221AA033 ROHS_HEX-SCT 2 M5L25 1091400B00-010

181 221AA031 ROHS_HEX-SCT 2 M5L16 1091400B00-011

194 216A0334 COLLAR 4 1091400304-004

195 221CA010 SET_SCREW 4 SET M6L6 1091400304-005

196 0914B10D BRACKET 2 1091400304-006

1A2 221AA030 ROHS_HEX-SCT 14 M5L12 1091400304-012

1A3 221HA005 WASHER 14 SW5 1091400304-013

1A4 221HA303 ROHS_WASHER 14 BW5 1091400304-014

1B3 221AA077 ROHS_HEX-SCT 4 M12L30 1091400304-023

1B4 221HA009 WASHER 4 SW12 1091400304-024

1B5 221HA209 ROHS_WASHER 4 FWS12 1091400304-025

SIGMA-G5SA

SIGMA-G5SB

SIGMA-G5SC

SIGMA-G5SD

1104-004

Fig. A1

SIGMA-G5

Fig. A1

MODEL

Fig. A1-2
