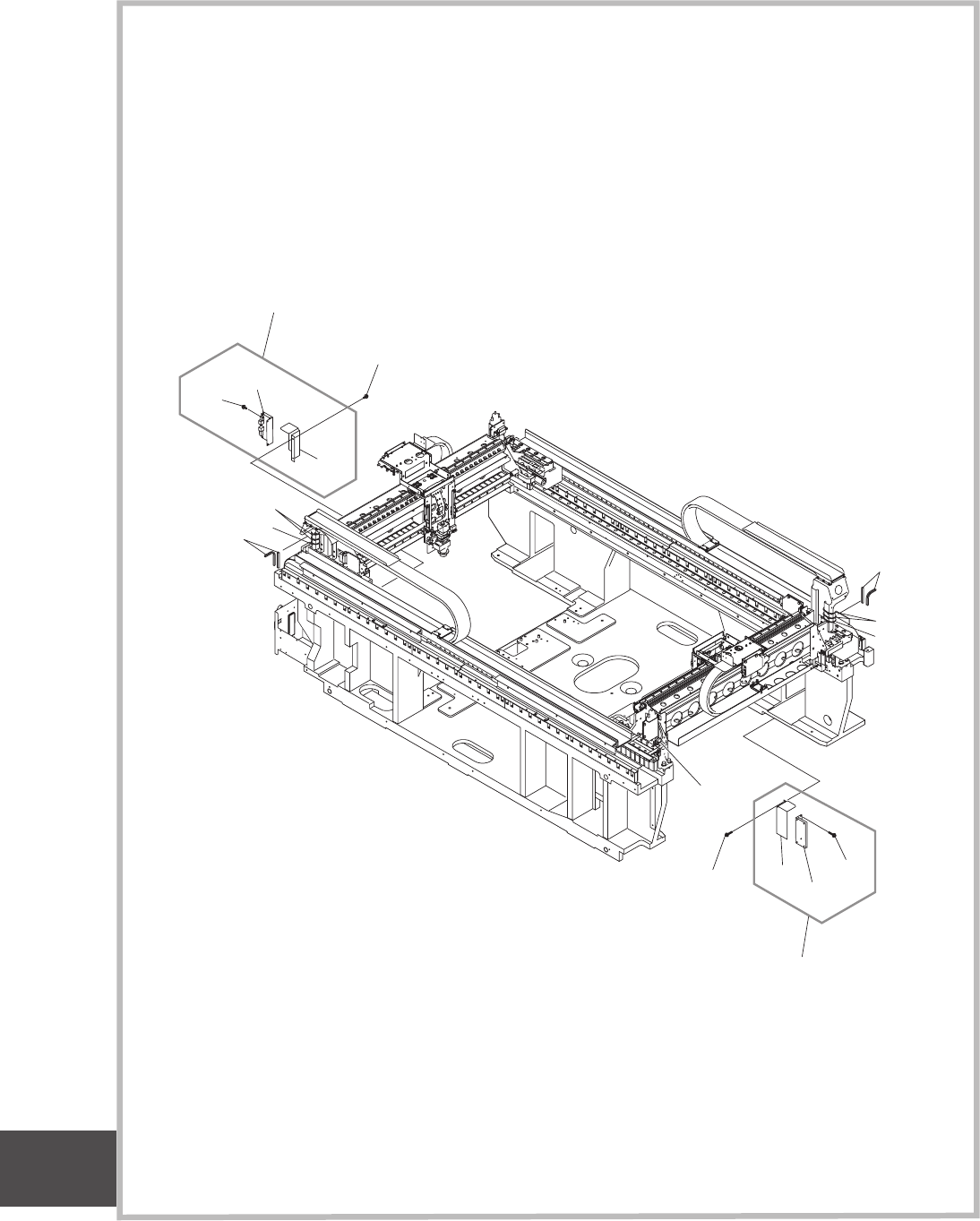

Fig. E5-2 基板 PCB 1 104-004 09141G04 09141G04 122 121 1 14 1 16 1 15 1 10 123 1 1 1 1 13 122 121 1 10 123 1 1 1 1 13 1 14 1 16 1 15 U181F U181R 1 17 1 18 Fig. E5 電装部３ ELECTRICAL SECTION 3 UNIT -4 Fig. E5 CONNECT OR
MEMO
Fig. E5-2
基板
PCB
1104-004
09141G04
09141G04
122
121
114
116
115
110
123
111
113
122
121
110
123
111
113
114
116
115
U181F
U181R
117
118
Fig. E5
電装部３
ELECTRICAL SECTION 3
UNIT-4
Fig. E5
CONNECTOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
110 221AA030 ROHS:BOLT_HEX-SCT 4 4 4 4 M5L12 1091401B00-010
111 221HA005 WASHER 4 4 4 4 SW5 1091401B00-011
113 221HA205 WASHER 4 4 4 4 1091401B00-013
114 0921E204 ACCESSORY_WRING 2 2 2 2 1091401B00-014
115 0916D60A ACCESSORY_WIRING 4 4 4 4 1091401B00-015
116 0920E303 ACCESS_WIRING 6 6 6 6 1091401B00-016
117 23N30590 ACCESSORY_WIRING 6 6 6 6 1091401B00-017
118 0916D209 ACCESS_WIRING 12 12 12 12 1091401B00-018
121 4U260358 EQUIPMENT 2 2 2 2 3091401G04-001
122 211FE539 BRACKET 2 2 2 2 3091401G04-002
123 221DA056 MACHINE SCREW 4 4 4 4 PAN M3L8 SW+FW
3091401G04-003
Fig. E5
1104-004
Fig. E5-2
UNIT-4
Fig. E5
CONNECTOR
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
