ONYX OPTIONS
Expansions for ZEVAC`s ONYX machines
The distribution of this document is not permitted without express permission – 02.22
Swiss Engineering
Options for prole and temperature control
Options for component / PCB handling
Options to apply / remove media
Options for machine / software
Accessoires
IR Sensor
Board Cooling
Pyrometer
Thermocouple Module
Preheater
Bridge Tray
Adaptors and Accessories
Component Reject Bin
Insertion Tool
Nozzle Changer
Pickup Shuttle and Tool
Board Holder
Board Holder Extension
Board Holder Clamp, Finger and Board End Stop
Site Cleaning System
Dip Fluxer
Time / Pressure Dispenser
Paste on Device QFN
Reballing Tool
Fume Extraction
Direct View Camera
Machine Bench ESD
Advanced Software Access
Traceability License
Overview Order No. Acessoires
Page 3
Page 3
Page 3
Page 3
Page 3-4
Page 4
Page 4
Page 4
Page 4
Page 5
Page 5
Page 5
Page 5
Page 6
Page 6
Page 6
Page 6
Page 6
Page 7
Page 7
Page 7
Page 7
Page 7
Page 7
Page 8
2
OVERVIEW
Swiss Engineering
3
OPTIONS FOR PROFILE AND TEMPERATURE CONTROL
2

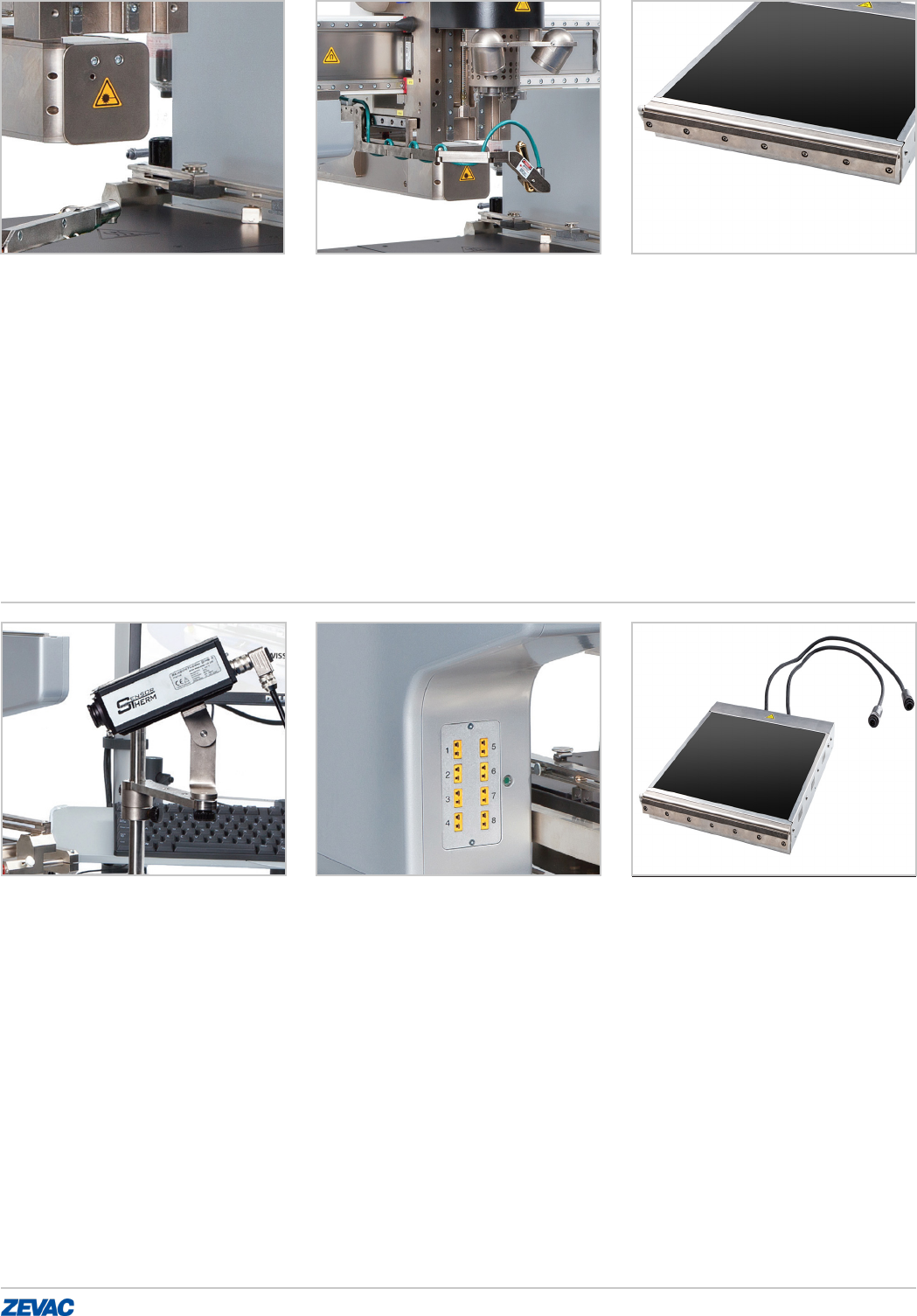

IR SENSOR 90° (1)
This IR temperature measuring Sensor
remotely monitors board temperature
and provides process control during
desoldering or soldering a component.
BOARD COOLING
Provides specic cooling of the PCB to
reduce the cycle time. Different models
are available for different size preheaters.
IR SENSOR PIVOTING
A manual positioned non-contact IR
Sensor that monitors the PCB top side
temperature.
IR SENSOR FIXED (2)
Non-contact temperature mesurement
built into the vision system that can be
positioned by moving the axis.
Order no. at Vision:
50.21.037 50.24.664 50.25.160 50.29.185
Order no. 315mm 1st unit:
50.21.003 50.24.631 50.25.131 50. 29.131
Order no. 315mm 2nd unit:
50.25.132
Order no. 490 mm:
50.25.171 50.29.132
Order no. 1:
50.21.004 50.24.612 50.25.102 50.29.102
Order no. 2:
Order no.:
50.21.007 50.24.626 50.25.126 50.29.126
Order no.:
50.29.101
Order no. 1st unit:
50.21.019 50.24.629 50.25.129 50.29.129
Order no. 2nd unit:
50.25.130
THERMOCOUPLE MODULE
All ONYX machines are equipped with
four inputs for K type thermocouples.
The ONYX 29 can be equipped with an
additional module providing a total of 8
inputs.
PREHEATER 300 X 300 MM
3500 W Preheater with a size of
300 x 300 mm is used as standard on the
ONYX 21, 24 & 25.
PYROMETER
Uses non-contact, thermal radiation
to monitor the temperature during the
soldering process using a detection
diameter of 1.8 mm at a range of
200 mm, allowing controlled,
reproducible results.
