Swiss Engineering
3
OPTIONS FOR PROFILE AND TEMPERATURE CONTROL
2
IR SENSOR 90° (1)
This IR temperature measuring Sensor
remotely monitors board temperature
and provides process control during
desoldering or soldering a component.
BOARD COOLING
Provides specic cooling of the PCB to
reduce the cycle time. Different models
are available for different size preheaters.
IR SENSOR PIVOTING
A manual positioned non-contact IR
Sensor that monitors the PCB top side
temperature.
IR SENSOR FIXED (2)
Non-contact temperature mesurement
built into the vision system that can be
positioned by moving the axis.
Order no. at Vision:
50.21.037 50.24.664 50.25.160 50.29.185
Order no. 315mm 1st unit:
50.21.003 50.24.631 50.25.131 50. 29.131
Order no. 315mm 2nd unit:
50.25.132
Order no. 490 mm:
50.25.171 50.29.132
Order no. 1:
50.21.004 50.24.612 50.25.102 50.29.102
Order no. 2:
Order no.:
50.21.007 50.24.626 50.25.126 50.29.126
Order no.:
50.29.101
Order no. 1st unit:
50.21.019 50.24.629 50.25.129 50.29.129
Order no. 2nd unit:
50.25.130
THERMOCOUPLE MODULE
All ONYX machines are equipped with
four inputs for K type thermocouples.
The ONYX 29 can be equipped with an
additional module providing a total of 8
inputs.
PREHEATER 300 X 300 MM
3500 W Preheater with a size of
300 x 300 mm is used as standard on the
ONYX 21, 24 & 25.
PYROMETER
Uses non-contact, thermal radiation
to monitor the temperature during the
soldering process using a detection
diameter of 1.8 mm at a range of
200 mm, allowing controlled,
reproducible results.
4
OPTIONS FOR PROFILE AND TEMPERATURE CONTROL
OPTIONS FOR COMPONENT / PCB HANDLING
Order no.:
50.29.124
Order no.:
50.29.186
Order no.:
see on rear side

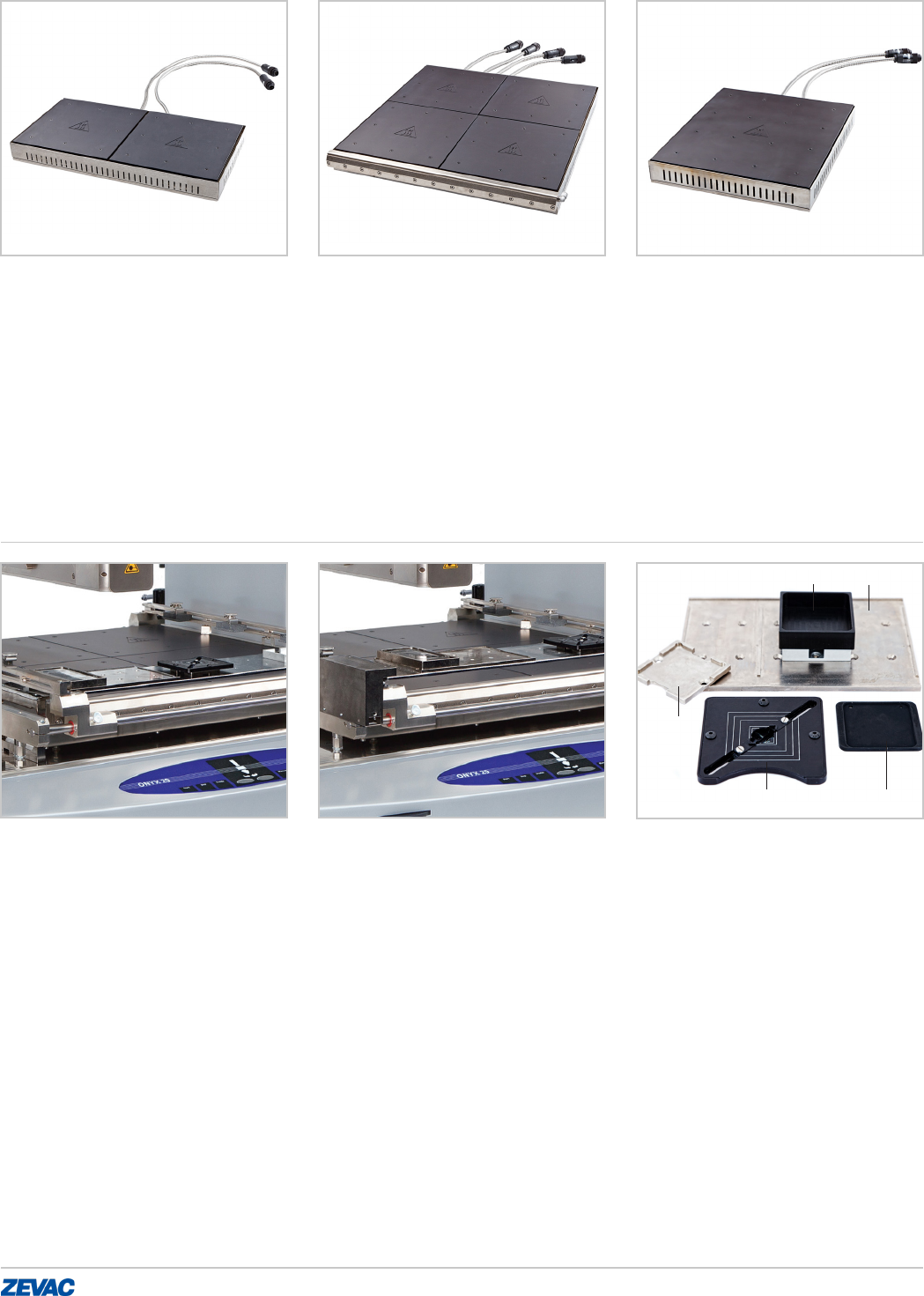

TWO-ZONES PREHEATER 245 x 490 MM
3000 W (2 x 1500 W) Preheater with a
size of 245 x 490mm.
FOUR-ZONE PREHEATER 490 x 490 MM
Standard equipment on the ONYX 29.
6000 W (4 x 1500 W) Preheater with a
size of 490 x 490 mm.
PREHEATER 310 x 350 MM
3260 W Preheater with a size of
310 x 350 mm.
Supplied as an alternative to the standard
preheater on the ONYX 21, 24, 25.
Recommended for use multi-layer circuit
boards.
Order no.:
50.25.163 50.29.156
Order no.:
50.29.141
Order no. 1st unit:
50.21.041 50.24.657 50.25.152 50.29.190
Order no. 2nd unit:
50.25.153
ADAPTORS AND ACCESSORIES
For use with the Bridge Tray, Shuttle
or with Nozzle Changer. Various
accessories are available.
1 = Component Reject Bin (l)
2 = Tray Plate for Bridge Tray (k)
3 = Adaptor Plate for Nozzle Changer (i)
4 = Insertion Tool (a-f)
5 = Adaptor Plate for Bridge Tray (j)
BRIDGE TRAY
The Bridge Tray is used to mount
Insertion Tool and Reject Bin, Fluxing
accessories and other ancillary
equipment.
ELEVATED BRIDGE TRAY
Provides increased above board
clearance allowing use of the full area of
the preheater.
1 2
34
5

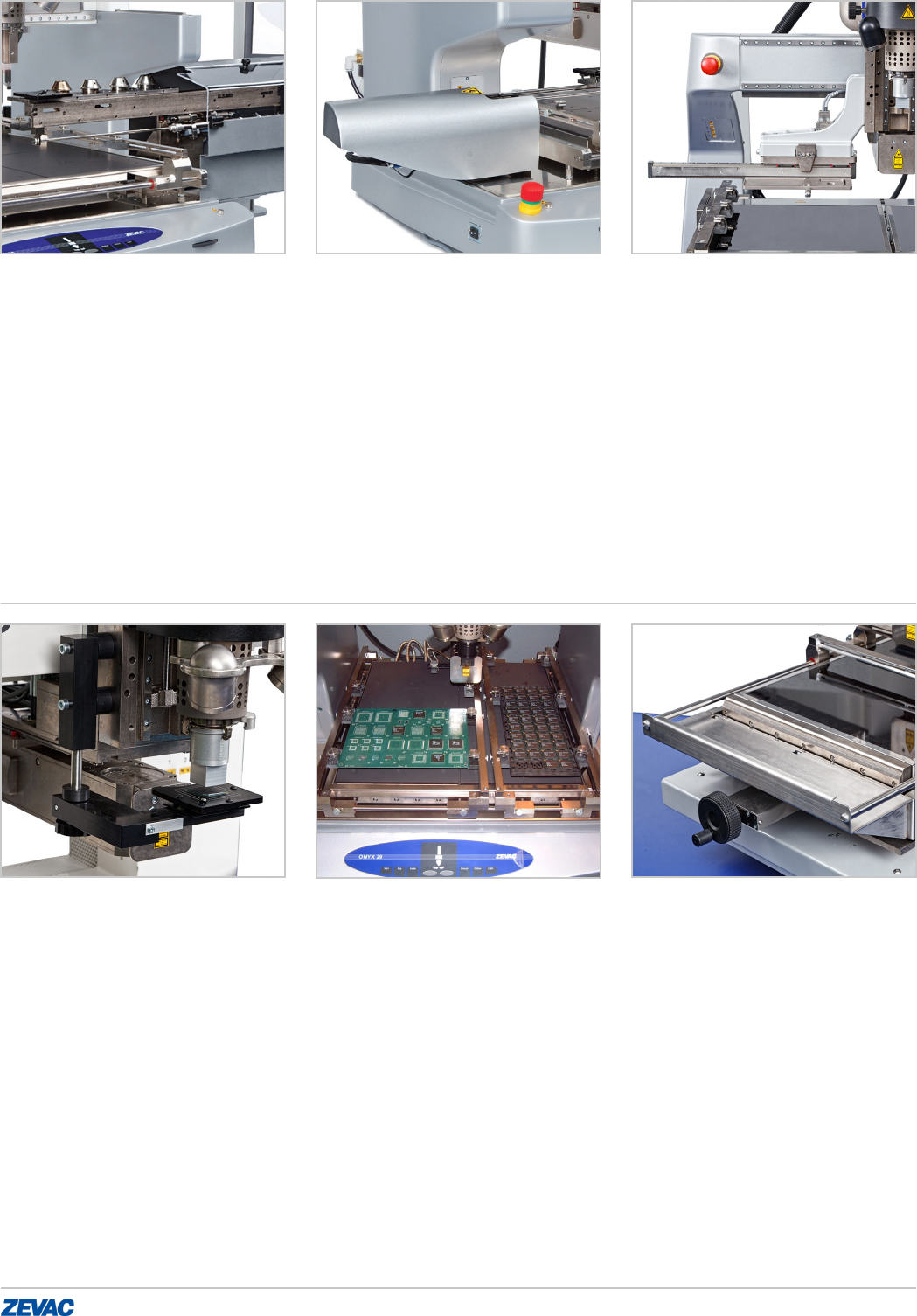

OPTIONS FOR COMPONENT / PCB HANDLING
NOZZLE CHANGER
A Nozzle Changer can be provided to
accommodate different tools or nozzles
as part of the automated process cycle.
PICKUP SHUTTLE MANUAL
ONYX 21, 24, 25
The Pickup Shuttle Manual with an
integrated Force Sensor can be used
for semi-autmated pickup, dipping or
placement of components.
PICKUP SHUTTLE AUTOMATIC /
MANUAL ONYX 29
Fully automated loading, uxing or
unloading of components. Preparation
is completed manually outside of the
heated working area.
An adjustable Insertion Tool is available
in different sizes.
Order no. 1 unit (for 5 nozzles):
50.29.176
Order no. 2 units (for 10 nozzles):
50.29.177
Automated:
No. incl. insertion tool 4 - 45 mm: 50.29.172
No. incl. insertion tool 6 - 47 mm: 50.29.192
No. incl. insertion tool 9 - 56 mm: 50.29.173
Manual:
No. incl. insertion tool 4 - 45 mm: 50.29.170
No. incl. insertion tool 6 - 47 mm: 50.29.191
No. incl. insertion tool 9 - 56 mm: 50.29.171
Order no.:
50.21.006 50.24.646 50.25.105
Order no.:
50.21.025 50.24.658 50.25.154
Order no. version same level:
50.29.103
Order no. version elevated level:
50.29.163
Order no.:
50.21.024
SECOND BOARD HOLDER
Provides an additional working area. This
option is available with standard height
or additional above board clearence of
20mm.
BOARD HOLDER EXTENSION
Extends the ONYX 21 Board Holder
capacity in the Y axis by 100mm.
PICKUP TOOL SWIVELLING
Manually positioned under the nozzle,
this provides semi-automated pickup of
components.
5
