4. Attachment and Detachment of Detachable Plate
Follow the steps below to attach or detach the detachable plate.
While detaching the detachable plate, be sure not to let it interfere
with a nozzle.
4.1 Attachment of Detachable Plate
(1) Pull up the stopper knobs, rotate them by 90° then lock them at
their upper limits.
(2) Insert the detachable plate horizontally along the side face of the
guide plate (internal side).
(3) Rotate the stopper knobs by 90° and release the lock.
(4) Lower the stopper knobs to their lower limits. At this time, confirm
that the stopper knobs are inserted completely into the locate pin
holes.
0505-001

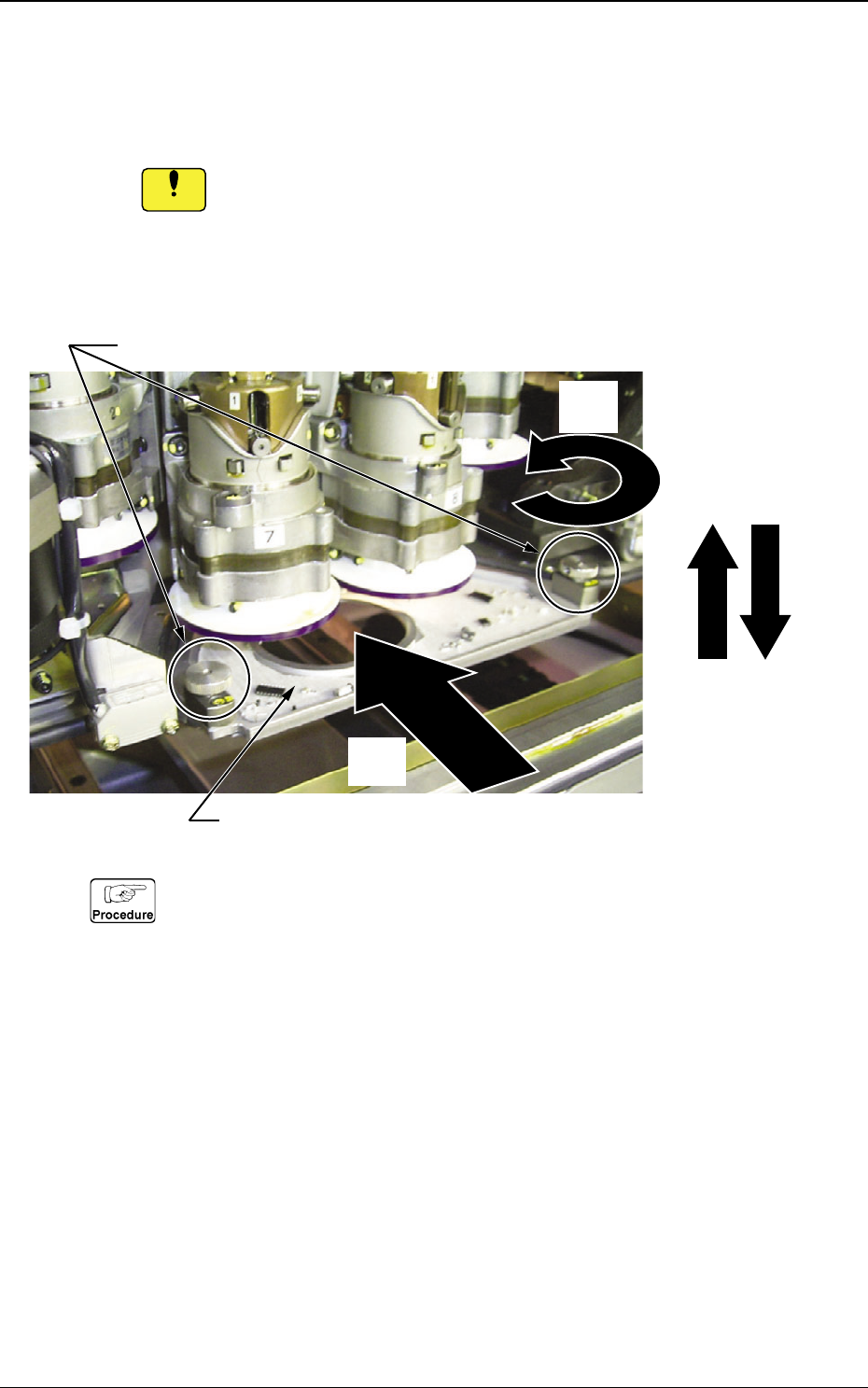

4. Attachment and Detachment of Detachable Plate
(1)
(4)
(2)
(3)
Detachable Plate
Detachable Plate Stopper Knobs (2 pcs.)
Notice
7 AJYESO-P
4.2 Detachment of Detachable Plate
(1) Pull up the stopper knobs.
(2) Rotate the stopper knobs by 90° and lock them at their upper limits.
(3) Pull out the detachable plate horizontally along the side face of the
guide plate (internal side).
0505-001

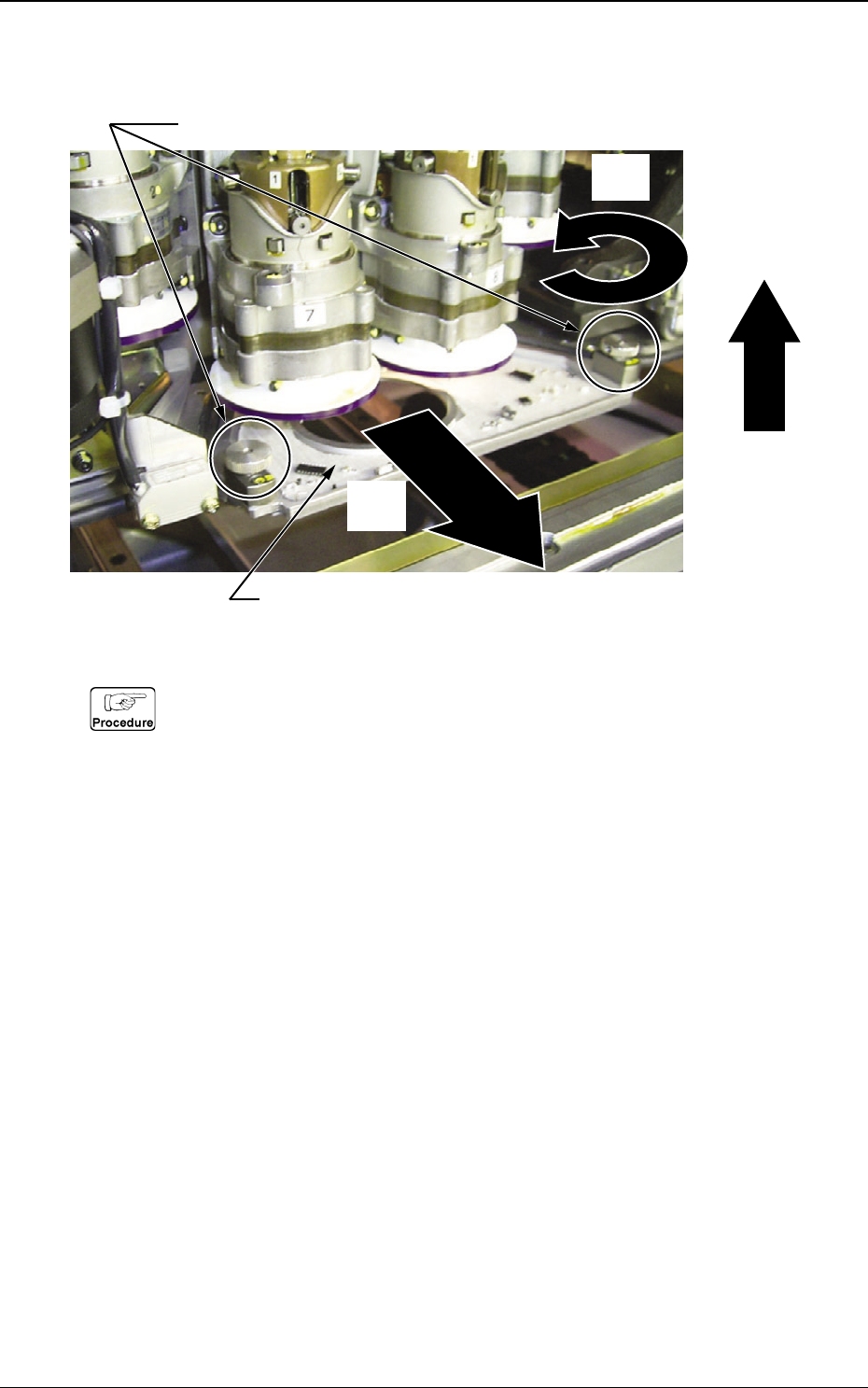

4.2 Detachment of Detachable Plate
(1)
(2)
(3)
Detachable Plate
Detachable Plate Stopper Knobs (2 pcs.)
8 AJYESO-P
5. Maintenance
5.1 Preparation for Cleaning
Prepare the following items.
• Tissue Paper (Kimwipe, etc.)
Use a normal tissue paper on the market.
• Rag
Use a rag made of such material as cotton, etc., that produces as less
waste thread as possible.
5.2 Preparation for Grease
Prepare the following items.
• Specified Grease
Teflon Grease BARRIERTA IEL/V (NOK KLUBER)
• Specified Apparatus
Brush and Vinyl Gloves
Use a brush whose bristles do not come off if possible.
Wear a pair of vinyl gloves to apply grease by hand
0505-001
5. Maintenance
