7 AJYESO-P
4.2 Detachment of Detachable Plate
(1) Pull up the stopper knobs.
(2) Rotate the stopper knobs by 90° and lock them at their upper limits.
(3) Pull out the detachable plate horizontally along the side face of the
guide plate (internal side).
0505-001
4.2 Detachment of Detachable Plate
(1)
(2)
(3)
Detachable Plate
Detachable Plate Stopper Knobs (2 pcs.)
8 AJYESO-P
5. Maintenance
5.1 Preparation for Cleaning
Prepare the following items.
• Tissue Paper (Kimwipe, etc.)
Use a normal tissue paper on the market.
• Rag
Use a rag made of such material as cotton, etc., that produces as less
waste thread as possible.
5.2 Preparation for Grease
Prepare the following items.
• Specified Grease
Teflon Grease BARRIERTA IEL/V (NOK KLUBER)
• Specified Apparatus
Brush and Vinyl Gloves
Use a brush whose bristles do not come off if possible.
Wear a pair of vinyl gloves to apply grease by hand
0505-001
5. Maintenance
9 AJYESO-P0505-001

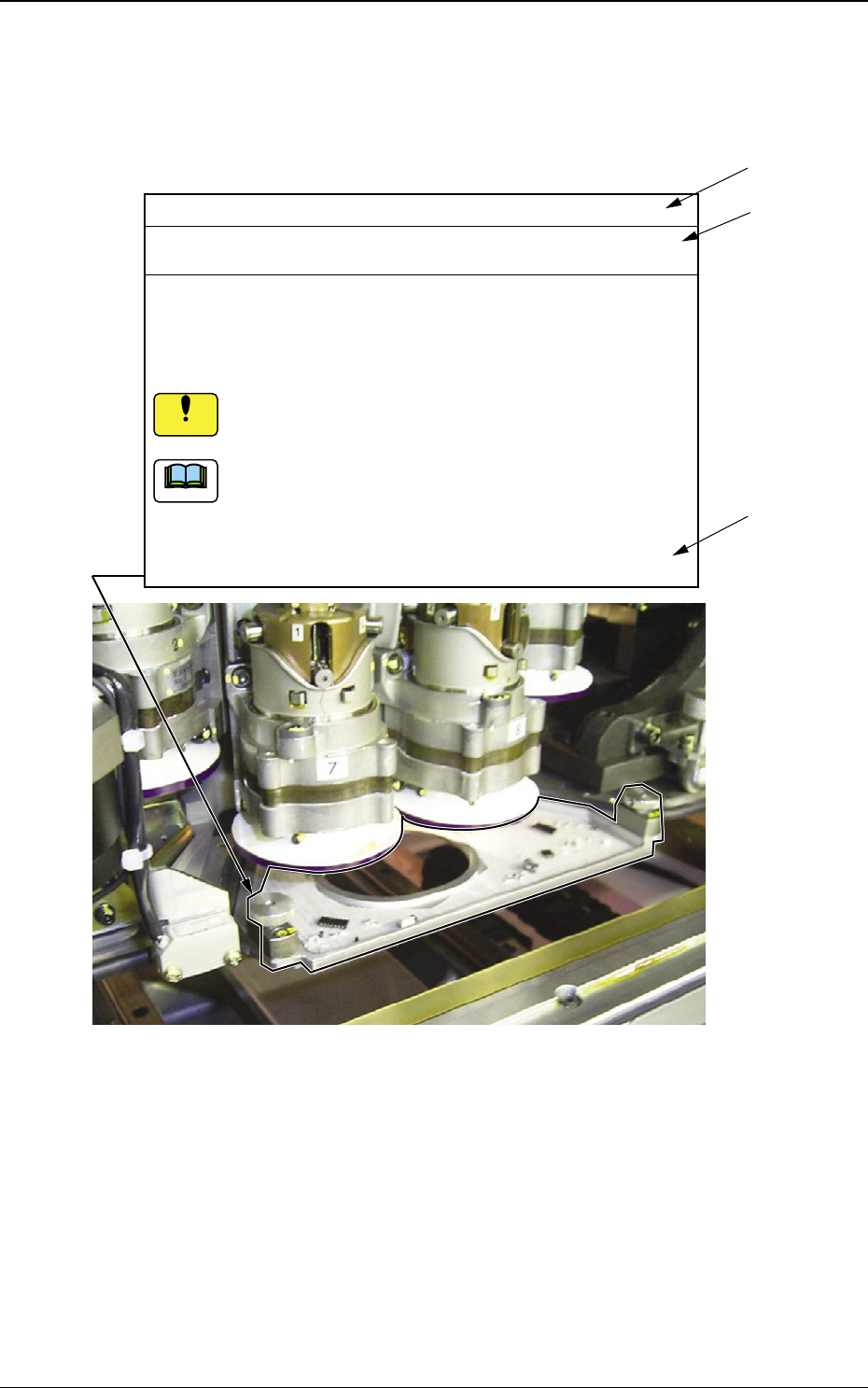

5.3 Inspection, Cleaning, and Lubrication Spots
5.3 Inspection, Cleaning, and Lubrication Spots
5.3.1 Detachable Plate
[1] : Maintenance Spot
[2] : Cycle and Contents of Maintenance
[3] : Details of Maintenance
Detachable Plate
Every Day Cleaning, Inspection, and Lubrication
(Teflon Grease BARRIERTA IEL/V)
(1) Detach the detachable plate.
(2) Brush off the fallen components, etc., on the detachable plate with a
tissue paper without wiping off the grease below the components.
(3) Attach the detachable plate.
Be sure to pull out or insert the detachable plate so that
it cannot interfere with a nozzle.
During the cleaning, check the amount of grease on the
detachable plate.
When only a small amount of grease remains on the plate,
wipe off the old grease and apply new one thinly all over the
plate.
Notice
Note
[1]
[2]
[3]
