SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50390
1/8
Auto Scale Correction
Contents
Auto Scale Correction
........................................................ 1
1. Machine Type and Software Version ............................................ 2
2. Overview ....................................................................................... 2
3. Setting Method .............................................................................. 3
3.1. Board data...................................................................3
3.2. Machine Setting...............................................................4
4. Operation Details .......................................................................... 5
4.1. Operation at print inspection....................................................5
4.2. How to acquire auto scale correction value.......................................6
4.3. Utility........................................................................6
4.2.1. [View Test] button..........................................................6
4.2.2. [Object Test] button........................................................6
4.4. Log saving...................................................................7
5. Limitation ...................................................................................... 8
Rev Version Chapter Contents
000 V3.45STD R1.000
V4.48STD R1.000
--- Created
本文書に含まれる技術内容は当社の秘密情報です。当社の許諾無く第三者への開示はできません。
The information contained in this message may be confidential and legally protected under
applicable law. The message is intended solely for the addressee(s).
If you are not the intended recipient, you are hereby notified that any use, forwarding,
dissemination, or reproduction of this message is strictly prohibited and maybe unlawful.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50390
2/8
1. Machine Type and Software Version
This function is supported for the following machine type and software version.
Table 1.1 Machine and Version
Machine Version Note
YSP V3.45STD R1.000
YCP10 V4.48STD R1.000
2. Overview
At print inspection, view of the inspection camera may warp if the height of board surface
differs because of board warpage. In that case, positions of inspection results may be
misaligned.
“Auto Scale Correction” automatically corrects the scale of inspection camera according
to the actual height of board surface.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50390
3/8
3. Setting Method
Settings to use this function are as follows.
3.1. Board data

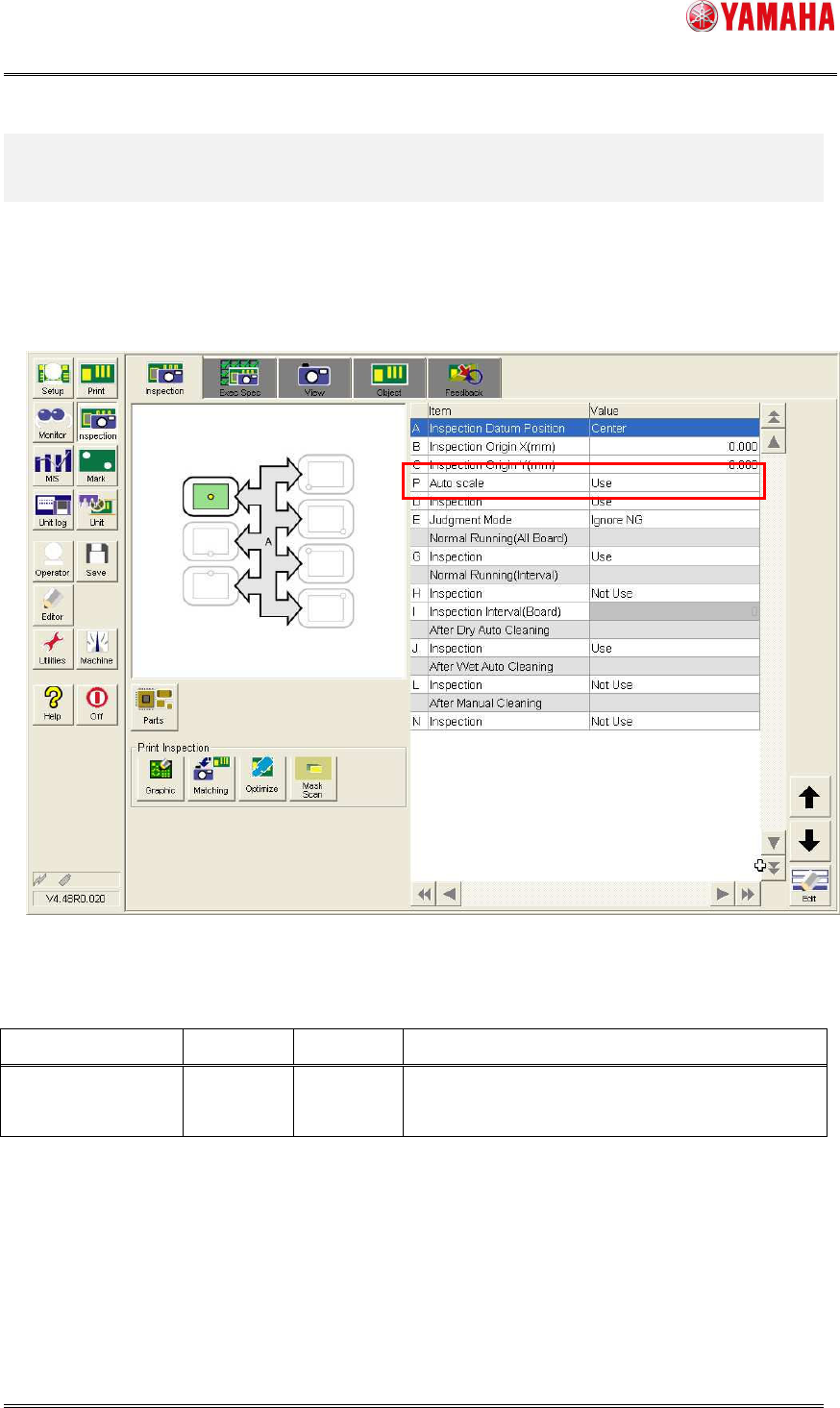

On the [Inspection] - [Inspection] tab, set [Auto scale] to “Use”.
Fig 3.1 [Inspection] - [Inspection] screen
Table 3.1 Board data setting item
Item Default Range Description
Auto Scale Not Use Not Use
Use
Select use or not use “Auto Scale Correction”.
