Eliminating contact problems with ODU connectors MTC2
07/2008 Edition
15
2.4 Scope of delivery
Retrofit kit ODU connector MTC2 (item no.: 00386291-xx) 2
2
2.5 Tools required
– Set of hexagon socket spanners
– Fork wrench, size 8
2
Quantity
Designation Item no.:
1 Connector plate 03012217-xx
2 Centering bolts 03012218-xx
1 Profile left 03010747-xx
2 Washer D19,5 d11 s2,2 03053296-xx
2 DIN912-M5 x 16-8.8 00845044-xx
2 DIN 125-A 5.3-140HV-A2 00315187-xx
Eliminating contact problems with ODU connectors MTC2
07/2008 Edition
16
2.6 Converting the plug-in contact

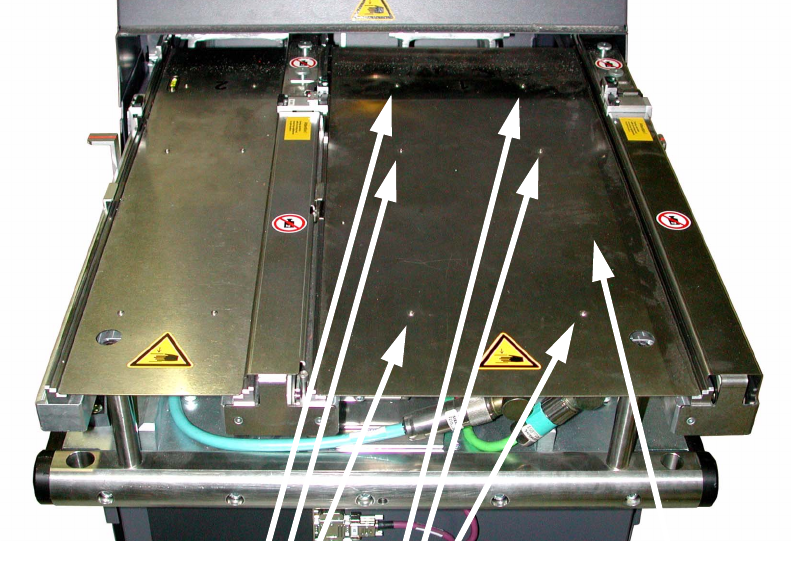

: Remove the cover plate on the Y traveling range of the MTC (6 screws).
2
2
2
2
2
2
2
2
2
2
2
2
6 screws 2
Cover plate 2
Eliminating contact problems with ODU connectors MTC2
07/2008 Edition
17
: Remove the screw from the cover plate over the connector and pull the plate out to the side.
2
2
: Unscrew the connector from the plug-in connector plate from below (2 screws).
2
2
2
2
2
Cover plate over the connector 2
2 screws 2
