SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50395
3. Error Message
When parts fall is detected, the following error message is displayed.

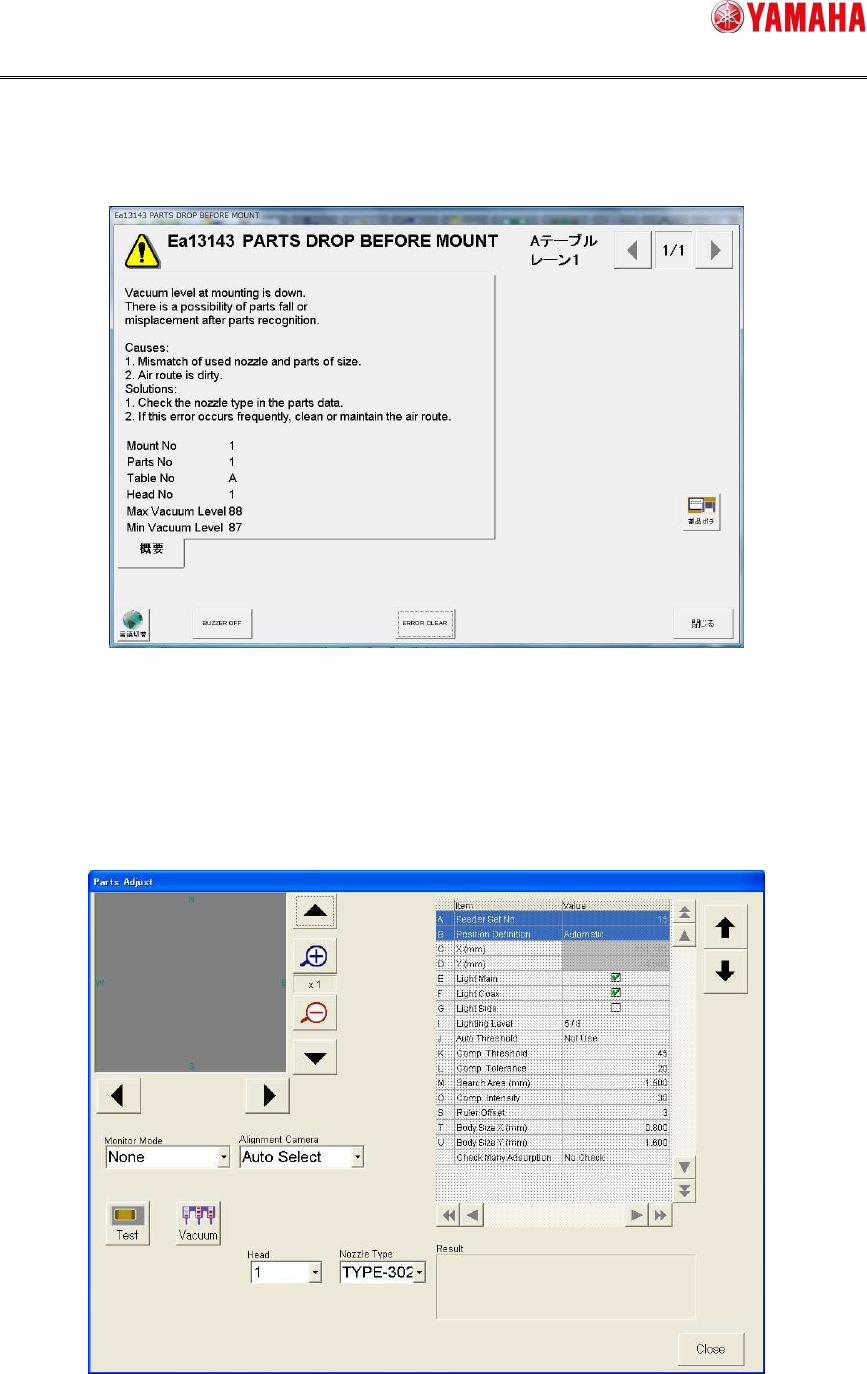

Fig 3.1 Error message dialog
When parts fall is detected, the error message is displayed for each head.
By clicking the [Parts Adj] button on the message, you can see the picking condition and
vacuum level of the error head.
Fig 3.2 Parts Adjust screen
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50395
When parts adjustment is executed on the [Parts Adjust] screen opened from the Ea13143
message, it is not allowed to edit the parts data on the right. Also, parts data is not updated
by Test. (
※
)
Parts Adjust screen opened from the Ea13143 message is used only for confirmation.
(※) When “Test” is executed on the [Parts] - [Parts Adj] screen, [Comp. Intensity] in parts data is
automatically updated. Meanwhile, when it is executed on the [Parts Adj] screen opened from the
Ea13143 message, [Comp. Intensity] is not updated.
4. Recovery from error
When “Ea13143: PARTS DROP BEFORE MOUNT” occurs, press the [Parts Adj] button on
the message, and execute “Test” to check the picking condition of the error nozzle. If no
chip is on the nozzle, it may have been dropped on a board. In that case, please remove it.
Then close the error message and press the [START] button. All error heads perform
dumping action and auto-running starts.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50395
5. Setting Method
Settings to use this function are as follows.
Table 5.1 Machine Setting
Menu Description
Set [Chip Vacuum Check] to “Use”.
Enter a value in [Parts Fall Vacuum Level] of each nozzle.
The range is 0 to 255.
When “0” is entered, Chip Vacuum Check is not performed.
(Recommended value is 5)
Table 5.2 Board data
Menu Description
[Board] – [Board]
Set [Vacuum Check] to “Check”.
[Parts] – [Pick]
Set [Pick&Mount Vacuum Check] to “NORMAL CHECK” or
“SPECIAL CHECK”.
