SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50395

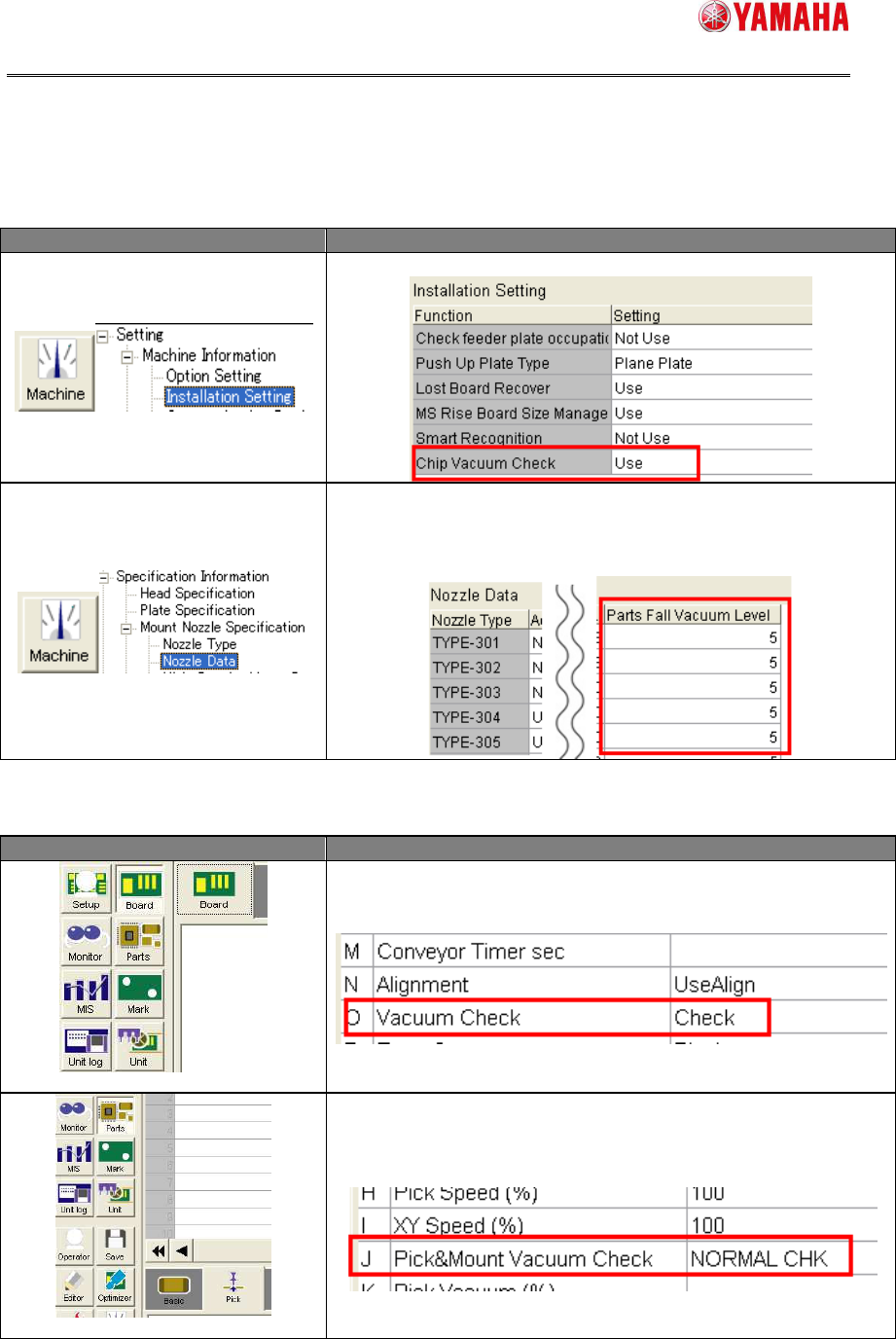

5. Setting Method
Settings to use this function are as follows.
Table 5.1 Machine Setting
Menu Description
Set [Chip Vacuum Check] to “Use”.
Enter a value in [Parts Fall Vacuum Level] of each nozzle.
The range is 0 to 255.
When “0” is entered, Chip Vacuum Check is not performed.
(Recommended value is 5)
Table 5.2 Board data
Menu Description
[Board] – [Board]
Set [Vacuum Check] to “Check”.
[Parts] – [Pick]
Set [Pick&Mount Vacuum Check] to “NORMAL CHECK” or
“SPECIAL CHECK”.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50395

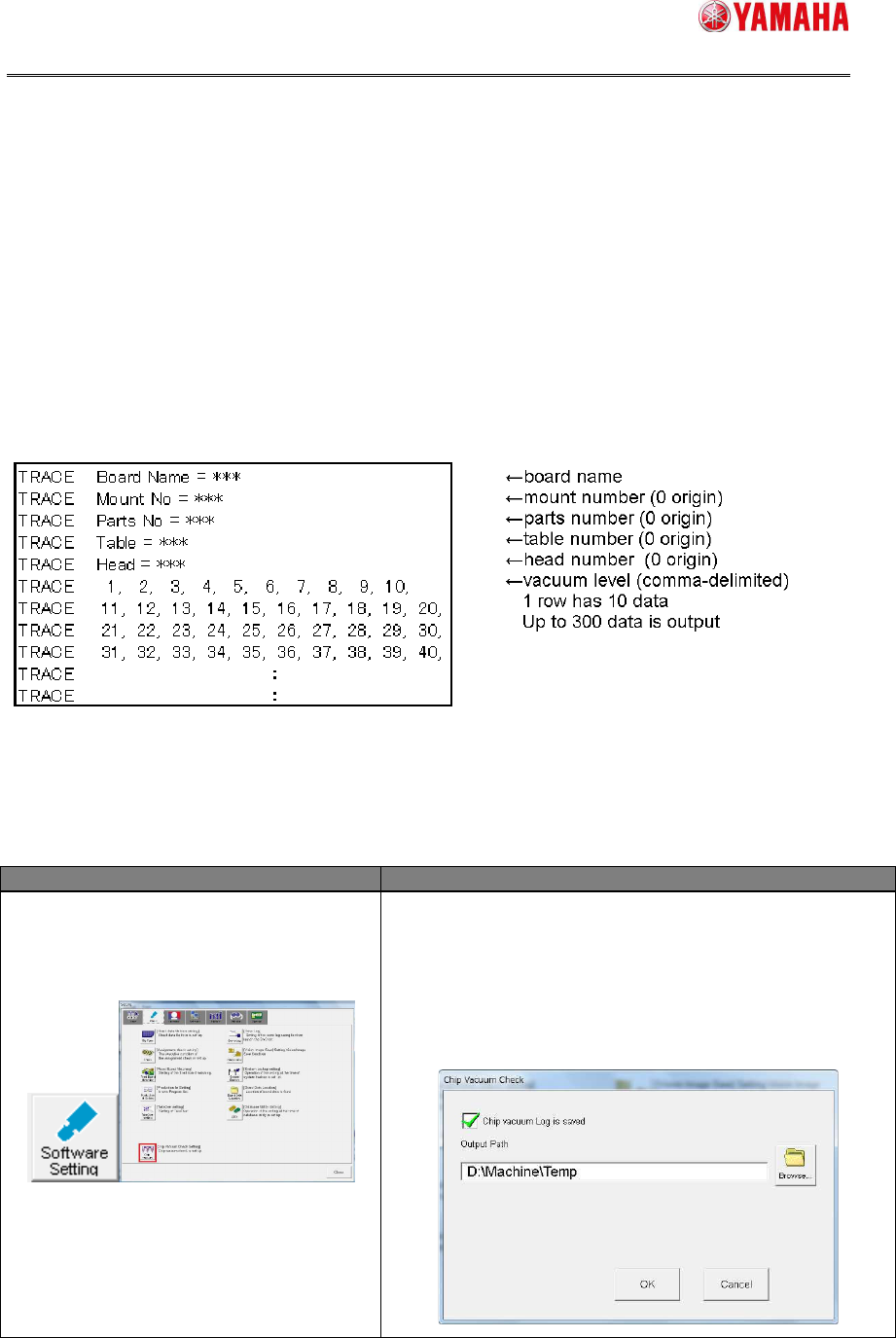

6. Log Function
6.1 Overview
With this function enabled, a log is output when “Ea13143：PARTS DROP BEFORE
MOUNT” occurs. Destination of the log is specified on the software setting.
6.2 Format
File name of the log is “ChipVacuumCheck_T**_H**_yymmddhhmmss.log”.
（“T**” means table number of the error. “H**” means head number of the error.）
The format is as follows.
Fig 6.1 Format
6.3 Setting Method
Table 6.1 Setting Item (Software Setting)
Menu Description
[Software Setting]-[Basic]
-[Chip Vacuum]
Check the [Chip Vacuum Log is saved] check box.
Then, enter a destination folder path into [Output
Path].
※ The destination folder needs be in a drive with
5MByte or more free space. (If a drive with less
than 5MByte free space, the log is not output.)
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50395
7. Precaution at using this function
7.1 Recommended Nozzle Type
It is recommended to use this function for the following nozzle type.
Table 7.1 Recommended Nozzle Type
Series Model Recommended nozzle type
V30 YS12 / YS12P / YS12F
/YG12 / YG12F
301 / 311
YS88 221
YS100 301 / 311
YS24 301 / 311
YS24X 301 / 311
YC8 61
V40 YSM20 301 / 311
