Page 16 Vision XP+ VAC / XP+ / XP / XS
2 Maintenance
2.4 Process Chamber
Service Instructions
Version 1.3
2.4.2 Cleaning of oven stations

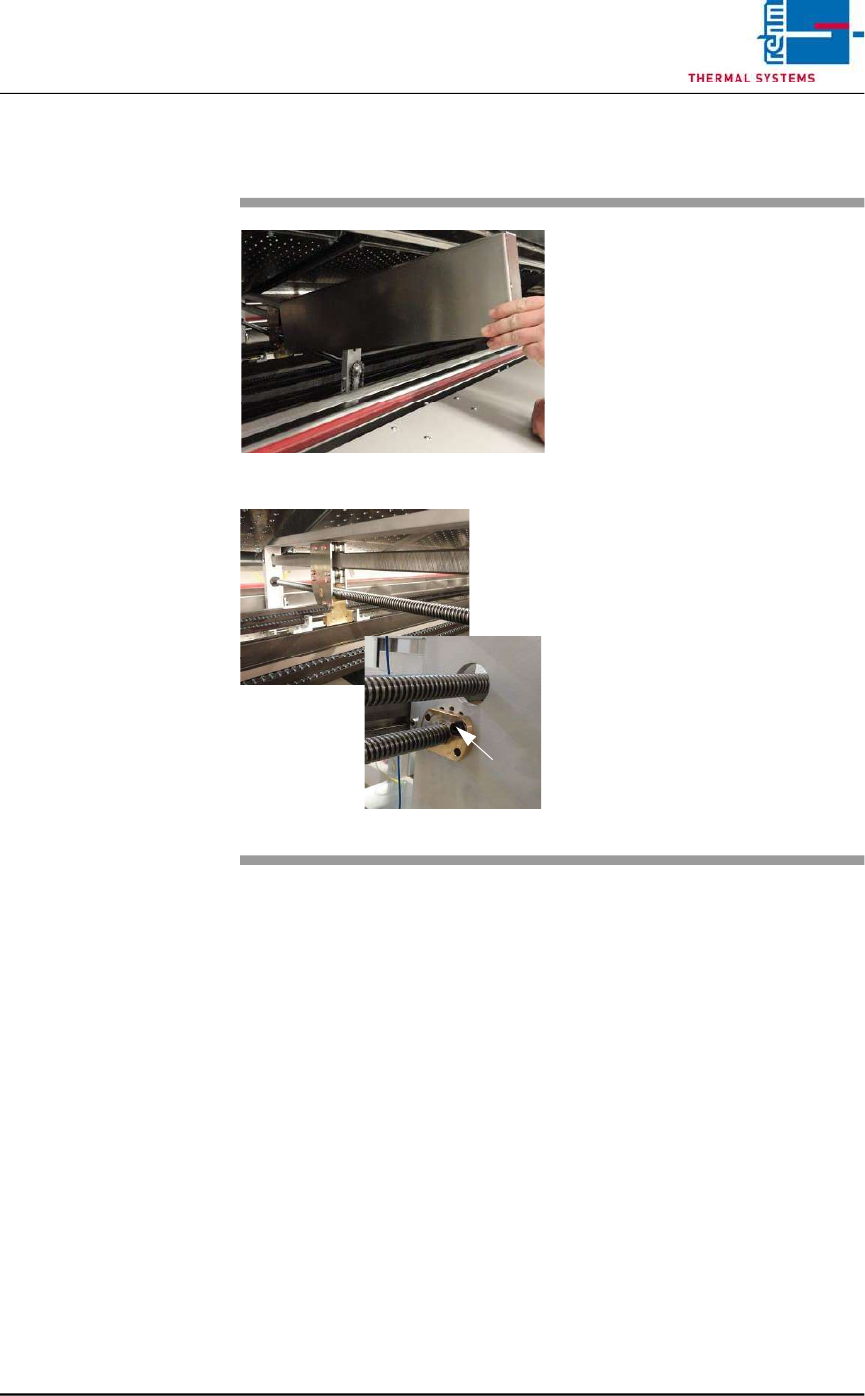

Fig. 2-2 cleaning of oven station
Fig. 2-3 cleaning of oven station
Expendable materials:
• Oven cleaning agent
• Cleaning cloths
• Paint brush
• Chain oil Addinol
Procedure:
1. Remove the cover of the oven
station.
2. Clean spindles from the PCB and
CBS width adjustment at the inlet
and the outlet as well as the oven
stations with cleaning cloths and
oven cleaning agent.
3. Oil the spindles with the paint
brush after the cleaning.
4. Check the spindle nut regularly
for „clearance“.
Spindle nut
Vision XP+ VAC / XP+ / XP / XS Page 17
2 Maintenance
2.4 Process Chamber
Service Instructions
Version 1.3
2.4.3 Cleaning of coated nozzle fields (option)
Water-based medium or adhesive:
Solvent-based adhesives and oil-containing media:
Fig. 2-4 Cleaning of coated nozzle fields
Consumable:
• soft brush
Procedure:
1. Cleaning should be done with
warm water or soapsuds, but
the soapsuds has to be rinsed
with a lot of water subsequently.
Note!
Please use as auxiliary means for
mechanical removal a soft brush
and just a little pressure.
Fig. 2-5 Cleaning of coated nozzle fields
Consumable:
• soft brush
• acetone or isopropyl
Procedure:
1. Cleaning should be done with
Acetone or Isopropyl. Please
use soft brush and only just a
little pressure.
Note!
Cleaned surfaces have to be rinsed
with water subsequently to restore
the original characteristics.
Note!
Never use high-pressure cleaner as the water-repellent characteristics of
the coating will be damaged through this.
Page 18 Vision XP+ VAC / XP+ / XP / XS
2 Maintenance
2.4 Process Chamber
Service Instructions
Version 1.3
2.4.4 Cleaning the Guide Rails for the Sheet Metal Covers
The guide rails for the sheet metal cover are located at the inlet and the out-
let.
Fig. 2-6 Cleaning the Guide Rails
Consumable materials:
• Oven cleaner
• Rags
Procedure:
1. Raise the process chamber as
far as it will go. Set width
adjustment to the maximum
value and move the center
support to the middle.
2. Unscrew the sheet metal cover
(A) and pull it out.
3. Clean the groove in the top (B)
and bottom (C) guide rails with
a screwdriver, rags and oven
cleaner.
A
B
C
