SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50038-00110/12
7.2.Manualsettings
The work of this chapter is not necessary unless line constitution is changed.
The following setting is necessary when line constitution is changed or when upstream /
downstream machine is changed. When the mechanical change of the conveyor in upstream
machine or this machine or downstream machine exists, manual setting is needed. If the
mechanical change does not exist, please refer to "Chapter.7.1. Automatic Settings".
●InstallationSettings
To use this function, please set “Enable” on [Stride Board Buffering(Lower)] and [Stride Board
Buffering(Upper)] (please refer to Chapter.5.1. Way of Settings).
In addition, please set “ADVANCED_GATE” on [Setting] - [Installation Setting] - [Upper
Handling / Lower Handling].
●MechanicalPositionSettings
From this version, the settings [Stride Board Buffering] are added on [Machine Information] -
[Installation Setting] - [Software] (See Fig7.3). The conveyor dimensions that is necessary for
this function is able to be set.
Fig7.3[MechanicalPosition]screen
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50038-00111/12
[Upper Machine Max Board Size]
Please set the maximum board size that can wait striding the machine in the upstream side
(See Fig 7.4 A).
When the board size is less than [Upper Machine Max Board Size], more than [Wait Pos
Waiting Board Size], “Stride Board Buffering” function of the upstream becomes effective.
[Lower Machine Min Board Size]
Please set the minimum board size that can wait striding the machine in the downstream side
(See Fig 7.4 B).
[Lower Machine Max Board Size]
Please set the maximum board size that can wait striding the machine in the downstream
side (See Fig 7.4 C).
When the board size is less than [Lower Machine Max Board Size], more than [Lower
Machine Min Board Size], “Stride Board Buffering” function of the downstream becomes
effective.
Please input the above setting value in reference to Chapter.7.3.

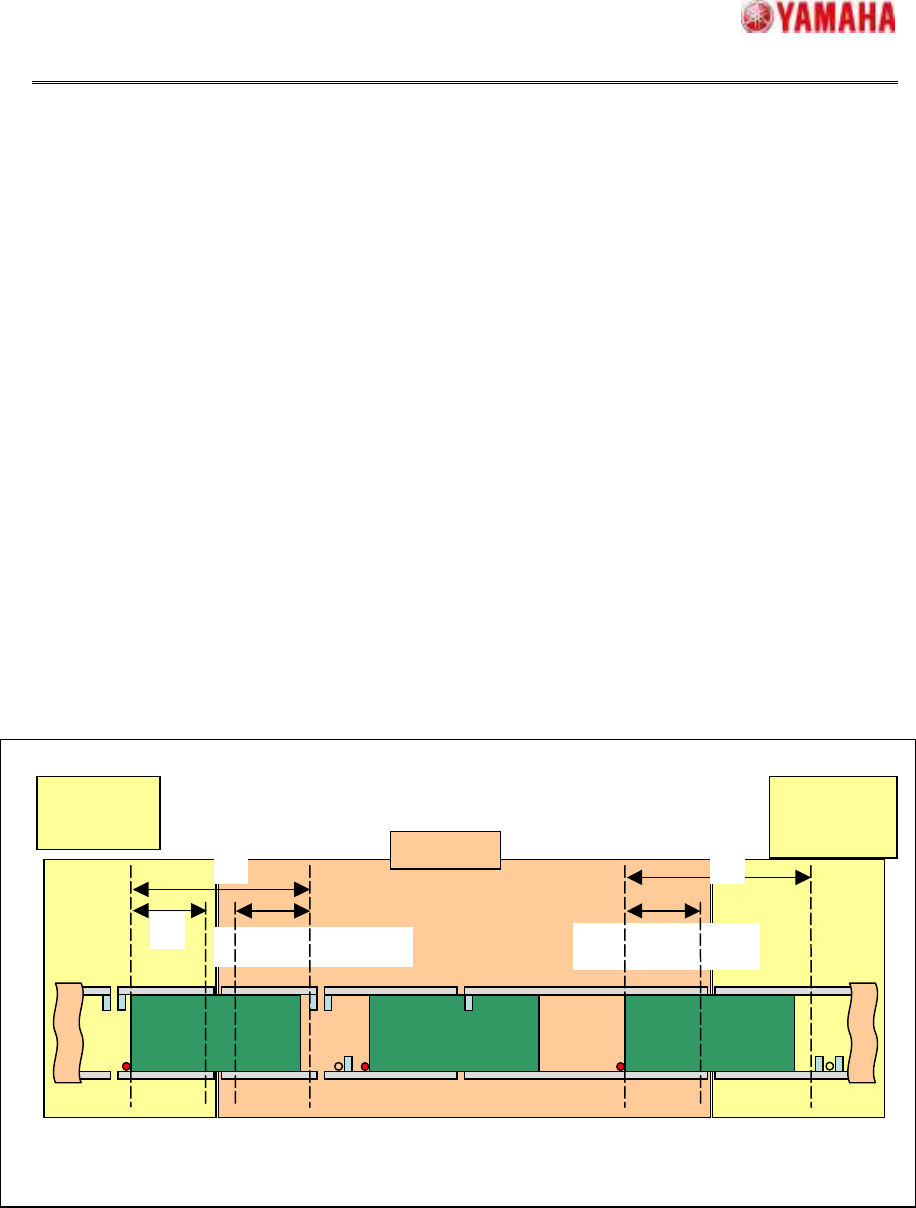

Fig7.4Conveyordimensions
This Machine
Downstream
Machine
Upstream
Machine
[ExitPosWaiting
[WaitPosWaiting
BoardSize]
B
A
C
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50038
12/12
7.3.Theboarddimensionsspecifications
There is the case that the board wait between the machines is not possible by the board sizes.
The board sizes that can work with this function are mentioned in the following tables.
How to read the tables, example: This Machine is YS12, Upstream machine is YS24
1. To 330mm board size, a wait is possible at a wait position of YS12(from Table 7.1).
2. The board can wait striding the machines, when the board size to 420mm more than
330mm (from Table 7.2).
Table7.1themaximumboardsizethatcanwaitinamachine
YS24
YS24
Ext. Conveyor
YS12
YS12
Ext. Conveyor
YS12
L640
YS12
L640
Ext. Conveyor
YS100
YS88
195.0
330.0 330.0
420.0 260.0 380.0 420.0
Table7.2themaximumboardsizethatcanwaitstridingthemachines
Upstream Machine
YS24
YS24
Ext. Conveyor
YS12
YS12
Ext. Conveyor
YS12
L640
YS12
L640
Ext. Conveyor
YS100
YS88
YS24 440.0
575.0 510.0 510.0 450.0 555.0 510.0
YS24
Ext. Conveyor
590.0
700.0 510.0 510.0 605.0 640.0 510.0
YS12 420.0
420.0 420.0 420.0 420.0 420.0 420.0
YS12
Ext. Conveyor
435.0
435.0 435.0 435.0 435.0 435.0 435.0
YS12
L640
510.0
640.0 510.0 510.0 525.0 630.0 510.0
YS12
L640
Ext. Conveyor
615.0
640.0 510.0 510.0 630.0 640.0 510.0
Downstream Machine
YS100
YS88
510.0
510.0 510.0 510.0 510.0 510.0 510.0
