D) AboutthedisplayofEnableorDisablestateofthisfunction

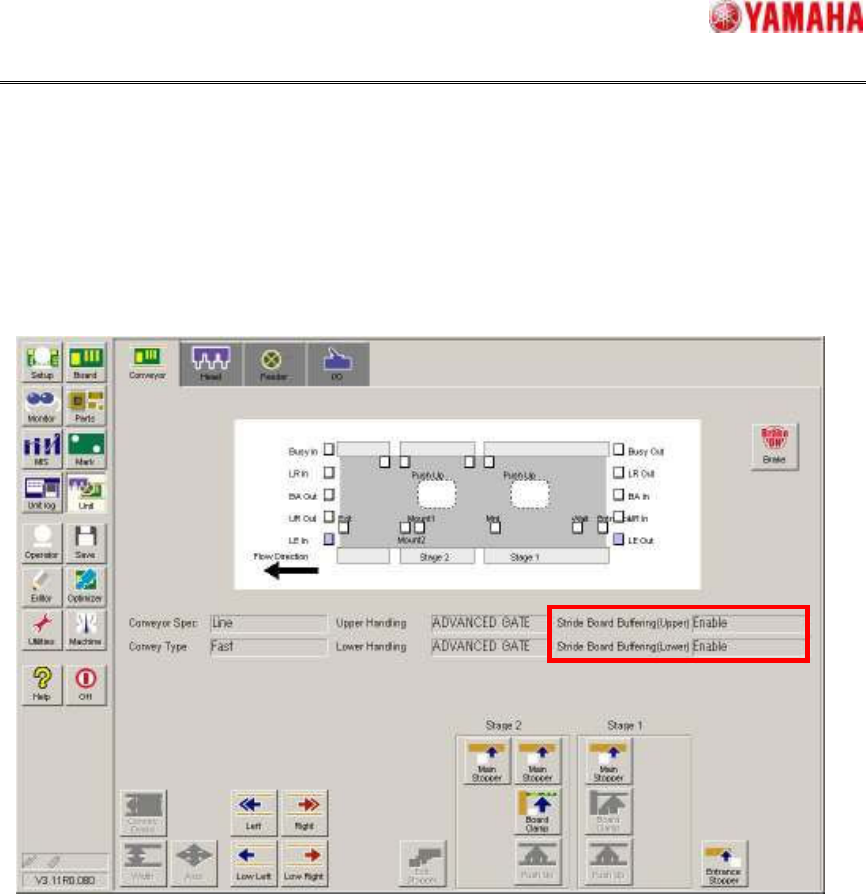

The Enable / Disable state of this function in the current production is displayed on [Unit] –
[Conveyor] screen (cf. figure 4.2).
*ThisisdisplayedfromV3.11STDR1.000orlater.
Fig.4.2[Unit]–[Conveyor]screen
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50038-0015/12
5.Settings
5.1.WayofSettings

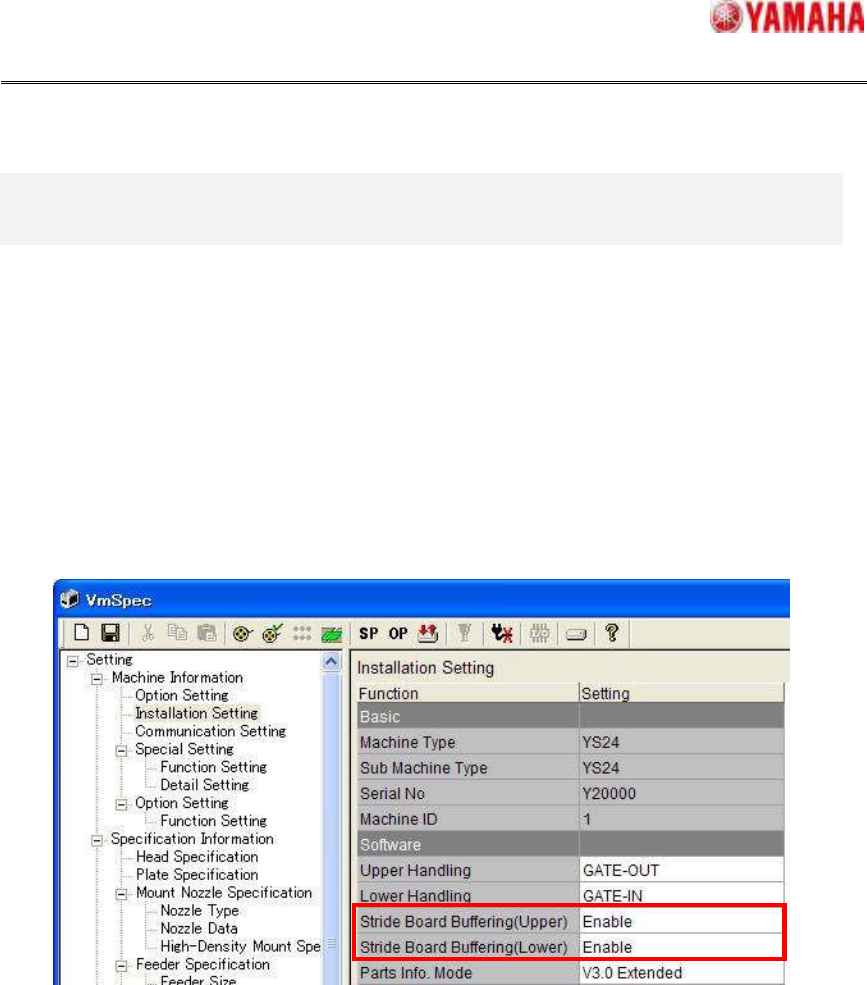

From this version, the following settings are added on [Machine Information] - [Installation
Setting] - [Software] (See Fig6.1). When you do not use this function, please set “Disable” on
the following red frame settings.
1. [Stride Board Buffering(Upper)]
2. [Stride Board Buffering(Lower)]
図
図図
図 5.1“InstallationSetting”screen
This function can be set individually in upstream (Upper) side and downstream(Lower) side, so
please set “Enable” / “Disable” as needed. Factory default setting is “Disable”.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50038-0016/12
6.Errormessages
Table5.1Errormessages
Error No Content and cause Check point
Ea2201
BOARDTRANSFERERROR
Unexpected Board is on the conveyor.
On the auto-running or the transfer, two
boards are detected at the same time.
When the stopper of the mount position is
going to rise during sync transfer, this error
occurs when the next board arrives at the
mount position.
Please
move the boards to the transfer
destination position and restart
auto-running.
When this error occurs many times, please
input a value bigger than the present value
on the machine setting [Setting] –
[Mechanical] – [Position] – [Fast Trans Delay
Timer] (note 1).
Ea3976
WARNING:StrideBoardBuffering
UpperSetting
The setting of "Upper Handling" is not
"ADVANCED_GATE" though the setting of
"Stride Board Buffering(Upper)" is "Enable".
It needs to be set "ADVANCED_GATE" so
that "Stride Board Buffering(Upper)" works
effectively.
Please confirm the settings are set as
follows.
1. [Setting] - [Installation Setting] - [Upper
Handling] : ADVANCED_GATE
2. [Setting] - [Installation Setting] - [Stride
Board Buffering(Upper)] : Enable
Ea3977
WARNING:StrideBoardBuffering
LowerSetting
The setting of "Lower Handling" is not
"ADVANCED_GATE" though the setting of
"Stride Board Buffering(Lower)" is "Enable".
It needs to be set "ADVANCED_GATE" so
that "Stride Board Buffering(Upper)" works
effectively.
Please confirm the settings are set as
follows.
1. [Setting] - [Installation Setting] - [Lower
Handling] : ADVANCED_GATE
2. [Setting] - [Installation Setting] - [Stride
Board Buffering(Lower)] : Enable
Ea7336
Unknownboardisdetectedatthewait
positionsensor
Unknown board is detected at the wait
position sensor.
The board exists though the wait positions
stopper doesn’t rise.
Please remove the board on the wait
position, and restart auto-running.
Please insert the board into the wait position
again after a board in the machine is carried
out.
Ea7337
BOARDTRANSFERERROR
The board transfer to lower machine was
failed.
The board may be caught between
machines.
Please move the board to the
board fixing
position of the downstream machine, and
start auto-running.
Ea7338
Unknownboardisdetectedattheexit
positionsensor.
Unknown board is detected at the exit
position sensor.
When the board is not necessary for the
production, please remove the board and
restart auto-running.
When the board is produced by inserting the
board to the wait position of the downstream
machine, please operate the following
procedures.
1. Reset the downstream machine and this
machine.
2. Press the [EMERGENCY STOP] button of
the downstream machine and this machine.
3. Insert the board from the exit position of
this machine to the wait position of the
downstream machine.
4. Restart auto-running.
