ｶﾊﾞｰ部(3)ﾀｲﾌﾟC
COVER SECT.(3)TYPE-C
2
FN610063722AA_10-3
M59
PART No.
ｲﾗｽﾄ
No.
REF
No.
　　　
　　　　　　　　　 PART NAME
　　　 REMARKS　
Q'TY
2
ｶﾊﾞｰ部(3)ﾀｲﾌﾟC
COVER SECT.(3)TYPE-C
部 品 名 品　 番 個数
備 考
R
1
R
2
1001 N210116082AA
COVER ｶﾊ
ﾞｰ
S
1
002 1086202203
UPPER COVER ｶﾊﾞｰ(UPPER)
1
004 N210051621AB
REAR COVER ｶﾊﾞｰ(REAR)
1005 N210120814AA
REAR COVER ｶﾊ
ﾞｰ(REAR)
1006 1086202214
HINGE ﾋﾝｼ
ﾞ
S
1
007 N210076649AC
COVER ｶﾊﾞｰ
S
1
012 108620261701
BRACKET ﾌﾞﾗｹｯﾄ
1013 1086202518
BRACKET ﾌ
ﾞﾗｹｯﾄ
2014 N210060812AA
BRACKET ﾌﾞﾗｹｯﾄ
4
016 1086202235
BUSHING ﾌﾞｯｼｭ
S
1018 N210078291AA
BRACKET ﾌﾞﾗｹｯﾄ
S
1019 N210076655AC
BRACKET ﾌ
ﾞﾗｹｯﾄ
S
1
020 N210051628AA
BRACKET ﾌﾞﾗｹｯﾄ
S
1
021 N210076656AC
BRACKET ﾌﾞﾗｹｯﾄ
2022 N210067090AA
PIN(ROLLER) ﾋﾟﾝ(ﾛｰﾗ)
2023 1086202232
ROLLER ﾛｰﾗ
2
025 N210106422AA
PLATE ﾌﾟﾚｰﾄ
5 External toothed St
18
N001
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M5X8-4.8 A2J (Trivale
6
N002
N510018302AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M5X20-4.8 A2J (Trival
6
N004
N510018292AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
THA-31-13-TAP LEG
2
N007
N982THA3413A
DRAWER PULL ﾄｯﾃ
M6X10
2
N008
N986YYYY-K24
SCREW ﾈｼﾞ(ｺﾞｸﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
KSF50-10 S
2
N010
N510012927AA
GAS SPRING ｶﾞ
ｽｽﾌﾟﾘﾝｸﾞ
75-32-W-5T
2
N017
N510023004AA
TRIM ﾄﾘﾑ
75-08-W-5T
1
N019
N510021679AA
TRIM ﾄﾘﾑ
SSS 003 M5X10-10.9 A2
6
N022
N510017538AA
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ
M5X8-10.9 A2J (Trival
2
N023
N510017553AA
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾀﾝﾎﾞﾙﾄ
M6X12-10.9 A2J (Triva
2
N024
N510017557AA
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ
M5X20-10.9 A2J (Triva
8
N025
N510017544AA
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ
M60
FN610063722AA_10-3

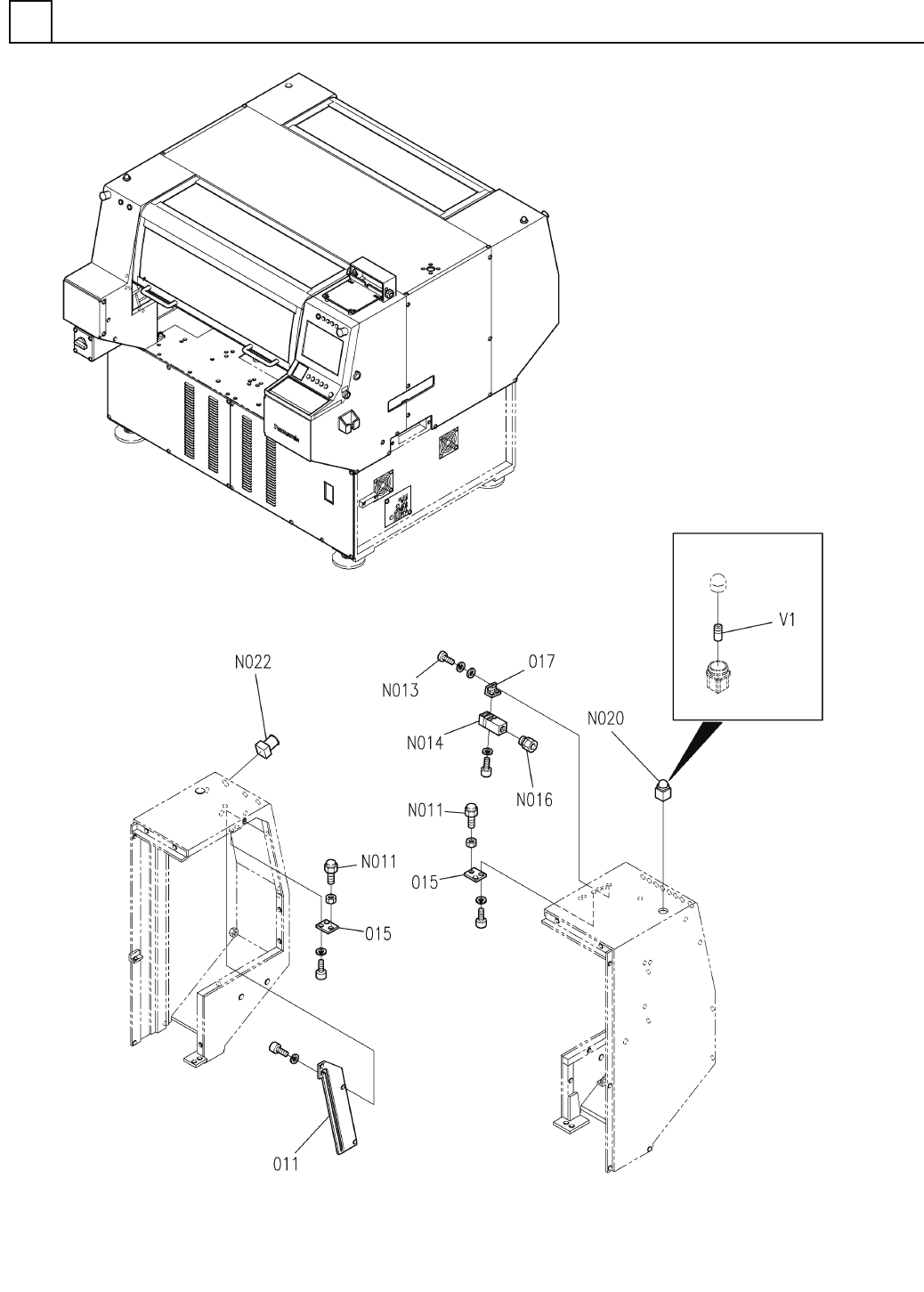

ｶﾊﾞｰ部(手置きﾄﾚｲ後ﾌｨｰﾀﾞ有り1)ﾀｲﾌﾟE
COVER SECT.(MANUAL TRAY CONTROL WITH REAR FEEDER-1)TYPE-E
