1 5 Head (SF) Head KV1-0802 3 53 57 86 85 66 62 84 60 44 31 37 50 63 46 45 33 53 52 54 55 32 43 41 42 42 30 78 58 35 36 59 56 38 39 40 29 51 67 34 1 5 8 4 3 53 2 4 6 8 7 49 49 47 48 48 8 6 8 7 49 49 47 27 26 25 23 24 21 …
3
4
YT-axis
Moving-axis
KV1-0712
6
4
3
29
20
26
22
23
23
16
5
8
20
25
17
25
4
9
5
7
12
15
25
28
7
5
25
14
27
26
25
24
6
21
10
22
22
11
19
18
25
31
31
30
25
30
32
33
13
26
17
14
27
10
19
18
13
26
5
29
OLD
2
1

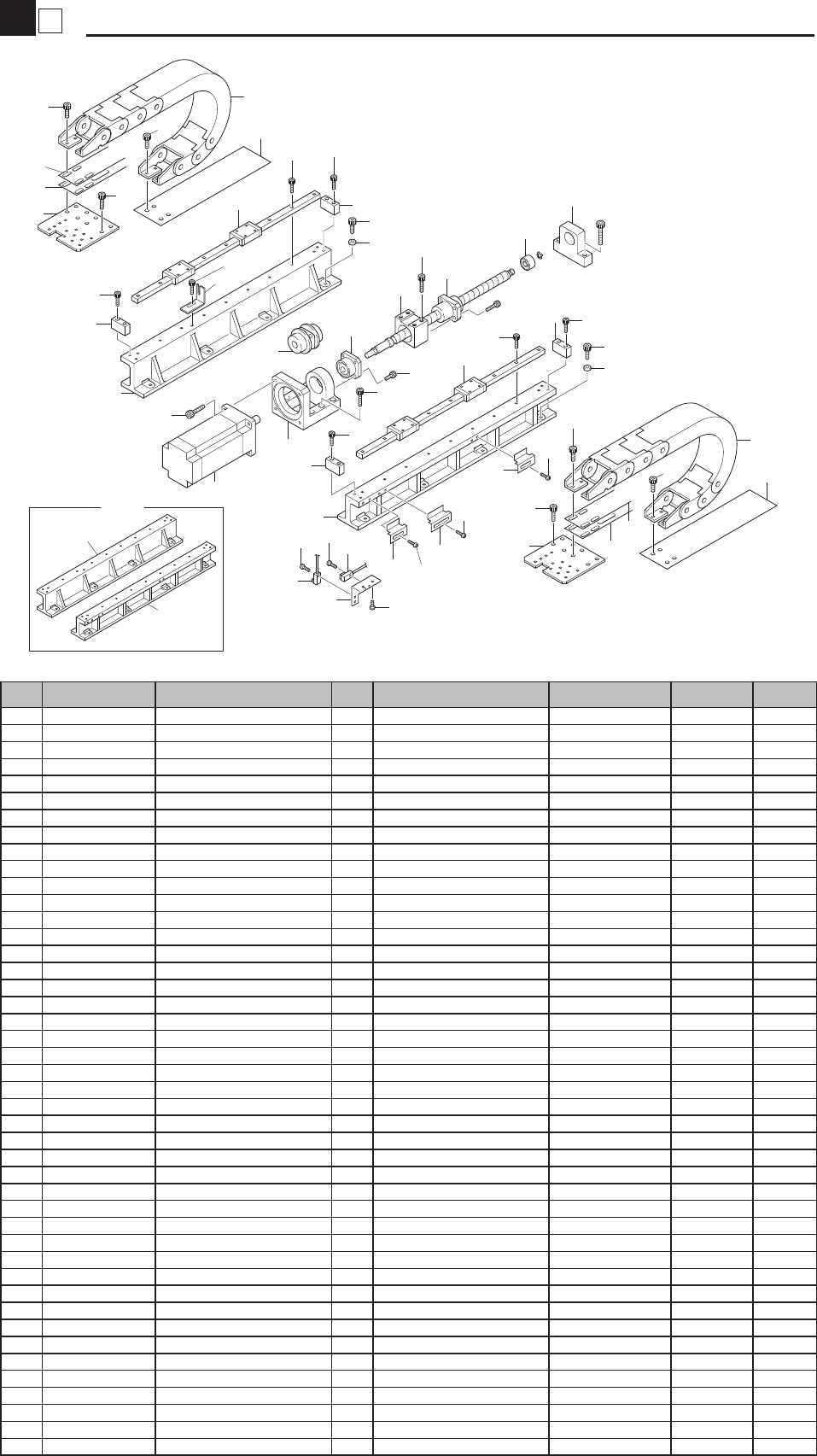

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M2801-00X FRAME 1,YT AXIS 1
1-1 Delete (2002/1/15) M210035
2 KV1-M2802-01X FRAME 2,YT AXIS 1
2-1 Delete (2002/1/15) M210035
3 KV1-M2803-00X
SCREW BALL,YT AXIS
1
3-1 KV1-M2803-01X BALL SCREW,YT AXIS 1 (2003/9/26) M390110 OK
4 KG2-M2604-00X SUPPORT UNIT 1
5 KV1-M2606-00X DAMPER 4
6 KV1-M280A-00X HOLDER SET YT AXIS 1 X3
7 KV1-M2801-S0X
FRAME YT AXIS SET
1
(2002/1/15) M210035
8 KV1-M2809-00X HOLDER NUT,YT AXIS 1
9 KM5-M2611-00X COUPLING,Y-AXIS 1
10 KV1-M2816-00X DOG, YT AXIS 2
11 KV1-M2816-10X DOG, YT AXIS 1
11-1 KV1-M2816-11X DOG,YT AXIS 1 (2003/7/30) M370159 OK
12 KV1-M2818-00X BRKT, SENSOR 1
13 KV1-M2821-00X DUCT,CABLE 2
13-1 KV1-M2821-A0X DUCT,CABLE 2 (2006/2/24) MC20108 OK
14 KV1-M2822-00X BRKT, DUCT 2
15 KV7-M653A-20X SENSOR 1 ASSY 1
15-1 KGA-M260A-00X SENSOR , ORG 1 L=300 (2002/11/12) M2X0034 OK
16 KV7-M653E-10X SENSOR 2 ASSY 1
16-1 KGA-M260B-00X SENSOR , OT 1 L=300 (2002/11/12) M2X0034 OK
17 KV1-M2824-00X TAPE ,YT AXIS 2
18 KV1-M2825-00X TAPE 1,YT AXIS 2
19 KV1-M2826-00X TAPE 2 ,YT AXIS 2
20 KV1-M2877-S0X GUIDE SET,YT AXIS 1
21 90K56-8A174Y AC SERVO MOTOR 1
22 98903-03006 SCREW BINDING HEAD 6
22-1 98502-03006 SCREW PAN HEAD 6 (2006/2/17) MBY0200 OK
22-2 98902-03006 SCREW BINDING HEAD 6 (2007/7/19) MD70057 OK
23 98903-03008 SCREW BINDING HEAD 2
23-1 98904-03008 SCREW BINDING HEAD 2 (2001/12/6) M1X0135 OK
23-2 98902-03008 SCREW BINDING HEAD 2 (2006/1/9) MBY0166 OK
24 91317-04006 BOLT HEX,SOCKET HEAD 2
25 91317-04014 BOLT HEX.SOCKET HEAD 30
26 91317-06008 BOLT HEX,SOCKET HEAD 16
27 91317-06010 BOLT HEX,SOCKET HEAD 8
28 91317-06020 BOLT HEX,SOCKET HEAD 4
29 91317-06040 BOLT HEX,SOCKET HEAD 10
30 91317-08020 BOLT HEX,SOCKET HEAD 16
31 92903-08200 WASHER, PLAIN 16
32 KGC-M2852-00X STOPPER 1 (2004/11/18) MAX0092
33 91317-05006 BOLT HEX,SOCKET HEAD 2 (2004/11/18) MAX0092
1
5
Head (SF)
Head
KV1-0802
3
53
57
86
85
66
62
84
60
44
31
37
50
63
46
45
33
53
52
54
55
32
43
41
42
42
30
78
58
35
36
59
56
38
39
40
29
51
67
34
1
5
8
4
3
53
2
4
6
8
7
49
49
47
48
48
8
6
8
7
49
49
47
27
26
25
23
24
21
20
22
19
76
16
9
17
14
11
11
12
12
13
13
15
10
27
26
25
23
24
21
20
22
18
76
16
9
17
14
11
11
12
12
13
92
92
93
94
87
88
89
89
90
90
13
15
28
10
69
64
71
68
91
75
72
74
71
73
72
74
70
61
77
77
95
65
65
76
OLD
83
79
81
80
82

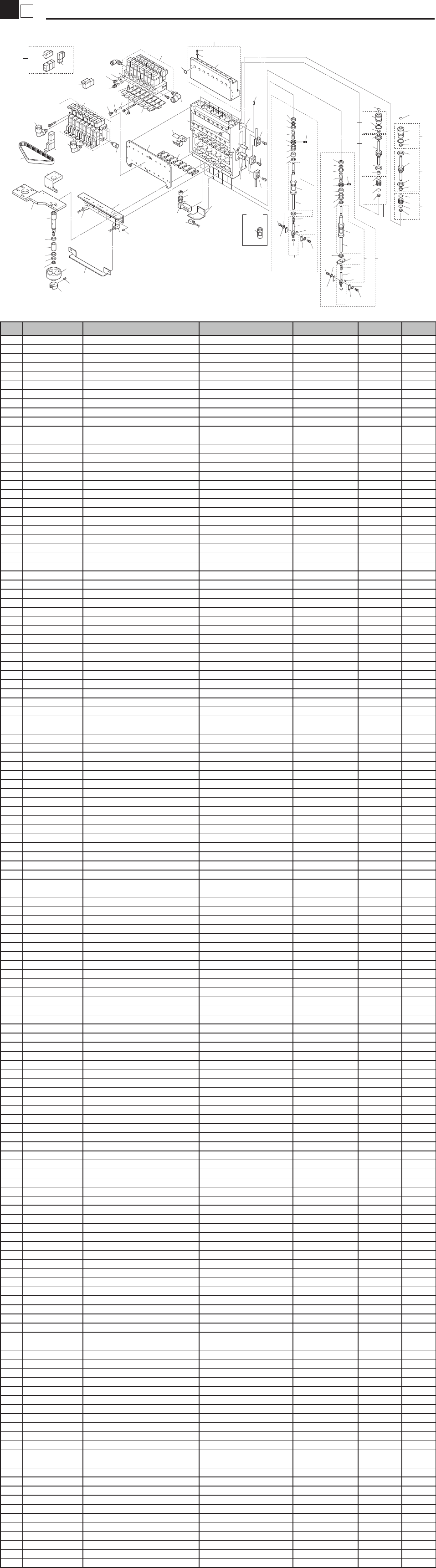

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M7101-00X HOUSING HEAD 1
2 KV8-M7103-50X PLUG 2
3 K65-M257M-00X O-RING 3 1 S12.5
3-1 90200-01J125 O-RING 1 S12.5 (2001/11/22) M1X0060 OK
4 KM1-M7140-00X PACKING 1 MYR-6
4-1 90990-22J003 PACKING 1 MYR-6 (2002/1/21) M210051 OK
5 KV8-M7103-10X PLUG 4
6 KV8-M7104-00X PISTON 8
7 KM1-M7107-00X PACKING 1 LO43165
7-1 90990-22J006 PACKING 1 LO43165 (2002/1/21) M210052 OK
8 KM1-M7141-00X PACKING 2 MYA-10A
8-1 90990-22J002 PACKING 2 MYA-10A (2002/1/21) M210052 OK
9 KV8-M71RJ-00X COLLAR,BRG. 4
10 93210-02518 O-RING 1
10-1 90990-17J003 O-RING 1 (2001/11/22) M1X0063 OK
11 KG7-M7137-A0X LEAF SPRING 8
12 KG7-M7169-00X SCREW 8
13 KG7-M7170-00X WASHER 2
13-1 90990-28J002 WASHER PLAIN 2 (2003/3/28) M330113 OK
14 KM9-M7106-80X NEEDLE PIN 1
14-1 90990-19J002 NEEDLE PIN 1 (2001/12/25) M1Y0079 OK
15 KM1-M7106-90X SPG. NOZZLE 4
16 KV8-M7106-00X BALL SPLINE 4
17 KV8-M7106-70X SHAFT,NOZZLE 4
18 KV8-M7109-00X COLLAR 1,HEAD 4
19 KV8-M7110-00X COLLAR 2,HEAD 4
20 KJ2-M7157-00X BRG. 2 MF128ZZS
20-1 90933-03J128 BEARING 2 MF128ZZS (2001/7/6) M170026 OK
21 KH4-M7133-00X BRG. 1 MF128ZZS
21-1 KJ2-M7157-00X BRG. 1 MF128ZZS (2000/1/31) M010097 OK
21-2 90933-03J128 BEARING 2 MF128ZZS (2001/7/6) M170026 OK
22 KM1-M7109-00X PULLEY 8
23 KV8-M7154-00X SPG.RETURN 4
24 KV8-M7108-00X NUT 8
25 KM1-M7155-00X BRG. 1 604ZZ
25-1 90933-02J604 BEARING 1 604ZZ (2001/6/29) M160191 OK
26 99001-03600 CIRCLIP 8
26-1 90440-01J030 CIRCLIP 8 (2001/12/28) M1Y0129 OK
27 KU1-M7152-00X WASHER 1 THURUST 8
28 KV8-M71R7-50X PLATE,BEARING 4
29 KV8-M7111-00X PULLY,POST 1
30 KV8-M7113-00X RING,DOG 1
30-1 KV8-M7113-01X RING,DOG 1 Y3 (2003/8/5) M380012 OK
31 KV8-M7115-00X SHAFT 1,TENSION 2
32 KV8-M7116-00X PULLY 2 1
33 KV8-M7117-00X BLOCK,ADJUST 1
34 KV8-M7119-00X BLOCK,ADJUST 1
35 KV8-M7124-00X PLATE,R SENSOR 1
36 KV8-M7131-00X BRACKET,Z SENSOR 1
36-1 KV8-M7131-01X BRACKET,Z SENSOR 1 (2001/1/16) M110052 OK
37 KV8-M7166-00X PLATE,VALVE 1
38 KV8-M71V4-00X BRACKET,MOTOR 1
39 KV8-M71V5-00X HOLDER,PULLEY 1
40 KV8-M71Y1-00X COLLAR 1,PULLEY 1
41 KV8-M71Y2-00X COLLAR 2,PULLEY 1
42 KV8-M71Y3-00X BEARING 2
43 99009-10800 CIRCLIP 1 ISTW-10
44 KV8-M71Y9-50X BODY,BRACKET 1
45 KV8-M71YB-00X PACKING 8
45-1 90990-22J005 PACKING 8 (2002/2/1) M220005 OK
46 91317-05006 BOLT HEX.SOCKET HEAD 8
47 KM1-M7105-00X PLUG 2 8
48 KM1-M7140-00X PACKING 8 MYR-6
48-1 90990-22J003 PACKING 8 MYR-6 (2002/1/21) M210051 OK
49 K65-M257M-00X O-RING 3 16 S12.5
49-1 90200-01J125 O-RING 3 16 S12.5 (2001/11/22) M1X0060 OK
50 KM1-M7112-01X STOPPER 1
51 KM1-M7138-00X BELT HEAD 2
52 KJ2-M7157-00X BRG 2 MF128ZZS
52-1 90933-03J128 BRG 2 MF128ZZS (2001/7/6) M170026 OK
53 KM1-M7186-00X O-RING 12 5X1.0
53-1 90990-17J007 O-RING 12 5X1.0 (2001/12/25) M1Y0084 OK
54 KH4-M7133-00X BRG. 1 MF128ZZS
54-1 KJ2-M7157-00X BRG. 1 MF128ZZS (2000/1/31) M010097 OK
54-2 90933-03J128 BEARING 2 MF128ZZS (2001/7/6) M170026 OK
55 KV8-M653F-A0X SENSOR,3 4 E2S-Q22
56 KV8-M653G-A0X SENSOR,3 4 E2S-Q22
57 KV8-M7160-00X SENSOR,HEAD ASSY 3
57-1 KV8-M7160-C0X SENSOR,H. 1 SAFETY (2003/1/6) M2Y0087 OK
57-2 KV8-M7160-C1X SENSOR,H. 1 SAFETY (2004/3/18) M430057 OK
57-3 KV8-M7160-C2X SENSOR,H. 1 SAFETY (2005/7/21) MB70010 OK
58 KV7-M653F-20X SENSOR,3 1 L=450
58-1 KV7-M653F-A0X SENSOR,HEAD 1 R ORG (2003/1/6) M2Y0087 OK
59 93604-06083 PIN DOWEL 6 4X6
59-1 90990-20J001 PIN DOWEL 6 4X6 (2002/1/9) M1Y0141 OK
60 90250-04J08 PIN PARALLEL 8 4X8
60-1 99480-04008 PIN,PARALLEL X1 (2000/10/26) M000129 OK
61 90110-03248 BOLT HEXA.S.H 7 M3X55
61-1 91317-03055 BOLT HEX SOCKET HEAD 7 M3X55 (2003/7/15) M370057 OK
62 92D18-02006 BOLT HEX 8 M2X0.4X8
62-1 92D18-02008 BOLT HEX 8 M2X0.4X8 (2000/4/28) M040197 OK
62-3 90115-02J008 BOLT HEX.SOCKET HEAD 8 (2002/8/21) M280085 OK
63 $KM-05 MUFFLER 7
64 $SLH8-01 JOINT 2
65 $SLH6-01 JOINT 2
66
KG2-M7181-00X PACKIN MYA 4 16
66-1
90990-22J001 PACKIN MYA 4 16 (2002/1/21) M210051 OK
67 KV8-M7162-00X SOLENOID VALVE 1 UNIT
68 KM8-M7163-02X MICRO EJECTOR 1 UNIT
68-1 KV8-M7163-01X EJECTER,RESIN X1 (1999/9/10) M990030 OK
69 KV8-M71VB-00X COVER,SENSOR 1
70 KM1-M4592-11X VAC SENSOR BOARD ASSY 8
70-1 KM1-M4592-12X VAC SENSOR BOARD ASSY 8 (2001/9/30) M190105 OK
70-2 KM1-M4592-13X VAC SENSOR BOARD ASSY 8 (2005/4/19) MB40065 OK
71 KM5-M7174-F0X FILTER CAP 2
72 K46-M8527-D0X O-RING 2
72-1 90990-17J008 O-RING 2 (2001/12/6) M1X0134 OK
73 KM5-M7174-K0X O-RING 6
73-1 90990-17J010 O-RING 6 (2001/12/6) M1X0134 OK
74 K46-M8527-C0X FILTER 8
75 KM5-M7174-G0X FILTER CAP 6
76 KV8-M7106-80X SPACER 1
76-1 KV8-M7106-81X SPACER 1 (2005/5/26) MB50099 NG
77 92A08-03303 SET SCREW 16 M3X3
78 92A08-04305 SET SCREW 24 M4X5
79 KM5-M7174-A2X EJECTOR UNIT 8 No.80+No.81+UNIT
80 KM1-M7163-21X VALVE 8 BLOW
81 KM1-M7163-30X VALVE 8 OPERATE
82 KV8-M7162-10X VALVE 8 UP / DOWN
83
KV8-M7162-20X VALVE 8 SLOW
84
KV8-M7160-A0X SENSOR,H. 1 N-UP
84-1 KV8-M7160-A1X SENSOR,H. 1 N-UP (2004/3/18) M430057 OK
84-2 KV8-M7160-A2X SENSOR,H. 1 N-UP (2005/7/21) MB70010 OK
85 KV8-M7160-B0X SENSOR,H. 1 N-DOWN
85-1 KV8-M7160-B1X SENSOR,H. 1 N-DOWN (2004/3/18) M430057 OK
85-2 KV8-M7160-B2X SENSOR,H. 1 N-DOWN (2005/7/21) MB70010 OK
86 KV8-M71VS-00X COLLAR SENSOR 12
87 KV8-M7103-B0X PLUG ASSY 4
88 KV8-M7103-C0X PLUG ASSY 4
89 KV8-M7104-A0X PISTON ASSY 8
90 KM1-M7105-A0X PLUG 2 ASSY 8
91 KV8-M71Y9-B0X BODY,BRACKET ASSY 1
92 KV8-M71S0-50X S.T.D SHAFT 3 SPARE 1
93 KV8-M712S-A0X S.T.D SHAFT 1 SPARE 1
94 KV8-M713S-A0X S.T.D SHAFT 2 SPARE 1
95 KM5-M7174-H0X SPACER 8

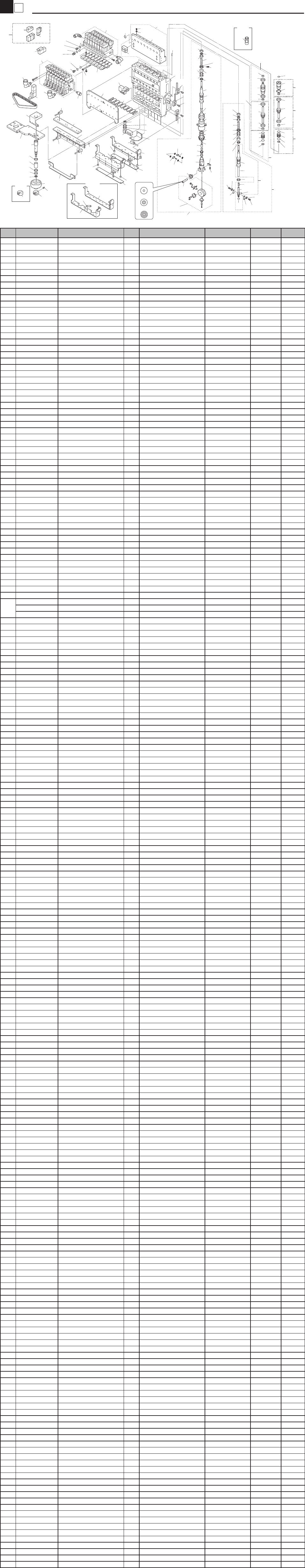

2
5
Head (FNC)
Head
KV1-110203
37
7
81
110
33
118
96
92
31
72
94
71
51
52
50
55
64
61
78
93
74
126
73
83
57
81
98
80
82
63
84
100
100
99
99
56
69
67
69
68
70
54
54
112
88
43
35
40
59
100
121
100
62
60
89
85
65
66
53
79
95
97
102
95
58
101
39
41
108
109
44
42
42
45
45
46
46
36
86
86
49,127
2
6
1
9
12
8
10
12
11
77
77
75
76
29
32
27
111
25
76
5
4
12
3
10
12
11
77
77
75
30
28
24
23
30
29
28
26
27
24
23
25
22
110
20
13
21
18
15
17
16
16
17
131
125
130
15
19
14
47
48
90
91
103
107
104
106
103
105
104
106
87
120
119,132
34
128,129
125
124
123
122
124
133
OLD
121
62
63
OLD
36 Fig A
36 Fig B
36 Fig C
116
117
113
115
114
110
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M7101-00X HOUSING HEAD 1
2 KG2-M7181-00X PACKIN 16 MYA 4
2-1 90990-22J001 PACKING 16 (2002/1/21) M210051 OK
3 KM1-M7140-00X PACKING 4 MYR-6
3-1 90990-22J003 PACKING 4 (2002/1/21) M210051 OK
4 KM1-M7141-00X PACKING 4 MYA-10A
4-1 90990-22J002 PACKING 4 (2002/1/21) M210051 OK
5 KV8-M7103-00X PISTON,PLUG 4
6 KV8-M71Y5-00X PACKING 4 MYA-12.5
6-1 90990-22J015 PACKING 4 (2002/1/21) M210053 OK
7 K65-M257M-00X O-RING 3 4 S12.5
7-1 90200-01J125 O-RING 4 (2001/11/22) M1X0060 OK
8 KM1-M7140-00X PACKING 4 MYR-6
8-1 90990-22J003 PACKING 4 (2002/1/21) M210051 OK
9 KV8-M7103-10X PLUG 4
10 KV8-M7104-00X PISTON 8
11 KM1-M7107-00X PACKING 8 LO43165
11-1 90990-22J006 PACKING 8 LO43165 (2002/1/21) M210052 OK
12 KM1-M7141-00X PACKING 16 MYA-10A
12-1 90990-22J002 PACKING 16 MYA-10A (2002/1/21) M210052 OK
13 KV8-M71RJ-00X COLLAR,BRG. 4
14 93210-02518 O-RING 8
14-1 90990-17J003 O-RING 8 (2001/11/22) M1X0063 OK
15 KG7-M7137-A0X LEAF SPRING 8
16 90166-02J203 SCREW PAN HEAD 4
16-1 KG7-M7169-00X SCREW 4 (2007/12/3) MDX0119 OK
17 KG7-M7170-00X WASHER 8
17-1 90990-28J002 WASHER PLAIN 8 (2003/3/28) M330113 OK
18 KM9-M7106-80X NEEDLE PIN 4
18-1 90990-19J002 NEEDLE PIN 4 (2001/12/25) M1Y0079 OK
19 KM1-M7106-90X SPG. NOZZLE 4
20 KV8-M7106-00X BALL SPLINE 4
21 KV8-M7106-70X SHAFT,NOZZLE 1
22 KV8-M7109-00X COLLAR 1,HEAD 4
23 KJ2-M7157-00X BRG 8 MF128ZZS
23-1 90933-03J128 BRG 8 MF128ZZS (2001/7/6) M170026 OK
24 KH4-M7133-00X BRG 8 MR128ZZS
24-1 KJ2-M7157-00X BRG. : MF128ZZS X1 (2000/1/31) M010097 OK
24-2 90933-03J128 BRG 8 MR128ZZS (2001/7/6) M170026 OK
25 KM1-M7109-00X PULLEY 8
26 KV8-M7154-00X SPG.RETURN 4
27 KV8-M7108-00X NUT 8
28 KM1-M7155-00X BRG 8 604ZZ
28-1 90933-02J604 BRG 8 604ZZ (2001/6/29) M160191 OK
29 99001-03600 CIRCLIP 8
29-1 90440-01J030 CIRCLIP 8 (2001/12/28) M1Y0129 OK
30 KU1-M7152-00X WASHER 1 THURUST 8
31 KV8-M7110-00X COLLAR 2,HEAD 4
32 KV8-M71X2-00X SPG.RETURN 4
33 KV8-M7106-50X BALL SPLINE 1
33-1 KV8-M7106-51X BALL SPLINE 1 L=121.75 (1999/6/14) M960055 NG
33-2 KV8-M7106-52X BALL SPLINE 1 L=127.25 2001/10/12 M030184 NG
34 KV8-M71V8-00X O-RING 1
34-1 Delete (2000/4/11) M040054
35 KV8-M71X1-00X SPG.LOCATE 4
36 KV8-M71R1-00X SHAFT 1 1
36-1 KV8-M71R1-01X SHAFT 1 1 (1999/4/21) M940082 OK
36-2
KV8-M71R1-10X SHAFT 1 1 Fig A (2000/3/31) M030184 NG
KV8-M71R1-20X SHAFT 1 1 Fig B (2000/3/31) M030184 NG
KV8-M71R1-30X SHAFT 1 1 Fig C (2000/4/10) M040038 NG
37 KV8-M71R2-01X BLOCK,STOPPER 4
38
39 KV7-M71M6-01X SCREW,NOZZLE 2
39-1 90990-09J004 SCREW,FLAT HEAD 2 (2007/11/9) MD00082 OK
40 KV8-M71R5-01X PIN,LOCATE 1 L=18
40-1 KV8-M71R5-02X PIN,LOCATE 1 L=23.5 2001/10/12 M030184 NG
41 KV8-M71R6-00X HOLDER,INDEX 1
41-1 KV8-M71R6-01X HOLDER,INDEX 1 (1999/6/14) M960055 NG
41-2 KV8-M71R6-02X HOLDER,INDEX 1 2000/7/20 M030184 NG
42 KV8-M71R9-00X CAM 8
43 KV8-M71RA-00X BEVEL 4 GEAR 1
44 KV8-M71RB-00X BEVEL-GEAR 2 1
44-1 KV8-M71RB-A0X BEVEL-GEAR 2 ASSY. 1 (2001/6/6) M160021 OK
44-2 KV8-M71RB-11X BEVEL-GEAR 2 1 (2007/10/1) MD80023 OK
45 KV8-M71RC-00X PIN,CAM 8
46 KV8-M71RD-00X CIRCLIP(E0.8) 4
46-1 90440-01J008 CIRCLIP 4 (2001/12/28) M1Y0129 OK
46-2 90440-10J008 CIRCLIP 4 (2002/2/26) M220094 OK
47 KV8-M71RE-00X WASHER 1
47-1 90990-28J077 WASHER,PLAIN 1 (2007/12/18) MDX0125 OK
48 99009-12800 CIRCLIP 4
49 KV8-M71U0-00X NOZZLE ASSY 1
49-1 KV8-M71U0-01X NOZZLE ASSY. 1 STD (2003/8/20) M380041 OK
49-2 KV8-M71U0-02X NOZZLE ASSY. 1 STD (2004/8/2) MA70130 OK
49-3 KV8-M711N-A0X NOZZLE ASSY. 1 STD (2006/2/7) MC10190 OK
50 KV8-M71R7-00X HOLDER,BRG 4
50-1 KGB-M71R7-00X HOLDER,BRG 4 H=20.1 (2001/2/14) M120092 OK
50-2 KGB-M71R7-01X HOLDER,BRG 4 H=20.4 (2005/5/26) MB50099 NG
51 KV8-M71R8-00X COLLAR,BRG 4 H=10.75
51-1 KGB-M71R8-00X COLLAR,BRG 4 H=9.3 (2005/5/26) MB50099 NG
52 K47-M7143-00X BEARING 4
52-1 KV8-M71RG-00X BEARING 4 (1999/2/2) M920013 OK
52-2 90933-01J801 BEARING 4 (2001/7/6) M170033 OK
53 KV8-M7111-00X PULLY,POST 1
54 KV8-M7113-00X RING,DOG 1
54-1 KV8-M7113-01X RING,DOG 1 (1999/12/20) M9Y0069 NG
55 KV8-M7115-00X SHAFT 1,TENSION 2
56 KV8-M7116-00X PULLY 2 1
57 KV8-M7117-00X BLOCK,ADJUST 1
58 KV8-M7119-00X BLOCK,ADJUST 1
59 KV8-M7124-00X PLATE,R SENSOR 1
60 KV8-M7131-00X BRACKET,Z SENSOR 1
60-1 KV8-M7131-01X BRACKET,Z SENSOR 1 (2001/1/16) M110052 OK
61 KV8-M7166-00X PLATE,VALVE 1
62 KV8-M71V1-00X SENSOR STAY F 1
62-1 KV8-M71V1-01X SENSOR STAY F 1 (1999/12/20) M9Y0069 NG
62-2 KV8-M71V1-02X SENSOR STAY F 1 (2001/7/18) M170103 OK
63 KV8-M71V2-00X SENSOR STAY R 1
63-1 KV8-M71V2-01X SENSOR STAY R 1 (1999/12/20) M9Y0069 NG
63-2 KV8-M71V2-02X SENSOR STAY R 1 (2001/7/18) M170103 OK
64 KV8-M71V3-00X BRACKET,LOCK SENSOR 1
65 KV8-M71V4-00X BRACKET,MOTOR 1
66 KV8-M71V5-00X HOLDER,PULLEY 1
67 KV8-M71Y1-00X COLLAR 1,PULLEY 1
68 KV8-M71Y2-00X COLLAR 2,PULLEY 1
69 KV8-M71Y3-00X BEARING 2
70 99009-10800 CIRCLIP 1 ISTW-10
71 KV8-M71Y9-00X BODY,CYLINDER 1
72 KV8-M71YA-00X VALVE CLUTCH 4
73 KV8-M71YB-00X PACKING 8
73-1 90990-22J005 PACKING 8 (2002/2/1) M220005 OK
74 91317-05005 BOLT HEX.SOCKET HEAD 8
74-4 91317-05006 BOLT HEX.SOCKET HEAD 8 (2002/1/8) M210011 OK
75 KM1-M7105-00X PLUG 2 8
76 KM1-M7140-00X PACKING 8 MYR-6
76-1 90990-22J003 PACKING 8 MYR-6 (2001/04/23) M140105 OK
77 K65-M257M-00X O-RING 3 16 S12.5
77-1 90200-01J125 O-RING 3 16 S12.5 (2001/04/23) M140105 OK
78 KM1-M7112-01X STOPPER 1
79 KM1-M7138-00X BELT HEAD 2
80 KJ2-M7157-00X BRG. 2 MF128ZZS
80-1 90933-03J128 BRG. 2 MF128ZZS
81 KM1-M7186-00X O-RING 12 5X1.0
81-1 90990-17J00X 0-RING 12 (2001/12/25) M1Y0084 OK
82 KH4-M7133-00X BRG. 2 MR128ZZS
82-1 KJ2-M7157-00X BRG. 2 MF128ZZS (2000/1/31) M010097 OK
82-2 KG2-M7141-00X BEARING 1 7000ADF (1998/12/15) H3442 OK
82-3 90990-26J002 BEARING 1 (2007/12/6) MDX0068 OK
83 KV8-M653F-E0X SENSOR,3 ASSY(L=350) 1 E2S-Q22(CLUTCH)
83-1 KV8-M653F-E1X SENSOR 3 ASSY(L=350) 1 E2S-Q22 (CLUTCH) (2011/1/27) MG00101 OK
84 KV8-M653F-A0X SENSOR,3 ASSY(L=300) 1 E2S-Q22(1,3,5,9)
85 KV8-M653G-A0X SENSOR,4 ASSY(L=300) 1 E2S-Q22(2,4,6,8)
86 KV8-M653H-A0X SENSOR,5 ASSY(L=310) 1 (NOZZLE POS.)
87 KV8-M7160-00X SENSOR,H 3 L=430
87-1 KV8-M7160-C0X SENSOR,H 1 SAFETY (2003/1/6) M2Y0087 OK
87-2 KV8-M7160-C1X SENSOR,H 1 SAFETY (2004/3/18) M430057 OK
87-3 KV8-M7160-C2X SENSOR,H 1 SAFETY (2005/7/21) MB70010 OK
88 KV7-M653F-20X SENSOR,3 ASSY. 1 L=450
88-1 KV7-M653F-A0X SENSOR H(R ORG) 1 L=450 (2003/1/6) M2Y0087 OK
89 93604-06083 PIN DOWEL 6 4X6
89-1 90990-20J001 PIN DOWEL 6 4X6 (2002/1/9) M1Y0141 OK
90 90250-04J08 PIN PARALLEL 8 4X8
90-1 99480-04008 PIN,PARALLEL X1 (2000/10/26) M000129 OK
91 90110-03248 BOLT HEXA.S.H 7 M3X55
91-1 91317-03055 BOLT HEX SOCKET HEAD 7 M3X55 (2003/7/15) M370057 OK
92 92D18-02006 BOLT HEX 12 M2X0.4X6
92-1 90115-02J006 BOLT HEX SOCKET HEAD 12 M2X0.4X6 (2002/8/21) M280085 OK
93 $KM-05 MUFFLER 7
94 $SLH8-01 JOINT 2
95 $SLH6-01 JOINT 2
96 KG2-M7181-00X PACKIN MYA 4 16
96-1 90990-22J001 PACKIN MYA 4 16
97 KV8-M7162-00X SOLENOID VALVE(UNIT) 1
98 KV8-M7163-00X MICRO EJECTOR 1
98-1 KM8-M7163-02X MICRO EJECTOR 1 (1999/4/21) M940084 NG
98-2 KV8-M7163-01X EJECTOR, RESIN 1 (1999/9/10) M990030 OK
99 KV8-M71V9-00X COVER 2
100 KV8-M71VA-00X SPACER 4
100-1 90563-23J060 SPACER 4 (2001/10/17) M100045 OK
101 KV8-M71VB-00X COVER,SENSOR 1
102 KM1-M4592-11X VAC SENSOR BOARD ASS 8
102-1 KM1-M4592-12X VAC SENSOR BOARD ASS 8 (2001/9/30) M190105 OK
102-2 KM1-M4592-13X VAC SENSOR BOARD ASS 8 (2005/4/19) MB40065 OK
103 KM5-M7174-F0X FILTER CAP 2
104 K46-M8527-D0X O-RING 2
104-1 90990-17J008 O-RING 2 (2001/11/22) M1X0064 OK
105 KM5-M7174-K0X O-RING 6
105-1 90990-17J010 O-RING 6 (2001/12/6) M1X0134 OK
106 K46-M8527-C0X FILTER 8
107 KM5-M7174-G0X FILTER CAP 6
108 KV8-M71RM-00X SLEEVE 4
109 KV8-M71RL-00X NUT,LOCK 4
110 KV8-M7106-80X SPACER 1
110-1 KV8-M7106-81X SPACER 1 (2005/5/26) MB50099 NG
111 92A08-03303 SET SCREW 16 M3X3 (2001/8/30) M180140
112 92A08-04305 SET SCREW 24 M4X5 (1999/12/20) M9Y0071
113 KM5-M7174-A2X EJECTOR,UNIT 8 No.114+No.115+UNIT
114 KM1-M7163-21X VALVE 8 BlOW
115 KM1-M7163-30X VALVE 8 OPERATE
116 KV8-M7162-10X VALVE 8 UP/DOWN
117 KV8-M7162-20X VALVE 8 SLOW
118 KV8-M7160-A0X SENSOR,H 1 N-UP
118-1 KV8-M7160-A1X SENSOR,H 1 N-UP (2004/3/18) M430057 OK
118-2 KV8-M7160-A2X SENSOR,H 1 N-UP (2005/7/21) MB70010 OK
119 KV8-M7160-B0X SENSOR,H 1 N-DOWN
119-1 KV8-M7160-B2X SENSOR,H 1 N-DOWN (2005/7/21) MB70010 OK
120 KV8-M71VS-00X COLLAR SENSOR 12 (1999/12/21) M9Y0084
121 KV8-M71VR-00X PLATE NUT 8
122 KV8-M7103-A0X PISTON PLUG ASSY 4
123 KV8-M7103-B0X PLUG ASSY 4
124 KV8-M7104-A0X PISTON ASSY 8
125 KM1-M7105-A0X PLUG 2 ASSY 8
126 KV8-M71Y9-A0X BODY,CYLINDER ASSY 1
127 KV8-M712N-A0X NOZZLE&SHAFT ASSY 1 CIRCLE NOZZLE (2001/9/5) M190016
128 KV8-M711S-A0X FNC SHAFT,SPARE 1
129 KV8-M711S-B0X FNC SHAFT,SPARE 1 CIRCLE NOZZLE
130 KV8-M712S-A0X S.T.D SHAFT 1, SPARE 1
131 KV8-M71S0-50X S.T.D SHAFT 3, SPARE 1 (1999/12/20) M9Y0069
132 KV8-M7160-S0X SENSOR, H (L=430) 1 TRANSMITTER of 119-1 (2006/5/9) MC40135
133 KM5-M7174-H0X SPACER 8
