1 4 X-axis Moving-axis KV1-080423 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KV1-M221 1-00X FRAME X AXIS 1 2 KV1-M2213-00X PLA TE A X AXIS 1 2-1 KV1-M2213-01X PLA TE A,X AXIS 1 (2000/1…
1
3
Feeder Holder H (20)
Feeder
KV1-080410
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
38mm
22
15
3
15
21
15
20
20
23
6
2
8
15
22
16
15
4
5
16
16
16
7
15
1
14
14
10
17
24
19
18
OLD
10
17
24
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM9-M3401-H0X PLATE H,FEEDER 1
1-2 KM9-M3401-H1X PLATE H,FEEDER 1 (2005/2/14) MB20042 NG
2 KM9-M3402-H0X GUIDE H-1.TAPE 1
3 KM9-M3403-H0X GUIDE H-2.TAPE 1
4 KM0-M3405-01X STAND,1 1 Fig D
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) M440062 OK
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) MA00129 NG
5 KM0-M3406-01X STAND,2 1 Fig G
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) MA00129 NG
6 KM9-M3408-H0X BRACKET H.VALVE 1
7 KM9-M3409-H0X COVER H.VALVE 1
8 KM9-M3410-10X VALVE ASSY.R 1
8-1 KGA-M3410-20X VALVE ASSY.20-R 1 (2003/2/5) M320011 OK
10 $BF4BU JOINT 20
14 91317-06020 BOLT HEX.SOCKET HEAD 4
15 91317-04010 BOLT HEX.SOCKET HEAD 12
16 90990-12J005 SCREW BINDING HEAD 10
17 KG2-M3407-A0X AIR JOINT 20
18 KM0-M3416-00X GASKET 20
18-1 Delete (2005/2/14) MB20042
19 98907-03004 SCREW.BINDING HEAD 20
19-1 Delete (2005/2/14) MB20042
20 91317-08020 BOLT.HEX SOCKET HEAD 4
21 91317-03006 BOLT.HEX SOCKET HEAD 6
22 KM0-M3417-00X GUIDE4 2
23 KGA-M37P0-00X VALVE KIT 1 SPARE PARTS
24 KM9-M34A0-00X FEEDER PLATE ASSY. 1
24-1 KM9-M34A0-01X FEEDER PLATE ASSY.20 1 (2004/4/20) M440062 NG
1
4

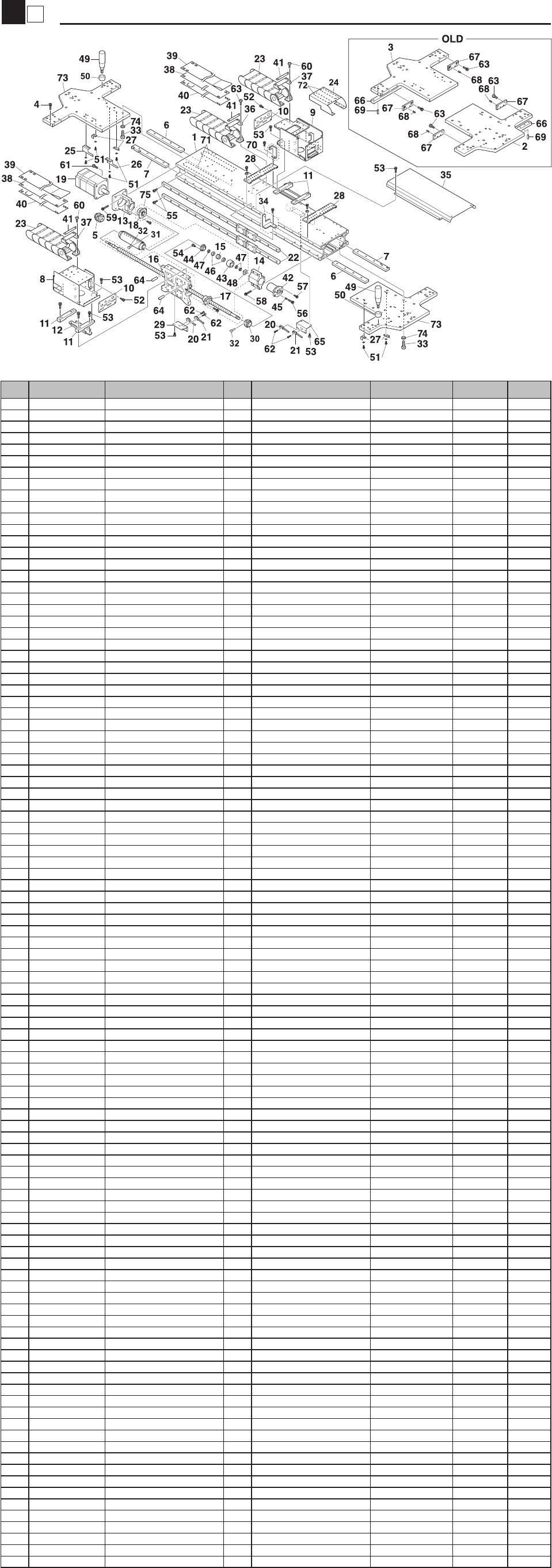

X-axis
Moving-axis
KV1-080423
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M2211-00X FRAME X AXIS 1
2 KV1-M2213-00X PLATE A X AXIS 1
2-1 KV1-M2213-01X PLATE A,X AXIS 1 (2000/1/20) M010067 OK
2-3 Delete (2000/1/21) M010073 NG
3 KV1-M2214-00X PLATE B,X AXIS 1
3-1 KV1-M2214-01X PLATE B,X AXIS 1 (2000/1/20) M010067 OK
3-2 Delete (2000/1/21) M010073 NG
4 KV7-M2663-00X NYLOCK BOLT 16 M5X16
4-1 90990-01J030 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
5 KM0-M2220-00X COUPLING, X-AXIS 2
6 KV7-M2231-00X SPACER R, NUT 2
7 KV1-M2233-00X SPACER R2 NUT 2
7-1 KV7-M2233-00X SPACER R2,NUT 2 (2003/2/11) M320049 OK
8 KV1-M2236-00X PLATE A 1
9 KV1-M2236-10X PLATE A-2 1
10 KV1-M2237-00X PLATE B 2
11 KV1-M2239-00X BRACKET 1 4
12 KV1-M2240-00X BRACKET 2 2
13 KM0-M2241-00X HOLDER, MOTOR X AXIS 2
14 KV7-M2242-00X HOLDER, BRG. X AXIS 2
15 KV7-M2645-00X BRG.,ANGULAR 2
15-1 90990-25J005 BEARING 2 (2007/12/4) MDX0031 OK
16 KV1-M2261-00X HOLDER, HEAD 2
17 KV7-M2271-01X SCREW BALL X AXIS 2
17-1 KV7-M2271-02X SCREW BALL X AXIS 2 (2002/6/6) M250068 NG
18 KV7-M2604-00X SUPPORT UNIT 2
19 90K56-8717EX AC SERVO MOTOR 2
20 KV7-M653A-00X SENSOR, 1 2 L=600
20-1 KGB-M220A-00X SENSOR, ORG 2 L=520 (2002/11/12) M2X0034 OK
21 KV7-M653E-00X SENSOR, 2 2 L=600
21-1 KGB-M220B-00X SENSOR, OT 2 L=520 (2002/11/12) M2X0034 OK
22 K47-M2276-S0X X-AXIS GUIDE SET 2
22-1 KV7-M2276-S0X X-AXIS GUIDE SET 2 (2002/6/6) M250068 NG
22-2 KV7-M2276-A0X X-ZXIS GUIDE SET 2 (2007/5/14) MD50039 OK
23 KV7-M2267-00X CABLE,DUCT 2
23-1 KV7-M2267-A0X CABLE,DUCT 2 (2004/3/31) M430131 OK
23-2 KV7-M2267-A1X CABLE,DUCT 2 (2004/7/12) MA70035 OK
24 KV7-M221A-A0X COVER, DUCT ASSY 2
25 KV7-M2282-00X DOG, ORG 1
26 KV1-M2282-00X DOG, ORG 1
27 KV7-M2283-00X DOG, 2ND LIMIT 4
28 KV1-M226B-00X PLATE 2
29 KV7-M2291-00X BRACKET, SENSOR 1
30 KGA-M2651-10X DAMPER 14 ASSY 2
30-1 KGA-M2651-11X DAMPER 14 ASSY 2 (2002/6/6) M250068 NG
31 KGA-M2651-70X DAMPER 125 ASSY 2
31-1 KGA-M2651-71X DAMPER 110 ASSY 2 (2002/6/6) M250068 NG
32 KGA-M2649-00X NYLOCK BOLT 24 M2.6X10
32-1 90990-01J023 BOLT,HEX.SOCKET HEAD 24 (2007/10/29) MD00030 OK
33 KM0-M2251-00X NYLOCK BOLT 16 M8X22L
33-1 90990-01J024 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
33-2 90990-01J179 BOLT,HEX.SOCKET HEAD 16 (2020/1/24) MT10096 OK
34 KM0-M2252-00X STOPPER 1
34-1 Delete (2004/11/9) MAX0048
35 KV1-M226A-00X COVER CABLE 1
36 KV7-M2268-00X BRACKET 1, TAPE 2
37 KV7-M2269-00X BRACKET 2, TAPE 2
38 KV7-M220A-01X TAPE , X DUCT 2
39 KV7-M220B-00X TAPE 2, X DUCT 2
40 KV7-M220C-00X TAPE 3, X DUCT 2
41 KV7-M2266-00X PLATE, NUT 4
42 KV7-M2240-00X SLEEVE, BRG. 2
43 KV7-M2243-00X HOUSING, BRG. X 2
44 KV7-M2244-00X COVER, BRG. HOUSING 2
45 KV7-M2246-00X COIL SPRING 12
46 KV7-M2647-00X OIL SEAL 4
47 KV7-M2648-00X SPACER 6
47 90990-41J100 COLLAR 6 (2008/4/11) ME30019 OK
48 KG2-M9173-00X LOCK NUT 2
49 KV7-M2256-00X GRIP 2
50 KV7-M2257-00X SPACER, GRIP 2
51 91317-03006 BOLT HEX. SOCKET HEAD 24
52 91317-04006 BOLT HEX. SOCKET HEAD 8
53 91317-04008 BOLT HEX. SOCKET HEAD 16
54 91317-04010 BOLT HEX. SOCKET HEAD 50
55 KV7-M2251-00X NYLOCK BOLT 30 M4X16
55-1 91317-04016 BOLT HEX.SOCKET HEAD 30 (2005/2/7) MB20025 OK
56 91317-04030 BOLT HEX. SOCKET HEAD 12
57 91317-05014 BOLT HEX. SOCKET HEAD 4
58 91317-05020 BOLT HEX. SOCKET HEAD 4
59 91317-05035 BOLT HEX. SOCKET HEAD 4
60 91317-06012 BOLT HEX. SOCKET HEAD 8
61 91317-06018 BOLT HEX. SOCKET HEAD 26
62 98907-03005 SCREW BINDING HEAD 8
63 92017-06016 BOLT BUTTON HEAD 8
63-1 Delete (2002/7/19) M270057
64 99480-06014 PIN, PARALLEL 4
65 KV1-M2291-00X BRACKET, SENSOR 1
66 KV1-M2295-00X BRACKET, PIN 2
66-1 Delete (2002/6/6) M250068 NG
67 KV1-M2296-00X BRACKET, SCREW 4
67-1 (2002/6/6) M250068 NG
68 KV1-M2298-00X NYLOCK SET, SCREW 8
68-1 (2002/6/6) M250068 NG
69 KV7-M2297-00X TAPER PIN 4 8X30
69-1 (2002/6/6) M250068 NG
70 KV1-M2292-00X STOPPER 2
71 K94-M220A-00X TAPE , X -AXIS 2 (2001/3/9) H5536
72 K94-M220A-10X TAPE , X -AXIS 2 (2001/3/9) H5536
73 KV1-M2213-S0X PLATE E, X AXIS SET 1 (2000/1/21) M010073
74 90990-38J001 WASHER,SPRING 16 (2008/4/15) ME20075
75 KV7-M2271-A0X X AXIS B.S. SUB ASSY 1
2
4

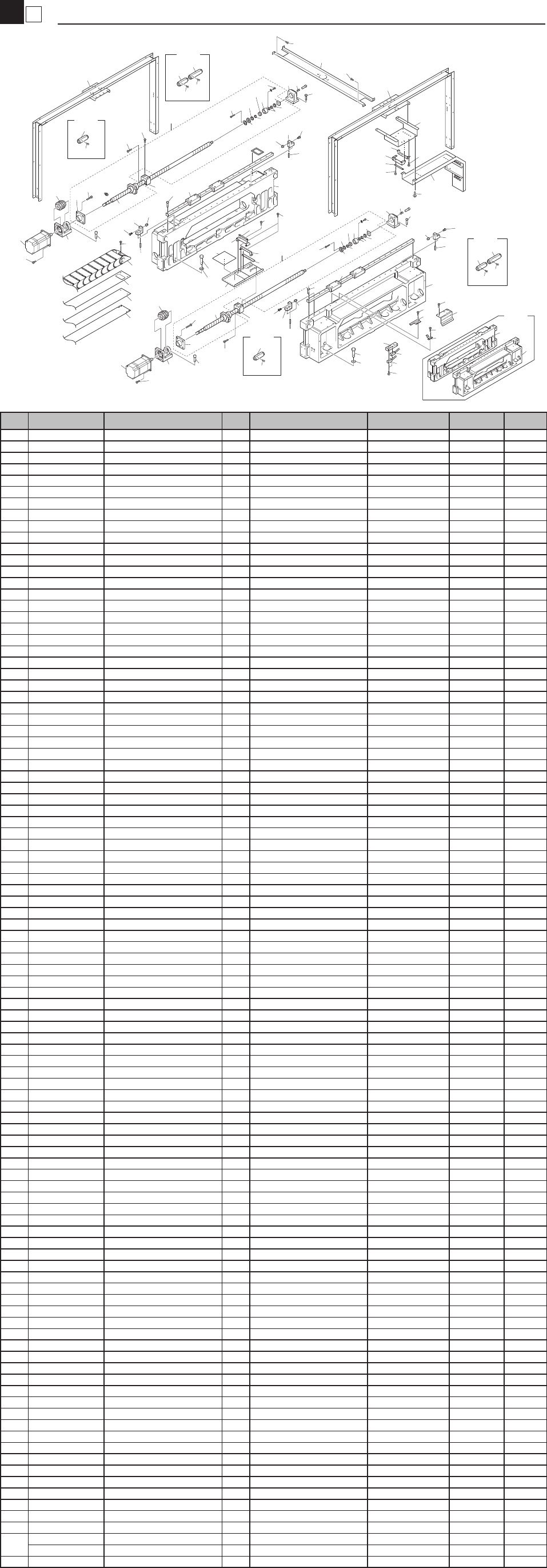

Y-axis
Moving-axis
KV1-080423
33
40
47
37
60
5
3
16
59
29
22
38
38
24
52
52
41
42
56
21
43
34
69
64
49
44
45
30
32
31
36
61
64
65
10
9
55
11
4
57
23
19
33
49
35
44
27
28
54
41
42
69
26
58
17
50
18
50
20
11
12
12
7
8
25
51
64
5
46
46
64
43
53
39
47
37
5
3
16
43
10
9
11
15
13
4
11
12
12
7
8
5
43
53
60
56
62
55
57
48
14
48
48
66
63
65
66
63
65
66
63
OLD
14
48
OLD
OLD
66
63
65
15
13
48
48
OLD
68
68
59
2
1
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M2611-01X FRAME R,Y AXIS 1
1-1 KV7-M2611-02X FRAME R,Y AXIS 1 (2003/2/17) M320070 OK
1-2 Delete (2007/2/8) MD10036
2 KV7-M2612-01X FRAME L,Y AXIS 1
2-1 KV7-M2612-02X FRAME L,Y AXIS 1 (2006/7/25) MC70028 OK
2-2 Delete (2007/2/8) MD10036
3 KV7-M2671-02X SCREW BALL Y AXIS 2
3-1 KV7-M2671-03X SCREW BALL Y AXIS 2 (2002/6/6) M250068 Set
4 KG2-M9173-00X LOCK NUT 2
5 KV7-M264A-01X HOLDER SET, Y AXIS 2
6
7 KV7-M2243-00X HOUSING, BRG. X 2
8 KV7-M2244-00X COVER, BRG. HOUSING 2
9 KV7-M2645-00X BRG.,ANGULAR 2
9-1 90990-25J005 BEARING 2 (2007/12/4) MDX0031 OK
10 KV7-M2646-00X COIL SPRING 12
11 KV7-M2647-00X OIL SEAL 4
12 KV7-M2648-00X SPACER 6
12-1 90990-41J100 COLLAR 6 (2008/4/11) ME30019 OK
13 KGA-M2651-60X DAMPER 120 ASSY 2 L=120
13-1 KGA-M2651-61X DAMPER 105 ASSY 2 L=105 (2002/6/6) M250068 Set
13-2 Delete (2002/12/16) M2Y0044
14 KGA-M2651-70X DAMPER 125 ASSY 2 L=125
14-1 KGA-M2651-71X DAMPER 110 ASSY 2 L=110 (2002/6/6) M250068 Set
14-2 Delete (2002/12/16) M2Y0044
15 KGA-M2651-80X DAMPER 187.5 ASSY 2
15-1 KGA-M2651-81X DAMPER 187.5 ASSY 2 (2002/7/16) M270039 OK
15-2 Delete (2002/12/16) M2Y0044
16 KV7-M2666-01X HOLDER, NUT Y AXIS 2
17 KV1-M2682-00X DOG ORG 1
18 KV1-M2683-00X DOG 2ND LIMIT 2
19 KV1-M2691-00X BRACKET, SENSOR 1
20 KV7-M2694-00X BRACKET A, GUIDE 1
21 KV7-M2695-01X BRACKET B, GUIDE 1
22 KGA-M26F1-00X FRAME 1 1
23 KGA-M26F2-00X FRAME 2 1
24 KV7-M26F3-00X FRAME 3 1
25 KV7-M26F4-00X DUCT, HARNESS 1
26 KV1-M26F5-00X BRACKET, HARNESS 1
27 KV7-M653A-20X SENSOR,1 ASSY(L=300) 1 L=300
27-1 KGA-M260A-00X SENSOR,ORG(L=300) 1 L=300 (2002/11/12) M2X0034 OK
28 KV7-M653E-10X SENSOR,2(L=300) 1 L=300
28-1 KGA-M260B-00X SENSOR,OT(L=300) 1 L=300 (2002/11/12) M2X0034 OK
29 KV7-M260A-00X TAPE, Y AXIS 1
30 KV7-M260B-00X TAPE, Y DUCT 1
31 KV7-M260C-00X TAPE 2, Y DUCT 1
32 KV7-M260D-00X TAPE 3, Y DUCT 1
33 KV7-M2667-00X PLATE 2
34 KV7-M2668-00X BRACKET 1, TAPE Y 1
35 KV7-M2669-00X BRACKET 2, TAPE Y 1
36 KV7-M2678-00X GUIDE, CABLE Y 1
37 90K56-8A174Y AC SERVO MOTOR 2
38 KV7-M2676-S1X Y-AXIS GUIDE SET 1
38-1 KV7-M2676-S2X Y-AXIS GUIDE SET 1 (2002/6/6) M250068 Set
39 KM5-M2611-00X COUPLING, Y-AXIS 1 LCD
40 KV8-M2611-00X COUPLING, Y-AXIS 1 LCD
40-1 KM5-M2611-00X COUPLING, Y-AXIS 1 LCD (2003/2/11) M320042 OK
41 KV7-M2661-00X NYLOCK BOLT 20 M12X50
41-1 90990-01J028 BOLT,HEX.SOCKET HEAD 20 (2007/10/29) MD00030 OK
42 92907-12600 WASHER PLAIN 20
43 KV7-M2662-01X NYLOCK BOLT 16 M6X30
43-1 90990-01J029 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
44 KV7-M2698-00X PLATE 1, CLAMP 2
45 KV7-M2699-00X PLATE 2, CLAMP 1
46 KV7-M2663-00X NYLOCK BOLT 40 M5X16
46-1 90990-01J030 BOLT,HEX.SOCKET HEAD 40 (2007/10/29) MD00030 OK
47 KV7-M2604-00X SUPPORT UNIT 2
48 KGA-M2649-00X NYLOCK BOLT 88 M2.6X10
48-1 Delete (2002/12/16) M2Y0044 OK
49 98502-03004 SCREW PAN HEAD 4
49-1 98902-03004 SCREW BINDING HEAD 4 (2007/7/19) MD70057 OK
50 98904-04006 SCREW BINDING HEAD 6
50-1 98902-04006 SCREW BINDING HEAD 6 (2006/1/9) MBY0166 OK
51 90159-04J01 SCREW,W/WASHER 6
51-1 90990-12J001 SCREW BIN.HEAD W/W 6 (2002/9/11) M290029 OK
52 98904-05010 SCREW BINDING HEAD 4
52-1 98902-05010 SCREW BINDING HEAD 4 (2006/1/9) MBY0166 OK
53 91314-04008 BOLT HEX.SOCKET HEAD 10
53-1 91312-04008 BOLT HEX.SOCKET HEAD 10
54 91317-04008 BOLT HEX. SOCKET HEAD 2
55 91314-04010 BOLT HEX.SOCKET HEAD 12
55-1 91312-04010 BOLT HEX.SOCKET HEAD 12 (2006/1/16) MBY0158 OK
56 91317-04014 BOLT HEX. SOCKET HEAD 8
57 91317-04030 BOLT HEX. SOCKET HEAD 12
58 91317-05010 BOLT HEX. SOCKET HEAD 2
59 91317-05018 BOLT HEX. SOCKET HEAD 8
60 91312-06010 BOLT HEX.SOCKET HEAD 28
60-1 91314-06010 BOLT HEX.SOCKET HEAD 28 (2006/1/16) MBY0158 OK
61 91317-06010 BOLT HEX. SOCKET HEAD 4
62 91317-06018 BOLT HEX. SOCKET HEAD 16
63 KV7-M2651-10X DAMPER , STOPPER 4 (2002/12/16) M2Y0044
64 KV1-M2652-00X BRACKET , STOPPER R 4 (2002/12/16) M2Y0044
65 KV1-M2653-00X PIN,PARALLEL 4
65-1 90990-18J011 PIN,PARALLEL 4 (2007/11/30) MD00140 OK
66 97704-40012 SRW TRUSS HEAD TAP'G 4
66-1 97702-40012 SRW TRUSS HEAD TAP'G 4 (2006/1/9) MBY0166 OK
67
68
KV7-M2671-A0X Y-AXIS B.S. SUB ASSY 2 with K1 seal
KV7-M2671-C0X Y-AXIS B.S. SUB ASSY 2 without K1 seal
69 KV7-M2611-S0X FRAME,Y AXIS SET 1 (2007/2/8) MD10036
