7 7 Fixed Conveyor (2) Conveyor Unit KV1-080423 2 2 30 29 31 16 15 28 29 24 3 13 20 23 10 21 14 9 4 (5) 29 24 22 17 3 1 1 24 4 (5) 19 16 30 18 27 7 24 8 12 26 6 29 25 24 29 17 22 11 30 24 24 24 24 24 3 1 1 OLD 2 2 3 24 2…
6
7

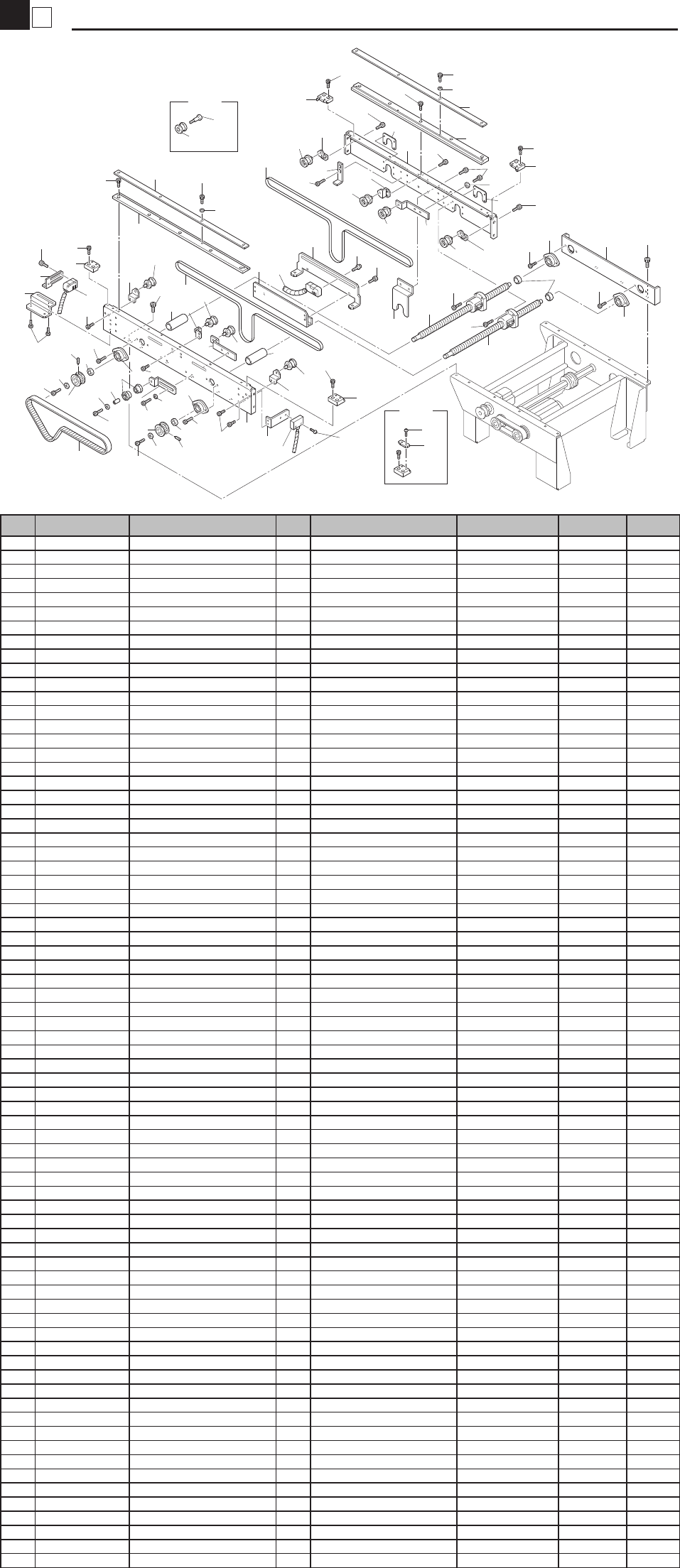

Fixed Conveyor (1)
Conveyor Unit
KV1-080423
36
40
3
30
2
49
25
24
22
36
20
37
39
34
43
15
35
12
34
34
16
25
24
14
30
25
26
24
24
40
32
13
18
44
6
33
46
23
37
11
45
49
24
36
12
44
37
35
24
25
34
17
48
30
26
20
7
1
10
31
24
14
25
11
22
5
38
4
21
47
34
6
36
29
41
36
45
34
30
34
32
39
35
34
34
25
24
36
8
50
35
37
28
9
38
29
21
47
36
51
42
OLD
19
27
24
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M9106-00X PLATE 1,CONV. 2
1-1 KV1-M9106-01X PLATE 1,CONV. 2 (2000/9/18) M090096 OK
2 KV1-M9107-00X PLATE 2,CONV. 2
2-1 KV1-M9107-01X PLATE 2,CONV. 2 (1999/12/21) M9Y0080 OK
3 KV1-M9108-00X PLATE 3, CONVEYOR 2
4 KV1-M9109-00X PLATE, TENSION IDLER 2
5 KV1-M910B-00X BELT 2 666-3GT-9
6 KV1-M9110-00X COLLAR, BALL SCREW 6
6-1 90990-41J106 COLLAR 6 (2008/4/11) ME30019 OK
7
KV1-M9111-00X BRKT.,COLLAR 2
7-1
KV1-M9111-01X BRKT.,COLLAR 2 (2001/1/19) M110060 OK
8 KV1-M9113-00X DIG, ORG CONV. 2
9 KV1-M9114-00X BRAKET 1, SENSOR 1
10 KV1-M9115-00X BRAKET 2, SENSOR 1
11 KV1-M9116-00X GUIDE 1 4
12 KV1-M9117-00X GUIDE 1-1 4
13 KV1-M9118-00X DAMPER 1,W 4
13-1 KV1-M9118-01X DAMPER 1,W 4 (2000/9/29) M090158 OK
14 KV1-M9119-00X DAMPER 2, W 4
15 KV1-M9121-00X STAY, MID SENSOR 1
16 KV1-M9122-00X COVER, MID SENSOR 1
17 KV1-M9123-00X GUIDE 1,END 4 t=10
17-1 KM7-M9113-01X GUIDE 1,END 4 t=12 (2001/1/23) M110108 Set
17-2 KM7-M9113-01X GUIDE 1,END 2 t=12 (2001/8/24) M180096 Set
18 KV1-M9124-00X GUIDE 2,END 4 t=10
18-1 KM7-M9114-01X GUIDE 2,END 4 t=12 (2001/1/23) M110108 Set
18-2 KM7-M9114-01X GUIDE 2,END 2 t=12 (2001/8/24) M180096 Set
19 KV1-M9125-00X PLATE, GUIDE END 4
19-1 Delete (2001/9/3) M190002
20 KV1-M9126-00X BALL, SCREW F-CONV. 4
21 KV1-M9137-00X WASHER, 6 M4 13D 2T
21-1 90990-28J070 WASHER,PLAIN 6 (2007/12/18) MDX0125 OK
22 KV1-M913J-00X BELT,CONVEYOR 4
22-1 KV1-M913J-10X BELT 1,CONVEYOR 4 (1999/12/16) M9Y0051 OK
23 K94-M9315-00X BEARING 4 F608ZZ
23-1 90933-03J608 BEARING 4 (2001/7/6) M170026 OK
24 KG2-M9102-00X PULLEY CONVEYOR 16
24-1 KV1-M9140-A0X PULLEY,CONV. ASSY 16 (2000/7/21) M070148 OK
24-2 KGY-M9140-A0X PULLEY,CONV. ASSY. 8 (2007/2/12) MD20003 OK
25 KG2-M9120-01X PLATE PULLEY CON. 12
26 KG2-M9121-00X PLATE TENSION PULLEY 4
27 KG2-M9141-00X SHOULDER BOLT 16
27-1
Delete (2000/7/21) M070148
28 KG7-M912A-00X BRAKET SENSOR 1
29 KH2-M9105-10X PULLEY MOTOR 8 3GTP30
29-1 KH2-M9105-11X PULLEY,MOTOR 8 P30-3GT (2001/6/5) M160031 OK
30 KH2-M9121-00X BEARING 8 SFB38-10
31 KM0-M655F-10X SENSOR,1-3 ASSY 2
31-1 KV1-M655F-10X SENSOR,1-3 2 (2000/2/8) M020040 OK
32 KU0-M655F-20X SENSOR 1-3 2 HBP-A2L-010 PNP
33 KV7-M9149-00X COLLAR, BEARING 2
33-1 90990-41J057 COLLAR 2 (2008/4/17) ME20197
34 91317-03006 BOLT HEX. SOCKET HEAD 28
35 91317-03008 BOLT HEX. SOCKET HEAD 18
36 91317-04006 BOLT HEX. SOCKET HEAD 28
37 91317-04008 BOLT HEX. SOCKET HEAD 16
38 91317-04012 BOLT HEX. SOCKET HEAD 4
39 91317-04014 BOLT HEX. SOCKET HEAD 16
40 91317-05008 BOLT HEX. SOCKET HEAD 16
41 91317-05020 BOLT HEX. SOCKET HEAD 2
42 98907-03005 SCREW BINDING HEAD 8
42-1 Delete (2001/1/23) M110108
43 97604-03306 SCREW,PAN HEAD W/W 2
43-1 97602-03306 SCREW,PAN HEAD W/W 2 (2006/2/14) MBY0144 OK
44 92907-03200 WASHER, PLAIN 16
45 92907-04200 WASHER, PLAIN 12
46 92907-05200 WASHER, PLAIN 2
47 92A08-04006 SET SCREW 20 M4X6
47-1 92A08-04306 SET SCREW 20 M4X6 (2001/9/21) M190080 OK
48 91317-03014 BOLT HEX. SOCKET HEAD 2
49 KV1-M910C-00X NUT,PLATE 4 (1999/12/21) M9Y0080
50 KGA-M9113-00X GUIDE 1,END 2 t=16 (2001/8/24) M180096 Set
51 KGA-M9114-00X GUIDE 2,END 2 t=16 (2001/8/24) M180096 Set
7
7

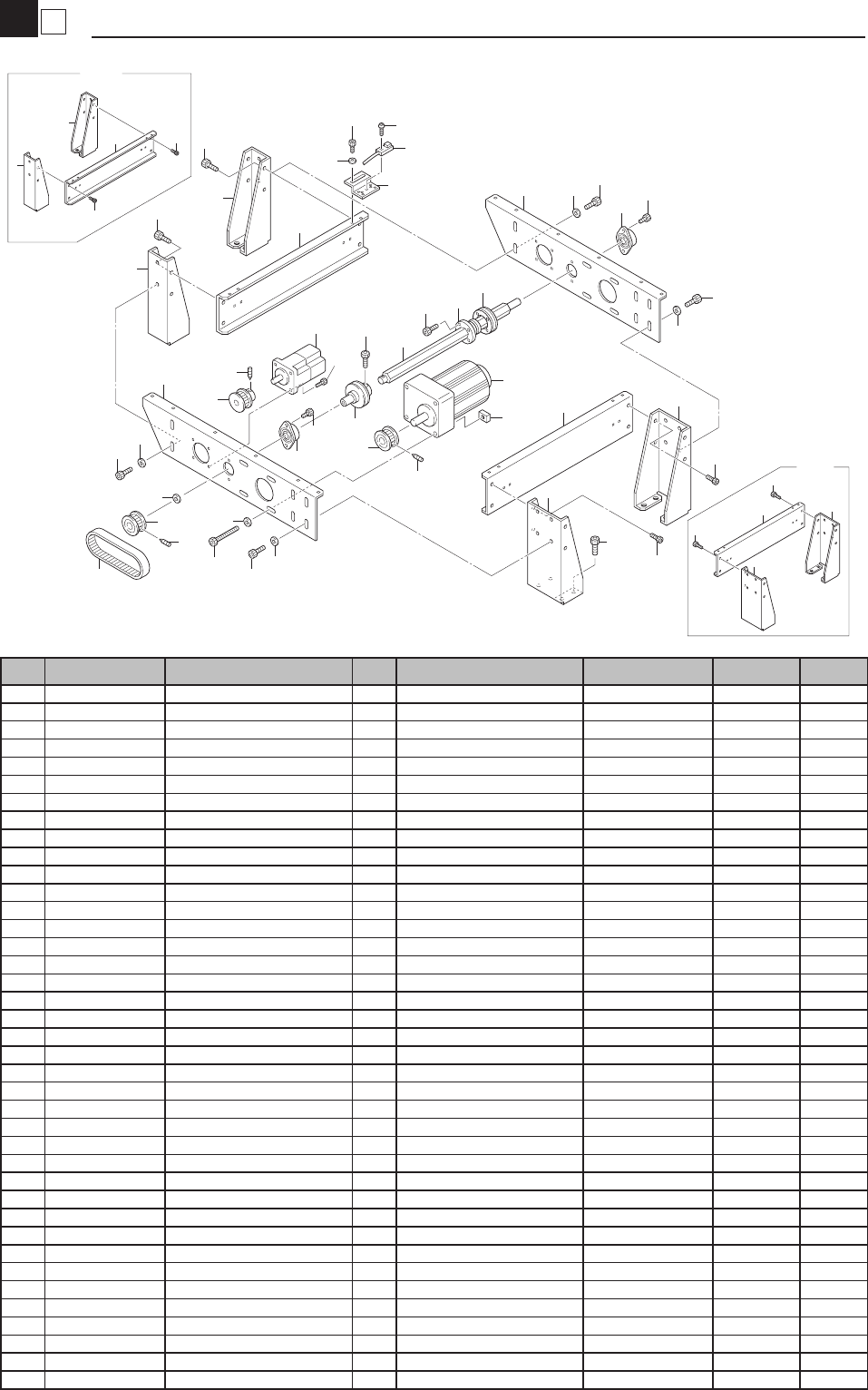

Fixed Conveyor (2)
Conveyor Unit
KV1-080423
2
2
30
29
31
16
15
28
29
24
3
13
20
23
10
21
14
9
4 (5)
29
24
22
17
3
1
1
24
4 (5)
19
16
30
18
27
7
24
8
12
26
6
29
25
24
29
17
22
11
30
24
24
24
24
24
3
1
1
OLD
2
2
3
24
24
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M9101-00X STAND 1 4
1-1 KV1-M9101-01X STAND 1 4 (1999/12/21) M9Y0075 Set
2 KV1-M9102-00X STAND 2 4
2-1 KV1-M9102-01X STAND 2 4 (1999/12/21) M9Y0075 Set
3 KV1-M9103-00X FRAME 1 4
3-1
KV1-M9103-01X FRAME 1 4 (1999/12/21) M9Y0075 Set
4 KV1-M9104-00X FRAME 2 2 Left side
5 KV1-M9105-00X FRAME 3 2 Right side
6 KV1-M910A-00X BELT 2 246-3GT-9
7 KV1-M9112-00X BRAKET, SENSOR ORG 2
8 KV1-M4886-00X MOTOR ASSY 6-1 2
9 KV1-M9135-00X PULLEY 1, SPLINE 2
10 KV1-M913B-00X SPLINE 2
11 KV1-M913C-00X PULLEY, MOTOR 2
12 KV1-M914G-00X NUT, SQUARE 8
13 90K55-4W072W AC SERVO MOTOR 2
13-1 90K55-4W076W AC SERVO MOTOR 2 (2000/2/2) M010106 OK
14 KG2-M9108-10X COLLAR,CONVEYOR 2
14-1 KG2-M9108-11X COLLAR,CONVEYOR 2 (2000/7/31) M070221 OK
15 KG7-M9113-01X PULLEY 3 2
16 KH2-M9105-10X PULLEY MOTOR 8 3GTP30
16-1 KH2-M9105-11X PULLEY,MOTOR 8 P30-3GT (2001/6/5) M160031 OK
17 KH2-M9121-00X BEARING 2 SFB38-10
18 KV7-M653A-20X SENSOR,1 ASSY 2 L=300
18-1 KGA-M260A-00X SENSOR,ORG 2 L=300 (2002/11/12) M2X0034 OK
19
91317-03006 BOLT HEX. SOCKET HEAD 4
20
91317-03008 BOLT HEX. SOCKET HEAD 8
21 91317-03010 BOLT HEX. SOCKET HEAD 8
22 91317-04006 BOLT HEX. SOCKET HEAD 8
23 91317-04012 BOLT HEX. SOCKET HEAD 2
24 91317-05008 BOLT HEX. SOCKET HEAD 40
25 91317-05050 BOLT HEX. SOCKET HEAD 8
26 91317-06010 BOLT HEX. SOCKET HEAD 32
27 98907-03008 SCREW BINDING HEAD 2
28 92907-03200 WASHER, PLAIN 4
29 92907-05200 WASHER, PLAIN 32
30 92A08-04006 SET, SCREW 20
30-1 92A08-04306 SET SCREW 20 M4X6 (2001/9/21) M190080 OK
31 92907-10200 WASHER, PLAIN 2
8
7

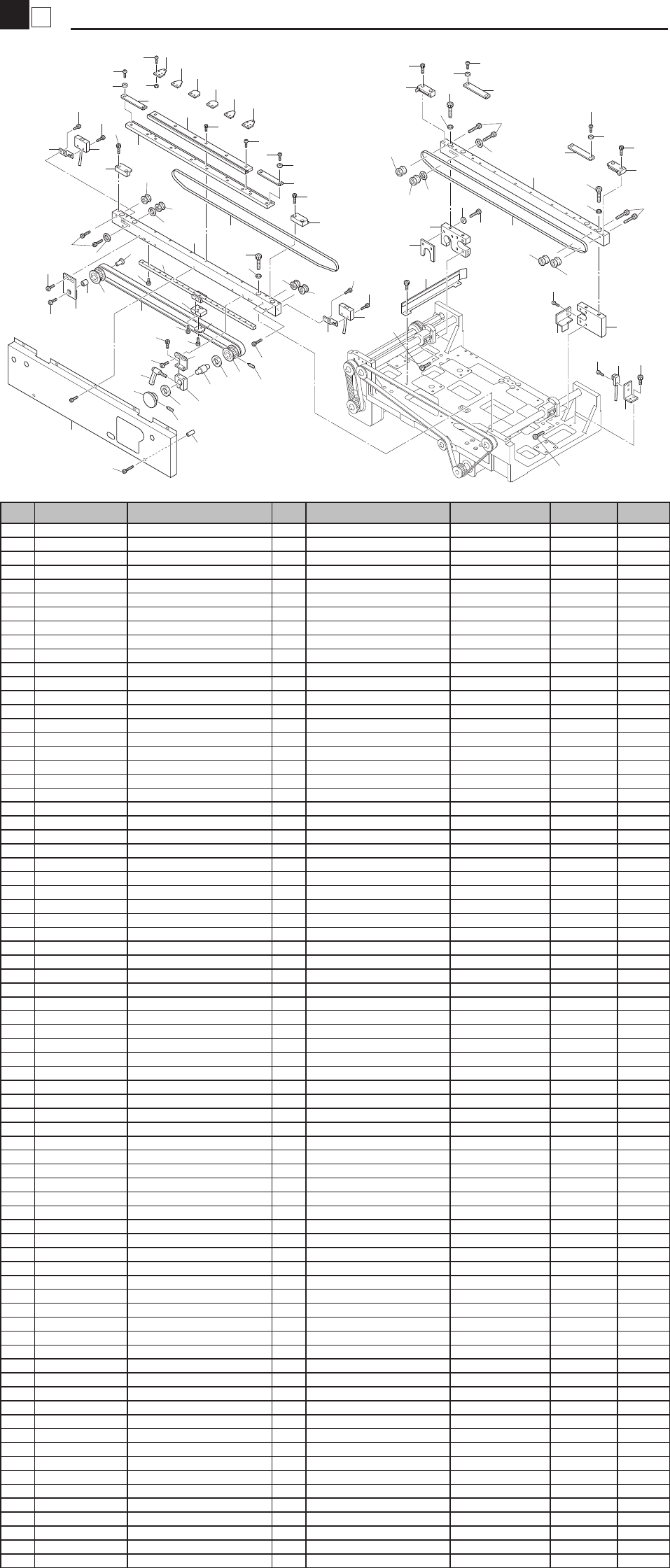

Moving Conveyor (1)
Conveyor Unit
KV1-0802
47
15
16
43
50
48
17
11
17
16
15
9
45
58
5
59
52
45
38
44
46
32
58
41
49
47
26
24
40
42
41
14
59
45
13
4
1
12
59
5
5
5
58
50
46
31
45
46
12
50
13
41
12
31
39
60
57
8
48
32
7
10
43
51
40
35
36
49
2
5
5
52
54
3
27
25
23
22
27
54
34
29
20
18
19
5
53
53
12
46
50
14
45
7
56
37
51
47
28
30
33
21
3
5
55
55
55
55
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M9133-00X PLATE 1, FR. BRAKET 2
2 KV1-M9134-00X PLATE 2, FR. BRAKET 1
3 KH2-M9105-11X PULLEY MOTOR 2 P30-3GT
4 KV1-M913D-00X BRKT.,COLLAR 1
4-1 KV1-M913D-01X BRKT.,COLLAR 1 (2001/1/19) M110060 OK
5 KV7-M9140-00X PULLEY,CONVEYOR 8
5-1 KV7-M9140-A0X PULLEY,CONV. ASSY 8 (2000/7/21) M070148 OK
6
7 KV1-M913J-00X BELT,CONVEYOR 2
7-1 KV1-M913J-10X BELT 1,CONVEYOR 2 (1999/12/16) M9Y0051 OK
8 KV1-M9141-00X FRAME, FIXED 1 MOV.CONV.
9 KV1-M9142-00X FRAME, MOV. 1 MOV.CONV.
10 KV1-M9143-00X PLATE 1, GUIDE 1
11 KV1-M9144-00X PLATE 2, GUIDE 1
12 KV1-M9145-00X GUIDE 1-1 4
13 KV1-M9146-00X GUIDE 1, END 2
14 KV1-M9147-00X GUIDE 2, END 2
15 KG7-M9133-00X PLATE, LOCATE PIN 2
16 KG7-M9135-00X PLATE EDGE 2 2
17 KG7-M9136-00X PLATE EDGE 3 2
18 KM0-M9182-10X PLATE,GUIDE 1
18-1 KV1-M9182-00X PLATE,GUIDE 1 (1999/12/21) M9Y0070 OK
19 KG7-M9183-00X BRAKET, B ELT 1
20 KV1-M9189-00X GUIDE 1 RSH9ZMUU+406LM
21 KV1-M9188-00X BELT 1 822-3GT-6
22 KV1-M9195-00X BRAKET, HOUSING 1
23 KV1-M9185-00X HOUSING, SHAFT 1
24 KV1-M9190-00X HANDLE 1
25 KV1-M9191-00X SHAFT 1 1
26 KV1-M9193-00X LEVER, CLAMP 1
27 KU0-M9194-00X WASHER 2
27-1 90990-28J068 WASHER,PLAIN 2 (2007/12/18) MDX0125 OK
28 KV1-M9192-00X PLATE, IDLER 1
29 KV1-M9196-00X SHAFT 2 1
29-1 KV1-M9196-01X SHAFT 2 1 (1999/12/21) M9Y0070 OK
30 KV1-M9197-00X BUSH 1 LFB-0812
31 KM0-M655F-10X SENSOR,1-3 ASSY 2
31-1 KV1-M655F-10X SENSOR,1-3 2 (1999/12/21) M9Y0070 OK
32 KV1-M9148-00X BRACKET,SENSOR 2
32-1 KV1-M9148-01X BRKT,SENSOR 2 (1999/12/24) M9Y0078 OK
33 KV1-M9149-10X COVER, BELT 1
34 90563-03J200 SPACER 2 1 SG-M3-20
35 KV7-M653A-20X SENSOR,1 ASSY 1 L=300
35-1 KGA-M260A-00X SENSOR,ORG 1 L=300 (2002/11/12) M2X0034 OK
36 KV1-M914E-00X BRAKET, SENSOR 1
37 KV1-M914F-00X DOG, ORIGIN W 1
38 98907-03005 SCREW BINDING HEAD 12
39 98903-03005 SCREW BINDING HEAD 2
39-1 98904-03005 SCREW BINDING HEAD 2 (2001/12/6) M1X0127 OK
39-2 98902-03005 SCREW BINDING HEAD 2 (2006/1/9) MBY0166 OK
40 98907-03008 SCREW BINDING HEAD 5
41 91317-03006 BOLT HEX. SOCKET HEAD 16
42 91317-03008 BOLT HEX. SOCKET HEAD 8
43 91317-03012 BOLT HEX. SOCKET HEAD 4
44 95304-03700 NUT HEXAGON 12
44-1 95302-03700 NUT HEXAGON 12 (2006/1/16) MBY0167 OK
45 92017-03008 BOLT BUTTON HEAD 14
45-1 90125-03J008 BOLT BUTTON HEAD 14 (2001/12/28) M1Y0131 OK
46 92907-03600 WASHER.PLAIN 12
47 98907-04008 SCREW BINDING HEAD 5
48 91317-04006 BOLT, HEX SOCKET HEAD 4
49 91317-04008 BOLT, HEX SOCKET HEAD 4
50 91317-04010 BOLT, HEX SOCKET HEAD 8
51 91317-04016 BOLT, HEX SOCKET HEAD 8
52 91317-04020 BOLT HEX.SOCKET HEAD 6
53 91317-04030 BOLT HEX.SOCKET HEAD 28
54 92A08-04006 SET SCREW 12 M4X6
54-1 92A08-04306 SET SCREW 6 M4X6 (2001/9/21) M190080 OK
55 92903-04200 WASHER PLAIN 8
56 91317-05020 BOLT, HEX SOCKET HEAD 2
57 92903-05200 WASHER PLAIN 8
58 91317-06025 BOLT, HEX SOCKET HEAD 4
59 92990-06400 WASHER, EXTL. TOOTHED 8
59-1 90172-00J060 WASHER,EXTL.TOOTHED 8 (2008/4/15) ME40115 OK
60 KV1-M9139-10X GUIDE, TUBE L 1
