1 7 Push-In Conveyor Unit KV1-080423 10 1 1 8 7 5 2 1 12 14 13 4 3 6 9 9 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KV1-M9221-00X PLA TE,PUSH IN 1 2 KV1-M9222-00X COLLAR,PUSH IN 1 2-1 …
2
6

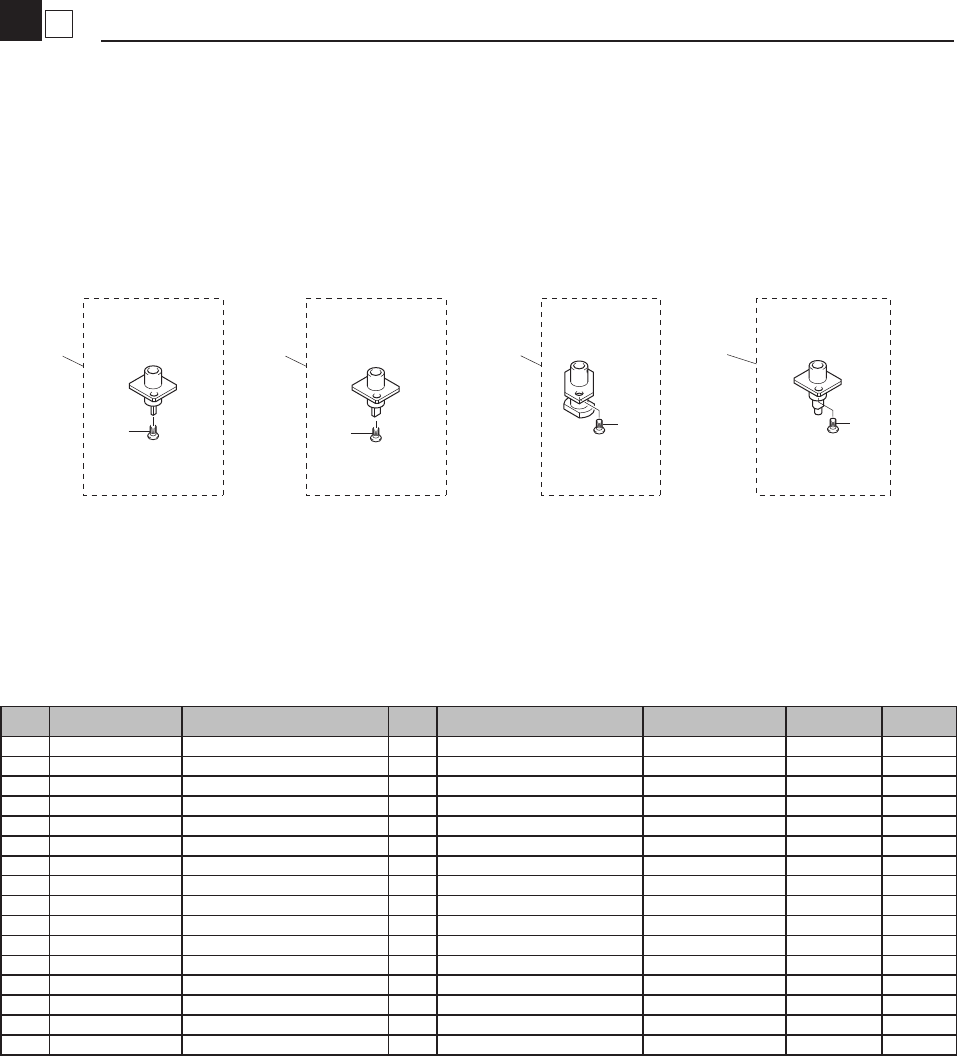

Nozzle (FNC)
Nozzle
KV1-080422
1
2
6
7
Type71F Type72F
13
Type79F
11
12
Type73F
12
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F
1-1 KV8-M71N1-A1X NOZZLE 71F ASSY. 1 (2004/8/2) MA70130 OK
2 KV8-M71U5-00X SCREW 2
6 KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F
6-1 KV8-M71N2-A1X NOZZLE 72F ASSY. 1 (2004/8/2) MA70130 OK
7 KV8-M71U5-00X SCREW 2
11 KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F
12 KV8-M71U5-00X SCREW 2
13 KV8-M87WK-A0X CIRCLE NOZZLE 7F 1
13-1 KV8-M71N9-A1X NOZZLE 79F ASSY 1 TYPE79F (2004/8/2) MA70130
1
7

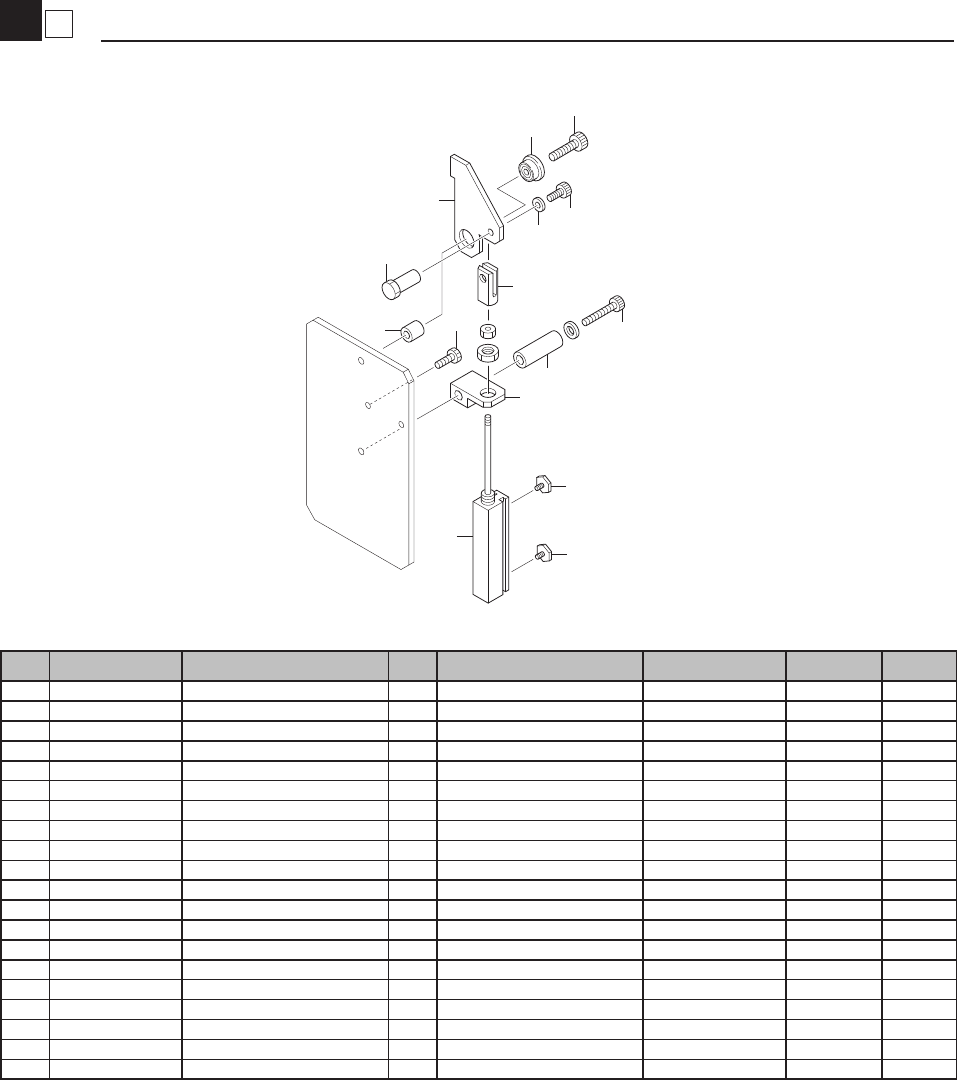

Push-In
Conveyor Unit
KV1-080423
10
11
8
7
5
2
1
12
14
13
4
3
6
9
9
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M9221-00X PLATE,PUSH IN 1
2 KV1-M9222-00X COLLAR,PUSH IN 1
2-1 90990-41J048 COLLAR 1 (2008/4/14) ME20133
3 KV1-M9223-00X HOLDER,CYLINDER 1
4 KV1-M9226-00X COLLAR,BOLT 1
4-1 90990-41J049 COLLAR 1 (2008/4/14) ME20133
5 KH4-M9166-00X CYL.,MAIN STOP 1 NDA6-30
6 KV1-M9224-00X JOINT,PUSH IN 1
7 KV1-M9225-00X PIN,PUSH IN 1
8 KV7-M9228-00X BRG. 1 F694ZZ
8-1 90933-03J694 BEARING 1 (2001/7/6) M170026 OK
9 KV1-M9229-00X JOINT(M-5ALU-4) 2 SMC
9-1 KV1-M8502-00X JOINT 2 (2001/3/5) M120094 OK
10 91317-04010 BOLT HEX.SOCKET HEAD 2
11 91317-04016 BOLT HEX.SOCKET HEAD 1
12 91317-04025 BOLT HEX.SOCKET HEAD 1
13 98903-03005 SCREW BINDING HEAD 1
13-1 98904-03005 SCREW BINDING HEAD 1 (2001/12/6) M1X0127 OK
13-2 98902-03005 SCREW BINDING HEAD 1 (2006/1/9) MBY0166 OK
14 92903-03200 WASHER,PLAIN 1
2
7

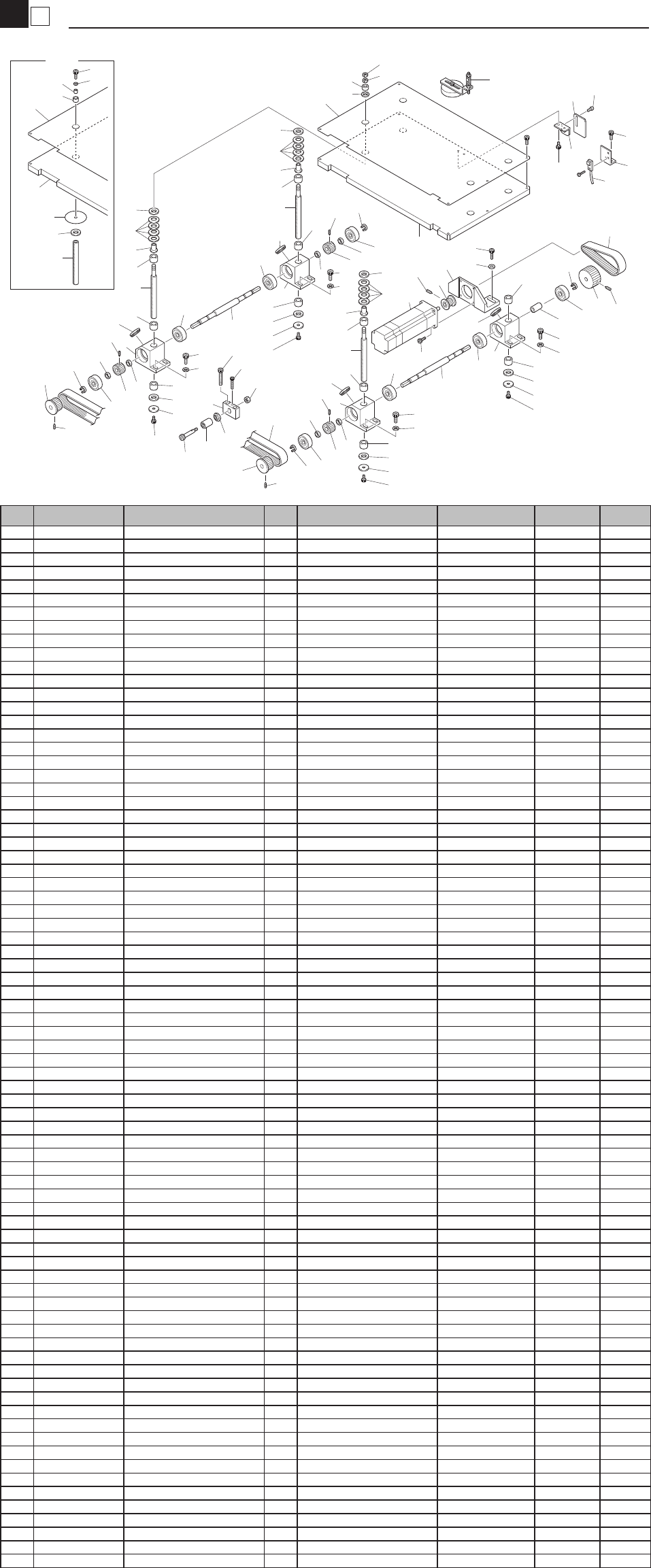

Push-Up
Conveyor Unit
KV1-080423
37
27
19
6
7
40
35
33
34
8
5
6
15
26
18
1
21
24
45
20
15
14
6
11
23
10
17
24
9
6
46
14
12
13
40
14
12
13
40
28
31
28
31
22
16
27
52
50
53
48
29
14
3
2
24
24
8
30
2
8
7
8
5
6
15
15
24
14
6
6
38
39
36
6
8
5
14
12
13
40
14
12
13
28
31
28
31
49
4
14
14
3
2
24
24
8
47
51
32
2
45
29
OLD
41
43
42
44
19
4
12
49
4
14
47
51
49
4
14
47
51
54
54
54
54
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M9211-00X BRACKET MOTOR 1
2 KV1-M9212-00X BASE RACK 4
3 KV1-M921Y-00X PULLY 2
4 KV1-M9214-00X RACK 3
4-1 KGC-M9214-01X RACK 3 (2002/2/28) M220007 NG
5 KV1-M9215-00X GEAR 3
6 KV1-M9216-00X B.R.G 8
6-1 KV1-M9216-00X BEARING 8 (2005/1/12) MB10042 OK
6-2 90933-02J638 BEARING 8 (2007/9/24) MD80067 OK
7 KV1-M9217-00X SHAFT PULLY 2
8 KV1-M9218-00X COLLER 8
8-1 90990-41J047 COLLAR 6 (2008/4/14) ME20133 OK
9 KV1-M9219-00X PULLY 1
10 KB0-M2256-00X BELT 1 1 B150S3M225
11 KV1-M921B-00X BELT 2 1
12 KV1-M9201-00X STOPPER 8
13 KV1-M9202-00X WASHER 4
13-1 90990-28J072 WASHER,PLAIN 4 (2007/12/18) MDX0125 OK
14 KV1-M921E-00X BUSH 8
15 KV1-M921F-00X CLIP 4
16 KV1-M921K-00X STAY SENSOR 1
17 KV1-M921L-00X STAY DOG 1
18 KV1-M921M-00X DOG 1
19 KV1-M921N-01X PLATE 1
19-1 KV1-M921N-02X PLATE 1 (2000/8/31) M080117 NG
20 90K50-412D5K MOTOR ASSY 1
20-1 90K50-412DHU AC SERVO MOTOR 1 (2000/2/23) M020085 OK
20-2 90K50-4127HU AC SERVO MOTOR 1 (2000/3/10) M030023 OK
20-3 90K55-4127HU AC SERVO MOTOR 1 (2000/8/28) M080110 OK
20-4 90K50-4127HU AC SERVO MOTOR 1 (2000/9/4) M090004 OK
20-5 90K55-4127HU AC SERVO MOTOR 1 (2001/4/3) M130110 OK
21 KC0-M1751-00X PULLY,1 1
22 KH1-M655A-10X SENSOR,1-1 1
23 98507-03006 SCREW,PAN HEAD(+) 2
24 92A08-04003 SET SCREW M4X3 8
24-1 92A08-04304 SET SCREW M4X4 8 (2004/12/27) MAY0104 OK
25
26 91317-03008 BOLT HEX.SOCKET HEAD 4
27 91317-04006 BOLT HEX.SOCKET HEAD 4
28 91317-05012 BOLT HEX.SOCKET HEAD 12
29 91317-04012 BOLT HEX.SOCKET HEAD 8
30 92907-04200 WASHER PLAIN 6
31 92907-05200 WASHER PLAIN 11
32 KV1-M921G-00X BASE TENSION 1
33 KV1-M921H-00X B.R.G 4
33-1 90933-02J686 BEARING 4 (2007/9/24) MD80067 OK
34 KV1-M921J-00X WASHER 1
35 KH2-M1807-00X BOLT DRIVEN PULLY 1
36 95607-05100 NUT U 1
37 KV1-M921D-00X PUSH UP PIN UNIT 9
37-1 KV1-M921D-10X PUSH UP PIN UNIT 9 (2000/9/8) M090032 OK
37-2 KV1-M921D-20X PUSH UP PIN UNIT 9 (2001/1/25) M110096 OK
38 91317-06030 BOLT HEX. SOCKET HEAD 2
39 91317-03020 BOLT HEX. SOCKET HEAD 1
40 91317-04008 BOLT HEX. SOCKET HEAD 4
41 92907-04200 WASHER 4
42 KV1-M9204-00X COLLER 4
42-1 KV1-M9204-01X COLLER 4 (2001/1/25) M110096 OK
42-2 KV1-M9204-01X COLLER 3 (2002/1/15) M210033 OK
42-3
KV1-M9204-02X COLLER 3 (2002/2/28) M220007 OK
43 KV1-M9203-00X DAMPER 4
43-1 Delete (2001/1/25) M110096
44 KV1-M921W-00X SHIM 4
44-1 90990-29J044 SHIM 4 (2008/1/17) MDY0074 OK
45 KV1-M9206-00X PLATE 1
46 KGC-M9219-00X COLLER 3 1 (2002/2/28) M220007
47 KV1-M9204-02X COLLER 3
48 KV1-M9208-00X COLLER 2 3
48-1 KV1-M9208-01X COLLER 2 3 (2002/2/28) M220007 OK
49 KV1-M9209-00X SPRING 12
49-1 90990-37J003 WASHWR,BELLEVILLE 12 (2008/4/15) ME20075 OK
50 95307-05700 NUT, HEXAGON 3
51 90990-28J001 WASHER, PLAIN 3
52 KGC-M9207-00X NYLOCK NUT 3
52-1 90990-15J010 NUT,HEXAGON 3 (2007/11/21) MD00121 OK
53 KGC-M9202-00X WASHER 3
54 90990-23J004 GROMMET 4
