4 7 Stopper Conveyor Unit KV1-0801 Main Stopper Sub Stopper EXIT Stopper 1 1 18 12 40 1 1 15 6 2 3 16 8 20 35 41 34 40 36 31 28 22 9 37 40 37 10 42 28 30 30 32 24 13 19 26 21 26 27 27 23 25 38 39 40 40 39 38 17 4 5 7 13 …
3
7
Locate-pin
Conveyor Unit
KV1-0801
2
9
10
6
12
3
14
15
15
5
4
11
13
1
7
11
6
12
3
5
8
8
4
11
13
1
7
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M9172-00X HOLDER LOCATE PIN 2
2 KV1-M9174-00X PIN 1,LOCATION 1
2-1 KV1-M9174-01X PIN 1,LOCATION 1 (2001/1/19) M110079 OK
2-2 Delete (2003/2/11) M320041
3 KV1-M9174-10X PIN 2,LOCATION 1
3-1 KV1-M9174-11X PIN 2,LOCATION 1 (2001/1/19) M110079 OK
4 KV1-M9175-00X BRACKET,CYLINDER 2
5 KV1-M9176-40X CYLINDER ASSY 2 NDAS-6X30-CS11TA1
6 KG9-M7136-00X GUIDE 2 BSR15-60 SL IKO
7 KV1-M9167-00X NUT JOINT 4
7-1 KV1-M9167-01X NUT,JOINT 4 (1999/12/24) M9Y0105 OK
8 KV1-M9229-00X JOINT 4 M-5ALU-4
8-1 KV1-M9229-00X JOINT 2 M-5ALU-4 (2001/5/31) M150135 OK
9 KV1-M9176-00X PLATE 2,LOCATION 1
10 98704-03004 SCREW FLAT HEAD 4
10-1 98702-03004 SCREW FLAT HEAD 4 (2006/1/13) MBY0160 OK
11 91317-03006 BOLT HEX.SOCKET HEAD 6
12 92A08-03004 SET SCREW 2 M3X4
12-1 92A08-03304 SET SCREW 2 (2001/9/21) M190079 OK
12-2 90990-02J003 SET SCREW 2 (2002/5/29) M250059 OK
13 98907-03004 SCREW,PANHEAD 2
14 91317-04008 BOLT HEX.SOCKET HEAD 2
15 KV1-M8502-00X JOINT 2 (2001/3/5) M120094
15-1 KV1-M8502-00X JOINT 4 (2004/1/5) M410011 OK
4
7
Stopper
Conveyor Unit
KV1-0801
Main Stopper
Sub Stopper
EXIT Stopper
11
18
12
40
1
1
15
6
2
3
16
8
20
35
41
34
40
36
31
28
22
9
37
40
37
10
42
28
30
30
32
24
13
19
26
21
26
27
27
23
25
38
39
40
40
39
38
17
4
5
7
13
11
14
33
29
10
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M9161-00X BASE,STOPPER 1
1-1 KV1-M9161-01X BASE,STOPPER 1 (2000/8/31) M080117 NG
2 KV1-M9162-00X BRACKET,STOPPER 1
3 KV7-M9163-00X STOPPER 1
4 KV1-M9164-00X
BRACKET,CYLINDER
1
5 KH4-M9166-00X CYL.,MAIN STOP 1 NDA6-30
6 K46-M9174-10X GUIDE 1 LWL9-70
7 KV1-M9165-00X JOINT,BRACKET 1
8 KV1-M9167-00X NUT,JOINT 1
8-1 KV1-M9167-01X
NUT,JOINT 1
(1999/12/16) M9Y0062
OK
9 KV1-M655F-10X SENSOR 1-3 1 DZ-7232-PN1
10 KV1-M9168-00X BRACKET,SENSOR 1
10-1 KV1-M9168-01X BRACKET SENSOR 1 (2000/8/31) M080117 NG
11 KV1-M9229-00X JOINT(M-5ALU-4) 2 SMC
12 91317-03005 BOLT HEX.SOCKET HEAD 7
13 91317-03006 BOLT HEX.SOCKET HEAD 7
14 91317-03012 BOLT HEX.SOCKET HEAD 2
15 91317-04010 BOLT HEX.SOCKET HEAD 2
16 91317-05010 BOLT HEX.SOCKET HEAD 1
17 92903-03200 WASHER PLAIN 1
18 KV1-M9281-00X PLATE,SUB STOPPER 1
19 KV1-M9282-00X STOPPER,SUB 1
20 KV7-M9283-00X CYL.,YMDA16X35 1
21 KV1-M9284-00X BRKT.,SENSOR 3 1
22 KV1-M9285-00X SPACER,CYLINDER 1
23 KV1-M9286-00X BRKT.,CYLINDER 1
24 KV1-M9287-00X GUIDE,SUB STOPPER 1 LWLC9C1R60BT1H
25 KV1-M9288-00X PLATE,NUT 1
26 KM0-M655F-10X SENSOR,1-3 ASSY 2
26-1 KV1-M655F-10X SENSOR,1-3 2 (2000/2/8) M020040 OK
27 SL4-M5 JOINT 2
28 91317-03005 BOLT HEX.SOCKET HEAD 3
29 91317-03006 BOLT HEX.SOCKET HEAD 4
30 91317-03012 BOLT HEX.SOCKET HEAD 4
31 91317-04008 BOLT HEX.SOCKET HEAD 2
32 91317-04020 BOLT HEX.SOCKET HEAD 2
33 91317-06010 BOLT HEX.SOCKET HEAD 1
34 KV1-M9271-00X PLATE,EXIT STOPPER 1
35 KV7-M9282-00X STOPPER,SUB 1
36 KV7-M9283-00X CYL.,YMDA 1 16X35
37 KG7-M912A-00X BRACKET SENSOR 2
37-1 KV1-M912A-00X BRACKET,SENSOR 1 (2000/9/1) M090005 OK
38 KU0-M655F-20X SENSOR 1-3 2 HPB-A2L-010 PNP
39 SL4-M5 JOINT 2
40 91317-03006 BOLT HEX.SOCKET HEAD 8
41 91317-04008 BOLT HEX.SOCKET HEAD 2
42 KV1-M9169-01X NUT 1 (2000/8/31) M080117
5
7

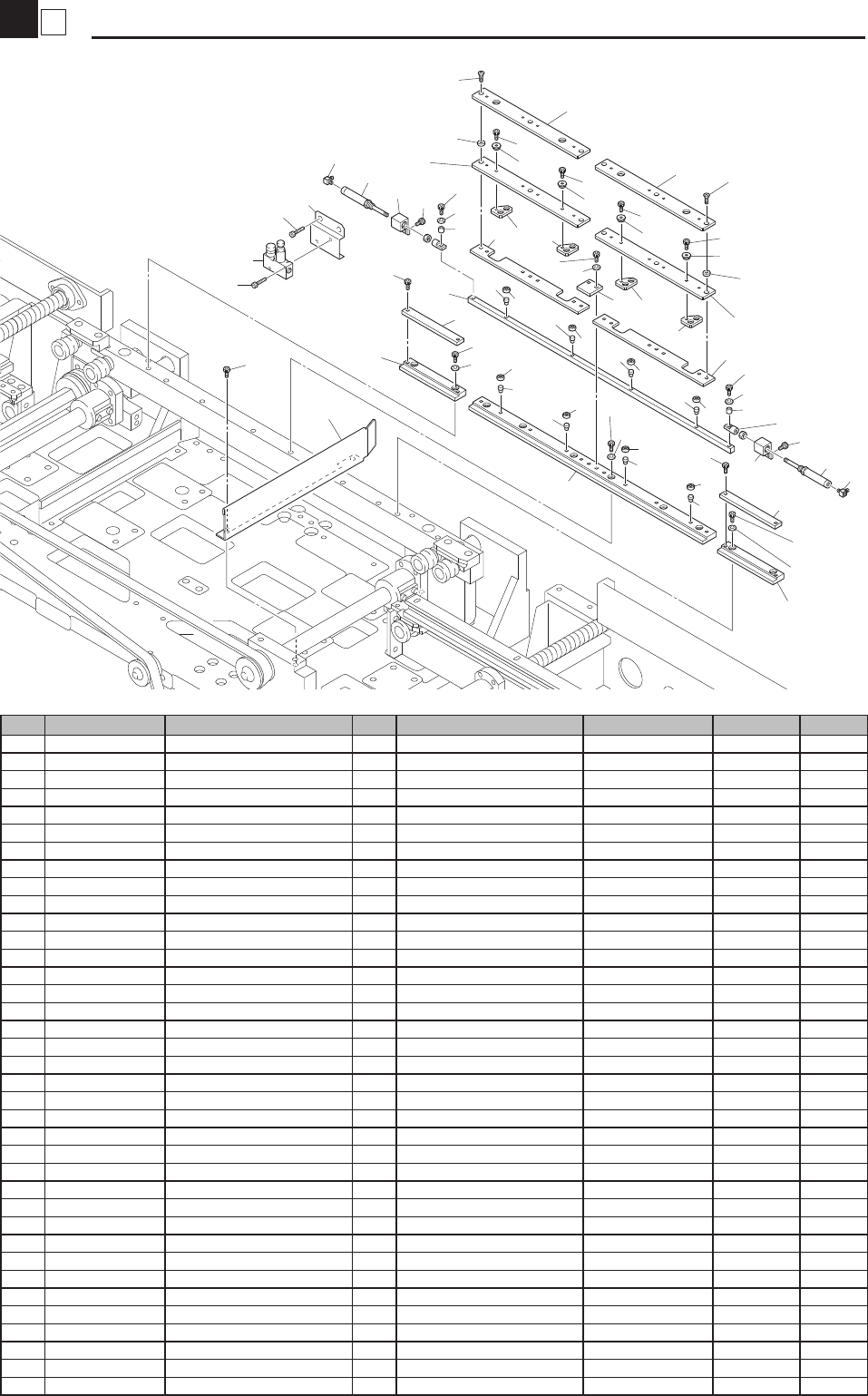

Edge Clamp
Conveyor Unit
KV1-1011
20
13
18
12
1
2
18
18
12
5
4
19
22
19
19
9
7
22
21
16
19
23
19
21
19
16
23
23
10
5
3
3
5
5
12
18
12
13
1
19
22
10
11
26
8
19
9
7
14
14
17
17
27
28
11
11
26
26
11
11
11
15
11
11
26
26
26
26
26
24
25
6
2
20
30
29
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV1-M9231-00X PLATE, EDGE CLAMP 2
2 KV1-M9232-00X PLATE 3, GUIDE 2
3 KV1-M9233-00X GUIDE 2 2
4 KV7-M9234-00X SPACER, GUIDE 1
5 KV7-M9235-00X PLATE, LINK 4
6 KV1-M9236-00X SHAFT, LINK 1
7 KV7-M9237-00X CYL. 2 PBSA10X5
8 KV7-M9238-00X JOINT CYL. 2
9 KV7-M9239-00X BRKT., CYL. 2
9-1 KV7-M9239-01X BRKT.,CYL. 2 (2005/10/17) MB00045 OK
10 KV7-M923A-00X COLLAR, JOINT 2
10-1 90990-41J062 COLLAR 2 (2008/4/17) ME20197 OK
11 90933-02J084 BEARING 8
12 90933-03J683 BEARING 4
13 KV7-M923D-01X COLLAR,CLAMP PLATE 6
13-1 KV7-M923D-02X COLLAR,CLUMP PLATE 6 (2002/4/12) M240056 OK
13-2 KV7-M923D-03X COLLAR,CLAMP PLATE 6 (2006/6/8) MC60029 OK
13-3 90990-41J063 COLLAR 6 (2008/4/17) ME20197 OK
14 KV1-M9145-00X GUIDE 1-1 2
15 KV1-M9130-00X GUIDE 2-1 1
16 KV1-M9130-10X GUIDE 2-2 2
17 KV1-M9229-00X JOINT 2 M-5ALU-4
18 91317-03005 BOLT HEX. SOCKET HEAD 6
19 91317-03008 BOLT HEX. SOCKET HEAD 26
20 98707-03010 SCREW FLAT HEAD 6
21 98903-03004 SCREW BINDING HEAD 6
21-1 98502-03004 SCREW PAN HEAD 6 (2006/2/17) MBY0200 OK
22 92907-03200 WASHER, PLAIN 8
23 92907-03600 WASHER, PLAIN 6
24 91317-04008 BOLT HEX. SOCKET HEAD 2
25 KV1-M9139-00X GUIDE, TUBE R 1
26 KV7-M923E-00X PIN, LINK 8
26-1 90990-43J012 PIN 8 (2008/6/3) ME30136 OK
27 KM5-M8504-00X REGULATOR 1 (2003/3/28) M330112
28 91317-03020 BOLT HEX. SOCKET 2 (2003/3/28) M330112
29 KV7-M923F-00X BRACKET 1 (2003/3/28) M330112
30 91317-06010 BOLT HEX.SOCKET HEAD 2 (2003/3/28) M330112
