SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50065
6/9
2. Tool bar
There are some buttons on the tool bar which are commonly used menus of “User
Definition_Setting Item Editor”. Besides, a machine serial and a board name you wants
to make a table of items are displayed.
2.1 2.2 2.3 2.4 2.5 2.6

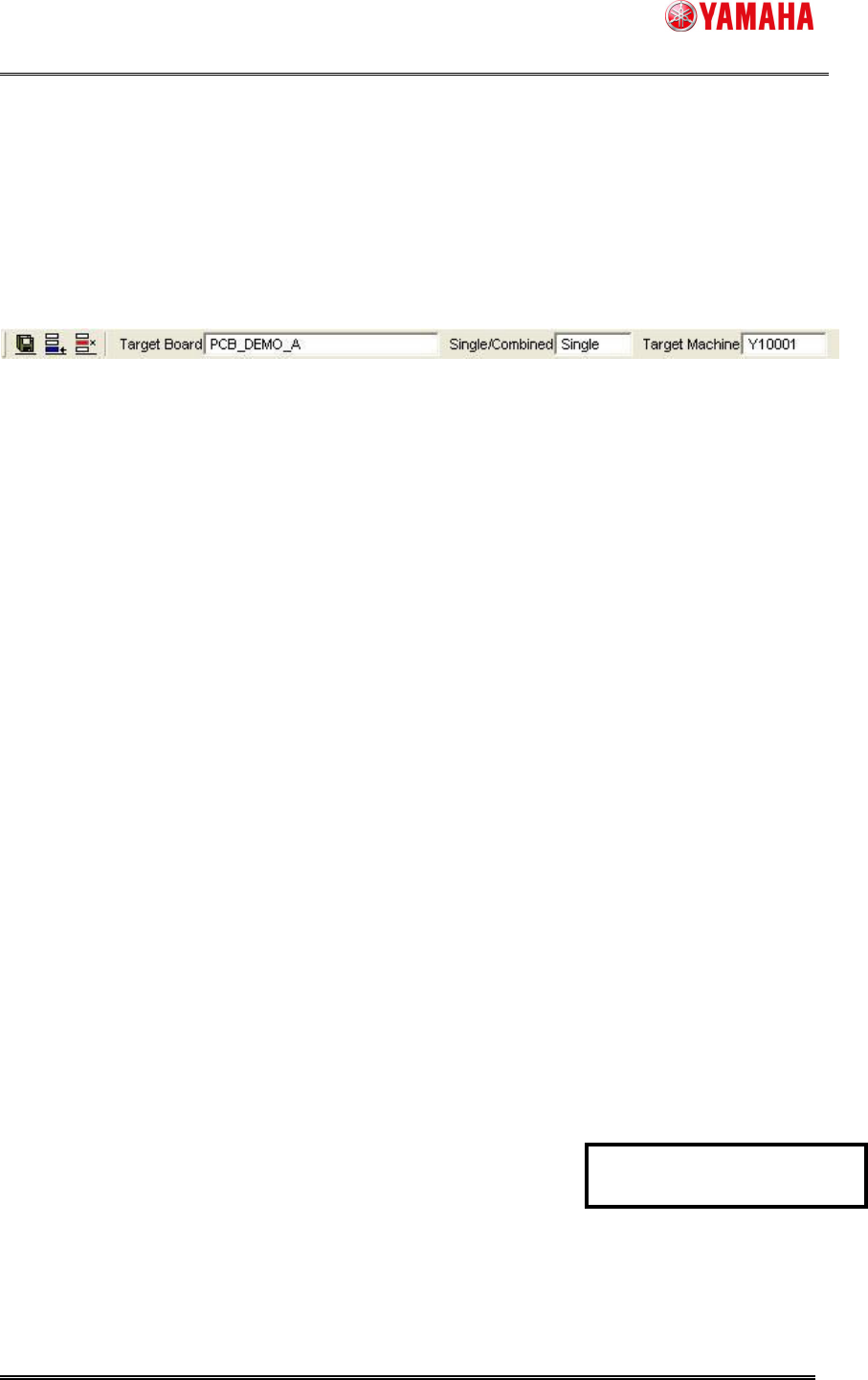

Figure 4.2.2 Tool bar
2.1. [Save] button
Saves a table of items that is set in “User Definition_Setting Item Editor” .
Destination to save is the same as “Setting Info” set in “Line Config”.
* Reference
[Save] button is the same function as “Save” of “File” menu.
2.2. [Insert New Line] button
Adds another line to the table of items.
* Reference
[Insert New Line] button is the same function as “Insert New Line” of “Edit” menu.
2.3. [Delete] button
Deletes a selected line in the table of items.
* Reference
[Delete Line] button is the same function as “Delete Line” of “Edit” menu.
2.4. Target Board
Displays a board name you want to make a table of items to be set.
2.5. Single/Combined
Displays whether a board as "Target Board" is a single board or a combined board.
2.6. Target Machine
Displays a machine serial you want to make a table of items to be set.
Revised with revision No. 2
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50065
7/9
3. Table of items that should be set
Displays a table of items used in a target board of a target machine.
For details on each item, see “
4.3.1 The table of items that should be set is registered
”.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50065
8/9
4.3 Operation of ”User Definiton_Setting Item Editor”
4.3.1 The table of items that should be set is registered
This section explains a procedure to register a new table of items that should be set.
See the procedure from step 2 to modify a registered table.
Step 1. Click the [Insert New Line] button, and another line of the table of items that
should be set is added.
Step 2. Set the table of items that should be set. Set each item.

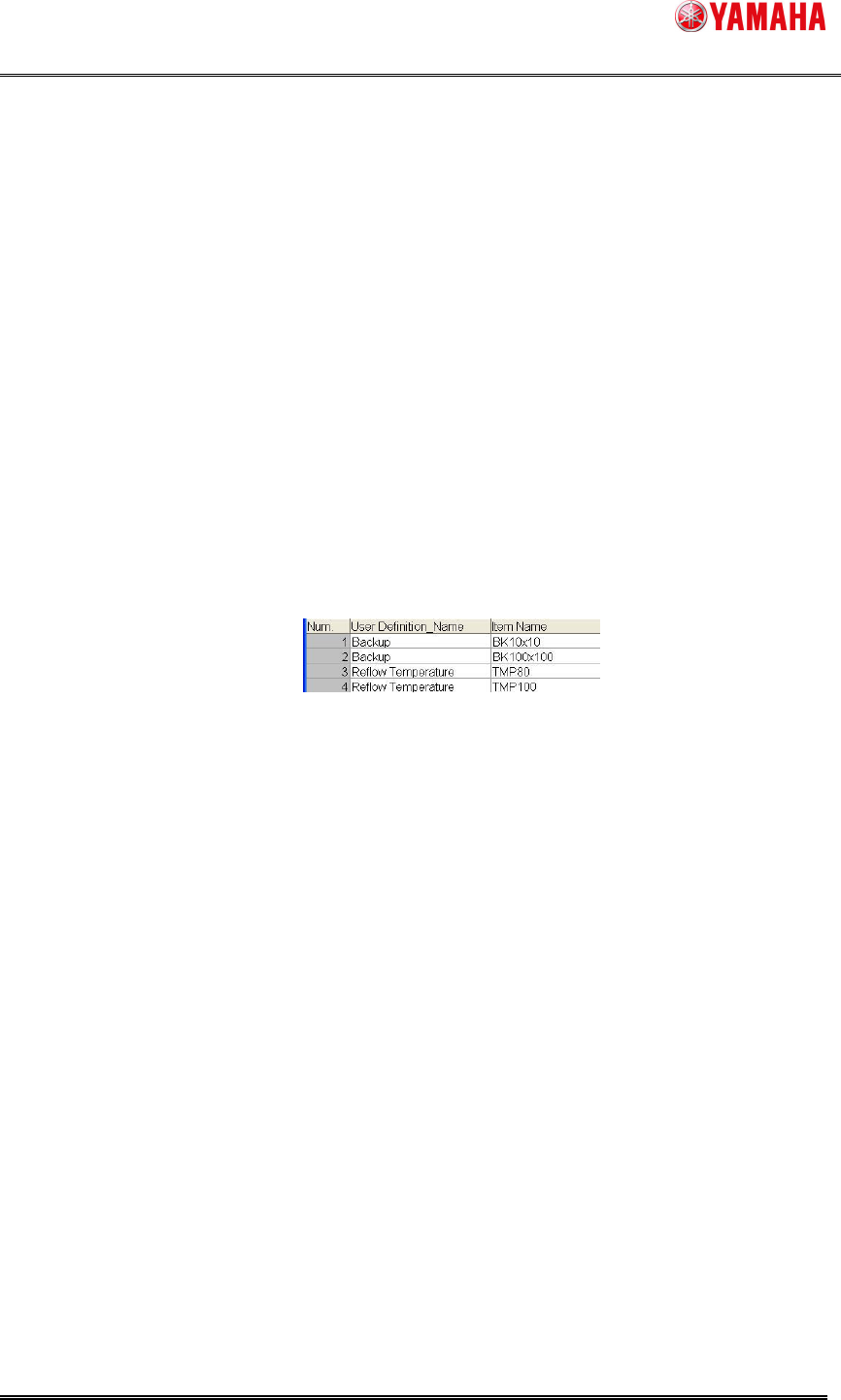

Figure 4.3.1 Setting Items
1 2 3
1. Num.
It is number of the table of items that should be set.
This number is not editable.
2. User Definition_Name
Select a name of “User Definition” registered in “ID Editor” from the drop-down list box.
3. Item Name
Select an item name belonging to the name of “User Definition” from the drop down list
box.
FREE
This is for compatibility with the previous versions.
Set this item if two or more items are registered, and if any ID information of item can
be scanned.
Step 3. Click the [Save] button to save the specified table of items that should be set.
