PART NAME REMARKS Q'TY 2 ｶﾊﾞｰ部(1) COVER SECT. (1) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 N610031688AA COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ 1 006 N210024248AA TOP FRAME ﾌﾚｰﾑ(TOP) 2 012 1086212520 PLATE ﾌﾟﾚｰﾄ 1 014 10862…

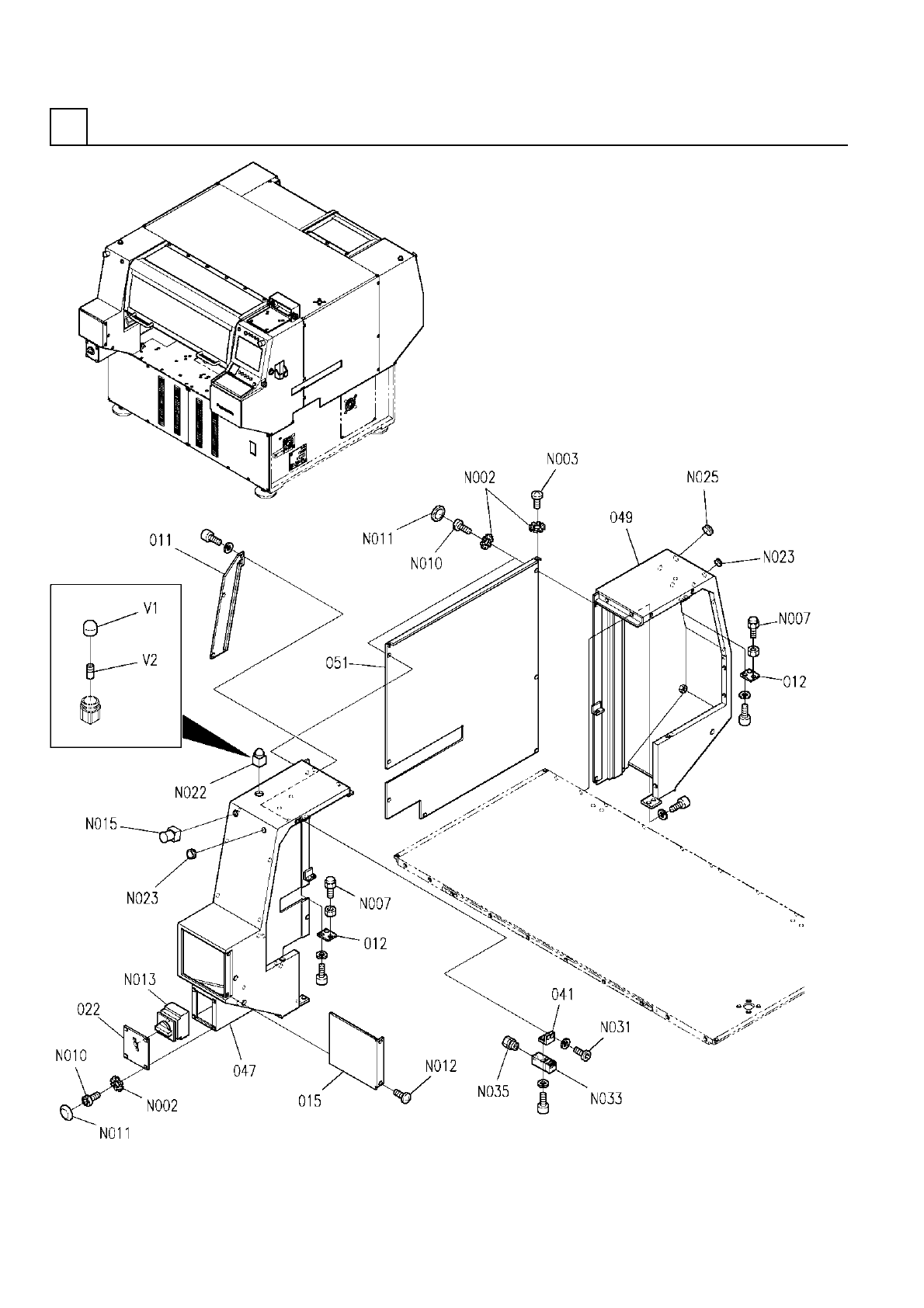

ｶﾊﾞｰ部(1)
COVER SECT.(1)
2
FN610031688AA_03-1
M11
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(1)
COVER SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 N610031688AA
COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ
1
006 N210024248AA
TOP FRAME ﾌﾚｰﾑ(TOP)
2
012 1086212520
PLATE ﾌﾟﾚｰﾄ
1014 108620252201
COVER ｶﾊﾞｰ
1016 108620252401
COVER ｶﾊﾞｰ
1
035 1086202266
COVER ｶﾊﾞｰ
1
040 1086202564
BRACKET ﾌﾞﾗｹｯﾄ
1041 1086202665
BRACKET ﾌﾞﾗｹｯﾄ
1044 108628963102
BRACKET ﾌﾞﾗｹｯﾄ
1
045 108628963202
BRACKET ﾌﾞﾗｹｯﾄ
1046 108621257002
FRONT COVER(RIGHT) ﾌﾛﾝﾄｶﾊﾞｰ(RIGHT)
1048 N210048043AA
REAR COVER(RIGHT) ﾘｱｶﾊﾞｰ(RIGHT)
1
050 108621257401
SIDE COVER(RIGHT) ｻｲﾄﾞｶﾊﾞｰ(RIGHT)
1
053 108621257701
BRACKET ﾌﾞﾗｹｯﾄ
P-18,SCREW-TYPE
1
N001
N986P18Y-023
INDICATING PLATE ﾊﾟﾅｿﾆｯｸﾏｰｸ
5 External toothed Ste
12
N002
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M5X8-4.8 A2J (Trivalen
2
N003
N510018302AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
UST5-25
2
N007
N986UST525
BOLT ﾎﾞﾙﾄ
C-30-SG-24A,WHITE
1
N008
N980C30S-065
GROMMET ｸﾞﾛﾒｯﾄ
JB-AM5X8
10
N010
N986JBAM58
BOLT ﾎﾞﾙﾄ
M5X12
10
N011
N986YYYY-814
CAP ｷｬｯﾌﾟ
M4X8-4.8 A2J (Trivalen
4
N012
N510018282AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
NPEM5-10
2
N014
N986NPEM510
KNOB ﾉﾌﾞ
M22-PV/K02 S
1
N015
N306M22PVK02
SWITCH ｽｲｯﾁ
KG-010
1
N019
N348KG010
BUSHING ﾌﾞｯｼｭ
C-30-RK-10-UL
4
N020
N980C30R-123
RUBBER LEG ｺﾞﾑｱｼ
M2.5X5-12.9 SOB
4
N021
XVE25B5FTC
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
APN122DNS-TK2310
1
N022
N222APN1-049
LAMP ﾗﾝﾌﾟ
C-30-SG-16A,WHITE
2
N023
N980C30S-034
GROMMET ｸﾞﾛﾒｯﾄ
EH0512 (Trivalent)
2
N031
N510024897AA
BOLT ﾎﾞﾙﾄ
D4NS-1BF S
1
N033
N510015338AA
SWITCH ｽｲｯﾁ
ST13.5
1
N035
KXF06F4AA00
JOINT ｼﾞｮｲﾝﾄ
FUN-065
1
N038
N510004430AA
POCKET ﾎﾟｹｯﾄ
APN106L-S PN05
1V 1 N222APN1-050
LENS ﾚﾝｽﾞ
LSTD-2S
1V 2 N223LSTD2S
LED LED
M12
FN610031688AA_03-1
ｶﾊﾞｰ部(2)
COVER SECT.(2)
2
FN610031688AA_03-2
M13
