PART NAME REMARKS Q'TY 6 ﾌﾟﾘﾝﾄ基板ｻﾎﾟｰﾄ部(1) P.C.B. SUPP ORT SECT. (1) ｲﾗｽﾄ No. REF No. PART No. 部 品 名 品 番 個数 備 考 R 1 R 2 1 1086216000 P.C. BOARD S UPPORT UN IT P.C.B.ｻﾎﾟｰﾄﾕﾆｯ ﾄ 1 002 108621600204 FRAME ﾌﾚｰﾑ 2 003 1086…

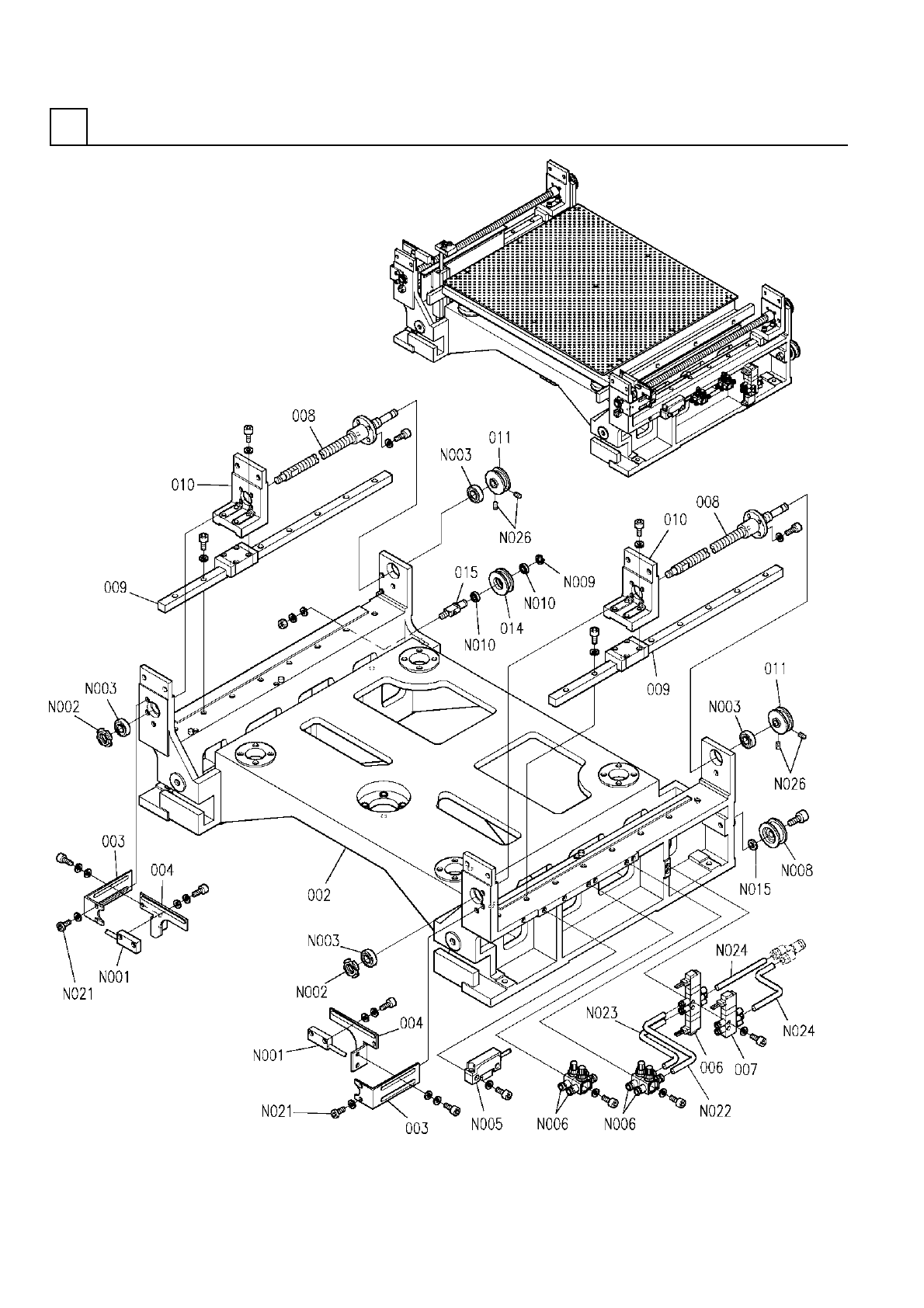

ﾌﾟﾘﾝﾄ基板ｻﾎﾟｰﾄ部(1)
P.C.B. SUPPORT SECT.(1)
6
F10862-16-000-AF_03-1
M49
PART NAME
REMARKS
Q'TY
6
ﾌﾟﾘﾝﾄ基板ｻﾎﾟｰﾄ部(1)
P.C.B. SUPPORT SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品 番 個数 備 考
R
1
R
2
1 1086216000
P.C. BOARD SUPPORT UNIT P.C.B.ｻﾎﾟｰﾄﾕﾆｯﾄ
1
002 108621600204
FRAME ﾌﾚｰﾑ
2
003 108620603501
BRACKET ﾌﾞﾗｹｯﾄ
2004 108620603601
BRACKET ﾌﾞﾗｹｯﾄ
1006 1047005235
VALVE ﾊﾞﾙﾌﾞ
1
007 1047005234
VALVE ﾊﾞﾙﾌﾞ
2
008 N210028195AA
SCREW ｽｸﾘｭｰ
1009 1086216009
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
2010 108620601004
BRACKET ﾌﾞﾗｹｯﾄ
2
011 N210028038AA
PULLEY ﾌﾟｰﾘｰ
1014 1086206014
PULLEY ﾌﾟｰﾘｰ
1015 108620601501
PIN ﾋﾟﾝ
P919T
2
N001
N310P919T
SWITCH ｽｲｯﾁ
FU00SC
2
N002
KXF0230AA00
NUT ﾅｯﾄ
6000ZZC2P5
4
N003
N510003135AA
BEARING ﾍﾞｱﾘﾝｸﾞ
E3C-JC4P
1
N005
N310E3CJC4P
AMPLIFIER ｱﾝﾌﾟ
AS1000F-04
4
N006
N406AS10-032
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ
TPBSN38-15
1
N008
N648TPBS-053
PULLEY ﾌﾟｰﾘｰ
ISTW-10
1
N009
N510003747AA
SNAP RING ﾏﾙSｶﾞﾀﾄﾒﾜ
6800ZZ
2
N010
KXF00M6AA00
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
WSSB15-10-5
1
N015
N560WSSB-261
WASHER ｻﾞｶﾞﾈ
M4X10
4
N021
N986YYYY-M24
BOLT ﾎﾞﾙﾄ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
TU0425Y
1
N022
N434TU0425Y
TUBE ﾁｭｰﾌﾞ
TU0425B
1
N023
N434TU0425B
TUBE ﾁｭｰﾌﾞ
TU0604B
1
N024
N434TU0604B
TUBE ﾁｭｰﾌﾞ
M5X8-45H A2J (Trivalen
4
N026
N510018384AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
M50
F10862-16-000-AF_03-1
ﾌﾟﾘﾝﾄ基板ｻﾎﾟｰﾄ部(2)
P.C.B. SUPPORT SECT.(2)
6
F10862-16-000-AF_03-2
M51
