ﾌﾟﾘﾝﾄ基板搬送部(ｼｬﾌﾄ部)
P. C. B. TRANSFER SECT.(SHAFT SECT.)
5
F10862-15-000-AG_02-2
M43
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
5
ﾌﾟﾘﾝﾄ基板搬送部(ｼｬﾌﾄ部)
P. C. B. TRANSFER SECT.(SHAFT SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 名 品　 番 個数 備 考
R
1
R
2
1007 108075900701
GEAR ｷﾞﾔｰ
1
012 108075901901
BUSHING ﾌﾞｯｼｭ
1
013 1080759009
GEAR ｷﾞﾔｰ
1030 108621503002
SHAFT ｼｬﾌﾄ
1031 108620533101
PLATE ﾌﾟﾚｰﾄ
1
032 108620533201
PLATE ﾌﾟﾚｰﾄ
1
033 108620523303
PLATE ﾌﾟﾚｰﾄ
1034 1086205234
BRACKET ﾌﾞﾗｹｯﾄ
2035 108620523501
PLATE ﾌﾟﾚｰﾄ
1
036 1086205336
HOUSING ﾊｳｼﾞﾝｸﾞ
1038 1086205238
PLATE ﾌﾟﾚｰﾄ
1039 1086205239
COVER ｶﾊﾞｰ
1
040 1080759010
PULLEY ﾌﾟｰﾘｰ
MOPC3917
1
N005
M0PC3917
CAP FOR CAPACITOR ｺﾝﾃﾞﾝｻｷｬｯﾌﾟ
MB022000
2
N008
N648MB022000
PULLEY ﾌﾟｰﾘｰ
M6X12
4
N011
N986YYYY-R80
BOLT ﾎﾞﾙﾄ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
MB026000
6
N012
N648MB026000
PULLEY(TENSION) ﾌﾟｰﾘｰ(ﾃﾝｼｮﾝ)
TA-4NB R/F 4.5WX1890
2
N018
N641TA4N1890
BELT ﾍﾞﾙﾄ
F626ZZ
1
N019
XLCNF626ZZ
BEARING ﾍﾞｱﾘﾝｸﾞ
M4X6,STEEL
1
N020
XXE4D6FW
SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
MX7G12.5BA
1
N022
MX7G12.5BA
GEAR HEAD ｷﾞﾔｰﾍｯﾄﾞ
M7RX15G4L
1
N023
M7RX15G4L
MOTOR ﾓｰﾀ
698ZZ
1
N024
XLCN698ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
8,STEEL,P.C
1
N025
XUB8FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
20,STEEL,P.C
1
N026
XUB20FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
6804ZZ
2
N027
XLCN6804ZZ
BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M5X45-10.9 A2J (Trival
4
N028
N510017407AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X12-45H A2J (Trivale
1
N229
N510018366AA
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
MZAX040
1
V 1 MZAX040
CAPACITOR ｺﾝﾃﾞﾝｻ
M44
F10862-15-000-AG_02-2

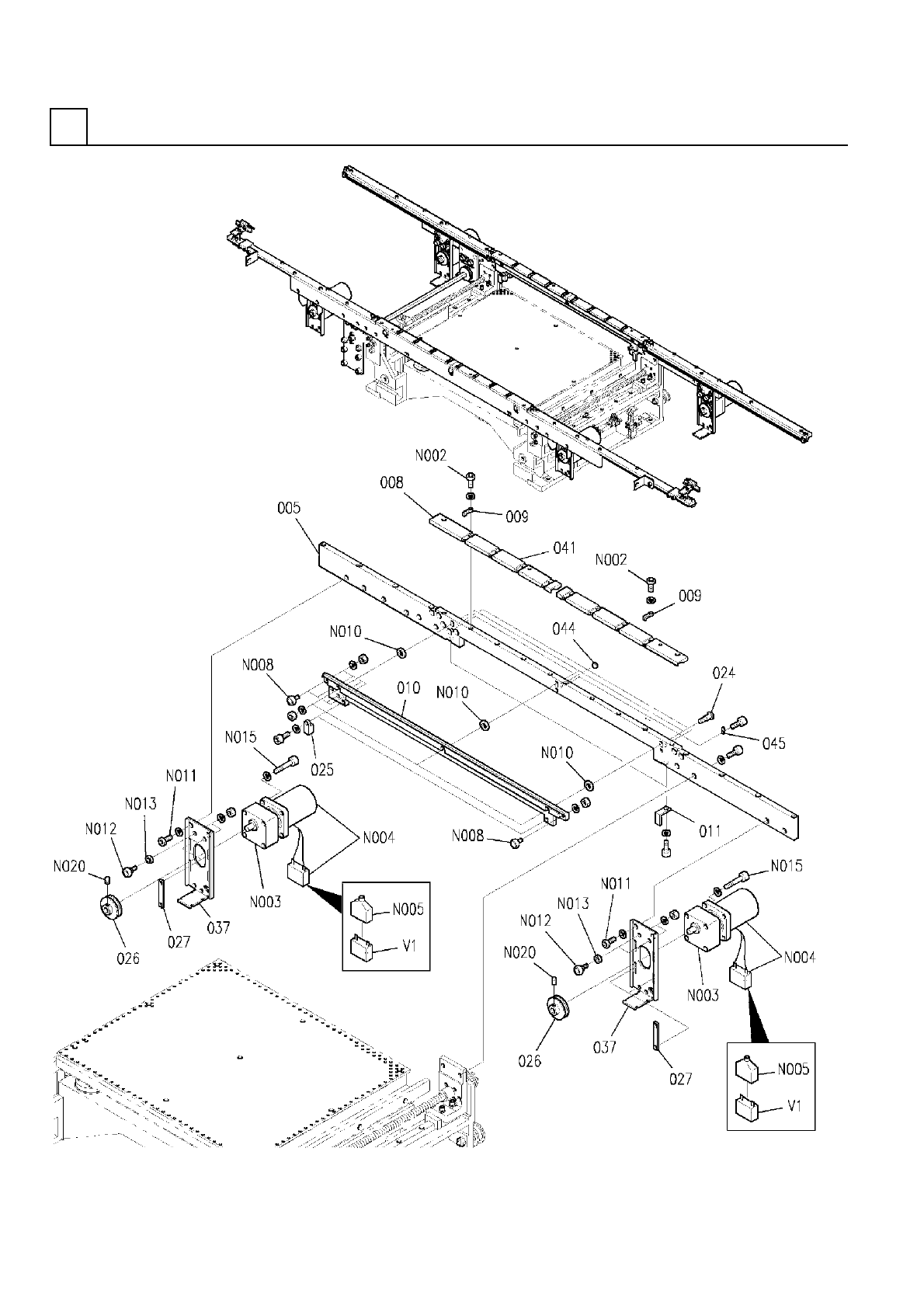

ﾌﾟﾘﾝﾄ基板搬送部(可動側)
P. C. B. TRANSFER SECT.(MOVABLE SIDE)
5
F10862-15-000-AG_02-3
M45
