SP22P Mechanical20091001.pdf - 第113页

1 11DJC211012 GUIDE 2 2 11DJC211032 FRAME 1 3 11DJC211050 PULLEY 2 4 5 6 7 8 11DJC211062 BRACKET 2 9 11DJC261060 DOG 1 10 11DJC261080 PW109A1 1 11 KXF02VHAA00 MOTOR M61A6G4L 2 12 KXF0890AA00 GEAR-HEAD M6GA6B 2 13 11DJC28…

1 11DJC211012 GUIDE 2

2 11DJC211032 FRAME 1

3 11DJC211050 PULLEY 2

8 11DJC211062 BRACKET 2

9 11DJC261060 DOG 1

10 11DJC261080 PW109A1 1

11 KXF02VHAA00 MOTOR M61A6G4L 2

12 KXF0890AA00 GEAR-HEAD M6GA6B 2

13 11DJC281031 SCREW TMR12-R×491(DA) 1

14 KXF03G0AA00 BEARING SFB38-10 2

15 KXF07TDAA00 T-BELT 006-F10-1125Z-JVYY 2

19 KXF06G5AA00 NUT TTM12-R 1

20 11DJC261111 BRACKET 2

22 11DJC211310 GUIDE 1

23 11DJC281360 CAM-FOLLOWER CF4-28WVBE02(DA) 4

24 11DJC281370 CAM-FOLLOWER CF5-28WVBE01(DA) 4

25 KXF04KSAA00 SCREW Hexagon socket set screw M5×8L 4

番号

ＭＯ機番

ユニット名称

左搬送ｺﾝﾍﾞｱ:SP22P-M

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

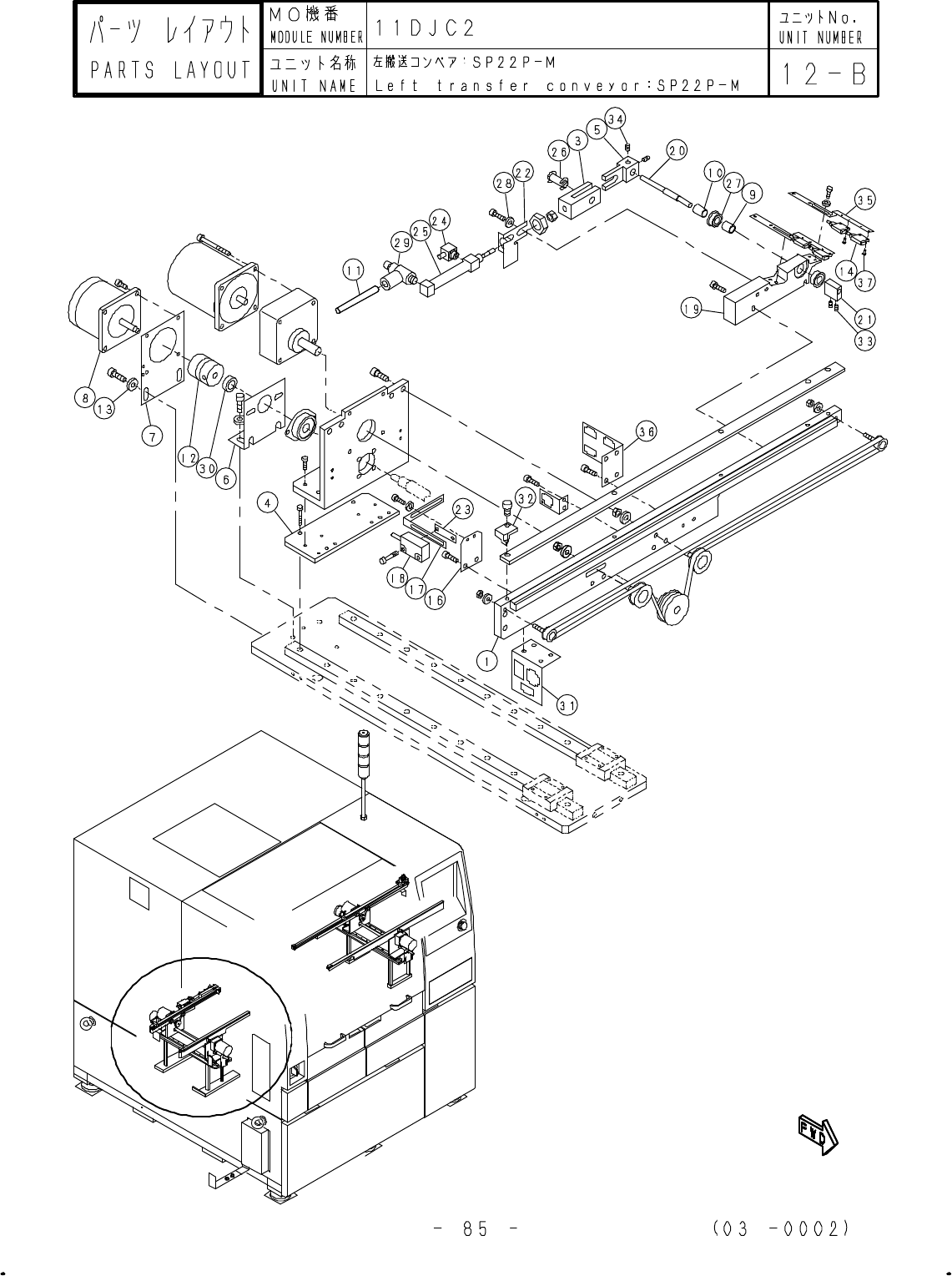

Left transfer conveyor:SP22P-M

PART LIST

MODULE NUMBER

パーツリスト

11DJC2M0000

12-A

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −84 02 0001−（）
