1 18A4C011020 BAR 4 2 18A4C011031 PLATE 1 3 18A4C011050 BRACKET 4 4 18A4C011060 PLATE 5 5 18A4C011071 PLATE 5 6 18A4C011080 PAD 29 7 18A4C081010 RAIL AFD3090B-270(DA) 1 8 KXF082UAA00 CYLINDER CXSL15-15-Z73S 1 9 KXF00YSAA…

1 18A4C011020 BAR 4

2 18A4C011031 PLATE 1

3 18A4C011050 BRACKET 4

4 18A4C011060 PLATE 5

5 18A4C011071 PLATE 5

6 18A4C011080 PAD 29

7 18A4C081010 RAIL AFD3090B-270(DA) 1

8 KXF082UAA00 CYLINDER CXSL15-15-Z73S 1

9 KXF00YSAA00 SPEED-CONTROLLER AS1211F-M5-04 2

10 KXF07D1AA00 VALVE SY3120-5LOZ-M5 1

11 KXF07CXAA00 GASKET SY3000-11-3 1

12 KXF08D8AA00 SCREW SY3000-23-4 2

13 KXF02D3AA00 JOINT KQS04-M5 2

14 KXF04VPAA00 NUT Hexagon nut M6 3-type 4

15 KXF0779AA00 KNOB KNM-24-M6×16 4

16 18A4C081110 SCREW Hexagon socket head fixing screw M3×4L 29

17 18A4C081120 SCREW Hexagon socket head fixing screw M4×8L 29

18 18A4C081130 PIN C-20E φ2.6 53L(DA) 29

19 18A4C011110 PLATE 1

21 18A4C011100 BRACKET 4

22 KXF05PNAA00 KNOB Round knob M3 10

23 18A4C081160 TUBE TFU0425B-2(1.5m) 1

番号

ＭＯ機番

ユニット名称

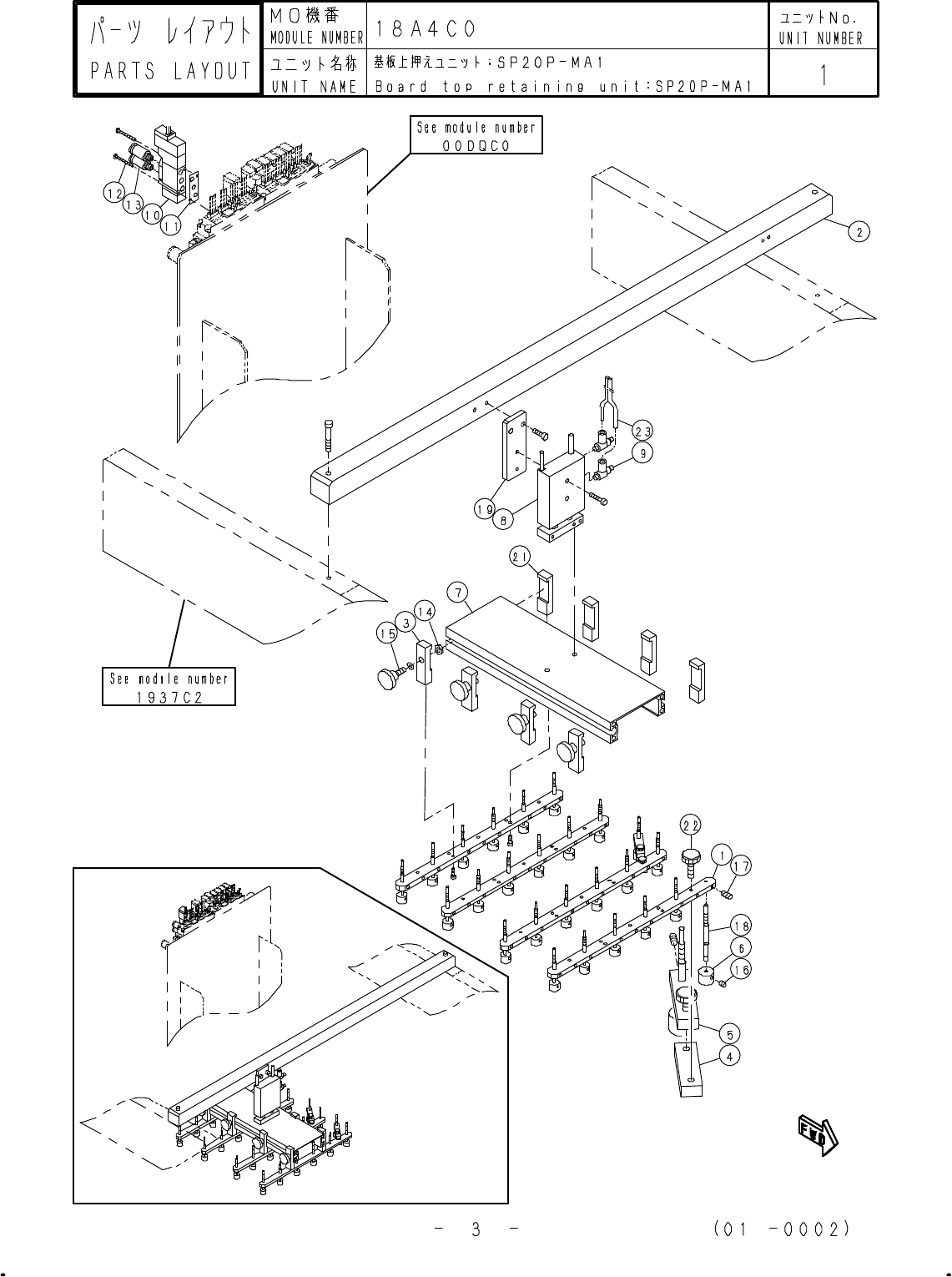

基板上押えﾕﾆｯﾄ:SP20P-MA1

UNIT NAME

PART NUMBER

品番部品名型式数量ﾗﾝｸ備考

Board top retaining unit:SP20P-MA1

PART LIST

MODULE NUMBER

パーツリスト

18A4C0M0000

UNIT NUMBER

ユニットＮｏ.

PART NAME TYPE Q'TY RANK REMARKS

− −4 02 0002−（）
