4. AUTO OPN. Window
0311-001 8 Tg0979-PM-SO
4. AUTO OPN. Window
When the [AUTO OPN.] button is pressed in the "AUTO OPN." window
(submenu), the following window appears.
Note

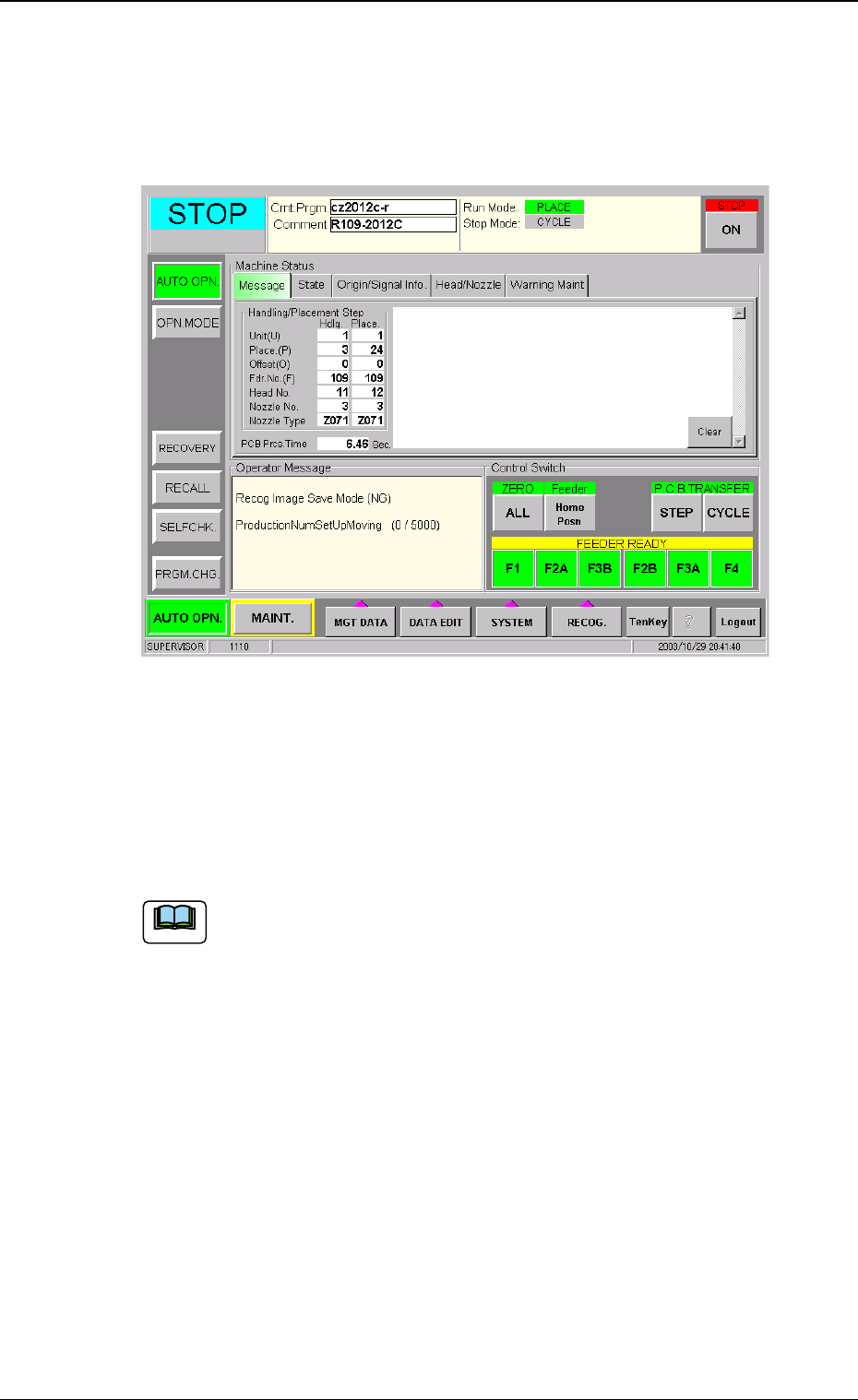

Fig. 3
During operation with this function, the data is displayed on the "AUTO
OPN." window (Fig. 3).
• "Production Num Set Up Moving: (Number of Produced Unit P.C.B.s/
Specified Number of Unit P.C.B.s to be produced)" is displayed on the
"Operator Message" data box.
When the "MODE" of "Product PCB Set Mode" is set to "Dis-
able", the above is not displayed.
(a) It is not an actual error, but it is used to alert the operator.
(b) When the specified number of Unit P.C.B.s to be pro-
duced is reached and the machine is stopped, then a
recovery operation is needed, such as removing the
P.C.B.s on the input/transfer conveyor in the main ma-
chine.
(c) When the specified number of Unit P.C.B.s to be pro-
duced has been reached, then the Unit P.C.B.s without
component placement on the final P.C.B. are counted as
defective Unit P.C.B.
5. End of Production
0311-001 9 Tg0979-PM-SO
5. End of Production

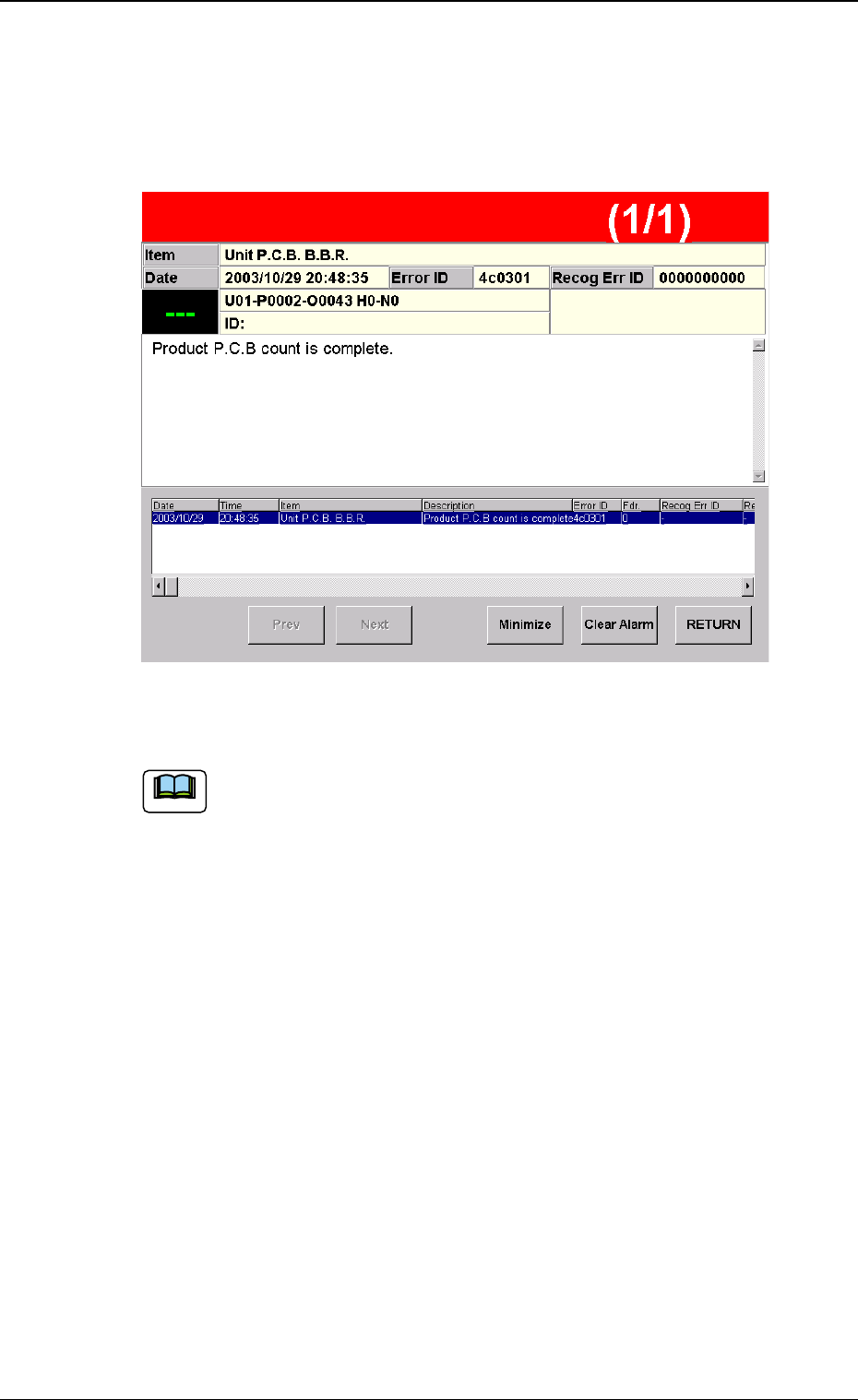

When the production of the final P.C.B. is completed, it is announced on
the Error Window that the specified number has been reached (Fig. 4).
Fig. 4
Note
6. Re-starting Operation
0311-001 10 Tg0979-PM-SO
6. Re-starting Operation
When the [START] button is pressed, the operation is re-started.
When the [START] button is pressed while "Total number of produced
Unit P.C.B.s is more than specified number of Unit P.C.B.s to be pro-
duced" is shown, then the operation can not be re-started on the
"CHECK" window in Fig. 5.
• In that case, either the "P.C.B. Counter" should be cleared to "0" or
the "Product PCB Set Mode" should be set to "Disable" on the
"P.C.B. COUNTER DETECTION MODE" window (Fig. 1).
Fig. 5
(a) When the semi-automatic start/Warm start is used, the
alarm is not available.
The recovery operation due to the operation stop is
allowed.
(b) When the automatic operation is manually stopped or the
semi-automatic operation is set, then manual recovery by
the operator is required because the number of Unit
P.C.B.s (number of components to be placed) has not
been obtained.
Note
