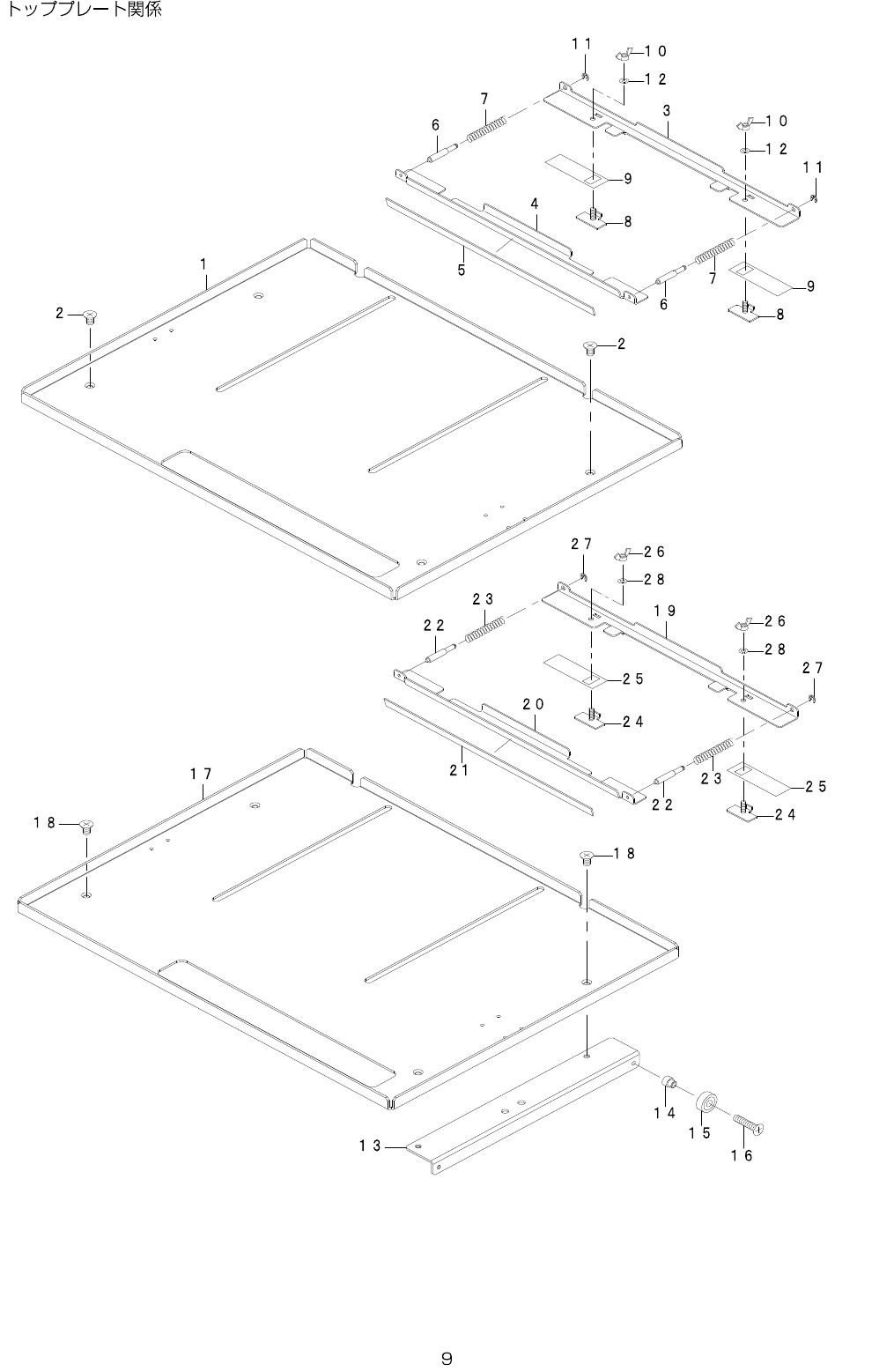

5. TOPPLATECOMPONENTS
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 400-49013 TOPPLATE(ST) 1
2 SM-1030501-SC SCREWM3L=5 4
3 E1570-726-000 TRAYHOLDER(ST) 1
4 E1571-726-000 TRAYCLAMP 1
5 E1572-726-000 TRAYCLAMPSHEET 1
6 E1573-726-000 TRAYCLAMPSH 2
7 E1574-726-000 TRAYCLAMPSP4N 2
8 E1575-726-000 HOLDERSDPLATEB 2
9 E1582-726-000 HOLDERSHEET 2
10 NM-9030001-SC WINGNUTM3X0.5TYPE1 2
11 RE-0200000-K0 E-RING2 2
12 WS-0310002-KN SPRINGWASHERM3 2
13 401-91541 ROLLER_PLATE 1
14 E1153-723-000 ROLLERSTUD 2
15 SB-1050003-00 BEARING 2
16 SM-1031401-SC SCREWM3X0.5L=14 2
17 400-49013 TOPPLATE(ST) 1
18 SM-1030501-SC SCREWM3L=5 4
19 E1570-726-000 TRAYHOLDER(ST) 1
20 E1571-726-000 TRAYCLAMP 1
21 E1572-726-000 TRAYCLAMPSHEET 1
22 E1573-726-000 TRAYCLAMPSH 2
23 E1574-726-000 TRAYCLAMPSP4N 2
24 E1575-726-000 HOLDERSDPLATEB 2
25 E1582-726-000 HOLDERSHEET 2
26 NM-9030001-SC WINGNUTM3X0.5TYPE1 2
27 RE-0200000-K0 E-RING2 2
28 WS-0310002-KN SPRINGWASHERM3 2
- -
